Product Description

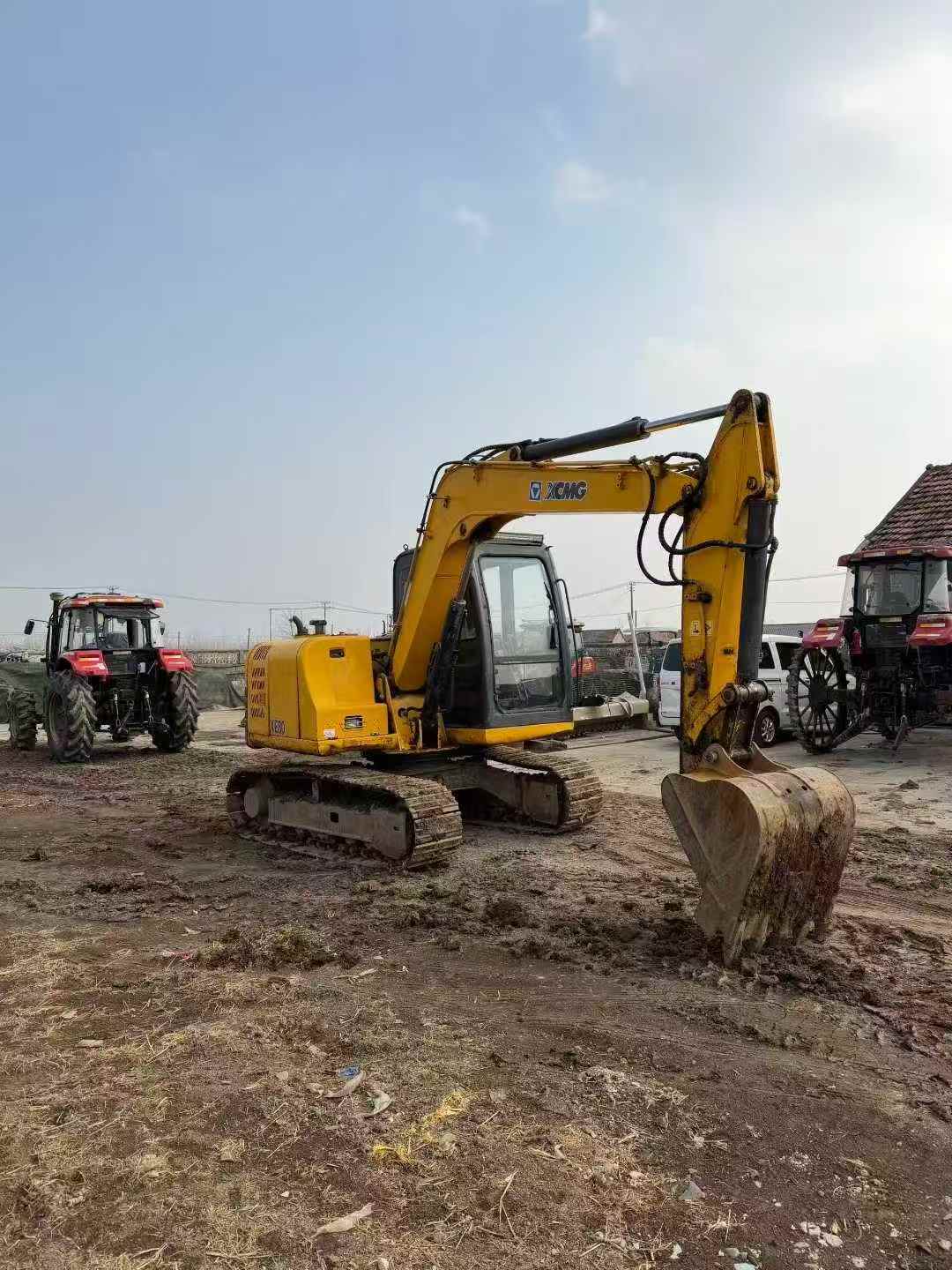

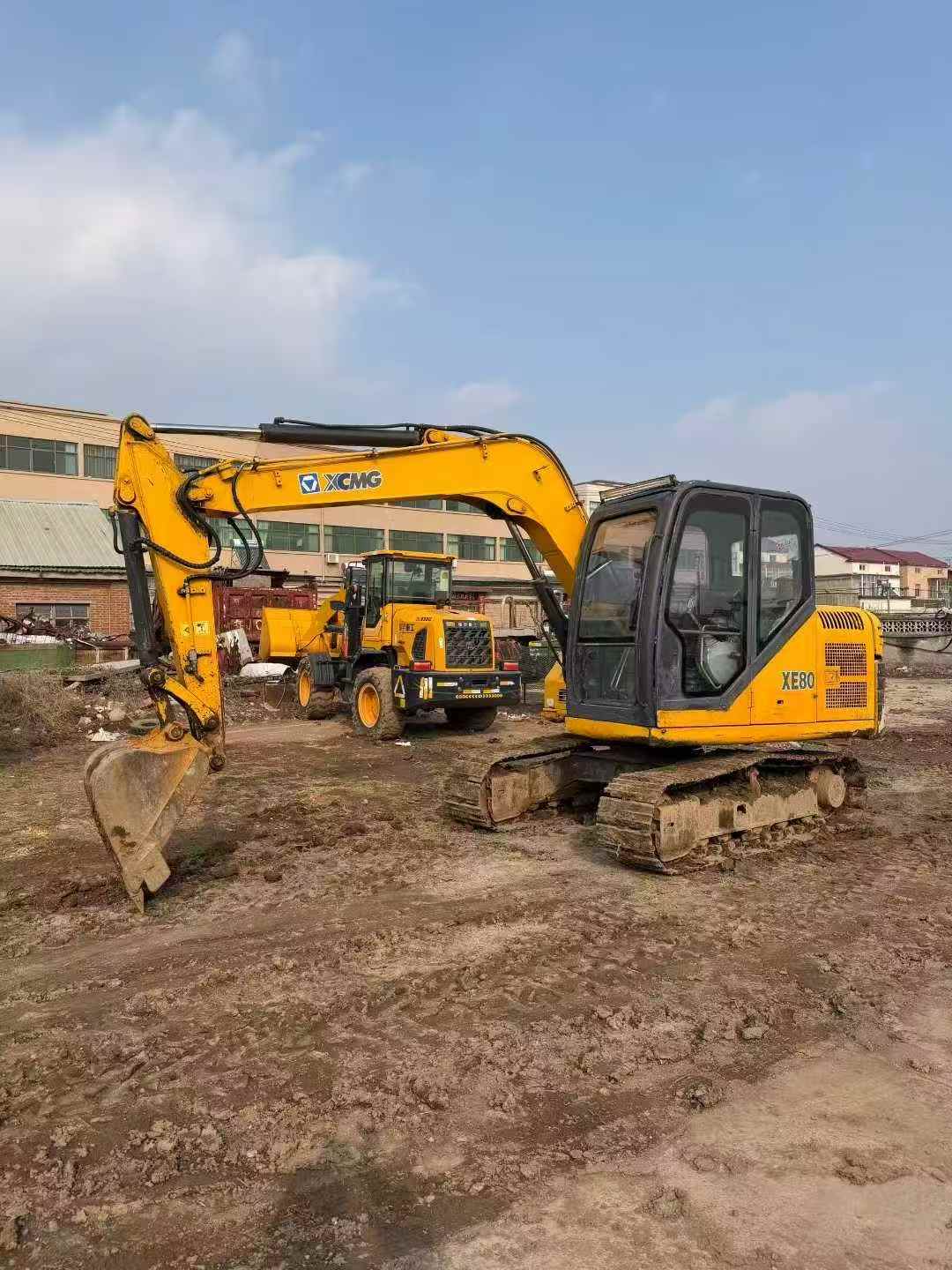

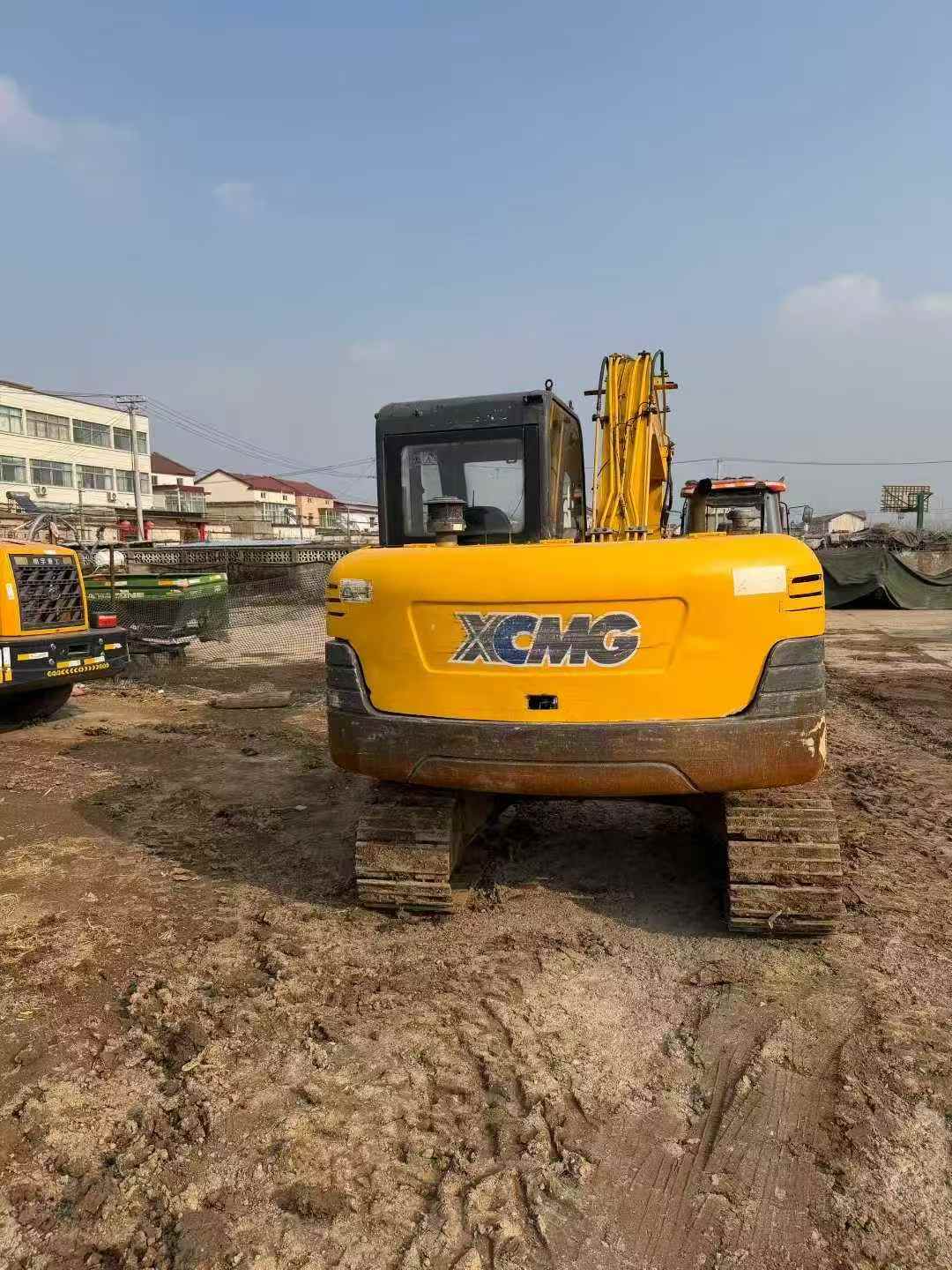

Proven in thousands of jobsites worldwide, this 2013 XCMG XE80 excavator delivers the reliability contractors demand from China's leading heavy equipment manufacturer. Operating at 8 tons with a robust 7,425 kg working weight, this compact machine combines a Cummins B3.3 engine (60 kW/2200 rpm) with Toshiba variable pump technology for consistent hydraulic performance across demanding applications.
XCMG's market dominance translates directly into lower ownership costs. Parts availability remains exceptional even for 2013 models, with global distribution networks ensuring minimal downtime. Resale values hold strong due to brand recognition and proven durability in secondary markets.
- Maximum Digging Depth: 4,140 mm with 6,375 mm reach radius
- Bucket Digging Force: 53.6 kN for tough excavation tasks
- Hydraulic System: 27.4 MPa main overflow pressure, 198 L/min flow rate
- Mobility: 35° climbing ability, 1,815 mm turning radius

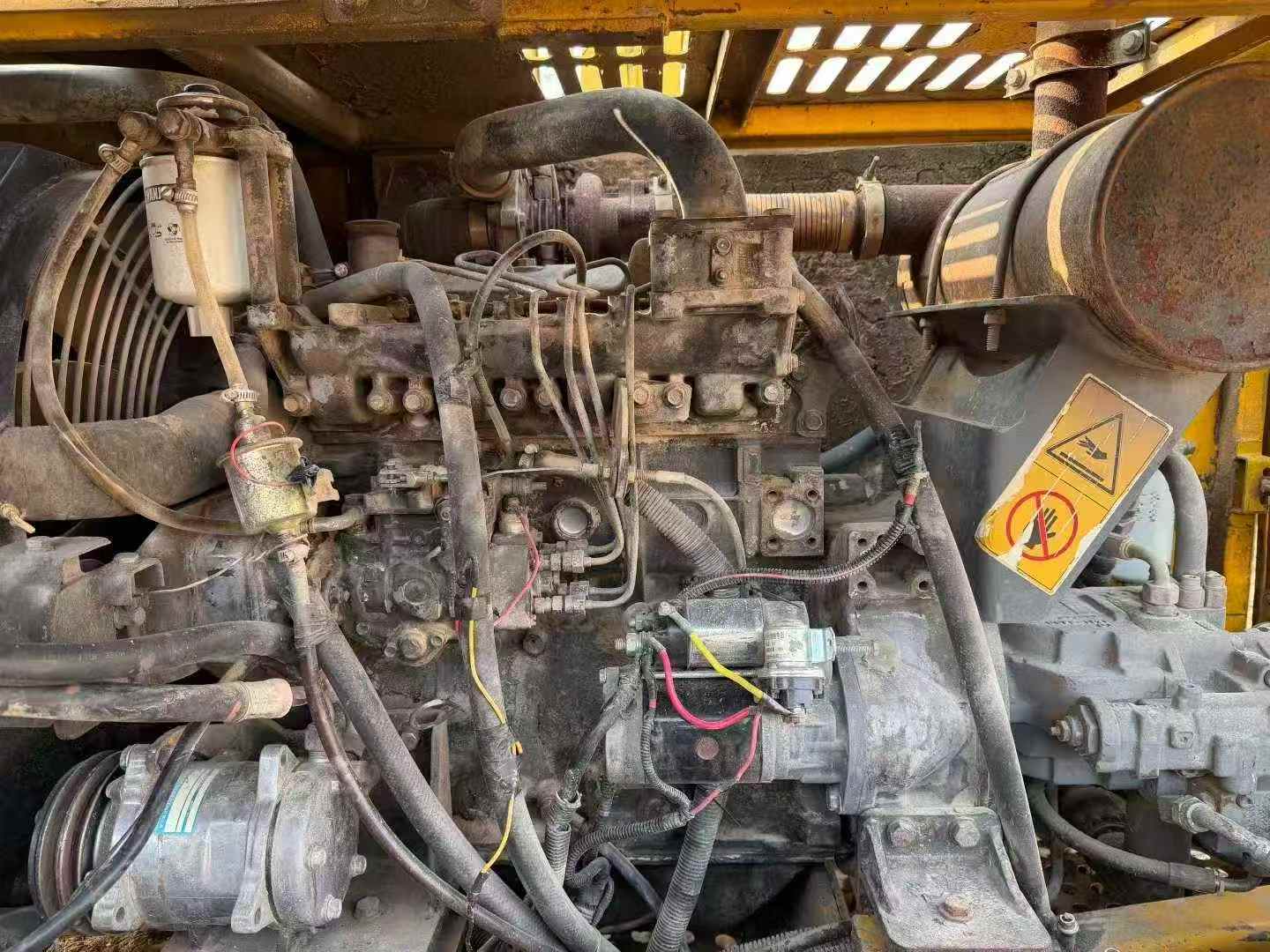

- Engine: Water-cooled 6-cylinder Cummins with turbocharger
Currently located in Jiangsu province, this Xuzhou-manufactured excavator represents smart investment
| Specifications | Value |
|---|---|
| No. | 1024312 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |

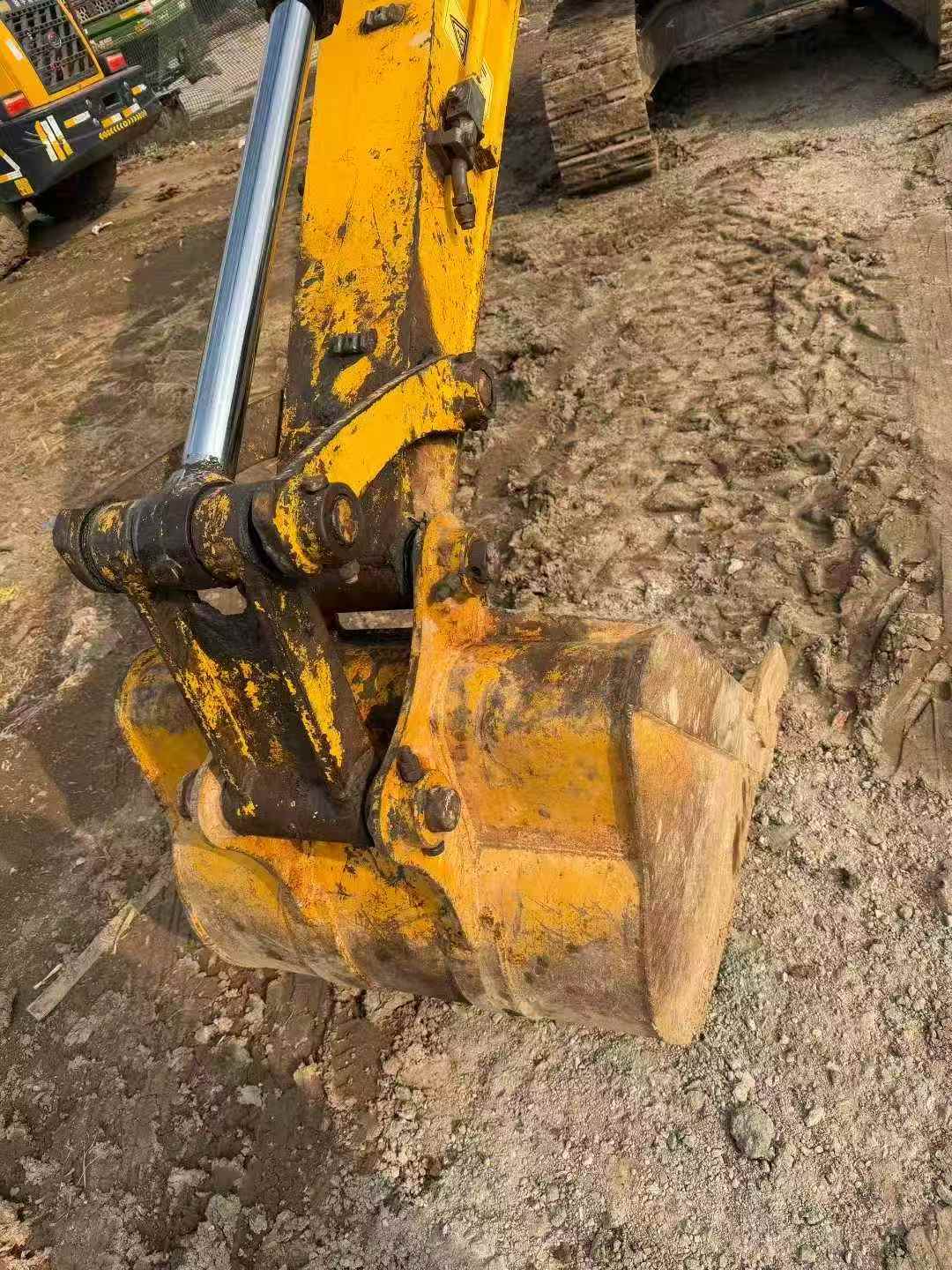

| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

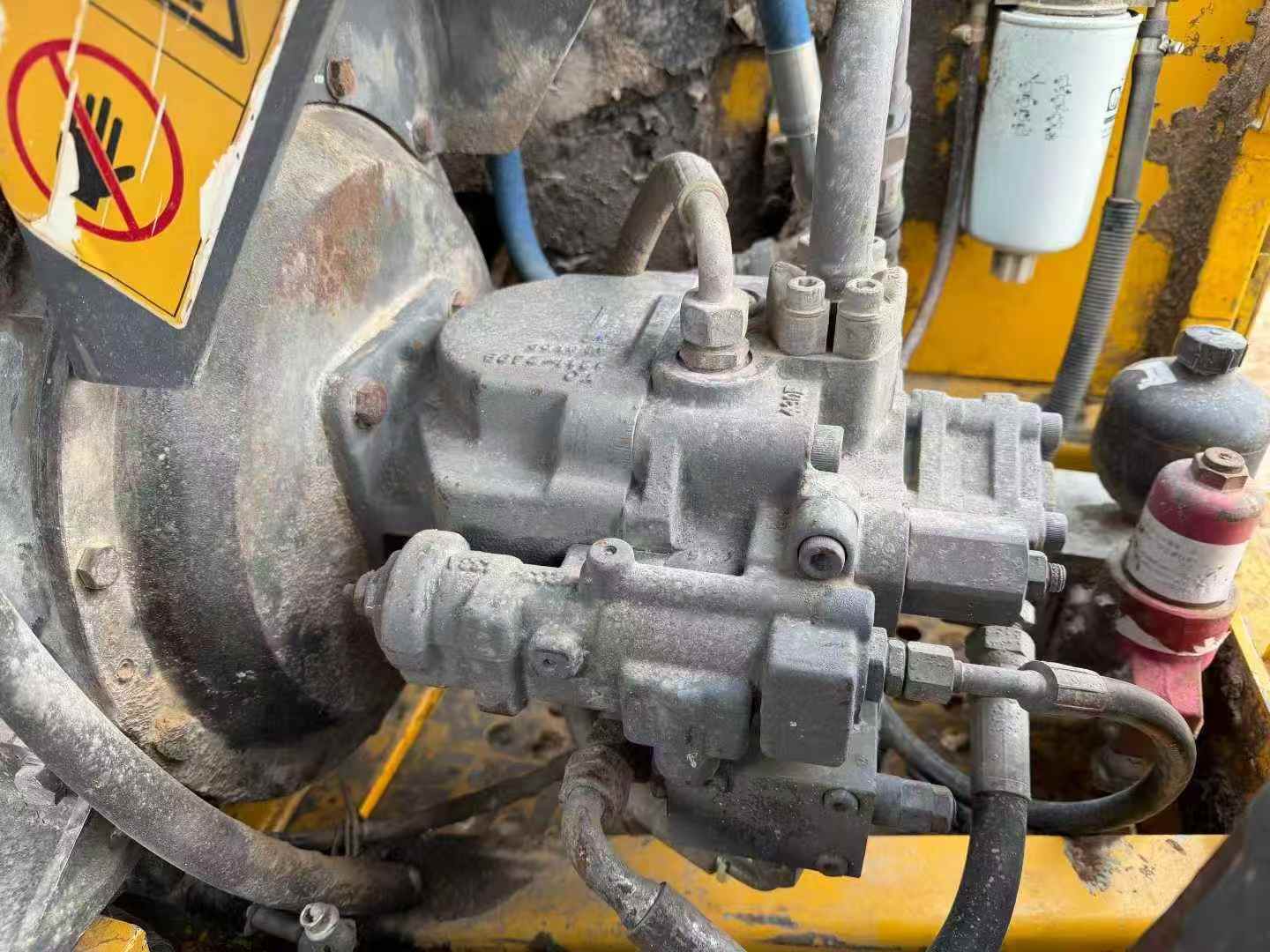

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
