2015 XCMG XE80

1/6

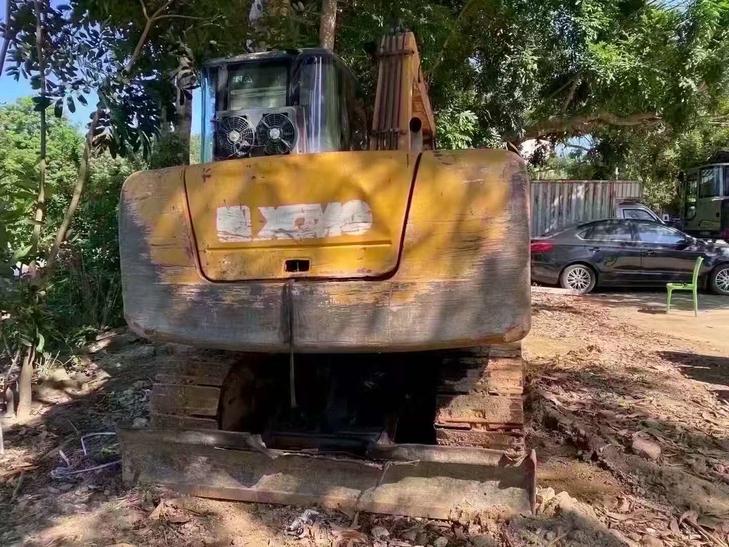

Buy XCMG XE80 Used Excavator / 1
Buy XCMG XE80 Used Excavator / 2
Buy XCMG XE80 Used Excavator / 3
Buy XCMG XE80 Used Excavator / 4

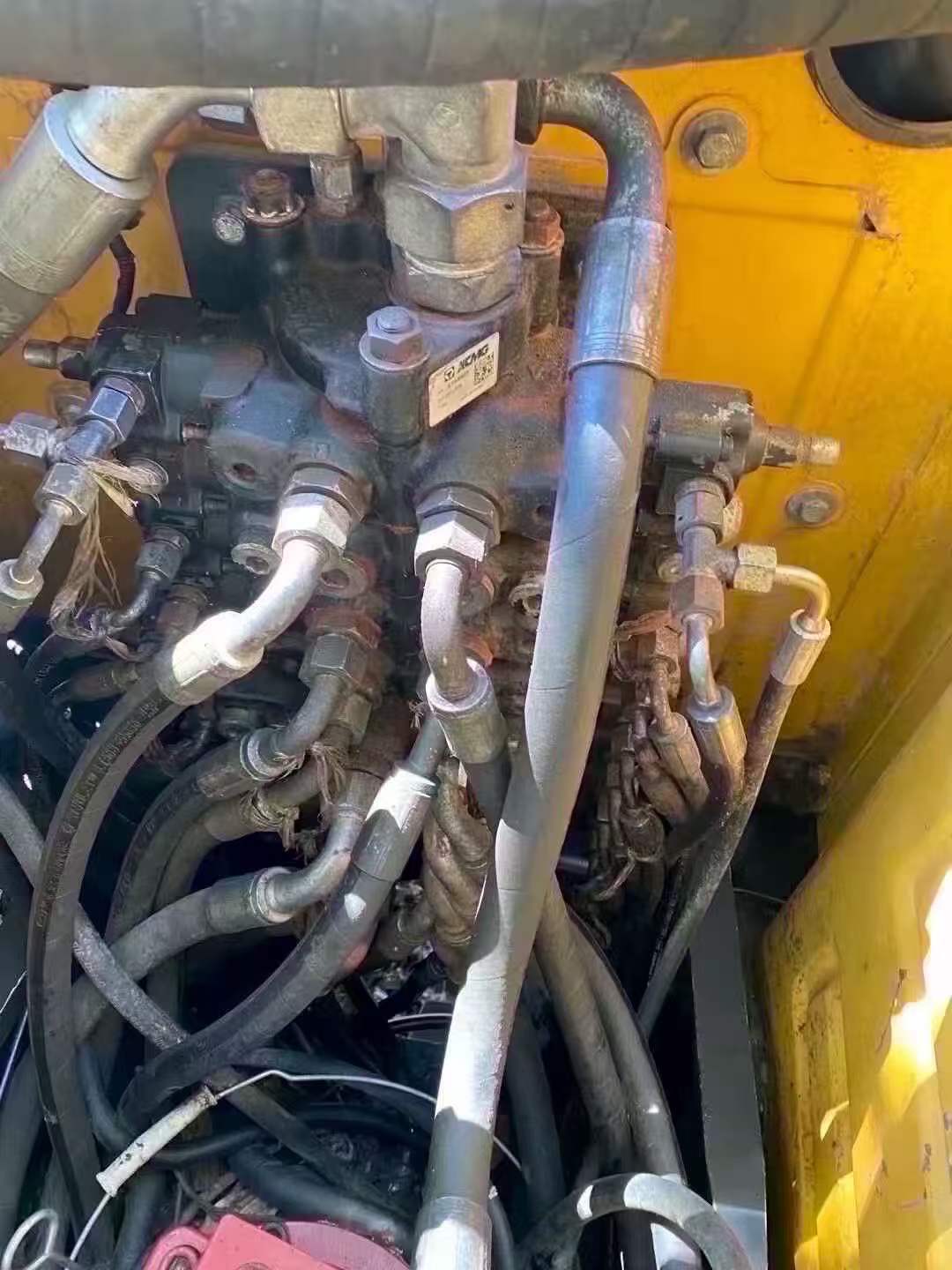

Buy XCMG XE80 Used Excavator / 5
Buy XCMG XE80 Used Excavator / 6

Product Description

Discover the reliability and durability of this 2015 XCMG XE80 excavator, currently available in Fujian, China. This used heavy machine is a robust choice for various construction and excavation projects, known for its efficiency and strong performance. Priced at 46,800 RMB, it includes a hydraulic clamp but does not come with a bucket, providing flexibility for customization according to your specific project needs. Ideal for businesses looking to enhance their fleet with a cost-effective solution, the XCMG XE80 delivers solid operation and easy maintenance, making it a valuable addition to any construction site.

  • Year: 2015
  • Brand: XCMG
  • Model: XE80
  • Location: Fujian, China
  • Price: 46,800 RMB

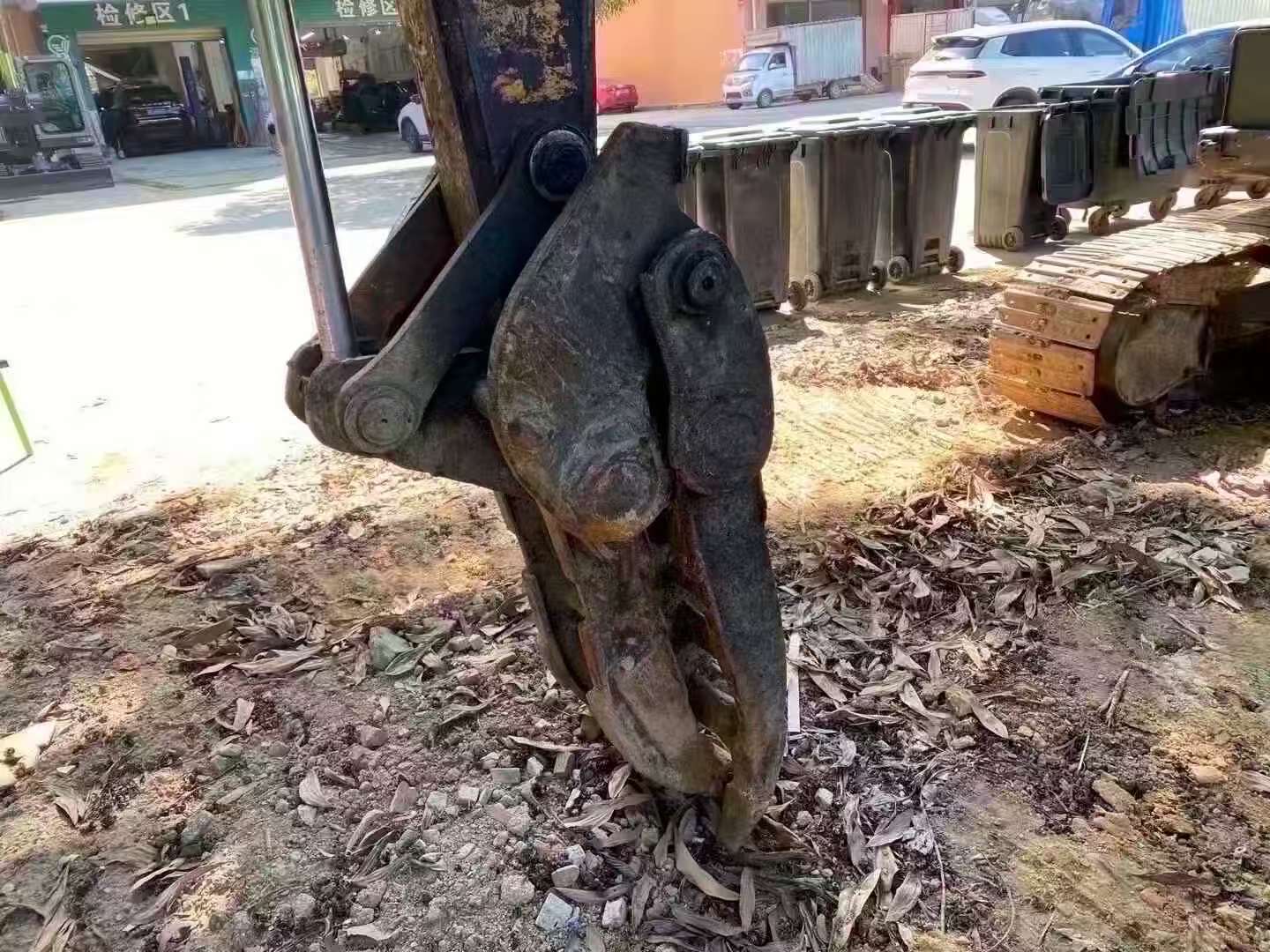

  • Includes: Hydraulic clamp (no bucket)
SpecificationsValue
No.1131709
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.1131709

Brand Name:

XCMG

Model Number:

XE80

Year:

2015

Location:

Fujian China

Pub Date
