HOME>>XCMG>>XCMG XE80

2017 XCMG XE80

1/9

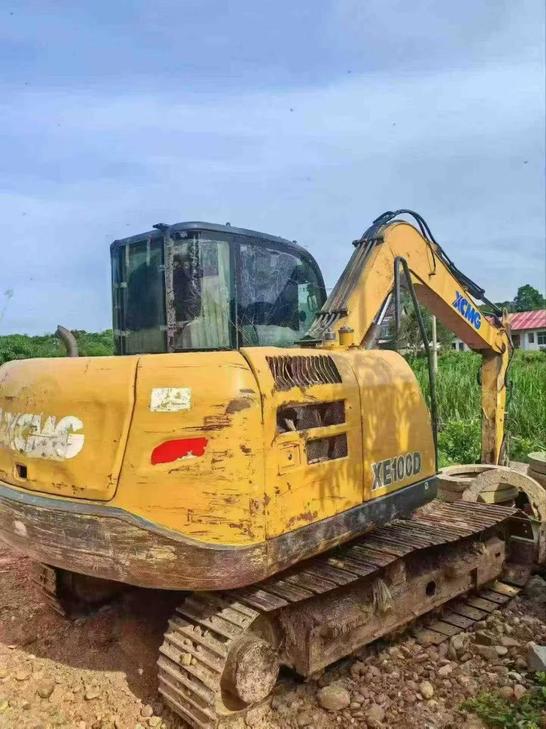

Buy XCMG XE80 Used Excavator / 1
Buy XCMG XE80 Used Excavator / 2
Buy XCMG XE80 Used Excavator / 3
Buy XCMG XE80 Used Excavator / 4

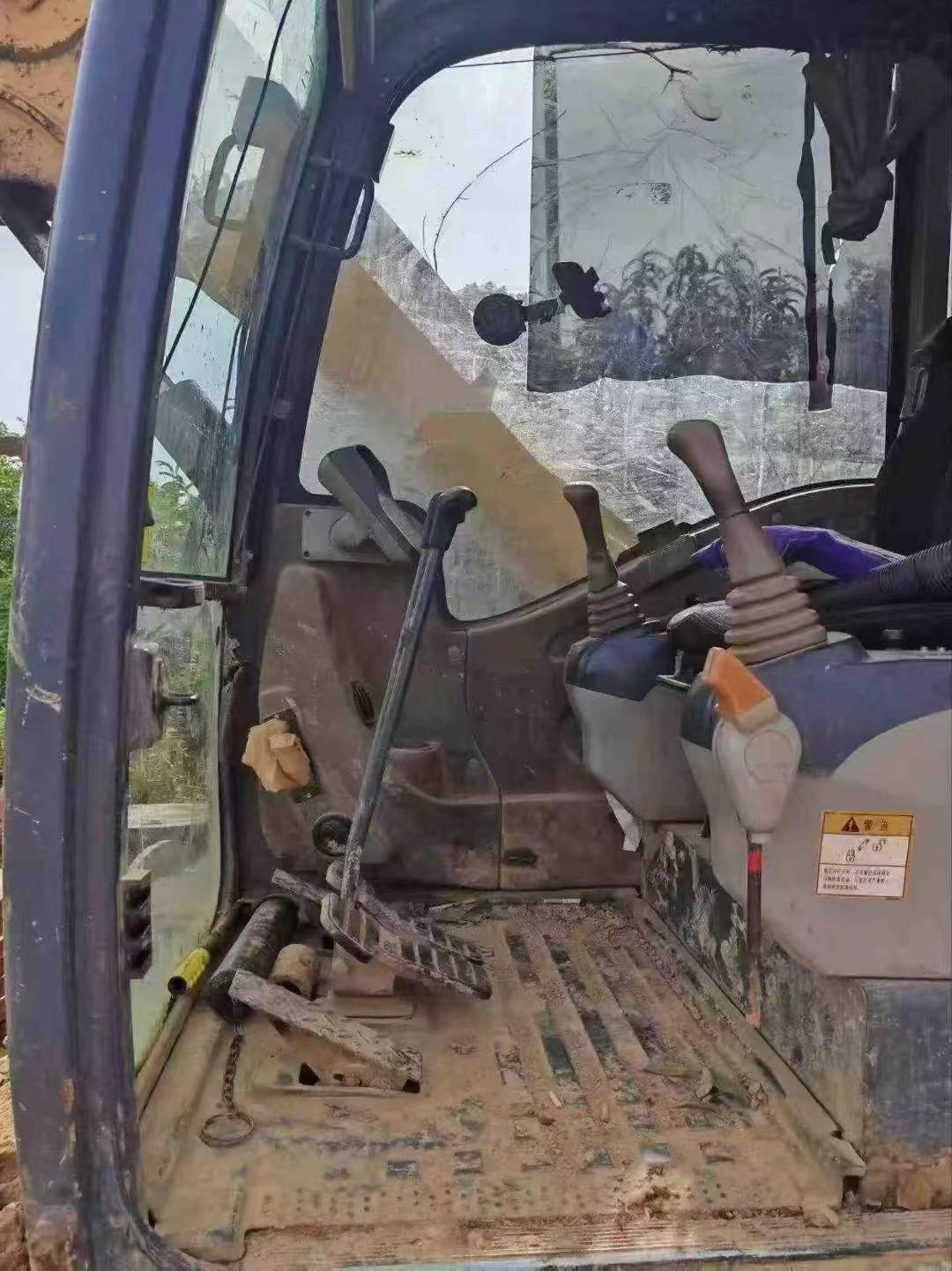

Buy XCMG XE80 Used Excavator / 5

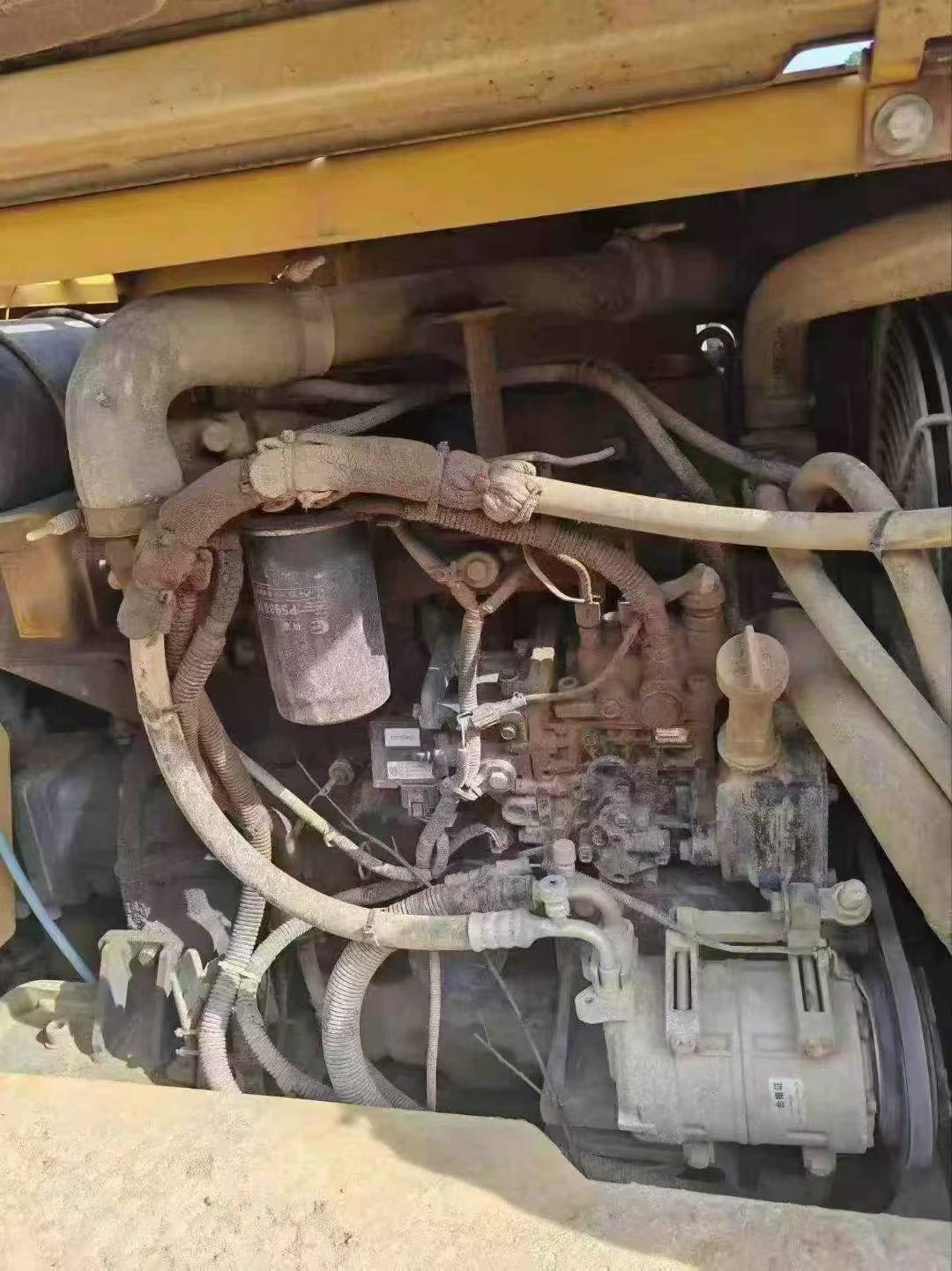

Buy XCMG XE80 Used Excavator / 6
Buy XCMG XE80 Used Excavator / 7

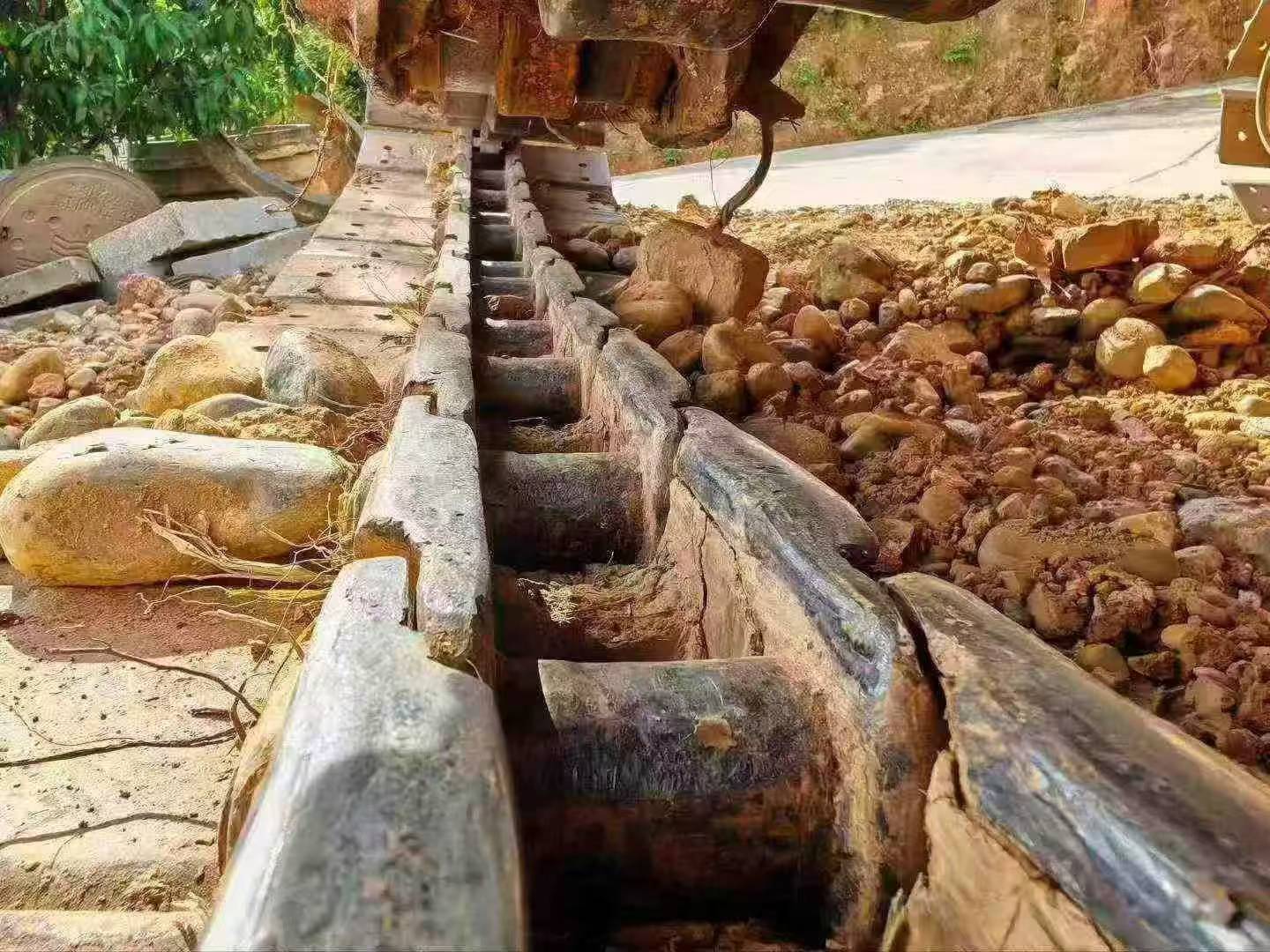

Buy XCMG XE80 Used Excavator / 8
Buy XCMG XE80 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2017 XCMG XE80, a robust excavator designed for demanding construction and excavation tasks. Located in Hunan, China, this machine has been meticulously maintained and is ready to meet your project needs. With a price tag of 68,000 RMB, it offers excellent value for money, combining durability with cost-effectiveness. The XE80 is known for its powerful performance, operator comfort, and easy maintenance, making it a preferred choice for contractors and construction firms.

  • Year: 2017
  • Brand: XCMG
  • Model: XE80
  • Location: Hunan, China
  • Price: 68,000 RMB
SpecificationsValue
No.1121354
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.1121354

Brand Name:

XCMG

Model Number:

XE80

Year:

2017

Location:

Hunan China
