2017 XCMG XE80

1/4

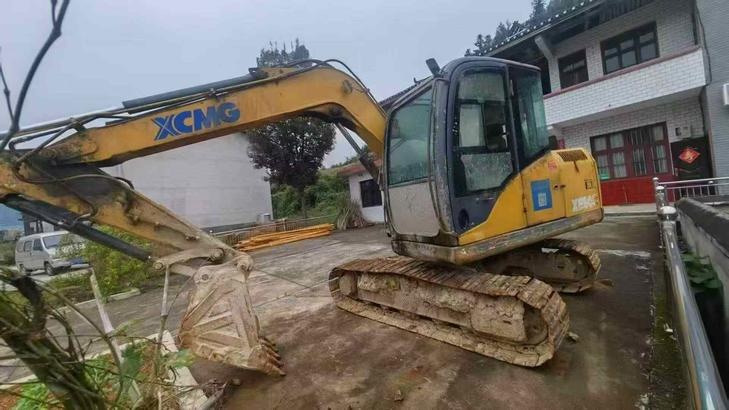

Buy XCMG XE80 Used Excavator / 1
Buy XCMG XE80 Used Excavator / 2
Buy XCMG XE80 Used Excavator / 3
Buy XCMG XE80 Used Excavator / 4

Product Description

This 2017 XCMG XE80 excavator represents a solid mid-size option for contractors seeking reliable performance at competitive value. The XE80 model delivers approximately 8-ton operating capacity, making it suitable for general construction, landscaping, and municipal projects. XCMG's established engineering provides dependable hydraulic systems and fuel efficiency in this weight class.

Currently located in Sichuan, China, this unit has been maintained in operational condition. The machine offers standard features expected in this category, including a robust undercarriage and operator cab designed for extended workdays.

  • Year of Manufacture: 2017
  • Manufacturer: XCMG
  • Model: XE80
  • Location: Sichuan Province, China
  • Approximate Operating Weight: 8 tons

Ideal for buyers seeking mid-range excavation equipment with proven Chinese manufacturing heritage. Contact us for current availability, additional specifications, and shipping arrangements to your location.

SpecificationsValue
No.1171471
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.1171471

Brand Name:

XCMG

Model Number:

XE80

Year:

2017

Location:

Sichuan China

Pub Date:
