Product Description

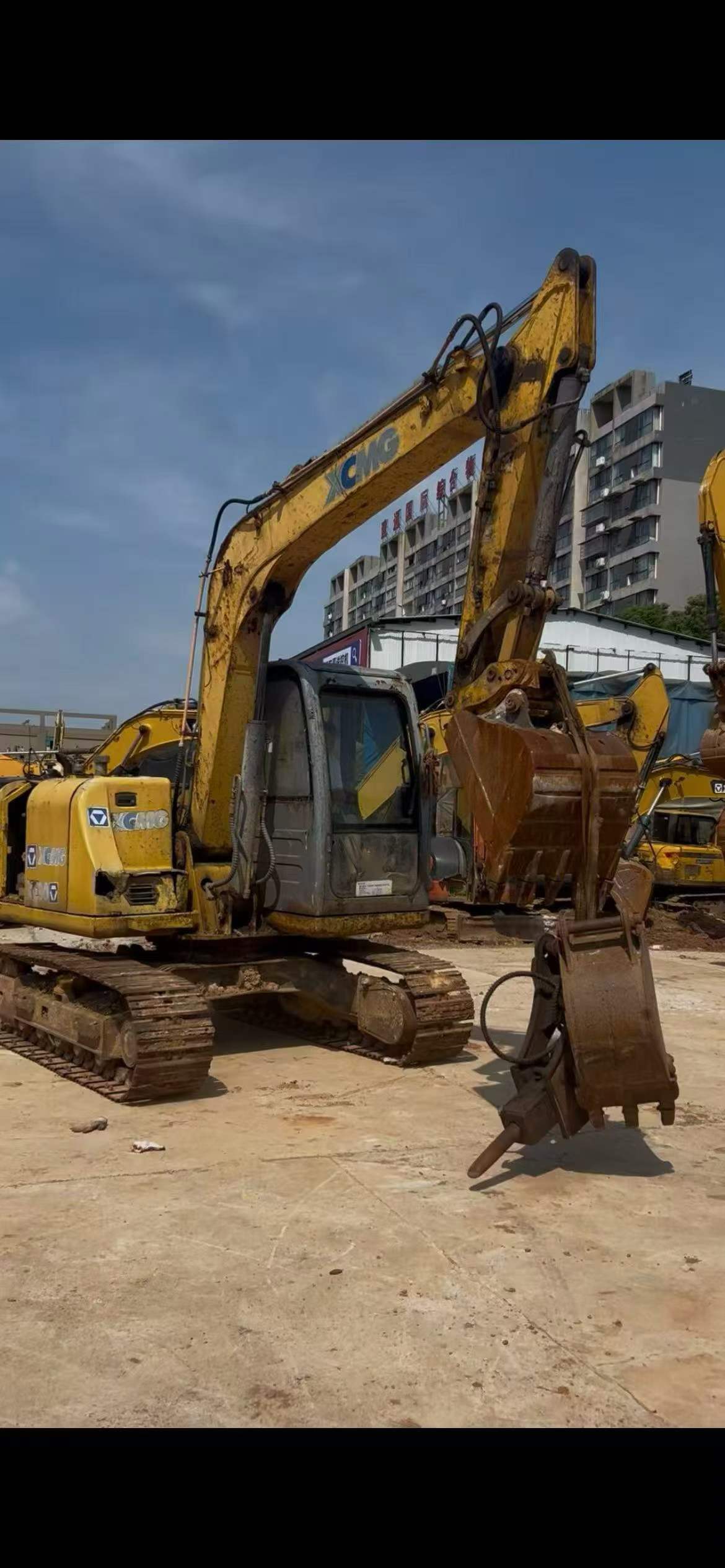

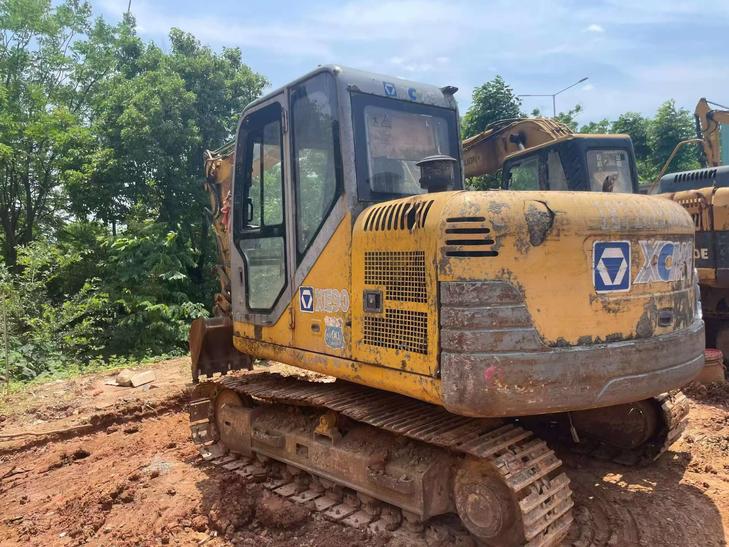

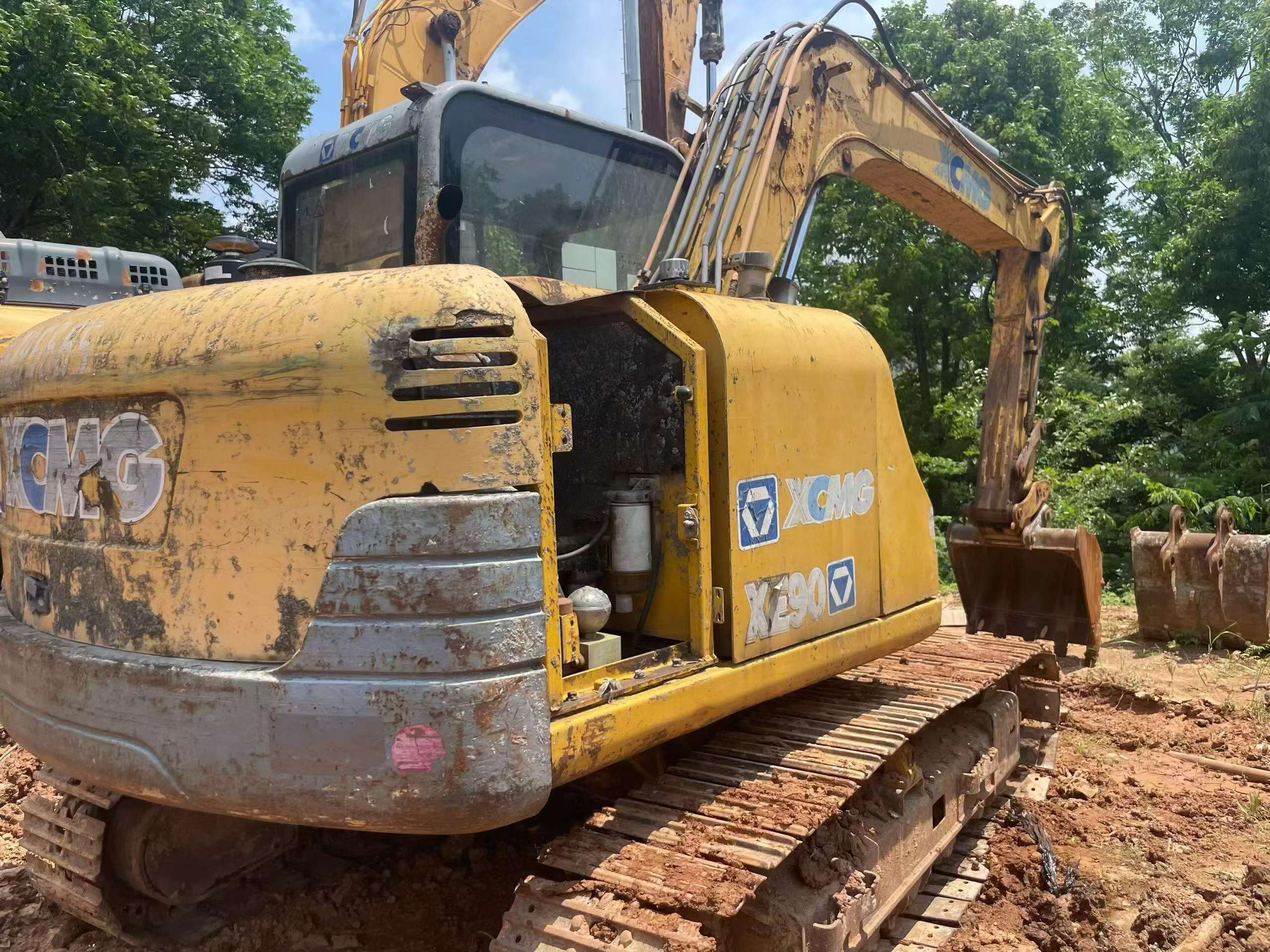

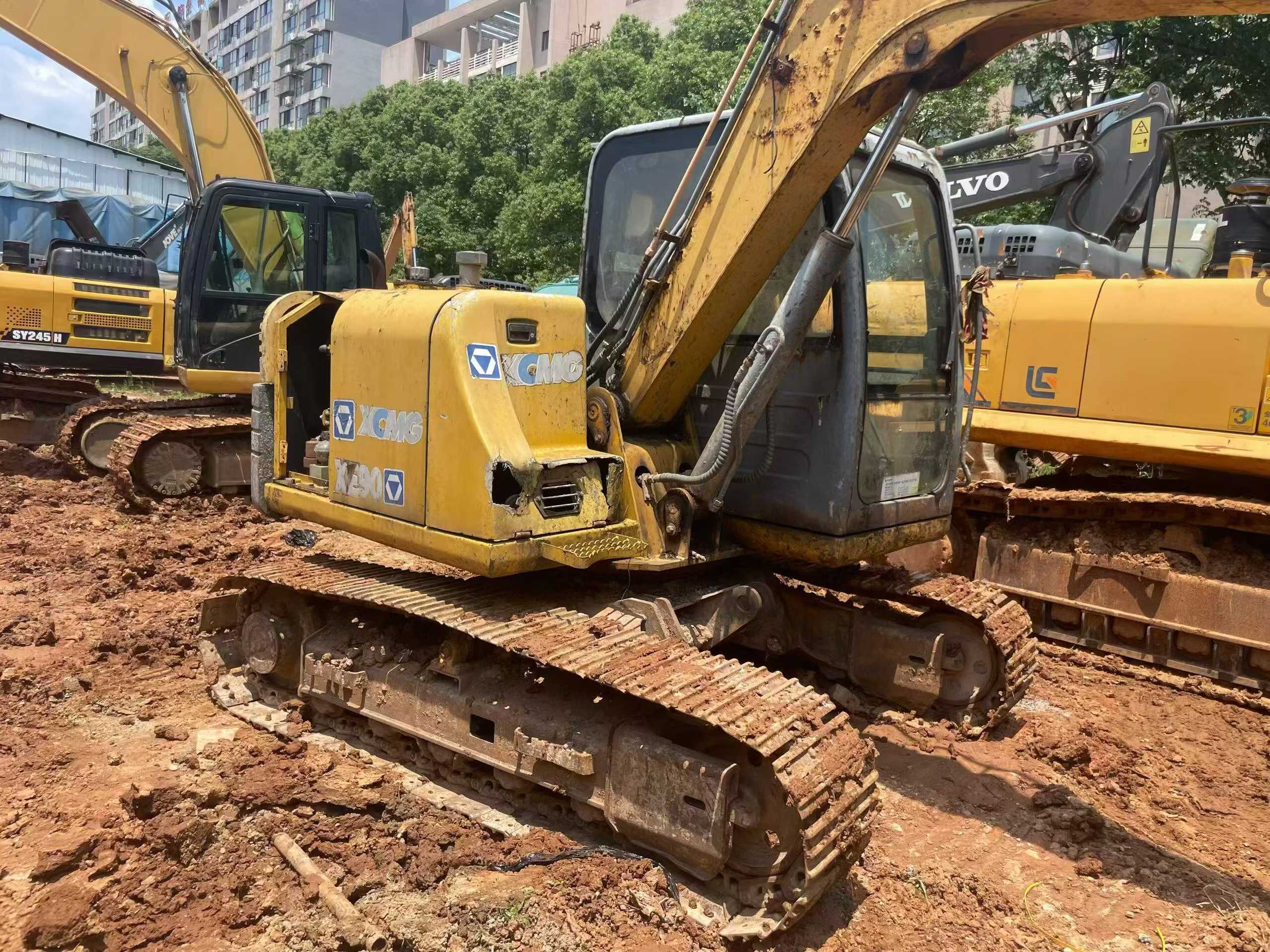

This 2020 XCMG XE80 excavator is available now in Hunan, China, ready for immediate shipment. The machine comes equipped with a hydraulic breaker attachment, auxiliary bucket, and quick coupler system, providing versatility for demolition, trenching, and material handling applications.

The XE80 is an 8-ton class compact excavator suitable for urban construction, utility work, and light earthmoving projects. XCMG's proven hydraulic system and robust undercarriage deliver reliable performance in demanding job site conditions.

Key features include:

  • Hydraulic breaker attachment included
  • Quick coupler for fast attachment changes
  • Additional auxiliary bucket
  • Compact footprint for confined work areas
  • Ready for immediate loading and export

This used unit represents practical value for contractors seeking dependable equipment at competitive pricing. Contact us for shipping arrangements and technical specifications.

SpecificationsValue
No.1075141
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.1075141

Brand Name:

XCMG

Model Number:

XE80

Year:

2020

Location:

Hunan China

Pub Date
