HOME>>XCMG>>XCMG XE80

2020 XCMG XE80

1/6

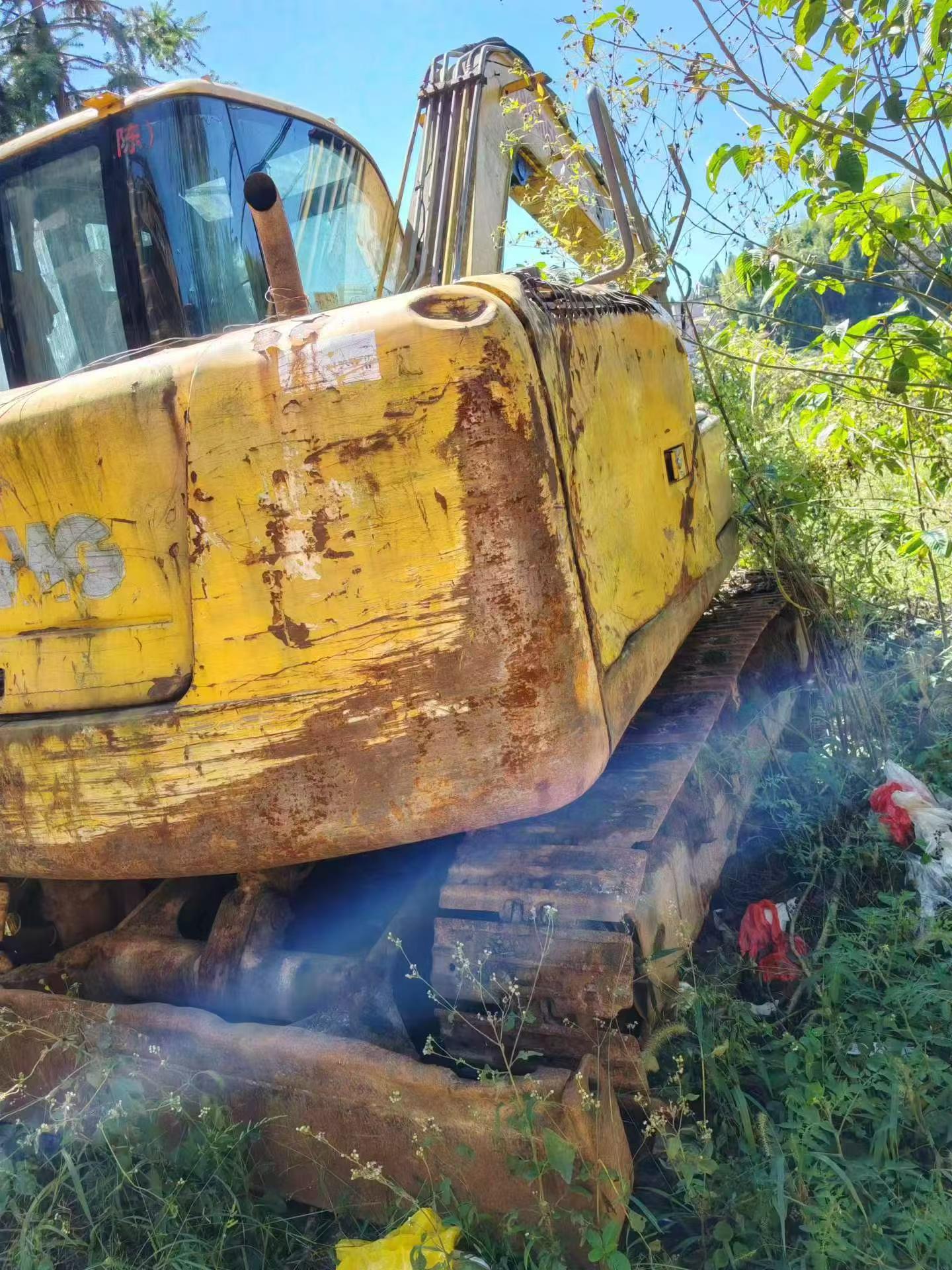

Buy XCMG XE80 Used Excavator / 1
Buy XCMG XE80 Used Excavator / 2

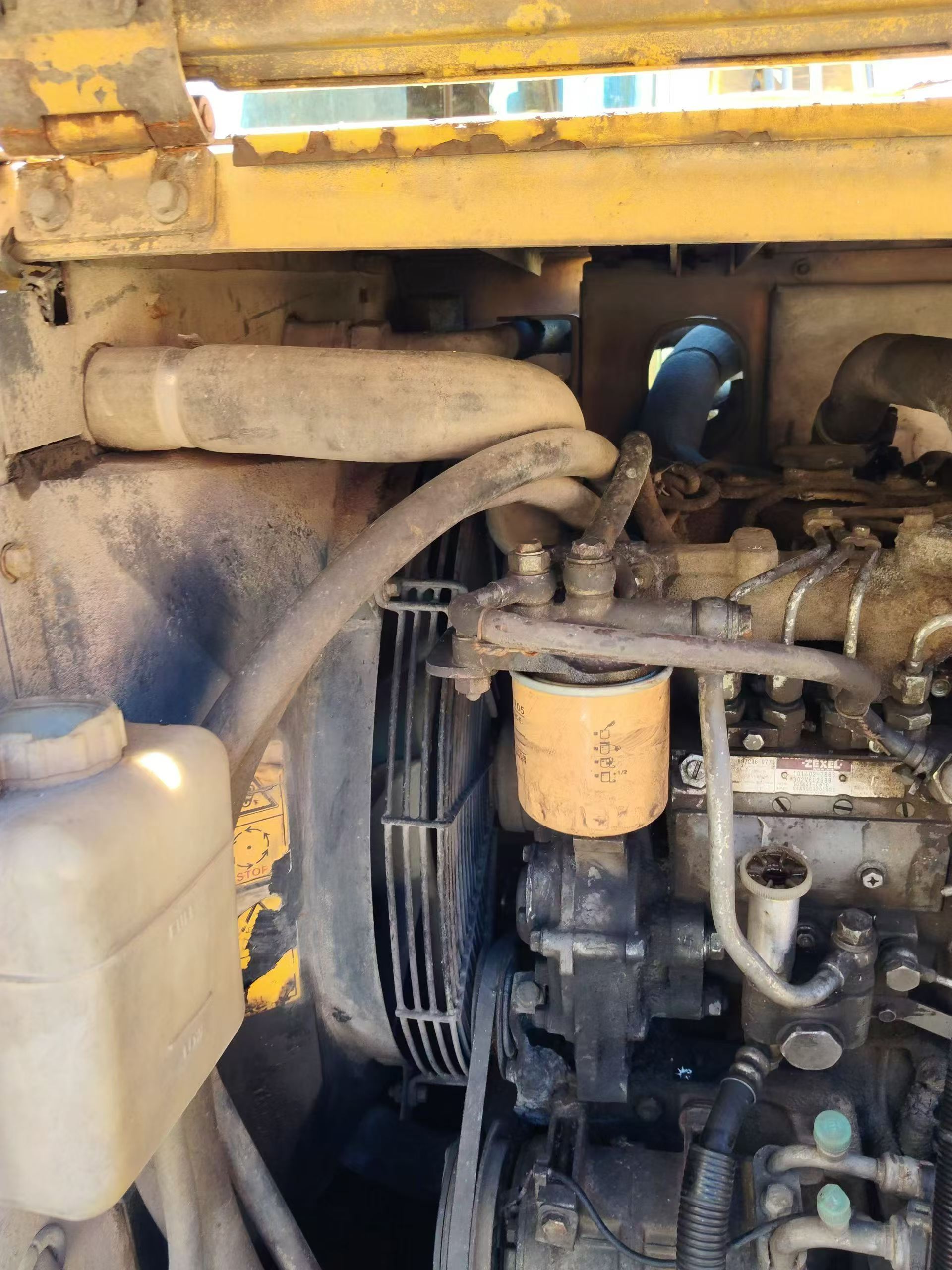

Buy XCMG XE80 Used Excavator / 3

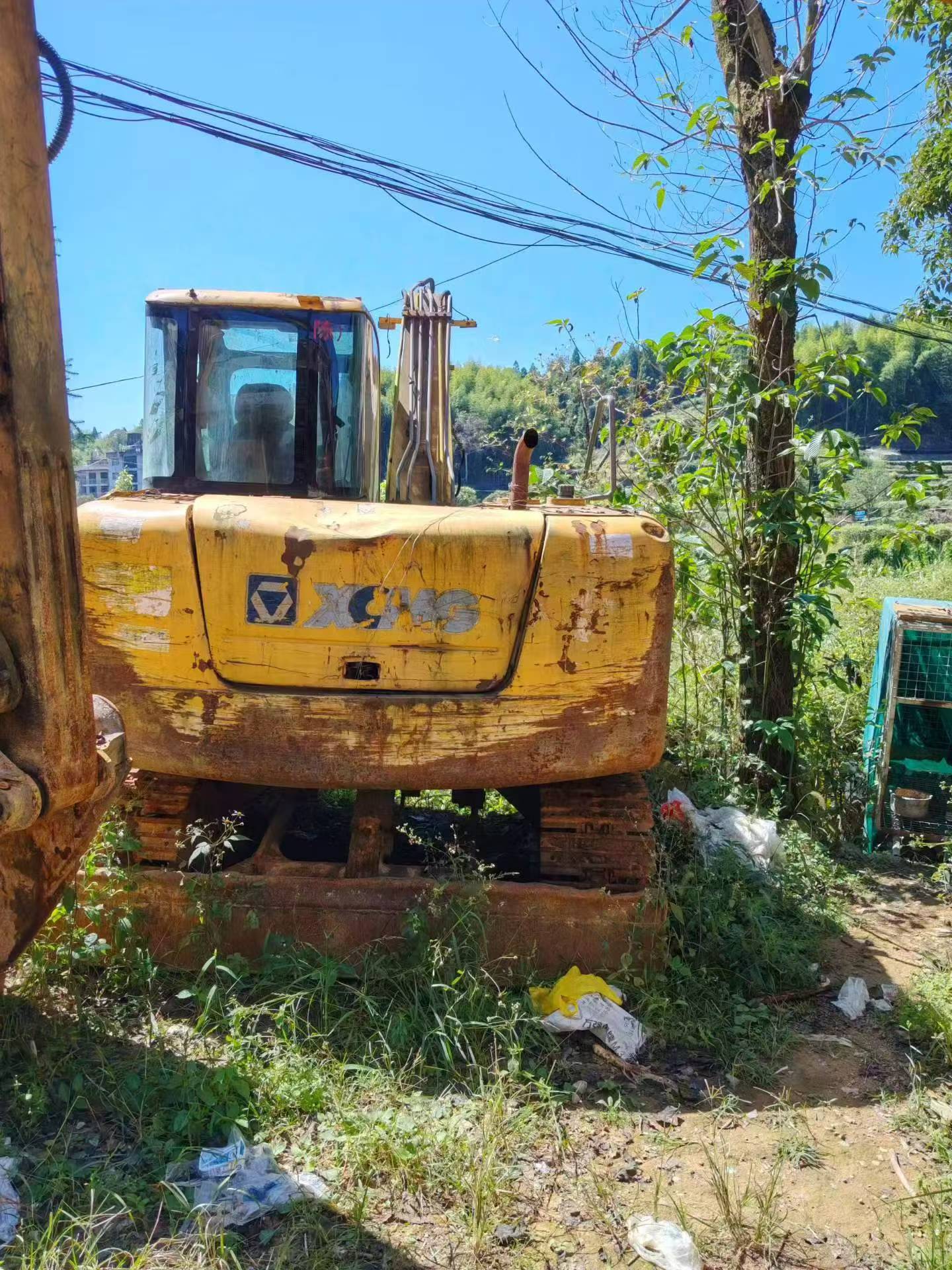

Buy XCMG XE80 Used Excavator / 4
Buy XCMG XE80 Used Excavator / 5
Buy XCMG XE80 Used Excavator / 6

Product Description

XCMG XE80 excavator available from Zhejiang, China. This 2020 model represents a well-maintained first-owner machine from one of China's leading construction equipment manufacturers. The XE80 is an 8-ton class hydraulic excavator designed for versatility across earthmoving, utility work, and site development applications.

Key features of this unit include:

  • Single-owner history with documented maintenance
  • XCMG's proven hydraulic system for reliable performance
  • Compact footprint suitable for confined job sites
  • Standard bucket and auxiliary hydraulics
  • Located in Zhejiang province for regional logistics efficiency

This machine offers an opportunity for contractors seeking dependable mid-size excavation capacity at competitive pricing. Inspection welcome by appointment. Export documentation and shipping arrangements can be coordinated upon request.

SpecificationsValue
No.1157586
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.1157586

Brand Name:

XCMG

Model Number:

XE80

Year:

2020

Location:

Zhejiang China

Pub Date:
