Product Description

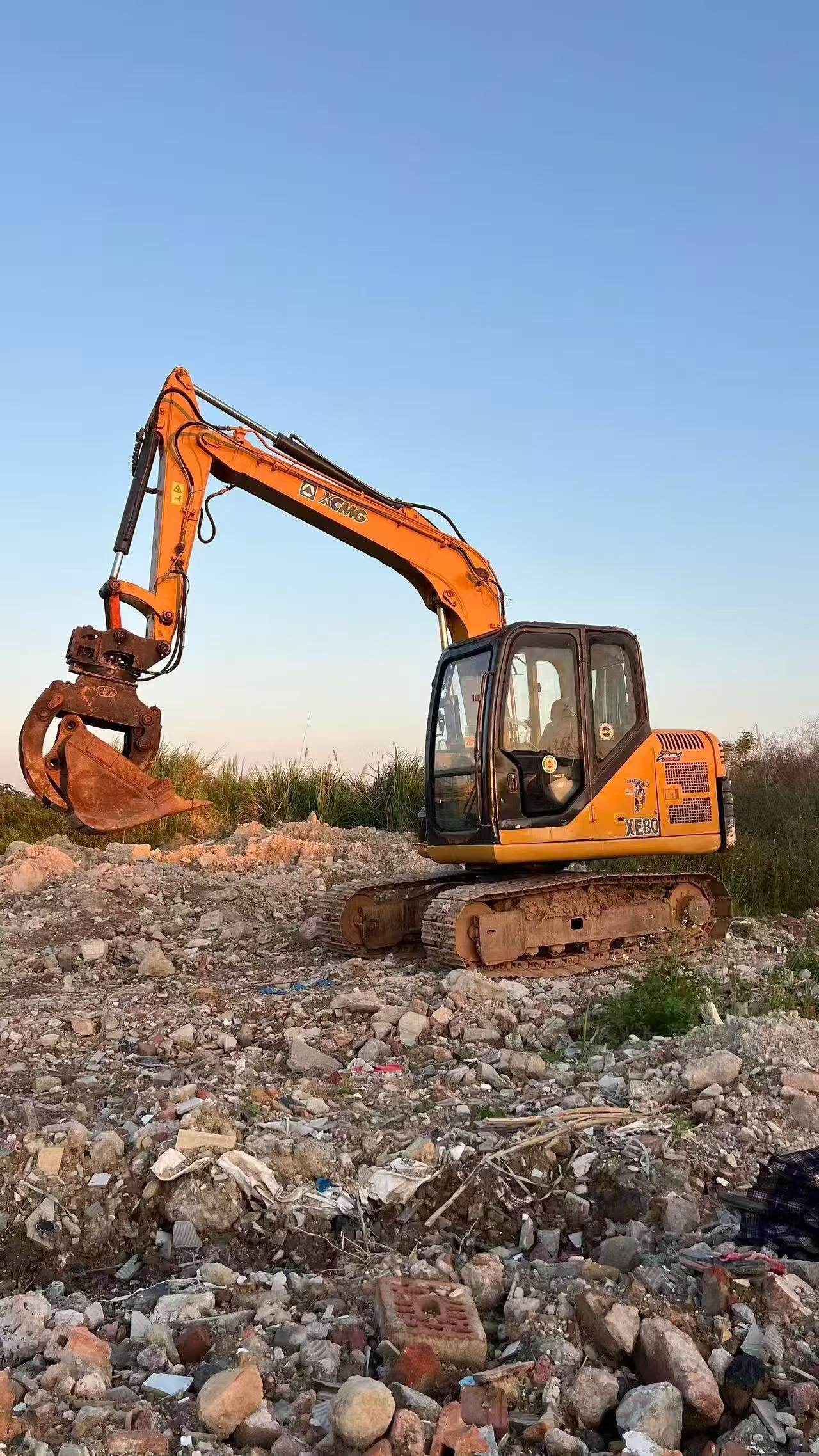

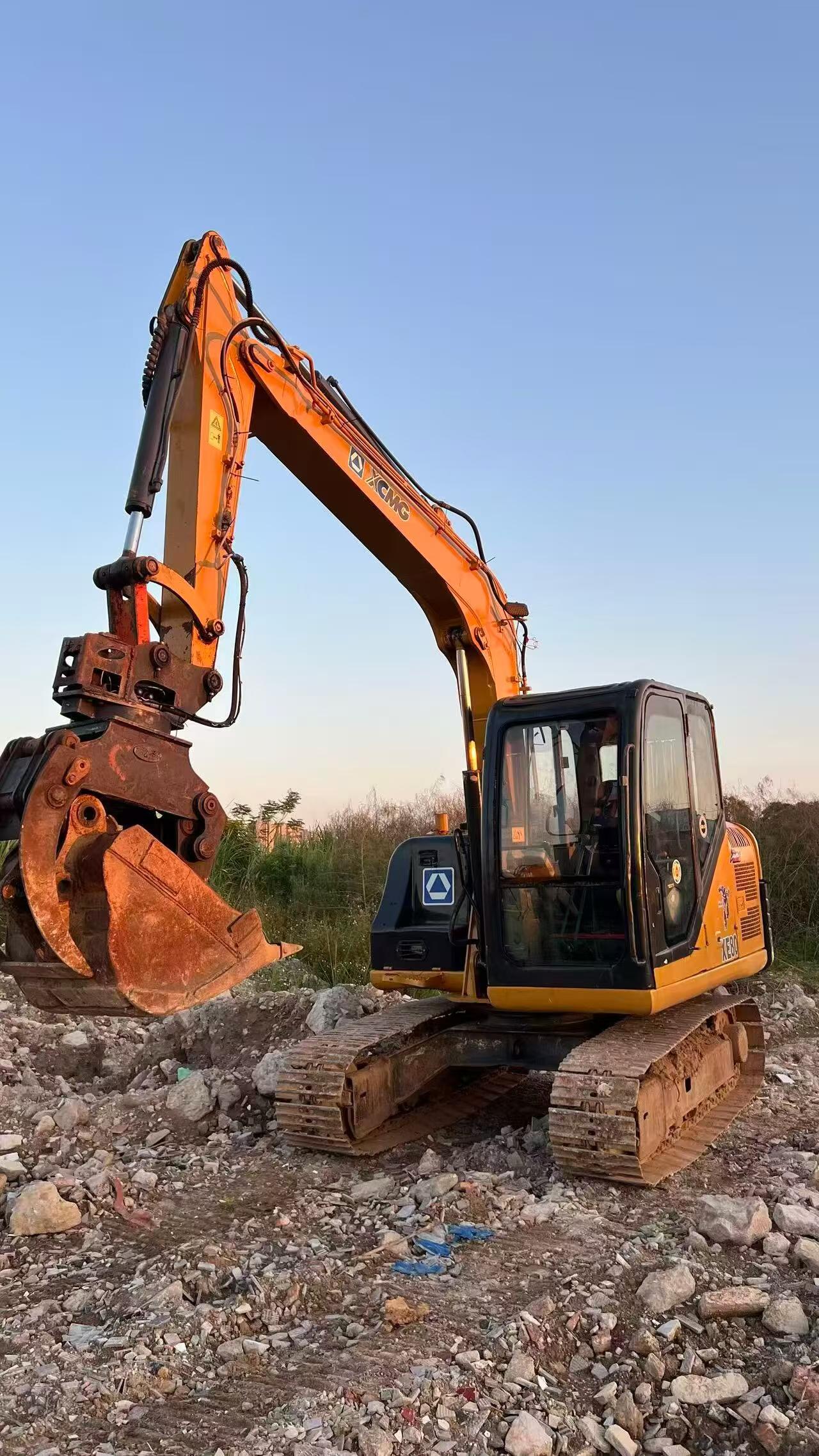

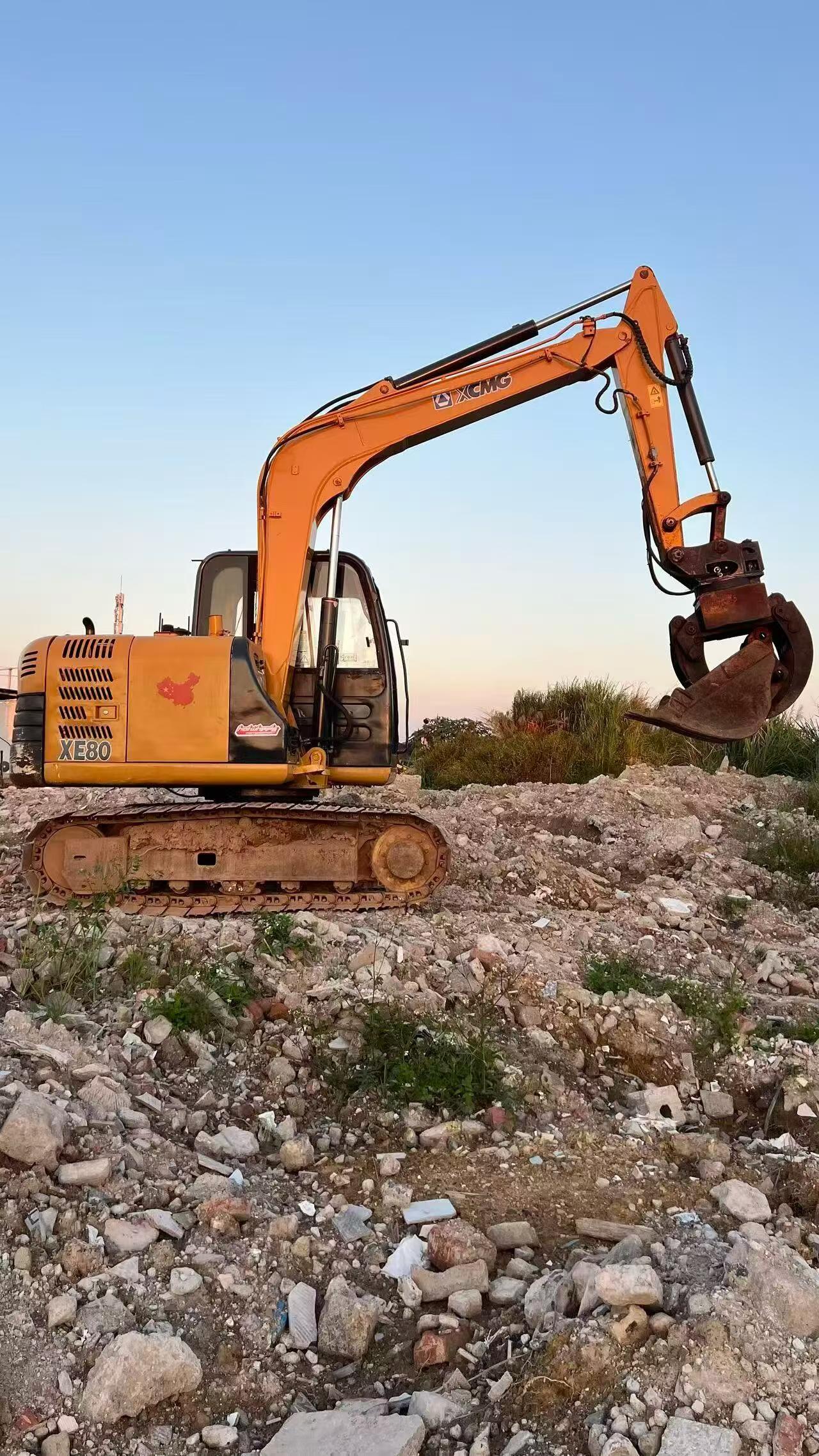

This 2020 XCMG XE80 excavator with hydraulic grapple attachment offers reliable performance for material handling and excavation applications. Currently located in Guangxi, China, this 8-ton class machine represents a cost-effective solution for contractors and equipment dealers seeking versatile mid-size equipment.
Key features include:
- Factory-installed hydraulic grapple for enhanced material handling capability
- XCMG's proven hydraulic system and engine configuration
- Suitable for demolition, scrap handling, and general excavation work
- Documented service history and operational video available
- Ready for immediate deployment
The XE80 combines compact dimensions with sufficient digging force for urban construction, landscaping, and light demolition projects. This unit has been maintained in working condition and is available for inspection by qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1157794 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
