Product Description

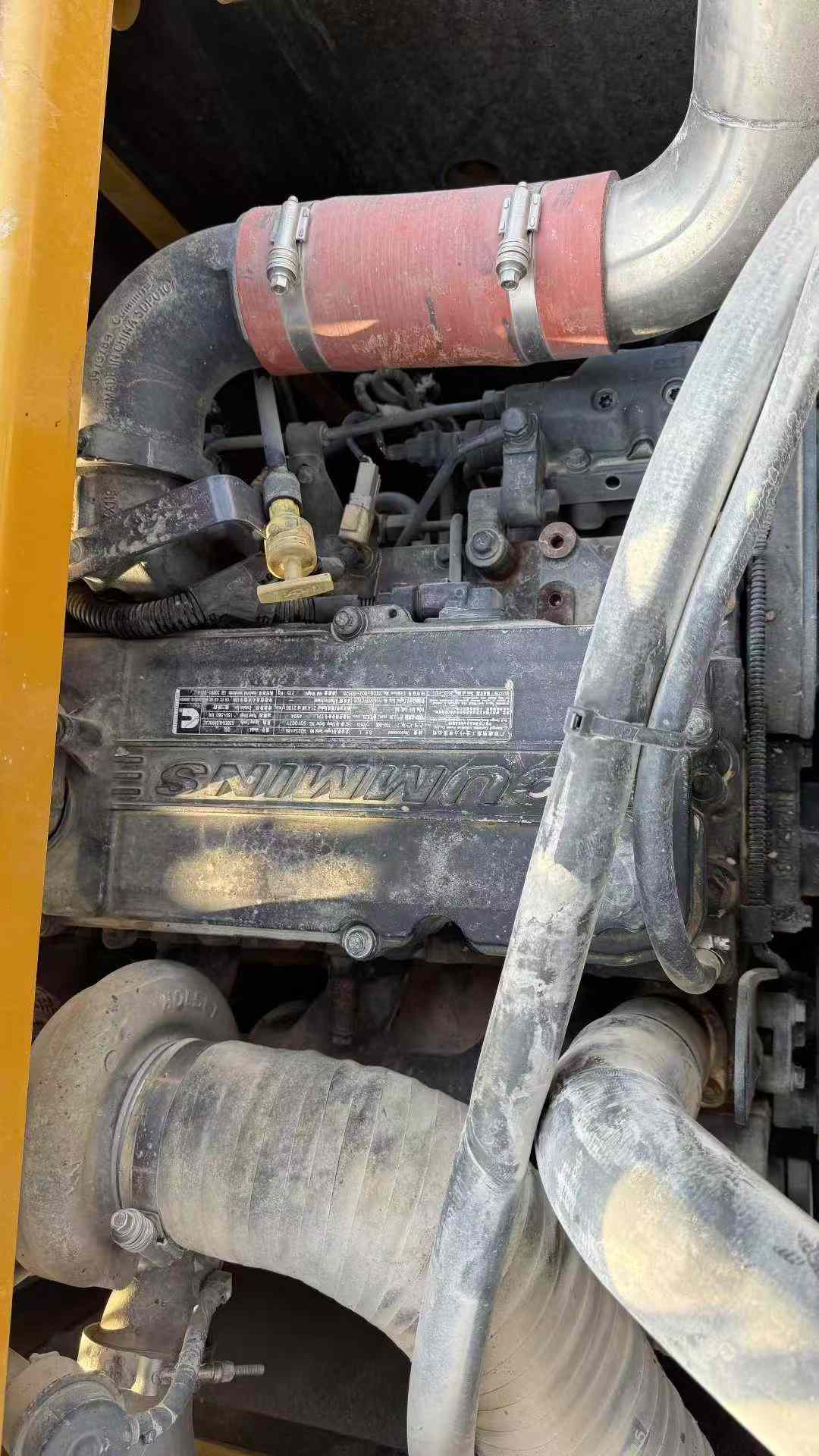

Strengthen your fleet capacity with this 2022 XCMG XE80 excavator, currently positioned in Gansu and ready for immediate deployment. Operating at 8 tons with a 7,425 kg working weight, this mid-size machine delivers consistent performance across diverse jobsites. Powered by a Cummins B3.3 engine generating 60 kW at 2,200 rpm, it combines proven reliability with efficient fuel consumption from its 127-liter tank.
Built for versatility, the XE80 features a maximum digging depth of 4,140 mm and a reach extending to 6,375 mm, handling everything from utility trenching to foundation work. The Toshiba variable pump hydraulic system provides 53.6 kN bucket digging force and 39.2 kN arm force, ensuring productive cycle times. With a 35° climbing ability and compact 6,155 mm transport length, this unit maneuvers effectively in confined urban environments or challenging terrain.
- Bucket capacity range: 0.14-0.34 m³ for application flexibility
- Water-cooled turbocharged 6-cylinder engine for extended durability
- Plunger hydraulic motors for rotation and travel functions
- 12 rpm swing speed and 4.2 km/h travel speed maximize productivity
- 450 mm track plates distribute 34.2 kPa ground pressur
| Specifications | Value |
|---|---|
| No. | 999382 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |

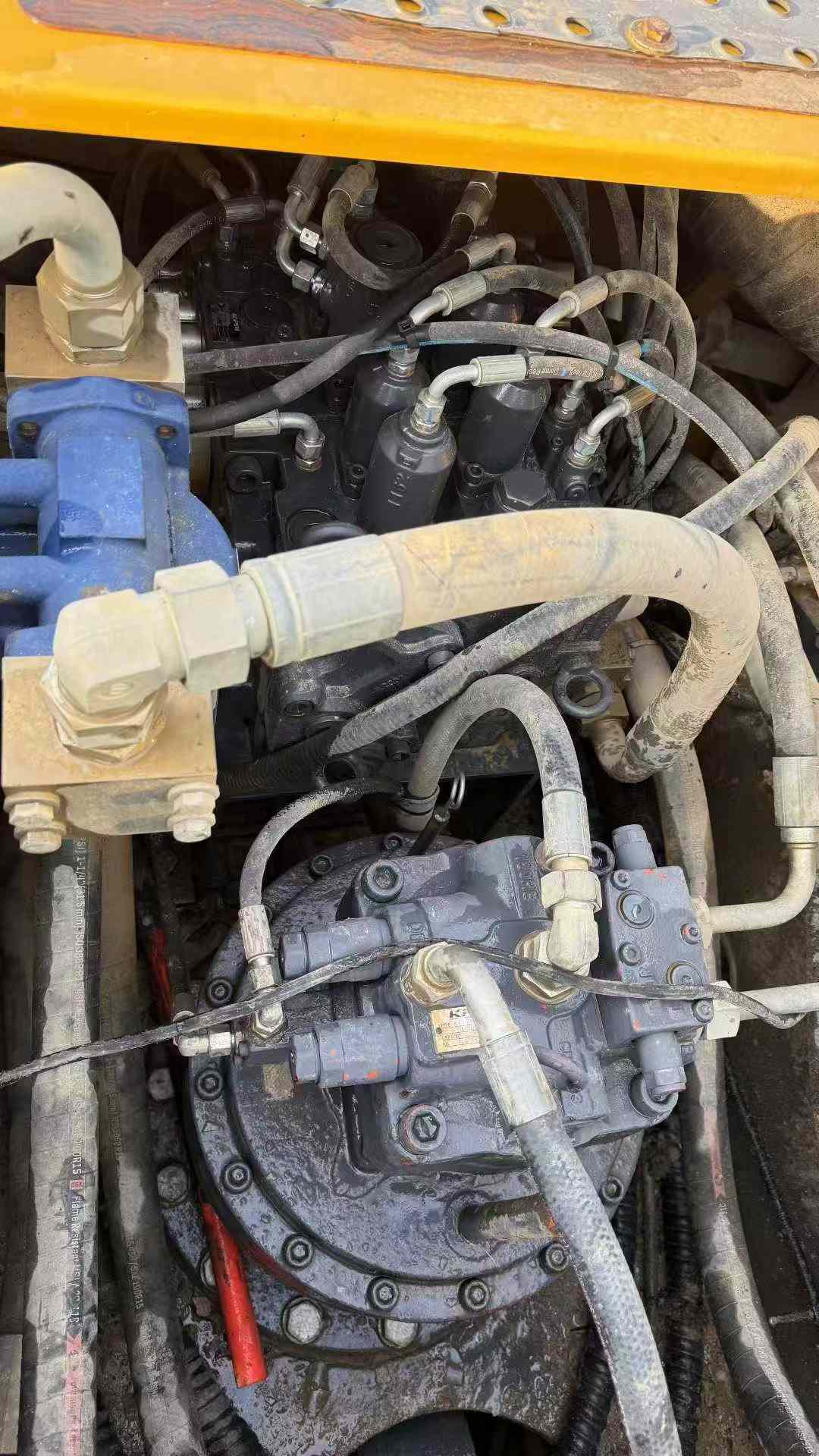

| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

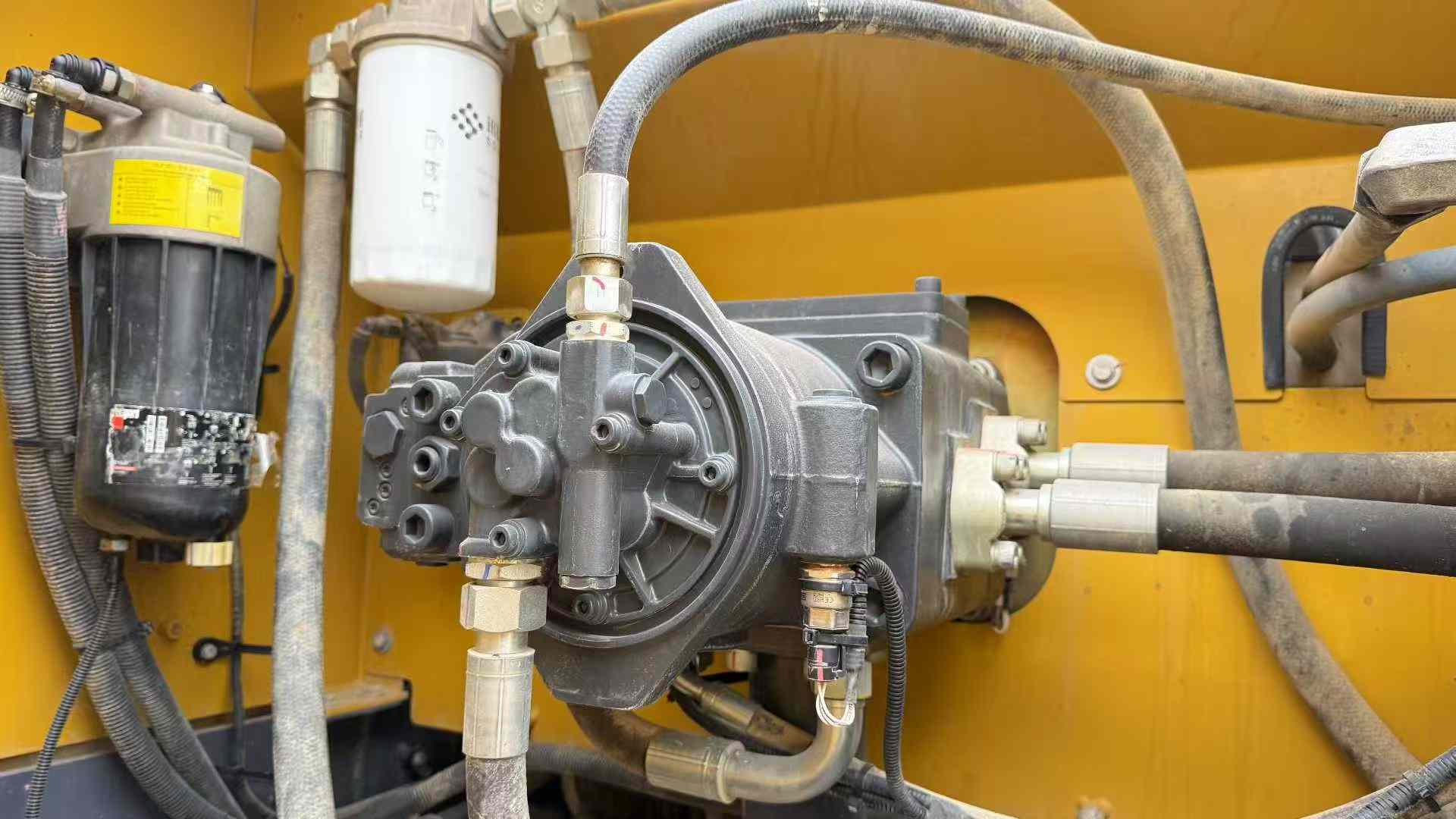

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |

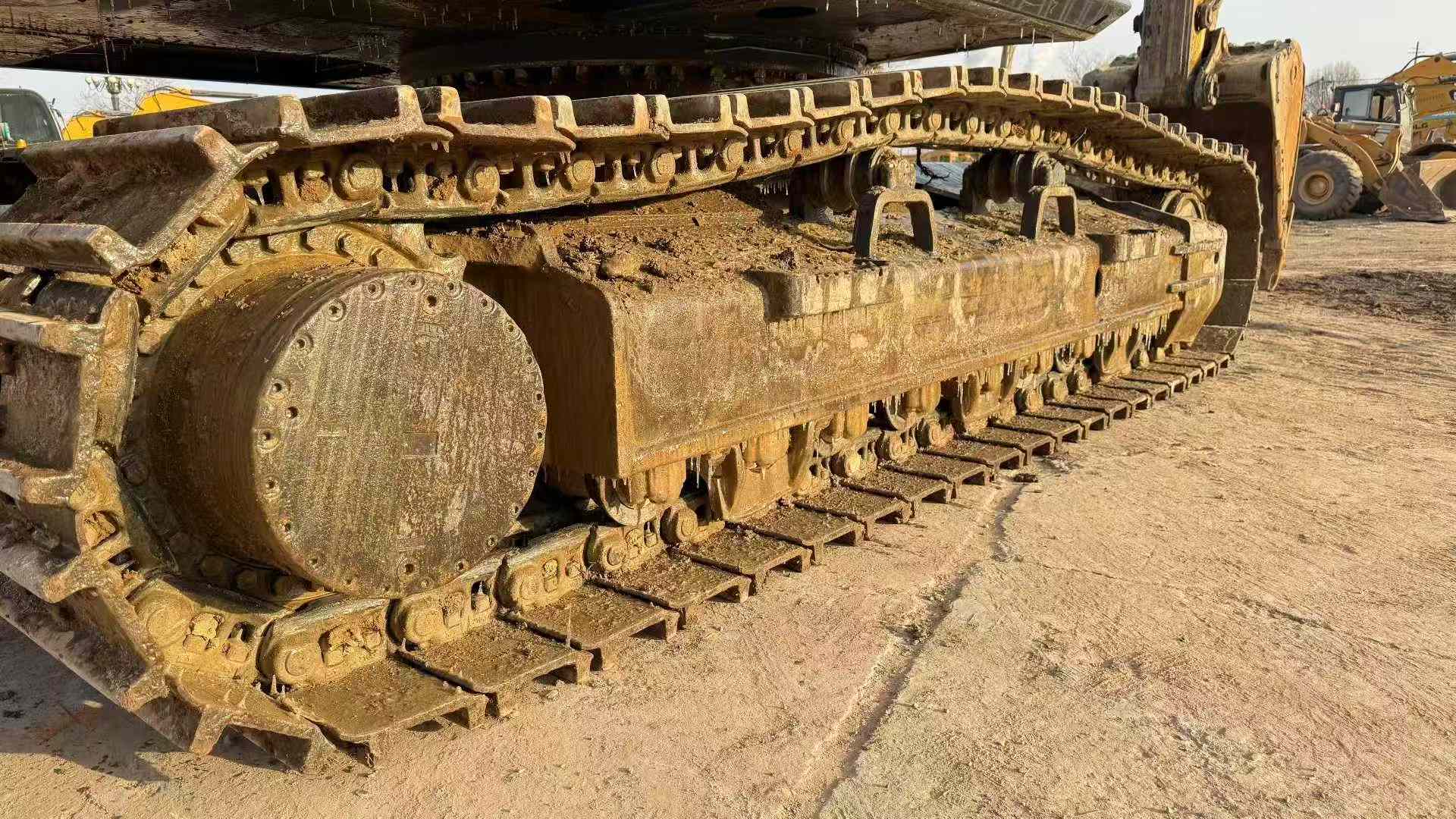

| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
