Product Description

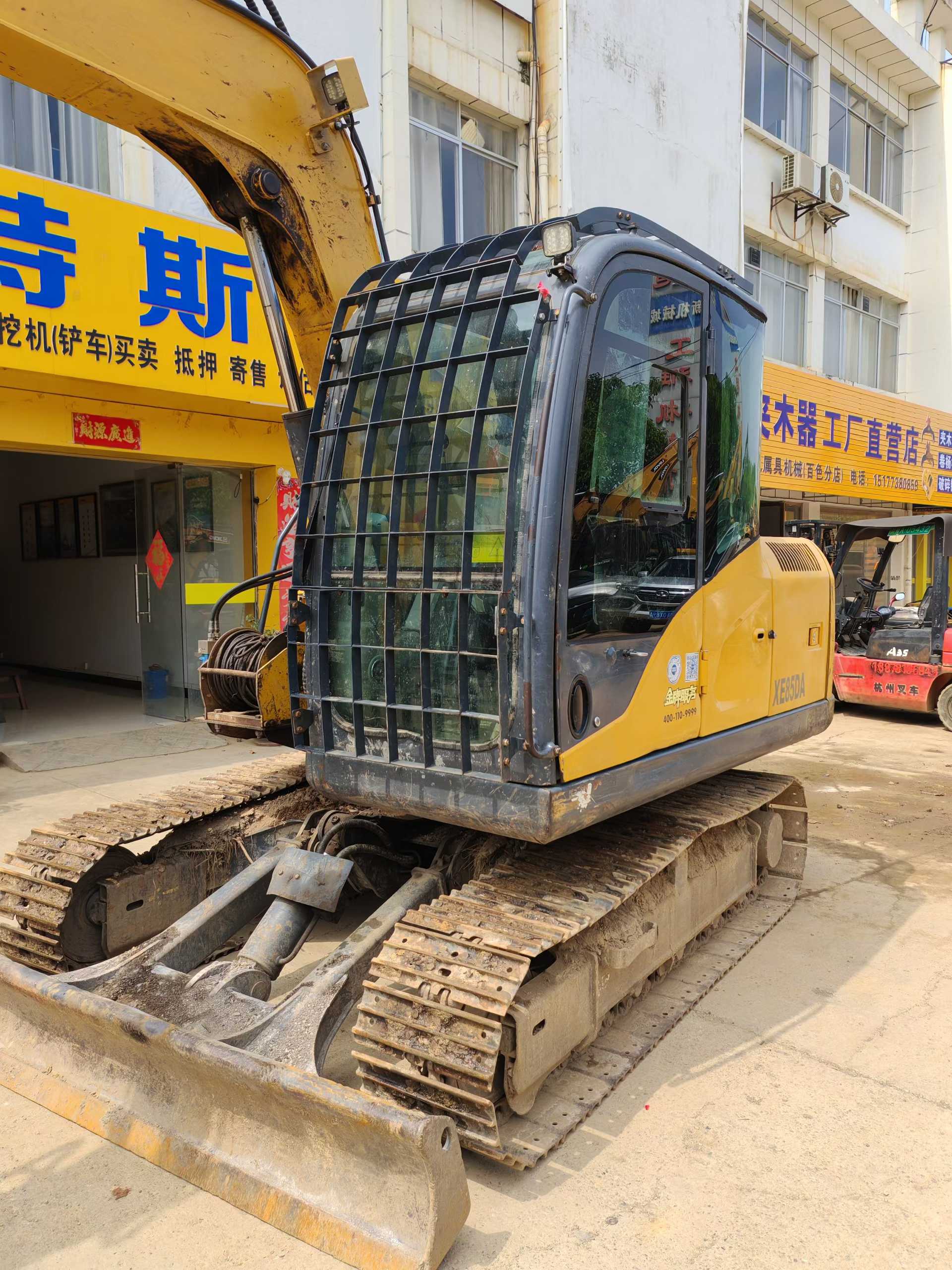

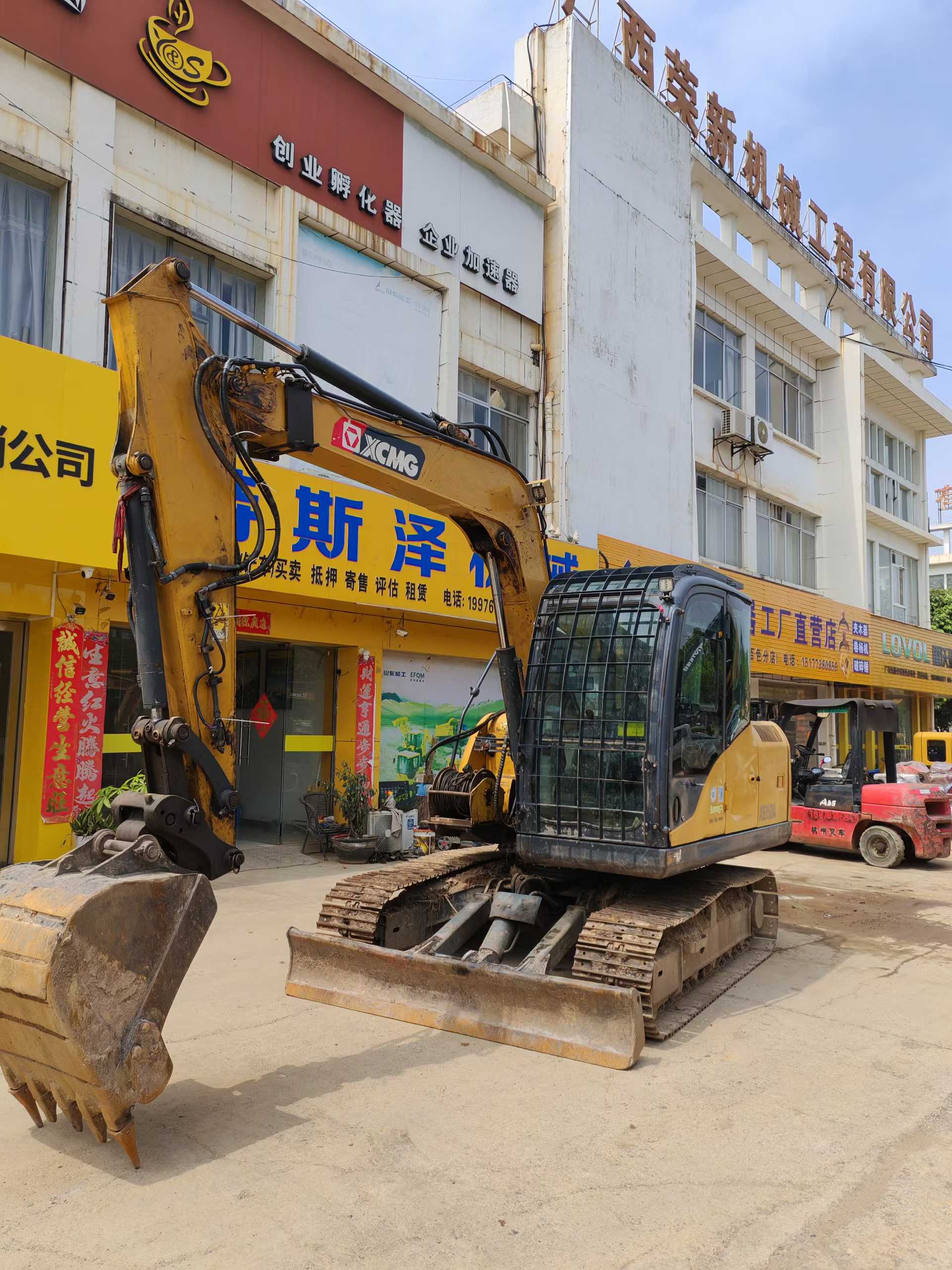

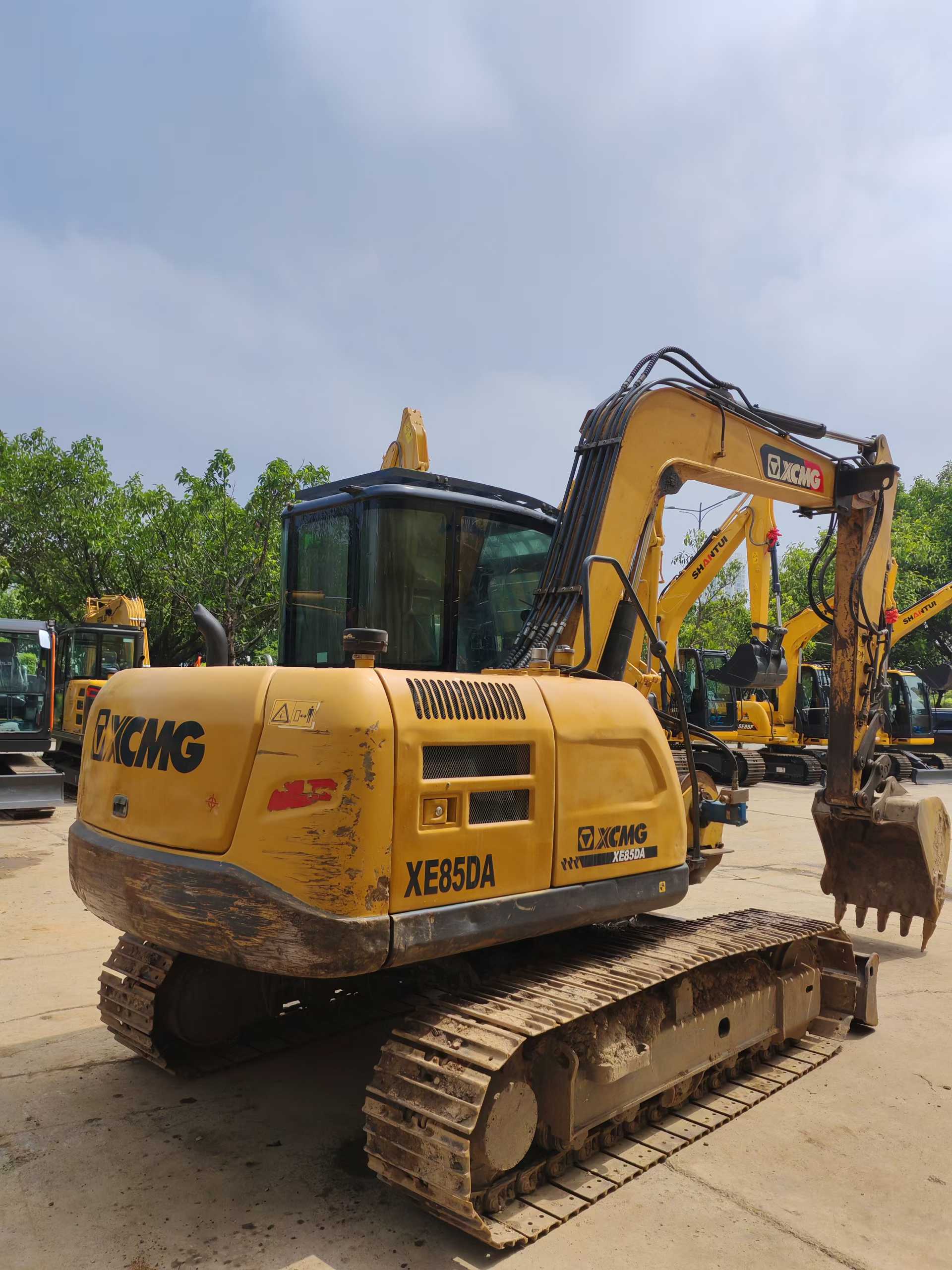

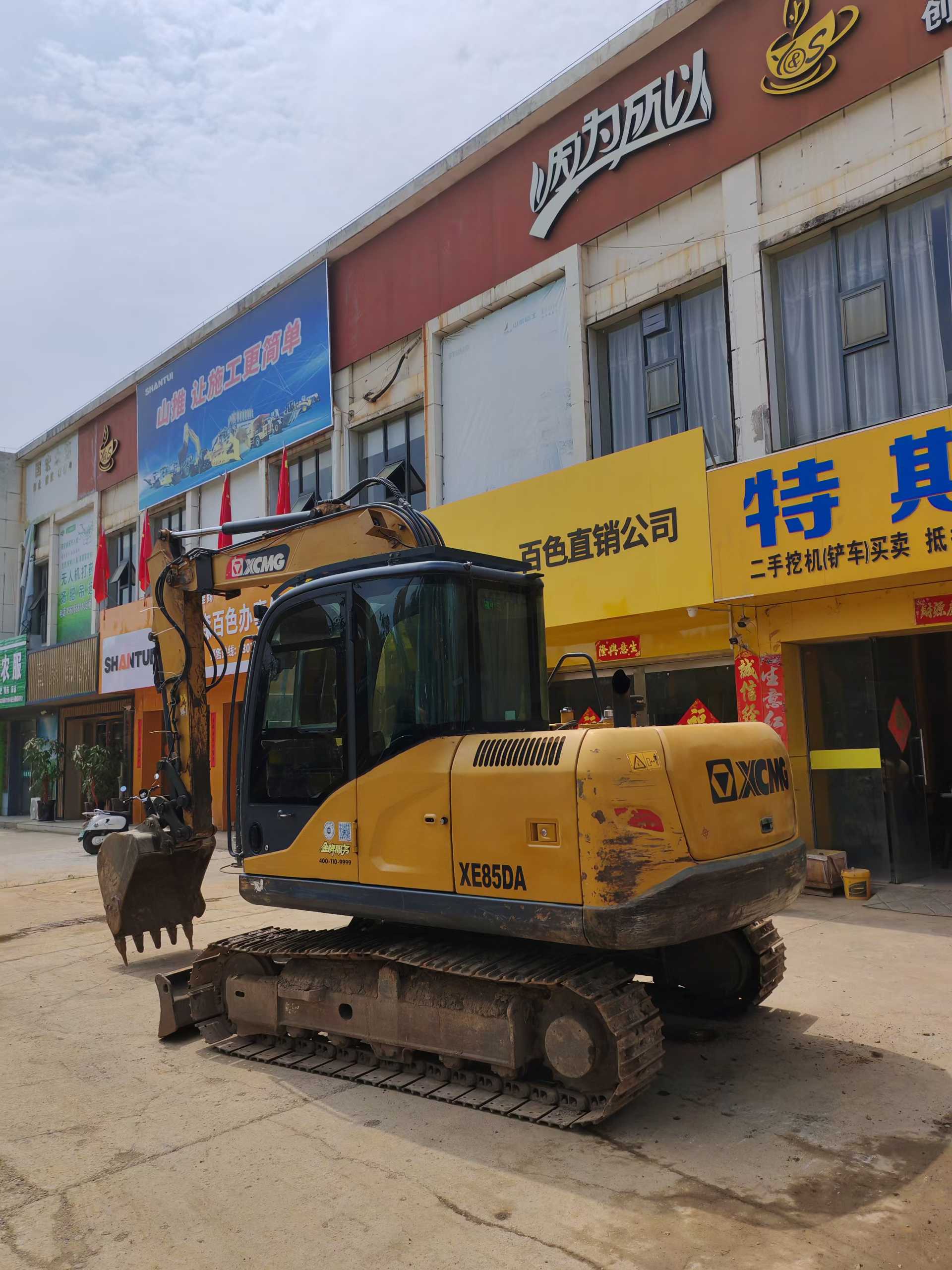

This 2022 XCMG XE85C excavator represents a reliable mid-size solution for construction and earthmoving operations. With minimal operating hours since production, this machine offers strong performance characteristics typical of XCMG's 8-ton class equipment. The XE85C features a robust hydraulic system, efficient fuel consumption, and a well-balanced design suitable for confined job sites and general excavation work.
Currently located in Guangxi, China, this unit is available for inspection and immediate deployment. The machine has been maintained under standard operating conditions and shows normal wear consistent with its age and usage profile.
- Manufacturer: XCMG
- Model: XE85C
- Year of Manufacture: 2022
- Operating Weight Class: ~8.5 tons
- Location: Guangxi, China
- Condition: Used, operational
Ideal for contractors seeking proven Chinese-manufactured equipment with established parts availability and service networks across Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1084487 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

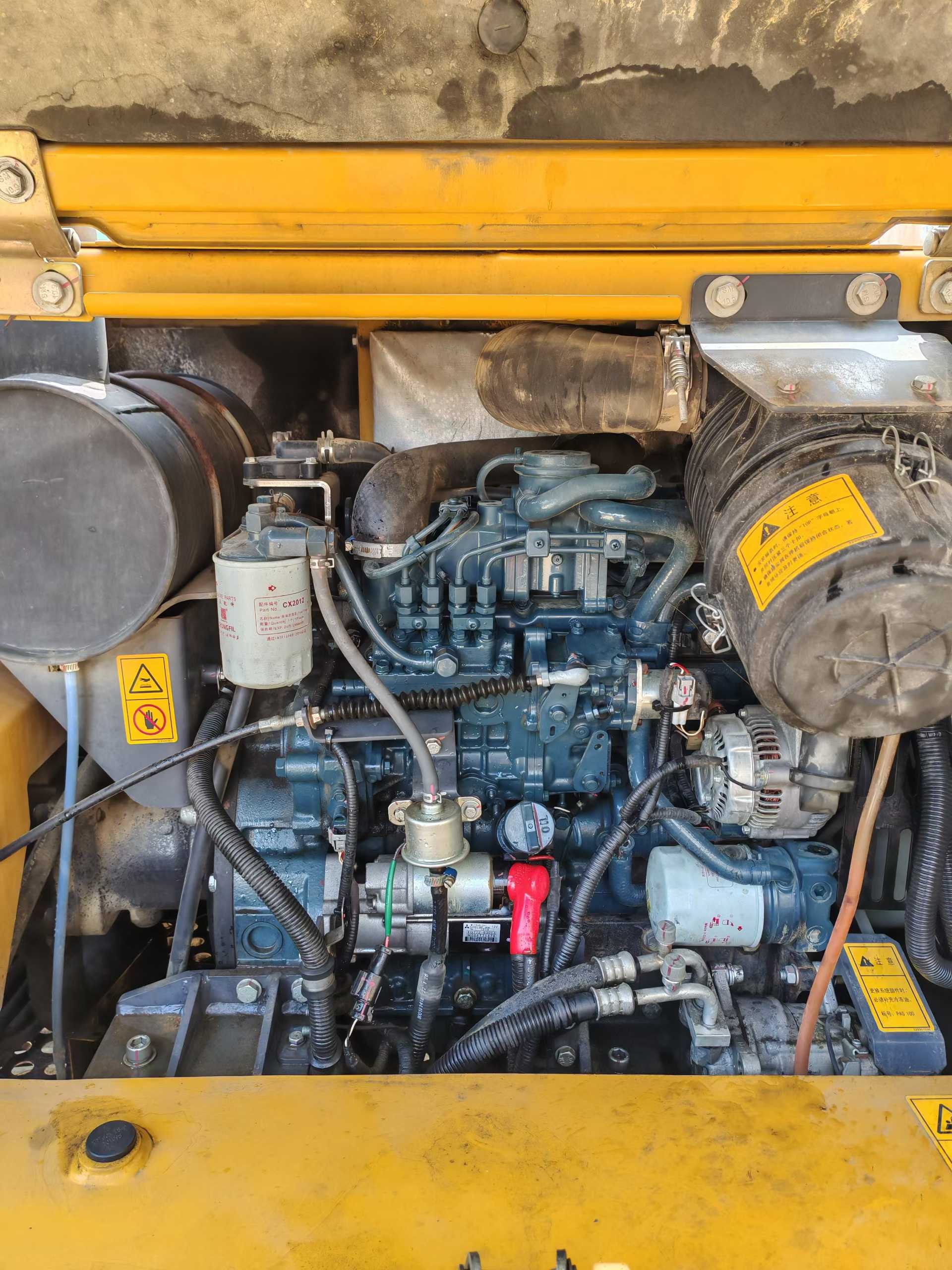

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
