Product Description

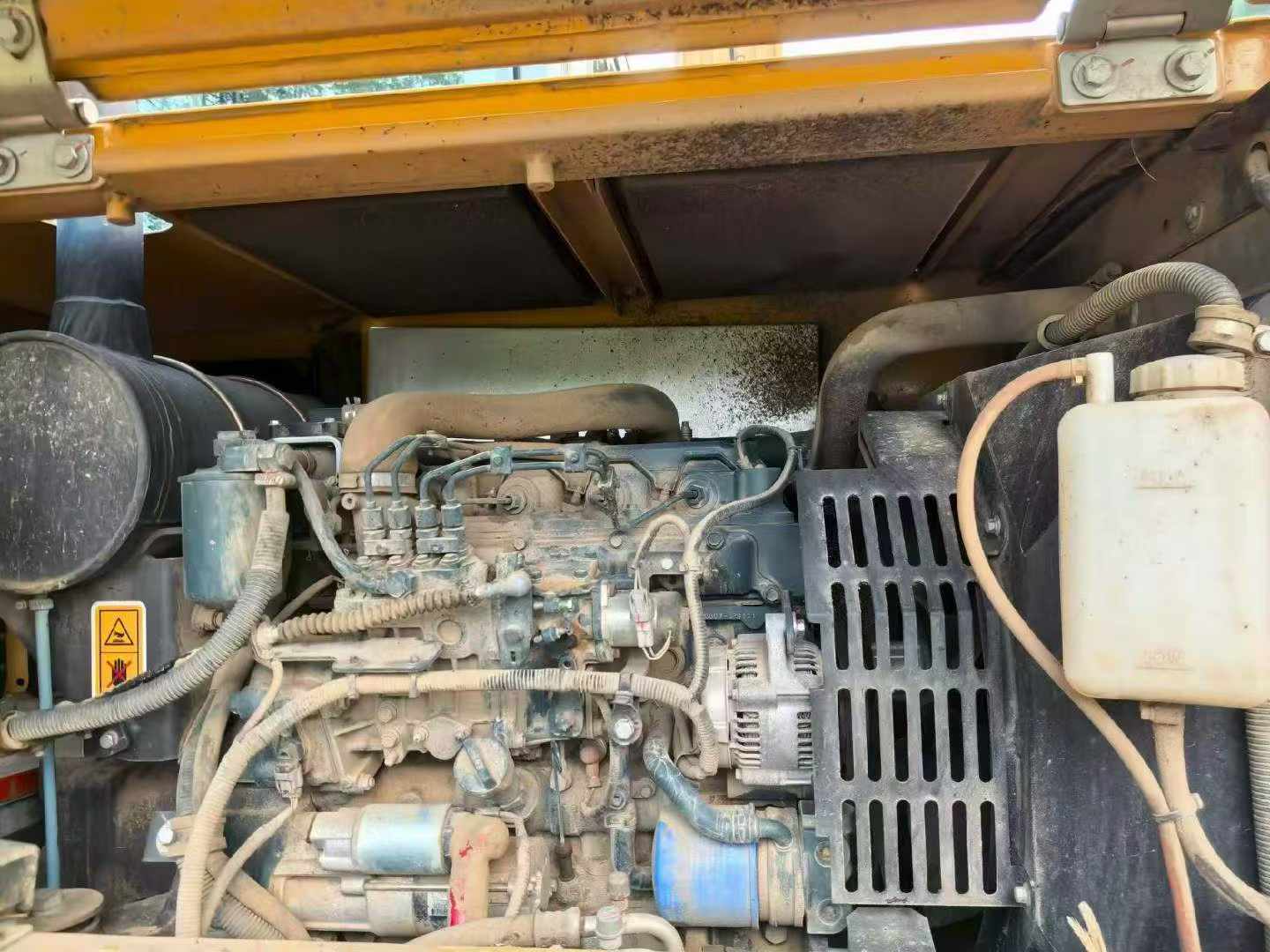

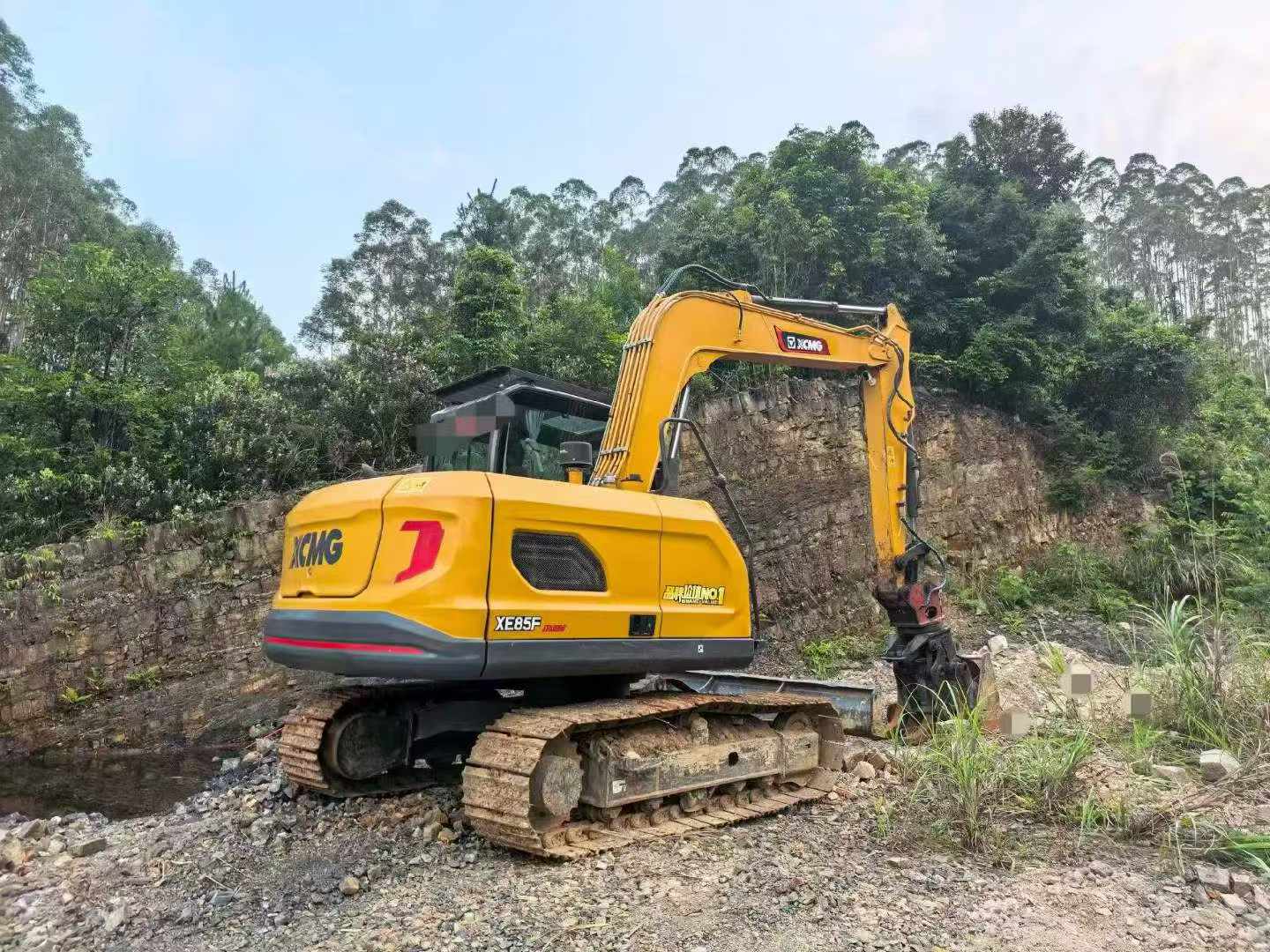

Built for operators who demand precision and control, the 2024 XCMG XE85C 8-ton mini excavator delivers confident performance across a wide range of job site conditions. Powered by a 4JG1TPC four-cylinder engine producing 53.8 kW at 2,150 rpm with 255 N·m of peak torque, this machine combines reliable traditional power with a responsive hydraulic system — main pump output reaching 198+21 L/min — to keep work cycles smooth and consistent throughout long shifts.
From the operator's seat, visibility and machine response are engineered to reduce fatigue and improve accuracy. A compact back-end turning radius of just 1,805 mm allows confident maneuvering in tight spaces, while the stable 7,700 kg working weight and low ground pressure of 34.6 kPa keep the machine planted during demanding digging tasks.
- Bucket digging force: 51.2 kN | Rod digging force: 34.2 kN
- Maximum digging depth: 4,130 mm | Maximum digging radius: 6,295 mm
- Travel speed: 4.9 / 2.6 km/h | Climbing ability: 35°
- Dozer blade: 2,320 mm wide with 409/438 mm lift/depth range
- Fuel tank: 130 L | Transport dimensions: 6,144 × 2,332 × 2,712 mm
- Currently available in Guangxi, China — ready for export
| Specifications | Value |
|---|---|
| No. | 1080354 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
