Product Description

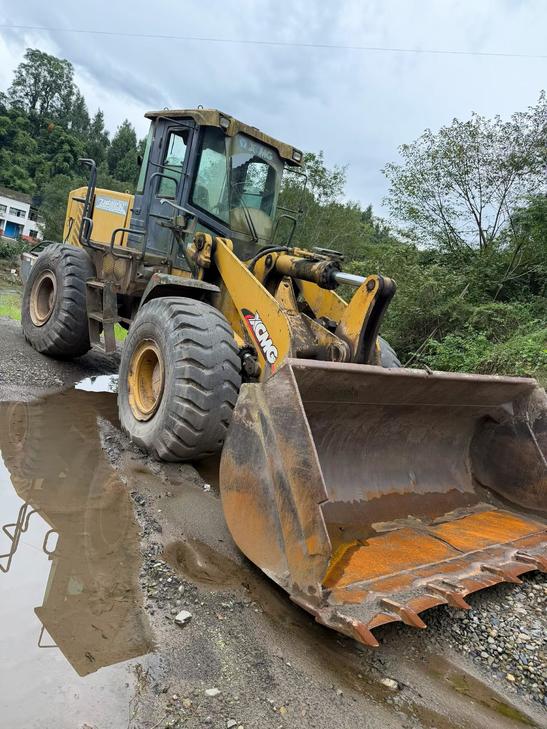

This 2014 XCMG ZL50GN wheel loader presents a solid foundation for refurbishment and continued service. The ZL50GN is a proven 5-ton class loader known for reliable performance in construction, mining, and material handling applications. Currently located in Sichuan, China, this unit is being offered as a refurbishment candidate with good baseline condition.
Key specifications of the ZL50GN model include:
- Operating weight: approximately 17,300 kg
- Rated load capacity: 5,000 kg
- Bucket capacity: 3.0 m³
- Weichai WD10G220E23 diesel engine
- Wheelbase: 3,250 mm
This machine offers an opportunity for buyers seeking a cost-effective loader for rebuild or parts harvesting. XCMG's widespread service network and parts availability make the ZL50GN series a practical choice for refurbishment projects. Ideal for operators looking to maximize value through restoration.
| Specifications | Value |
|---|---|
| No. | 1167837 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 30 |
| Wheelbase (mm) | 3300 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 8165 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3485 |
| Transaxle swing Angle (°) | 35 |
| Tyre specification | 23.5-25-16PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
