Product Description

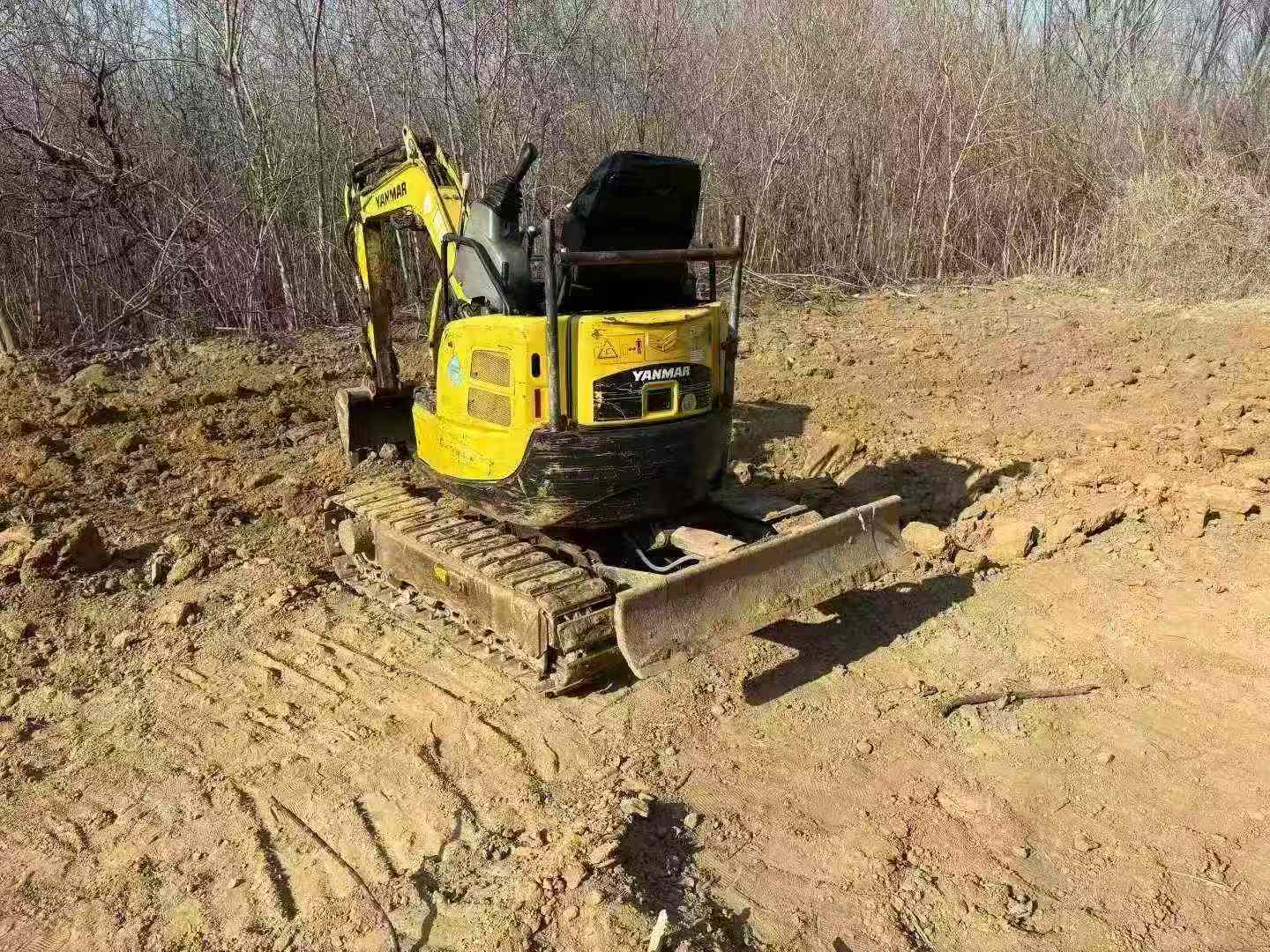

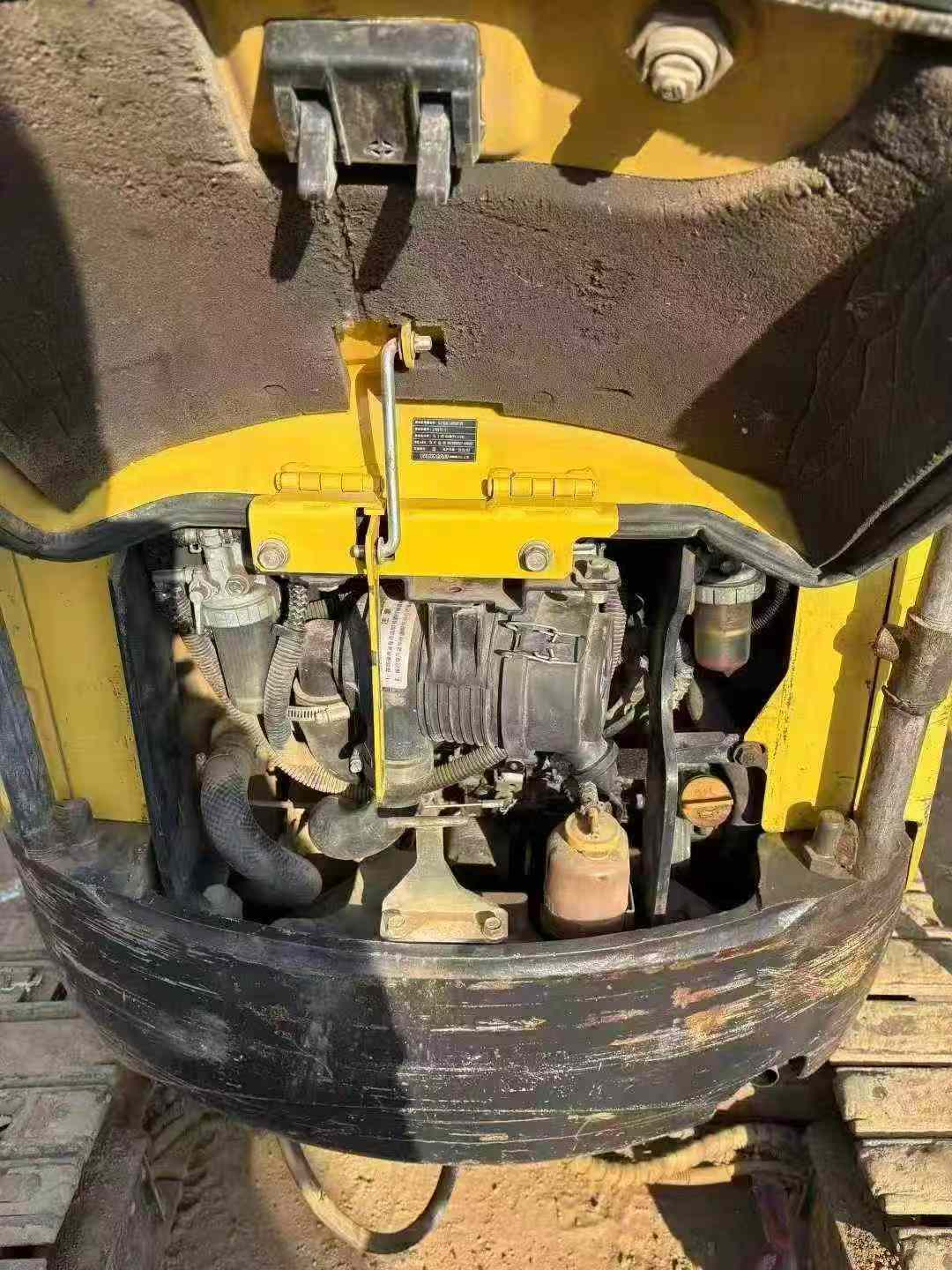

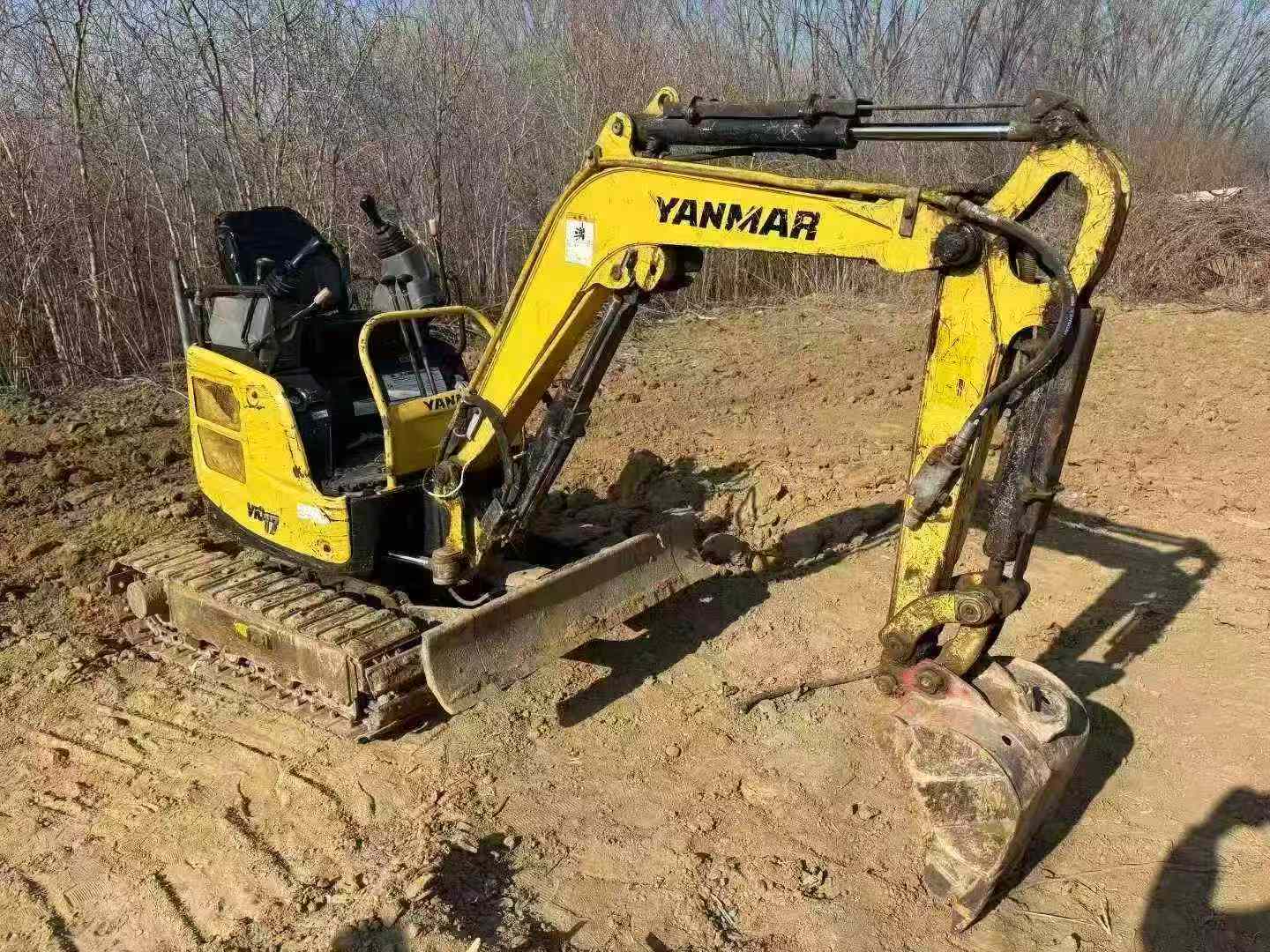

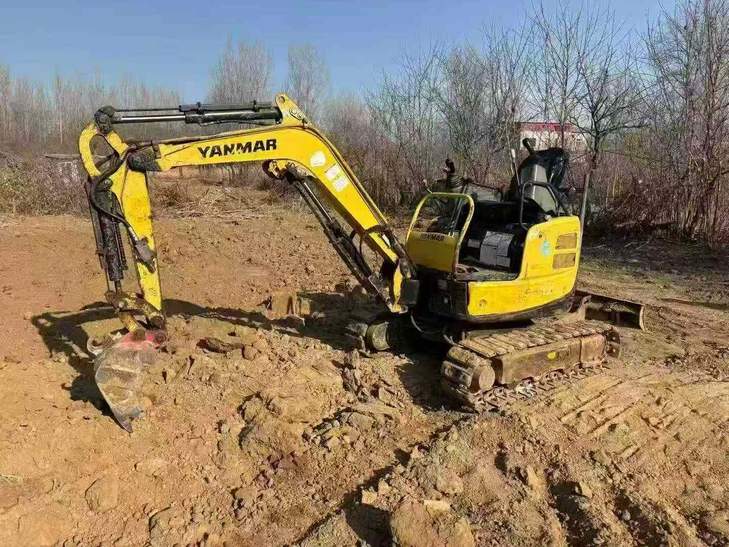

Compact power meets exceptional value in this 2018 Yanmar Vio17 mini excavator, now available from our Beijing location. Engineered for tight-access projects and urban construction sites, this 1.7-ton machine delivers professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 3TNV70-XBV water-cooled diesel engine producing 10.1 kW, it combines fuel efficiency with robust digging capability—15.2 kN bucket force handles demanding excavation tasks with ease.
Key specifications include:
- Maximum digging depth: 2,200 mm with 3,710 mm reach radius
- Compact footprint: 3,450 mm length, 1,280 mm width for superior maneuverability
- Dual-speed travel: 3.8 km/h high / 1.9 km/h low for versatile jobsite mobility
- Advanced hydraulics: 20.6 MPa system pressure with dual 17.6 l/min pumps
- Boom swing capability: 42° left / 75° right for enhanced working flexibility
Invest smart—acquire proven Japanese engineering quality without the new-equipment premium. Ready for immediate deployment on landscaping, utility installation, and confined-space excavation projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1027538 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
