Product Description

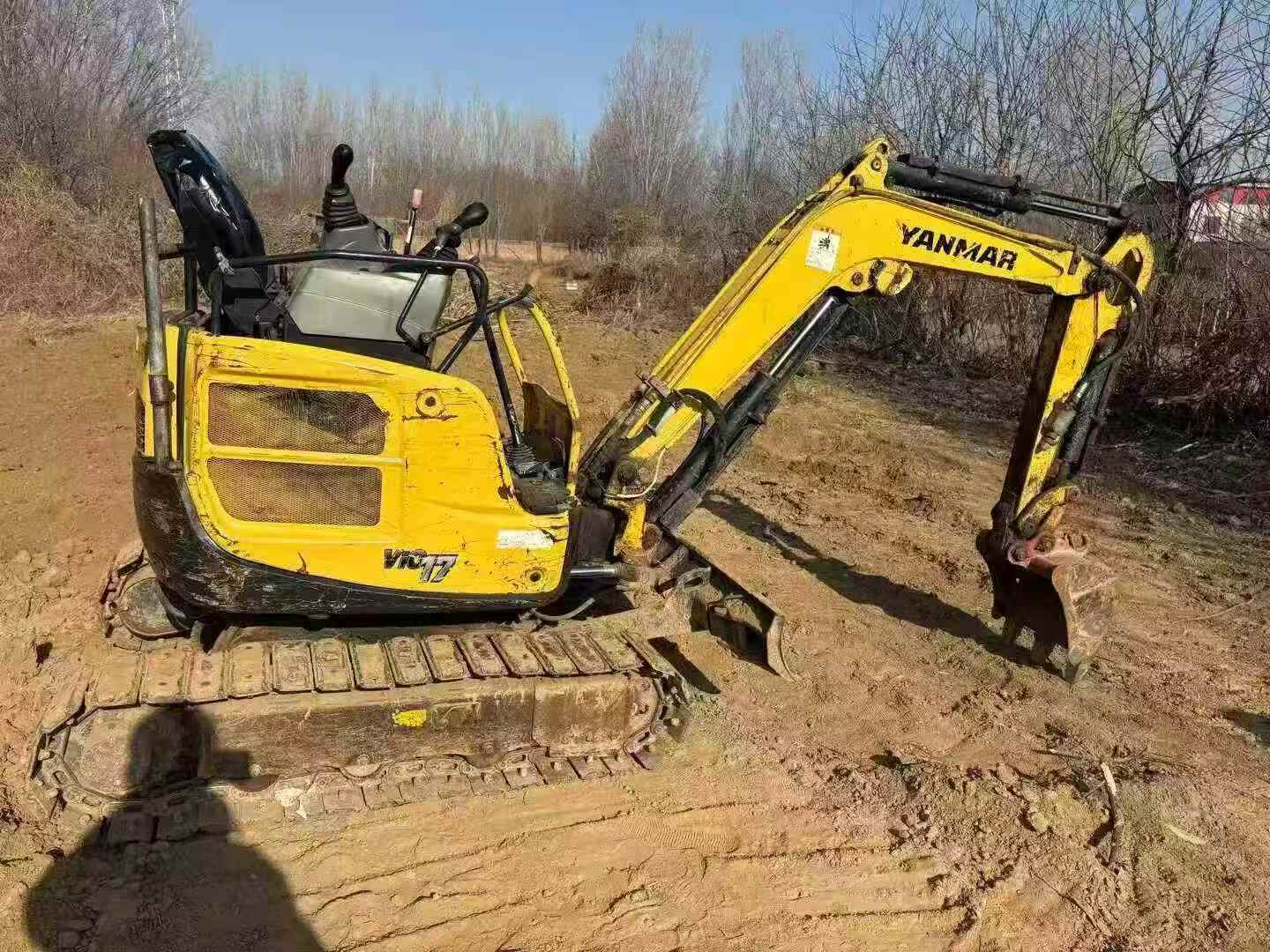

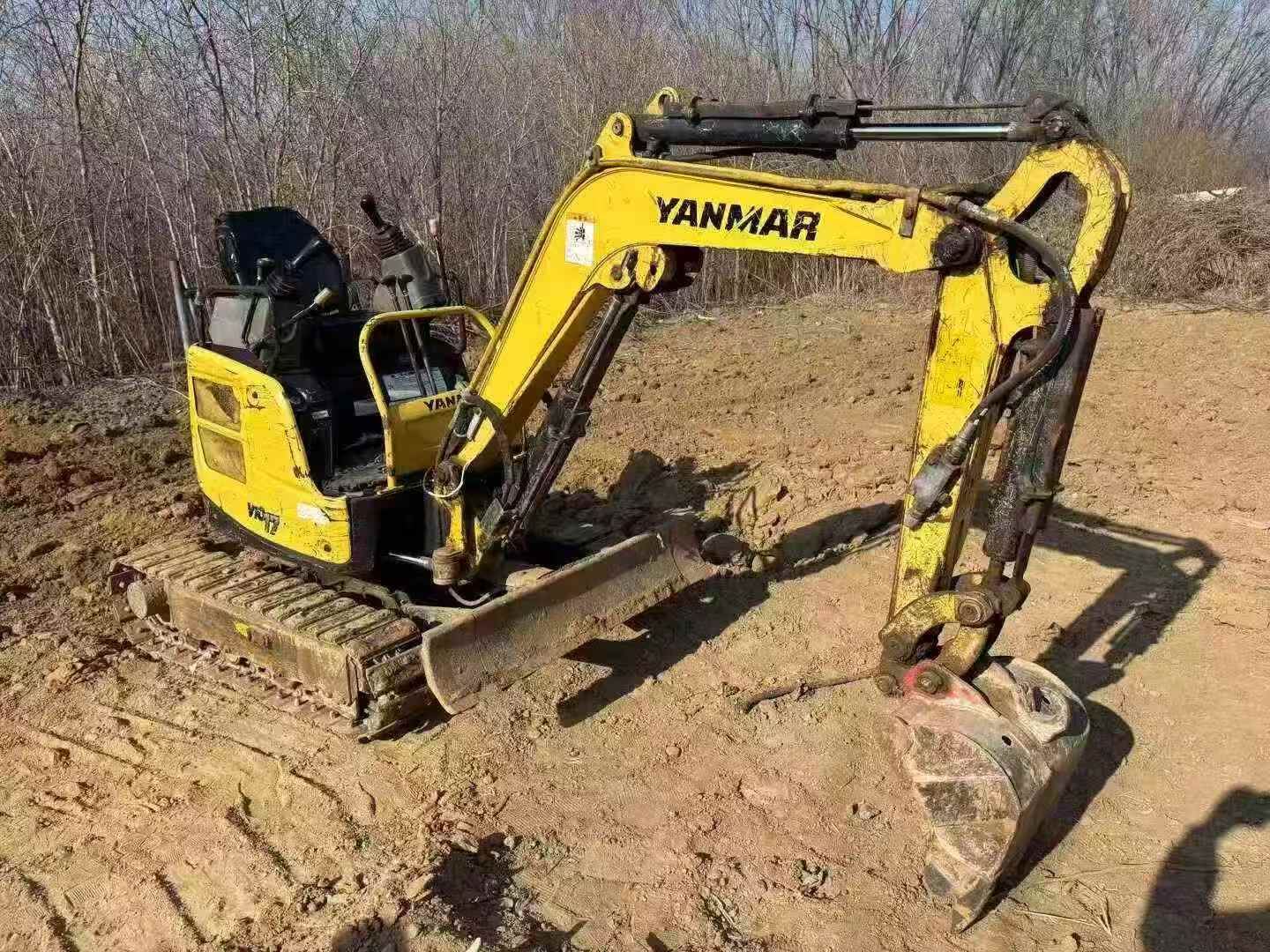

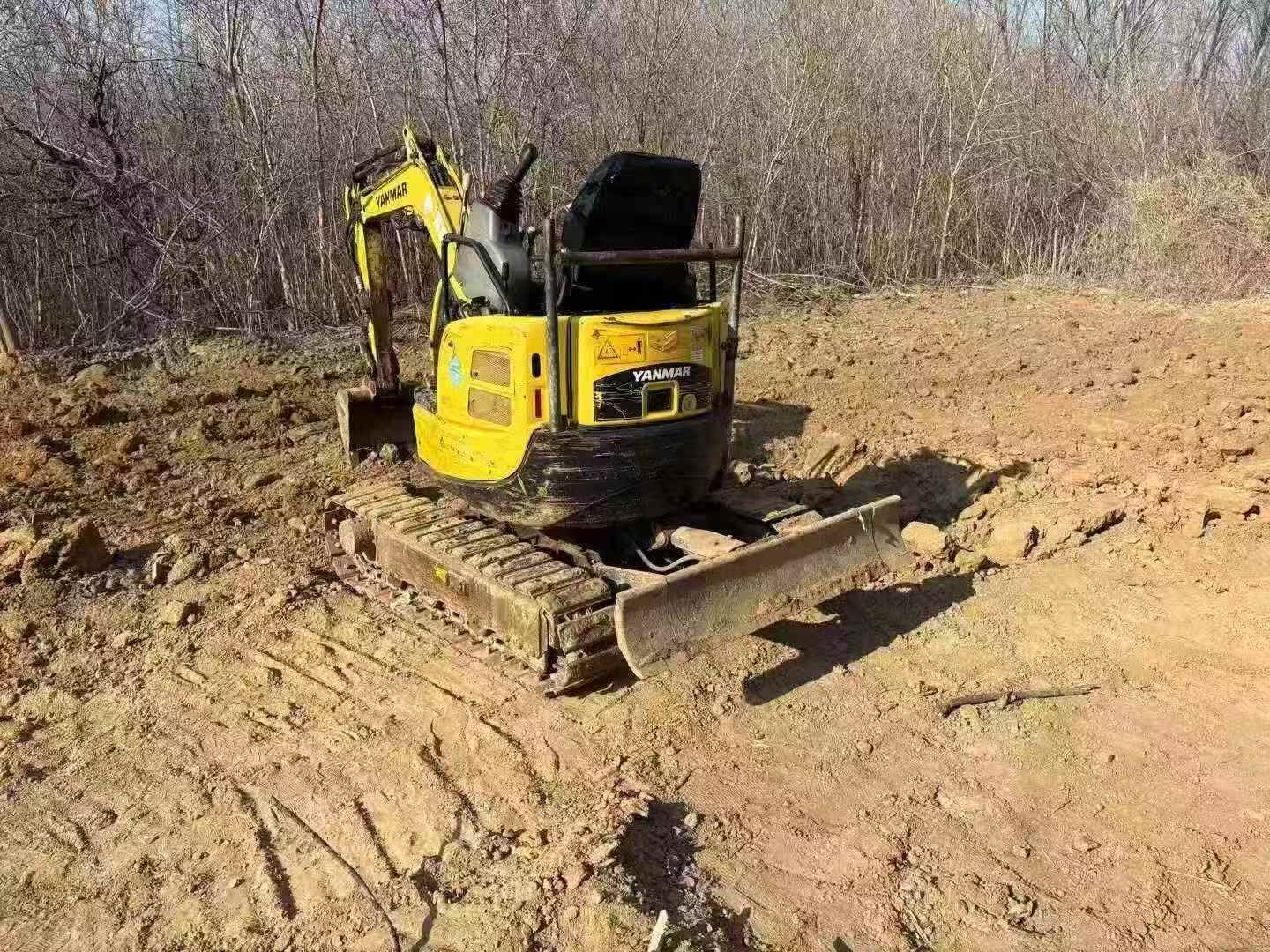

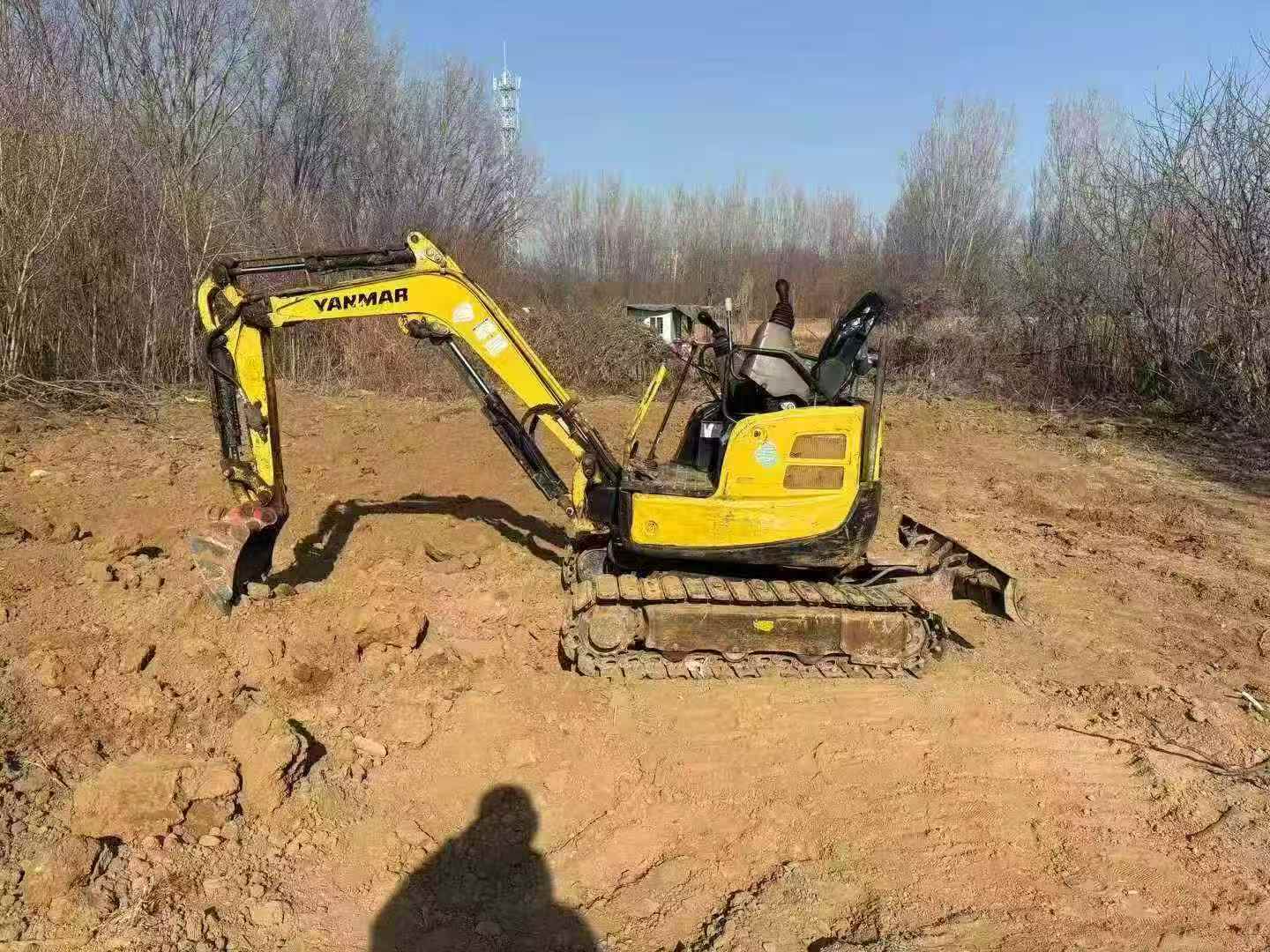

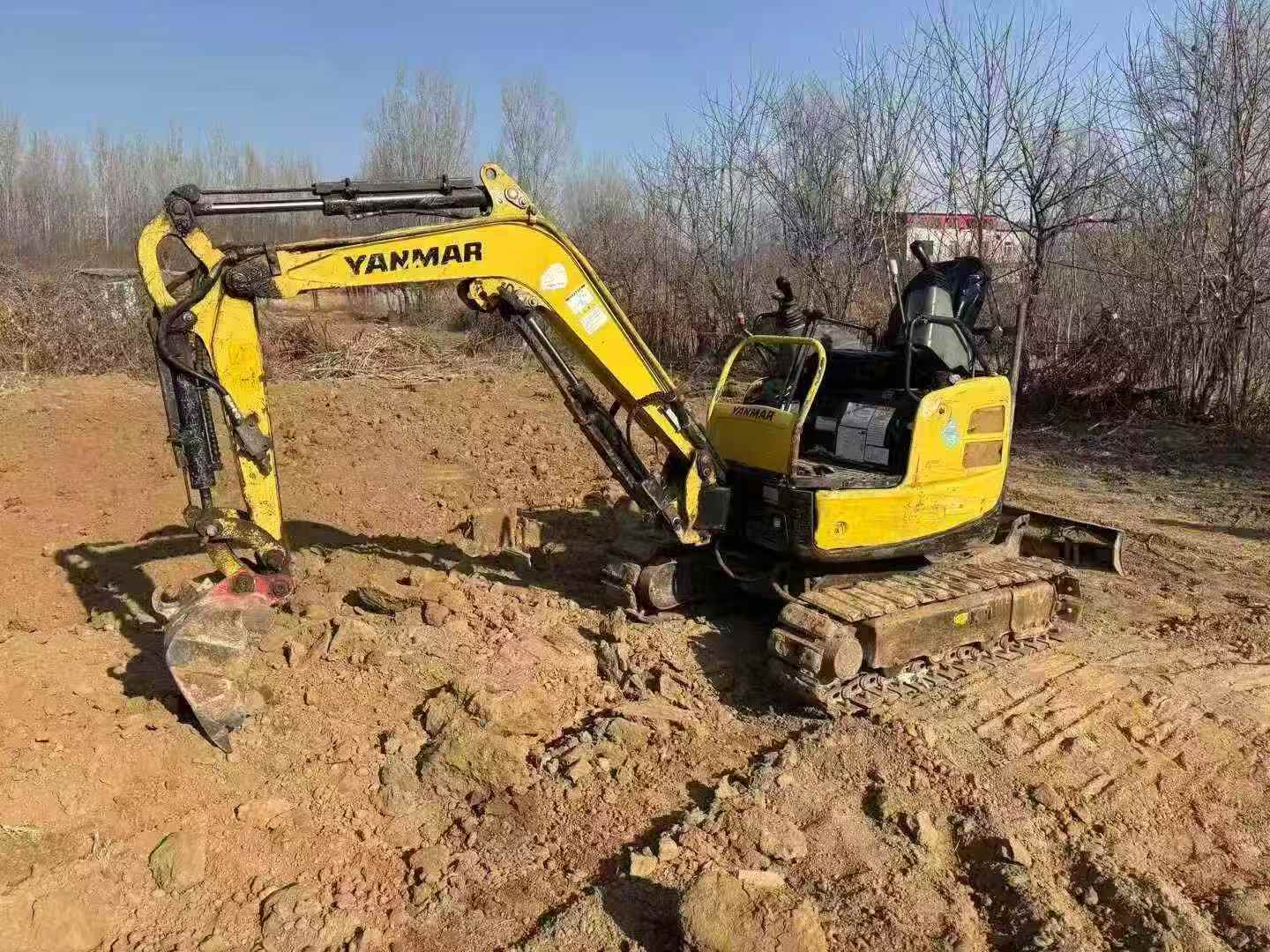

Engineered for precision work in confined spaces, this 2018 Vio17 combines Yanmar's proven hydraulic technology with compact versatility. Powered by the 3TNV70-XBV engine delivering 10.1kW at 2200 rpm, this 1.7-ton mini excavator features a vertical water-cooled, 3-cylinder direct injection system ensuring reliable performance across demanding applications.
Hydraulic capability stands at the core of this machine's design. Main pump flow reaches 17.6 l/min (dual circuit) plus 13.2 l/min auxiliary, while main overflow pressure peaks at 20.6 MPa, generating exceptional bucket digging force of 15.2 kN. Maximum digging depth extends to 2200mm with a 3710mm working radius, supported by a 9.5 rpm rotation speed for efficient cycle times.
Key specifications include:
- Compact transport dimensions: 3450mm (L) × 1280mm (W) × 2370mm (H)
- Dual-speed travel: 3.8 km/h high, 1.9 km/h low
- Low ground pressure: 28 kPa (rubber tracks) / 29 kPa (steel)

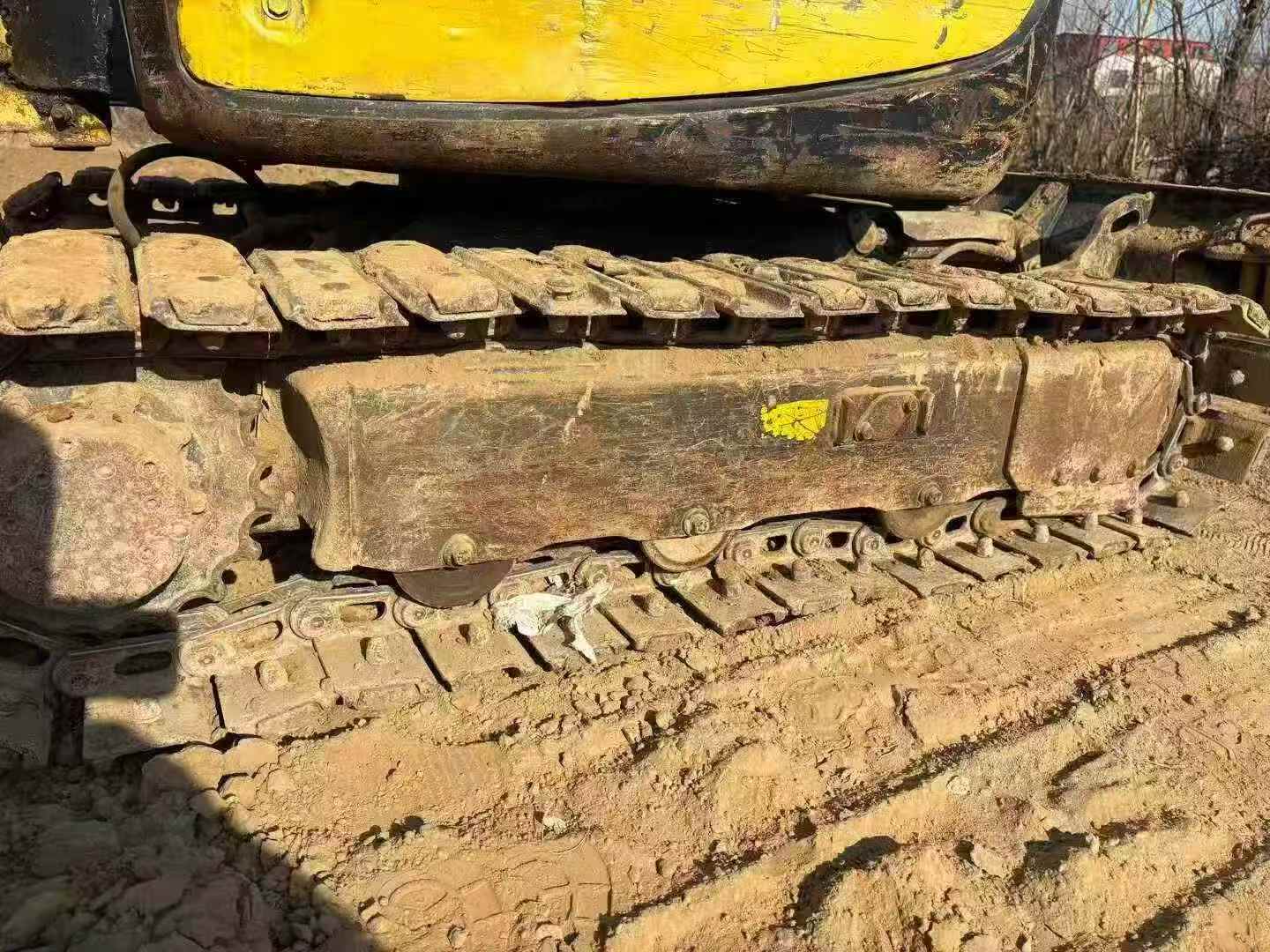

- 230mm track plate width with 1050mm gauge
- Boom swing: 42° left / 75° right for exceptional maneuverability
Currently located in Hebei, this joint-venture manufactured unit represents industrial-grade Japanese engineering ready f
| Specifications | Value |
|---|---|
| No. | 1032621 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

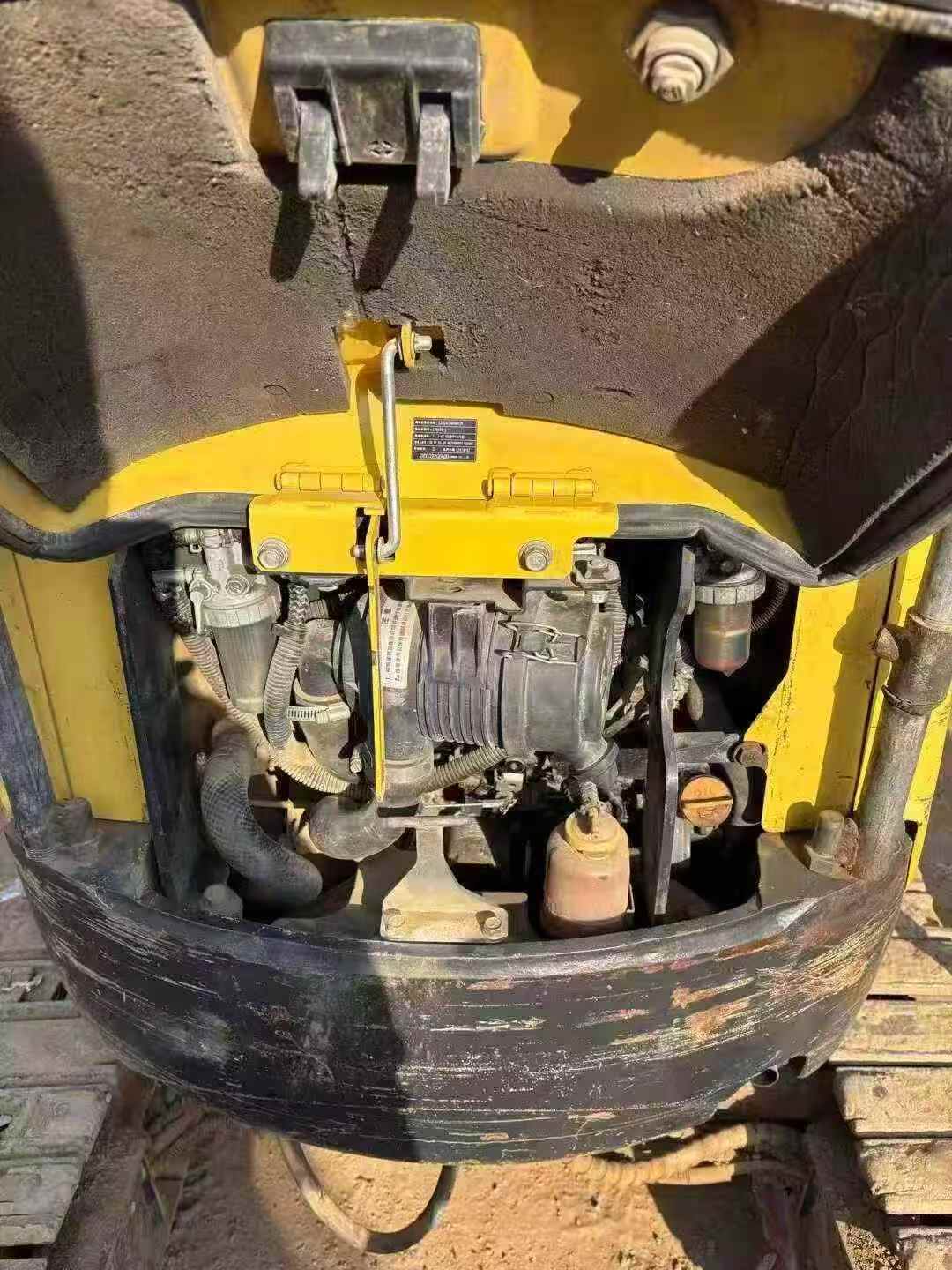

| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
