Name: Used Excavators 2018 Yanmar Vio17
Brand: Yanmar
SKU: USED-1048238
Availability: InStock
Rating: 4.3 (82 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

With a working weight of 1700 kg and a bucket capacity of 0.05 m³, the Yanmar Vio17 from 2018 is designed for precision and efficiency in compact spaces. Located in 福建福州, this mini excavator features a traditional power engine, specifically the Yanmar 3TNV70-XBV, delivering 10.1 kW at 2200 rpm. Equipped with a water-cooling system and a 3-cylinder, direct injection setup, it ensures reliable performance and durability.
<ul>
<li>Bucket digging force: 15.2 kN</li>
<li>Travel speed: High 3.8 km/h, Low 1.9 km/h</li>
<li>Maximum digging depth: 2200 mm</li>
<li>Fuel tank capacity: 20 L</li>
</ul>
Operators benefit from excellent visibility and handling, thanks to its full cab height of 2370 mm and a minimum ground clearance of 175 mm. The Vio17's compact dimensions, including a total transport width of 1280 mm (or 950 mm), make it ideal for tight job sites. This machine offers a balance of power and maneuverability, making it a versatile choice for various construction tasks.

Skip the factory lead times with this ready-to-deploy 2016 Komatsu PC120 excavator, strategically positioned in Hubei Province for immediate delivery across China. Built with Japanese precision engineering, this 12-ton workhorse delivers reliable performance through its proven Komatsu S4D105-5 engine producing 67.1kW of power.

Engineered for versatility, this machine combines a 4.6-meter boom with a 2.0-meter arm to achieve maximum digging depths of 5 meters and excavation heights reaching 7.55 meters. With its compact 2.43-meter transport width and efficient hydraulic system flowing 323 L/min, rapid site deployment becomes seamless.

<ul>
<li>Available now from Hubei - no manufacturing delays</li>
<li>12-ton operating weight with 70% climbing capability</li>
<li>Maximum excavation radius: 7.54 meters</li>
<li>Fuel-efficient 230L tank capacity</li>
<li>Fast deployment ready for immediate productivity</li>
</ul>

Secure this proven performer today and maintain project momentum without the typical procurement delays associated with new equipment orders.

Komatsu PC120

Built for demanding construction environments, this 2012 Volvo EC210B excavator delivers proven performance with 21-ton operating capacity and robust Volvo D6D engine producing 107kW of reliable power. Currently located in Hubei Province, this machine features a 0.9-0.92m³ bucket capacity and impressive 9.94m maximum digging radius, making it ideal for medium to large-scale earthmoving projects.

Volvo's reputation for engineering excellence translates directly into lower ownership costs and superior resale value. Key advantages include:

<ul>
<li>Extensive parts network across China ensures minimal downtime</li>
<li>Proven hydraulic system with dual 200L/min pumps for consistent performance</li>
<li>Advanced turbocharging and electronic fuel injection for fuel efficiency</li>
<li>70% climbing ability and 183kN maximum tractive force for challenging terrain</li>
</ul>

With Volvo's established service infrastructure and strong brand recognition, this EC210B represents a smart investment for contractors seeking dependable equipment with predictable maintenance costs and strong market value retention.

Volvo EC210B

Strengthen your fleet operations with this reliable 2016 Hitachi ZX120 excavator, engineered for consistent performance in demanding construction environments. Built in Hefei with proven ISUZU CC-4BG1TC engine technology, this 12-ton workhorse delivers 66kW of power through a robust 4-cylinder, water-cooled system.

Key operational advantages include:
<ul>
<li>0.52m³ bucket capacity with 99kN digging force for efficient material handling</li>
<li>8.27m maximum reach radius covering extensive work zones</li>
<li>Dual-speed travel system (3.4/5.5 km/h) for optimal site mobility</li>
<li>250L fuel capacity minimizing downtime between refueling</li>
<li>Compact 2.49m transport width for easy trailer loading</li>
</ul>

Currently located in Hubei Province, this machine represents an ideal backup unit for contractors managing multiple projects simultaneously. With proven hydraulic systems featuring variable piston pumps and quantitative plunger rotation motor, expect dependable daily operation. Perfect for contractors seeking fleet expansion without compromising on established Hitachi reliability standards.

Hitachi ZX120

Built for demanding construction environments, this 2022 XCMG XE135GA excavator demonstrates exceptional durability with minimal operational hours. Operating at 13.5 tons, this fuel-powered workhorse delivers consistent performance across diverse job sites throughout Hubei Province.

Engineered with proven Chinese manufacturing standards, this backhoe excavator maintains its structural integrity after years of reliable service. Key specifications include:

<ul>
<li>13.5-ton operating weight for optimal stability</li>
<li>Fuel-efficient diesel engine for extended runtime</li>
<li>Robust backhoe bucket configuration</li>
<li>XCMG's renowned build quality and engineering</li>
<li>Comprehensive maintenance history available</li>
</ul>

This proven excavator represents solid value for contractors seeking dependable heavy machinery. With its established track record and minimal wear patterns, operators can expect continued productive service. Ready for immediate deployment on your next project.

XCMG XE135GA

Built to endure the toughest jobsite conditions, this 2011 Komatsu PC60 excavator stands as a proven workhorse with over a decade of reliable performance. Operating in Hubei province, this 6-ton compact excavator demonstrates the exceptional build quality that Komatsu's joint venture manufacturing is renowned for worldwide. Traditional power systems deliver consistent performance while maintaining straightforward serviceability that keeps operational costs predictable.

Equipped with a versatile backhoe bucket configuration, this machine tackles excavation, trenching, and material handling tasks with precision and efficiency. Its compact 6-ton class makes it ideal for urban construction, utility work, and confined spaces where maneuverability matters most.

<ul>
<li>Year: 2011 – Proven durability through years of service</li>
<li>6-ton operating weight for optimal versatility</li>
<li>Traditional power system for reliable performance</li>
<li>Joint venture/Import manufacturing quality</li>
<li>Backhoe bucket configuration included</li>
<li>Currently located in Hubei province</li>
</ul>

Invest in a machine with a documented track record. This PC60 represents dependable Komatsu engineering that continues delivering resu

Komatsu PC60

Sourced from Hubei and ready for immediate deployment, this 2012 Doosan DH220-9E excavator eliminates factory lead times and delivers proven performance exactly when your project demands it. Operating at 22 tons with a robust 0.93 m³ bucket capacity, this machine combines the efficiency of a Doosan DB58TIS engine rated at 110 kW with the reliability of battle-tested hydraulics—136.2 kN bucket digging force and a 9,965 mm maximum digging radius handle demanding earthmoving applications without hesitation.

<ul>
<li>Available Now: Skip months of procurement delays—deploy directly from Hubei to your site</li>
<li>Operational Reach: 6,655 mm maximum digging depth, 9,660 mm excavation height</li>
<li>Hydraulic Power: 32.4 MPa working circuit, dual 212 L/min pilot pumps for responsive control</li>
<li>Mobility: 5.4 km/h maximum travel speed, 2,840 mm rear turning radius for confined workspaces</li>
<li>Fuel Autonomy: 310-liter tank supports extended operating shifts</li>
</ul>

Backed by joint-venture manufacturing standards and equipped with traditional power architecture, this excavator offers predictable maintenance protocols and parts availabil

Doosan DH220-9E

Engineered for precision and operator confidence, this 2022 XCMG XE305D excavator combines 30-ton performance with intuitive control dynamics. Powered by a robust 169kW diesel engine at 2050 rpm, the machine delivers 198kN bucket digging force across a maximum working radius of 10,665mm and digging depth reaching 7,200mm. Operators benefit from enhanced cabin visibility designed into XCMG's 2022 platform, providing clear sightlines to the bucket edge and surrounding jobsite terrain.

<ul>
<li>Operating weight: 32,500kg with optimal weight distribution for stability</li>
<li>Bucket capacity: 1.27-1.6m³ backhoe configuration</li>
<li>Maximum excavation height: 10,146mm for versatile reach</li>
<li>Responsive hydraulic controls reduce operator fatigue during extended shifts</li>
<li>Spacious cabin layout with ergonomic joystick positioning</li>
<li>Currently located in Zhejiang, China</li>
</ul>

Built for demanding earthmoving applications, this XE305D provides the handling characteristics and operational stability required for high-productivity excavation work. Ready for immediate deployment on infrastructure, mining, or commercial construction projects.

XCMG XE305D

Built for heavy-duty excavation, grading, and demolition work, this 2019 Caterpillar 336E delivers 236 kW of reliable power through its CAT C9ACERT engine. Operating at 35,500 kg working weight with a 36-ton capacity, this machine handles demanding jobsites with precision and efficiency. The 11,040 mm maximum digging radius provides extensive reach for trenching, foundation work, and material handling operations.

Equipped with a backhoe bucket and water-cooling system, this excavator maintains optimal performance during extended shifts. As the first model to meet both European Stage IIIB and Tier 4 emission standards, it combines environmental compliance with proven Caterpillar engineering. Currently located in Zhejiang, this joint venture/import unit is site-ready and prepared for immediate deployment.

<ul>
<li>Rated Power: 236 kW @ 1,800 RPM</li>
<li>Working Weight: 35,500 kg</li>
<li>Maximum Digging Radius: 11,040 mm</li>
<li>Engine: Caterpillar CAT C9ACERT</li>
<li>Emission Standard: Stage IIIB / Tier 4 Compliant</li>
</ul>

Caterpillar 336E

Proven performance meets robust engineering in this 2022 XCMG XE550DK excavator, a 55-ton workhorse designed for demanding excavation projects. Built with durability at its core, this machine features a powerful Perkins 2206 III N engine delivering 309.5 kW at 2100 rpm, coupled with a maximum torque of 1896 N.m to tackle the toughest jobsites. With a 6550mm boom and 2550mm arm, this excavator provides exceptional reach and precision for large-scale earthmoving operations.

<ul>
 <li>Operating weight: 51,200 kg for superior stability</li>
 <li>Bucket digging force: 330 kN with 255 kN arm force</li>
 <li>Dual main pumps: 2×360 L/min for efficient hydraulic performance</li>
 <li>Maximum tractive force: 370 kN ensures reliable traction</li>
 <li>Fuel capacity: 725L for extended operational hours</li>
 <li>Ground pressure: 88 kPa minimizes surface impact</li>
</ul>

Currently located in Zhejiang, China, this well-maintained excavator demonstrates XCMG's commitment to manufacturing heavy equipment that stands the test of time. Ready for immediate deployment on your next major construction or mining project.

XCMG XE550DK

Built for relentless performance, this 2022 XCMG XE155D excavator demonstrates exceptional durability in a compact 15-ton platform. Operating weight of 14,600 kg combines with a powerful QSF3.8 engine delivering 93 kW at 2200 rpm, ensuring consistent productivity across demanding jobsites. With only minimal runtime since manufacture, this proven workhorse showcases XCMG's reputation for robust engineering and longevity.

Engineered for versatility, the machine features a 4600 mm boom and 2520 mm arm configuration, achieving an impressive 8304 mm maximum digging radius and 5535 mm digging depth. Hydraulic power translates to 106.9 kN bucket digging force and 73.4 kN arm digging force, tackling tough excavation tasks with confidence. Water-cooled turbocharged operation maintains optimal performance under sustained loads.

Currently located in Zhejiang, China, this XE155D represents a smart investment in quality construction equipment. Track-type undercarriage with 600 mm shoe width provides 37 kPa ground pressure for stable operation, while 260-liter fuel capacity extends working intervals. Factory-fresh condition backed by proven Chinese manufacturing standards.

XCMG XE155D

Proven in the field since 2019, this Caterpillar 336E excavator demonstrates the durability that has made CAT a global standard in heavy construction. With 36 tons of working weight and a powerful CAT C9ACERT engine delivering 236 kW at 1800 rpm, this machine handles demanding excavation tasks with consistent reliability. Engineered to meet European Stage IIIB and Tier 4 emission standards, it combines environmental compliance with the robust performance contractors depend on.

Built for longevity, this workhorse features water-cooled efficiency and a maximum digging radius of 11,040 mm, providing exceptional reach for large-scale projects. Currently located in Zhejiang, this joint venture/import model represents CAT's commitment to quality manufacturing and time-tested engineering.

<ul>
<li>Working Weight: 35,500 kg (36 tons)</li>
<li>Engine: Caterpillar CAT C9ACERT, 236 kW/1800 rpm</li>
<li>Maximum Digging Radius: 11,040 mm</li>
<li>Emission Standard: Stage IIIB/Tier 4 compliant</li>
<li>Location: Zhejiang, China</li>
</ul>

Engineered for high-capacity earthmoving operations, this 55-ton excavator delivers exceptional power density through its Perkins 2206 III N engine—rated at 309.5 kW at 2100 rpm with 1896 N·m of maximum torque. Dual main pumps supply 2×360 L/min hydraulic flow, enabling a commanding 330 kN bucket digging force and 255 kN arm digging force for rapid cycle times in demanding applications. Built on proven XCMG heavy-duty architecture, the XE550DK combines a 6,550 mm boom and 2,550 mm arm configuration with precision load-sensing hydraulics for optimal fuel efficiency.

<ul>
<li>Operating Weight: 51,200 kg with superior stability (88 kPa ground pressure)</li>
<li>Power System: 13L, 6-cylinder Perkins engine delivering 370 kN maximum tractive force</li>
<li>Hydraulic Capacity: 430L tank supporting continuous high-flow operations</li>
<li>Undercarriage: 5,470 mm track length, 600 mm shoes, 3,800 mm rear swing radius</li>
<li>Transport Dimensions: 11,870 × 3,572 × 4,100 mm</li>
<li>Location: Zhejiang, China</li>
</ul>

Production year 2022 ensures current emission compliance and component availability. Ideal for large-scale mining,

Engineered for precision and daily performance, this 2022 Sany SY215C delivers 21-ton capacity with operator-centric design throughout. Powered by a Mitsubishi 4M50 engine generating 118kW at 2000rpm, this excavator combines reliable torque delivery with water-cooled efficiency for extended shifts in demanding conditions.

Operators benefit from exceptional sightlines and ergonomic cabin layout, critical for accurate positioning during complex excavation tasks. With a 3730mm minimum turning radius and 2900mm rear swing radius, maneuverability remains precise even in confined job sites. Ground-specific pressure of 47.4kPa ensures stable operation across varied terrain, while 70% climbing ability tackles challenging gradients confidently.

<ul>
<li>Maximum digging reach: 10,280mm with 6,600mm depth capability</li>
<li>Bucket digging force: 138kN for tough material penetration</li>
<li>Travel speed: 5.4km/h (high) / 3.3km/h (low) for efficient repositioning</li>
<li>390L fuel capacity supports full-day operations</li>
<li>Standard 1.1m³ bucket (0.8~1.2m³ range available)</li>
</ul>

Currently located in Zhejiang, China. Ready for immediate deployment in construction, mining, or infrastructure projects requiring dependable

Sany SY215C

Secure a proven performer at a fraction of new equipment cost with this 2019 XCMG XE490D hydraulic excavator. Operating at 49 tons with a robust 280kW Cummins QSM11 engine, this machine delivers 305kN bucket digging force and 275kN arm digging force—matching the productivity of current models without the premium price tag. Its 2.5m³ bucket capacity and 11,085mm maximum digging radius handle large-scale earthmoving, mining, and infrastructure projects with authority.

<ul>
<li>Year: 2019</li>
<li>Model: XCMG XE490D</li>
<li>Working Weight: 48,100 kg</li>
<li>Engine: Cummins QSM11, 280kW @ 2050 rpm</li>
<li>Bucket Capacity: 2.5m³ (2.3-3.1m³ range)</li>
<li>Max Digging Depth: 6,985mm</li>
<li>Max Digging Reach: 11,085mm</li>
<li>Hydraulic System: Dual 360 L/min plunger pumps</li>
<li>Location: Zhejiang, China</li>
</ul>

Invest smart—acquire factory-grade performance with minimal depreciation already absorbed. Currently located in Zhejiang and ready for global shipment through Fair Trade Machinery's logistics network.

XCMG XE490D

Maximize your equipment budget with this 2022 Sany SY135 excavator, currently located in Anhui. Delivering professional-grade performance at a fraction of new equipment costs, this 13-ton machine represents smart capital allocation for contractors and fleet managers seeking proven reliability without premium pricing.

Built for demanding jobsites, this mid-size excavator combines a 13,500 kg working weight with traditional power systems engineered for fuel efficiency and durability. Equipped with a versatile backhoe bucket, it handles trenching, foundation work, and material handling across construction, utility, and landscaping applications.

<ul>
<li>Year: 2022</li>
<li>Model: Sany SY135</li>
<li>Operating Weight: 13,500 kg (13 tons)</li>
<li>Power Type: Traditional diesel</li>
<li>Attachment: Backhoe bucket</li>
<li>Origin: Made in China</li>
<li>Current Location: Anhui</li>
</ul>

Sany's reputation for robust construction equipment meets exceptional value in this low-hour unit. Acquire the productivity your projects demand while preserving working capital for growth. Contact Fair Trade Machinery today for detailed specifications, inspection reports, and competitive international shipping rates.

Sany SY135

Engineered with precision in Xuzhou, this 13-ton excavator delivers robust performance through its ISUZU BB-4BG1TRP engine producing 69.6kW at 2200rpm. Dual plunger pumps supply 2×123 L/min hydraulic flow at 31.4/34.3 MPa, powering an 85kN bucket digging force and 65kN rod digging force that handle demanding excavation tasks with authority.

Built on proven XCMG engineering standards, the XE135B combines a 4600mm boom and 2510mm rod for an impressive 8296mm maximum digging radius and 5538mm depth capacity. Water-cooled turbocharged operation ensures consistent power delivery, while the 0.4-0.52m³ bucket capacity optimizes cycle times across construction and earthmoving applications.

<ul>
<li>Working Weight: 13,800kg with 964mm counterweight clearance</li>
<li>Hydraulic System: 250L fuel tank, 130L hydraulic reservoir for extended operation</li>
<li>Mobility: 35° climbing ability, 12.3rpm rotation speed, 5.16km/h travel speed</li>
<li>Dimensions: 7770mm transport length, 2512mm width for site accessibility</li>
<li>Ground Pressure: 42kPa minimizes surface impact on sensitive terrain</li>
</ul>

Currently available in Anhui, China. Ready for immediate deployment on your worksite.

Specifications	Value
No.	1048238
Tonnage (tons)	1
Working weight (kg)	1700
Bucket capacity (m³)	0.05
Bucket width (mm)	450
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Yanmar 3TNV70-XBV
Rated power (kw/rpm)	10.1/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	3
Working form	Vertical water cooling; 3 cylinders; Direct injection
Ground specific pressure (Kpa)	Rubber track 28/ Steel 29
Rotation speed (rpm)	9.5
Bucket digging force (kN)	15.2
Travel speed (km/h)	High 3.8 Low 1.9
Main overflow set pressure (Mpa)	20.6 * 2 + 16.7 * 1
Maximum flow of main pump (l/min)	17.6 * 2 + 13.2
Fuel Tank (L)	20
Total transport length (mm)	3450
Total transport width (mm)	1280 (950)
Total transport height (mm)	2370
Full cab height (mm)	2370
Minimum ground clearance (mm)	175
Minimum turning radius of front working device (mm)	1520
Back end turning radius (mm)	640
Total track length (mm)	1525
Track gauge (mm)	1050
Track plate width (mm)	230
Total track width (mm)	1280
Maximum digging radius (mm)	3710
Maximum digging depth (mm)	2200
Maximum excavation height (mm)	3690
Maximum unloading height (mm)	2630
Maximum vertical digging depth (mm)	1850
Bulldozer lift or depth (mm)	260/205
Dodging plate width × height (mm)	950/1280 x 235
Boom turning Angle (left/right °)	42/75

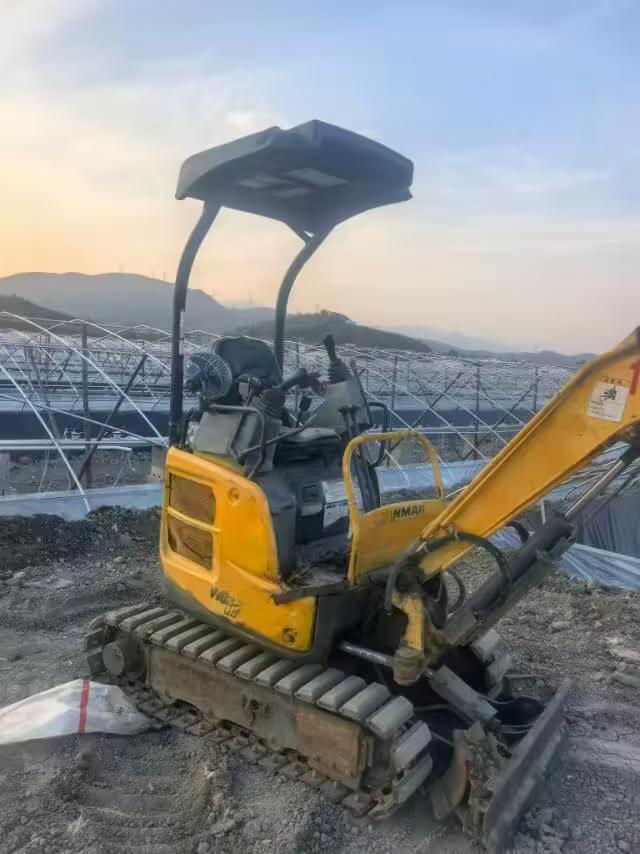

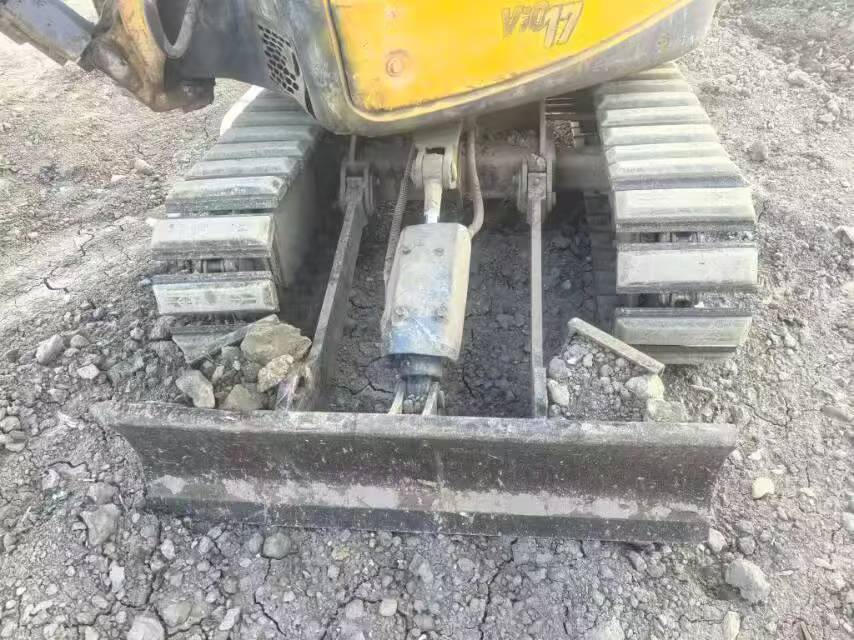

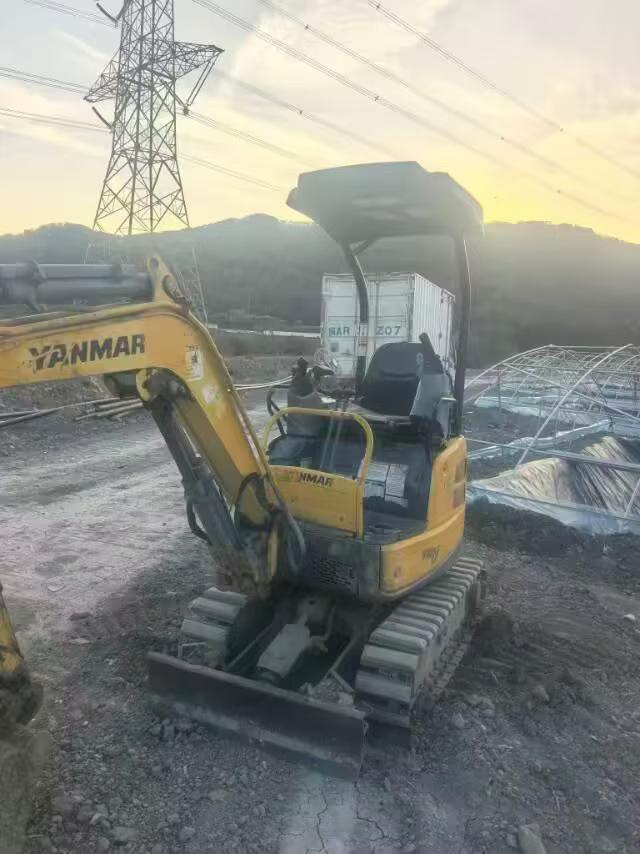

2018 Yanmar Vio17
