Product Description

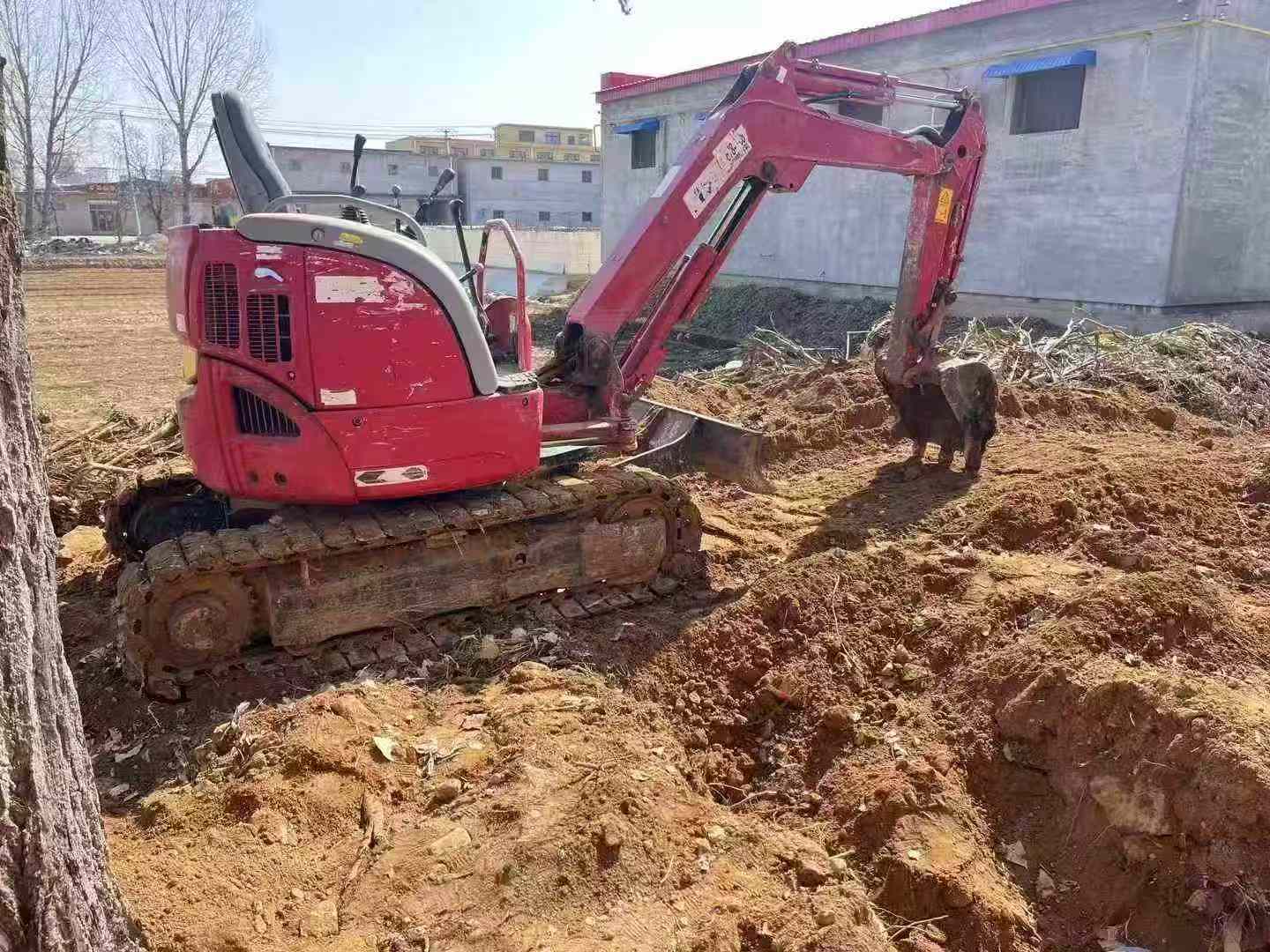

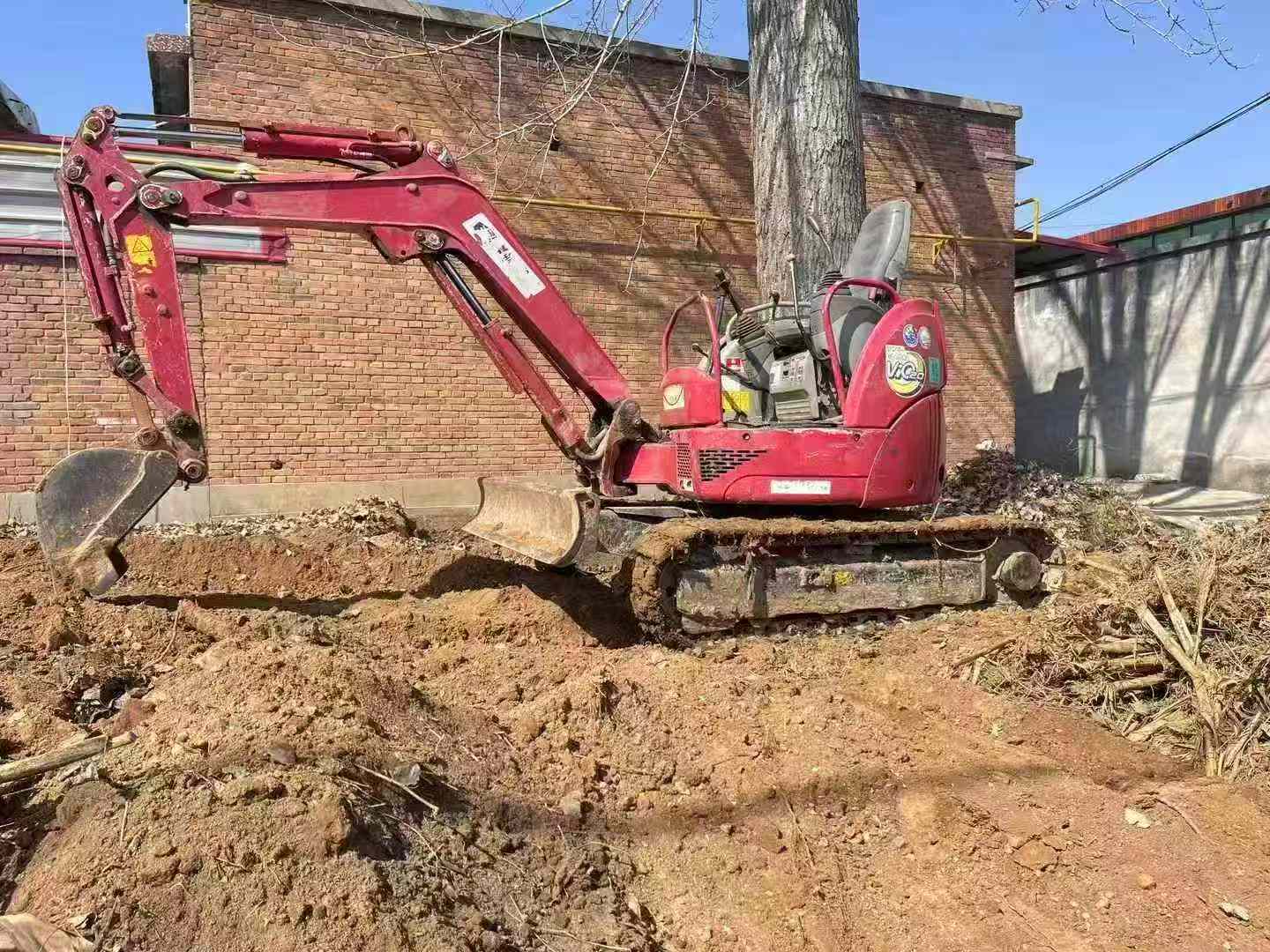

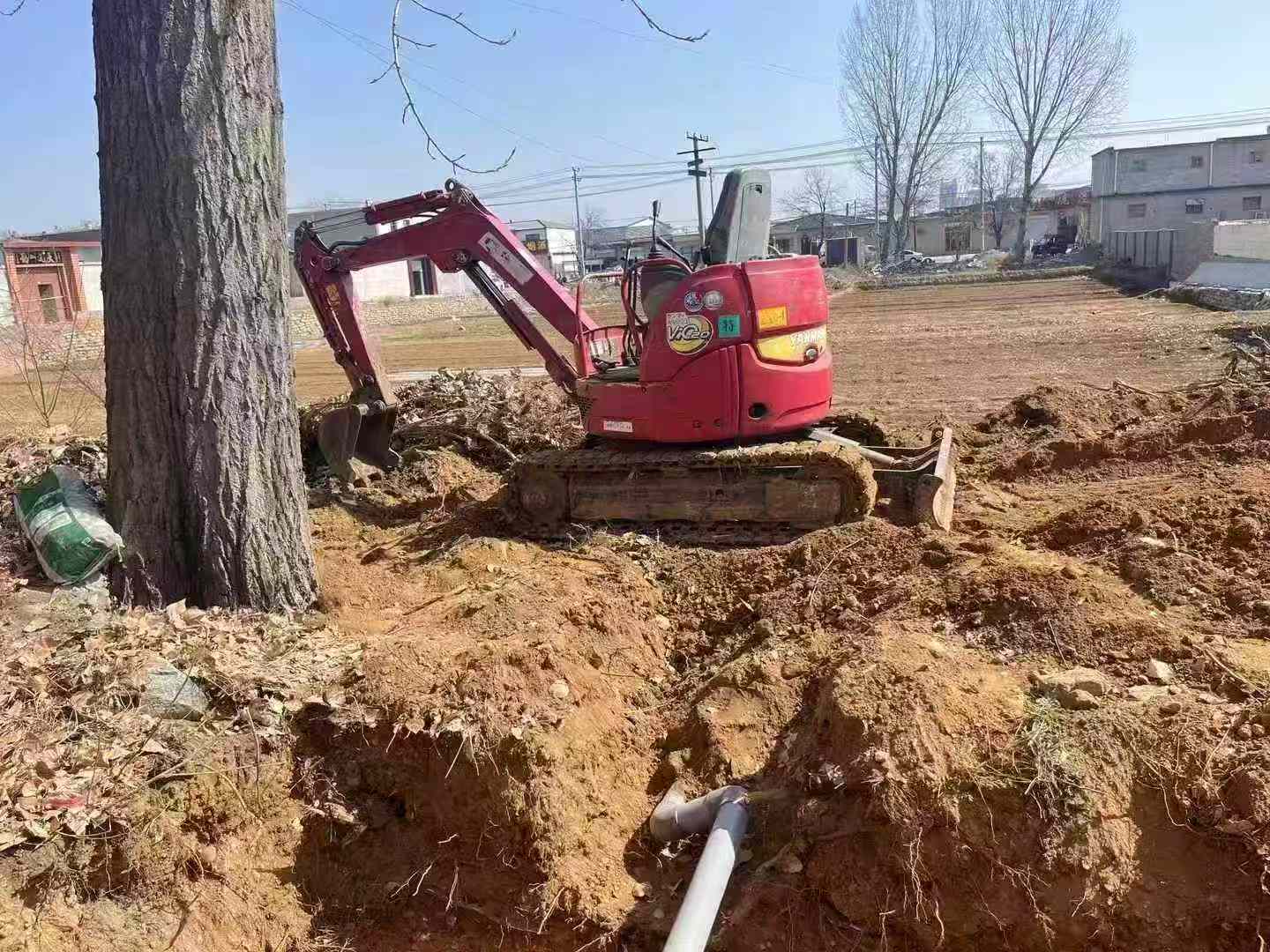

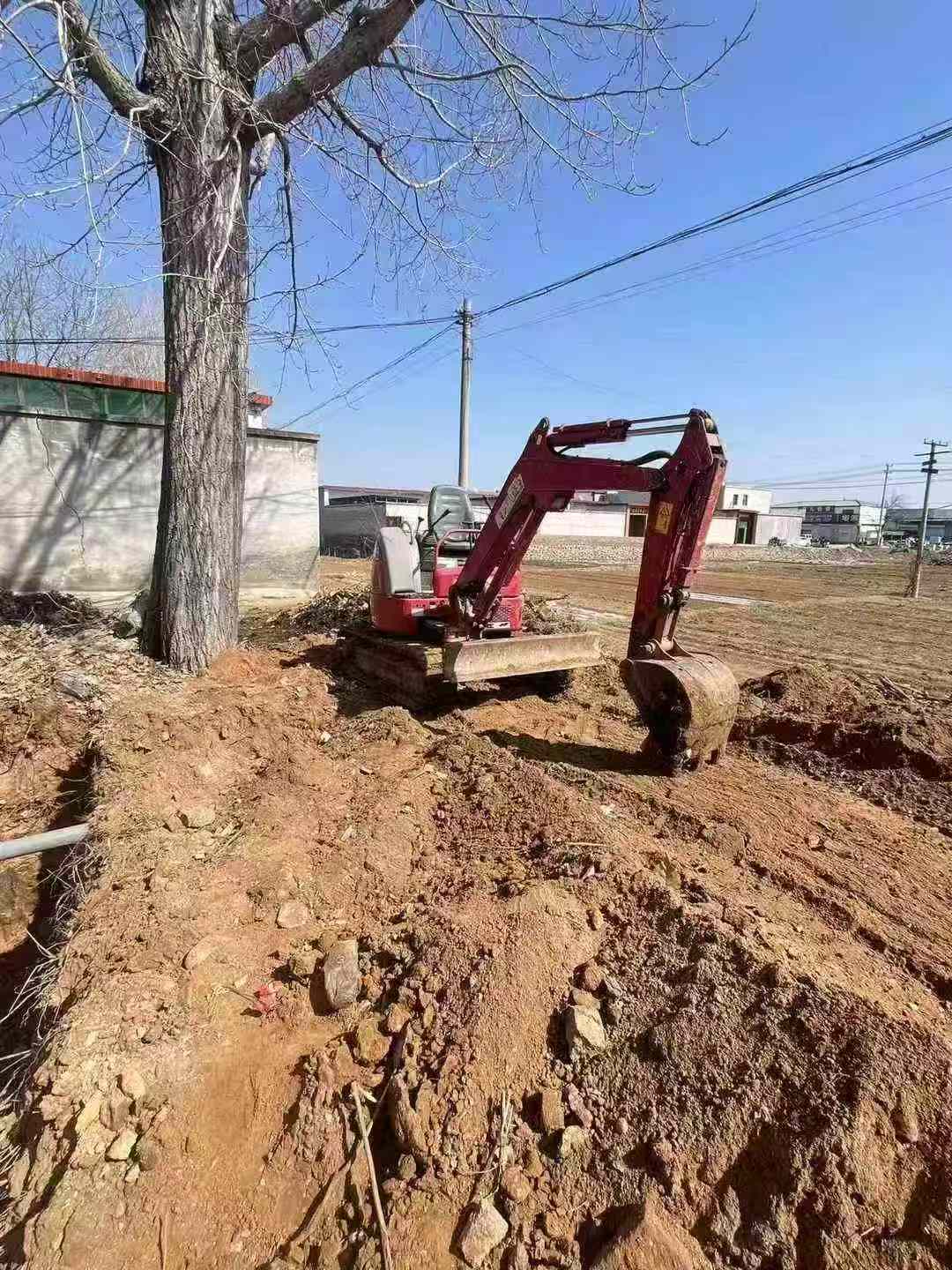

Designed for precision work in confined spaces, this 2016 Yanmar Vio20-3 mini excavator delivers exceptional operator control and maneuverability. Powered by a reliable Yanmar 3TNV76-PBV three-cylinder engine producing 14.3 kW at 2400 rpm, this 2-ton machine combines compact dimensions with robust digging performance. Operators benefit from excellent visibility across the 1380 mm width platform, while the zero tail swing design and tight 690 mm rear turning radius enable safe operation near walls and obstacles.
- Working weight: 2,230 kg with 0.066 m³ backhoe bucket capacity
- Maximum digging depth: 2,600 mm; excavation radius: 4,160 mm
- Bucket digging force: 17.7 kN; arm digging force: 13.1 kN
- Dual travel speeds: 4.4/2.2 km/h for precise positioning
- Low ground pressure: 27.7 kPa with 250 mm track plates
- Compact transport dimensions: 3,915 mm (L) × 1,380 mm (W) × 2,400 mm (H)
- Currently located in Beijing, China
Stable hydraulic performance from the 76 l/min main pump ensures smooth, responsive controls throughout the full working envelope, making this Vio20-3 ideal for urban construction, landscaping, and utility installation projects.
| Specifications | Value |
|---|---|
| No. | 1031362 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2230 |
| Bucket capacity (m³) | 0.066 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

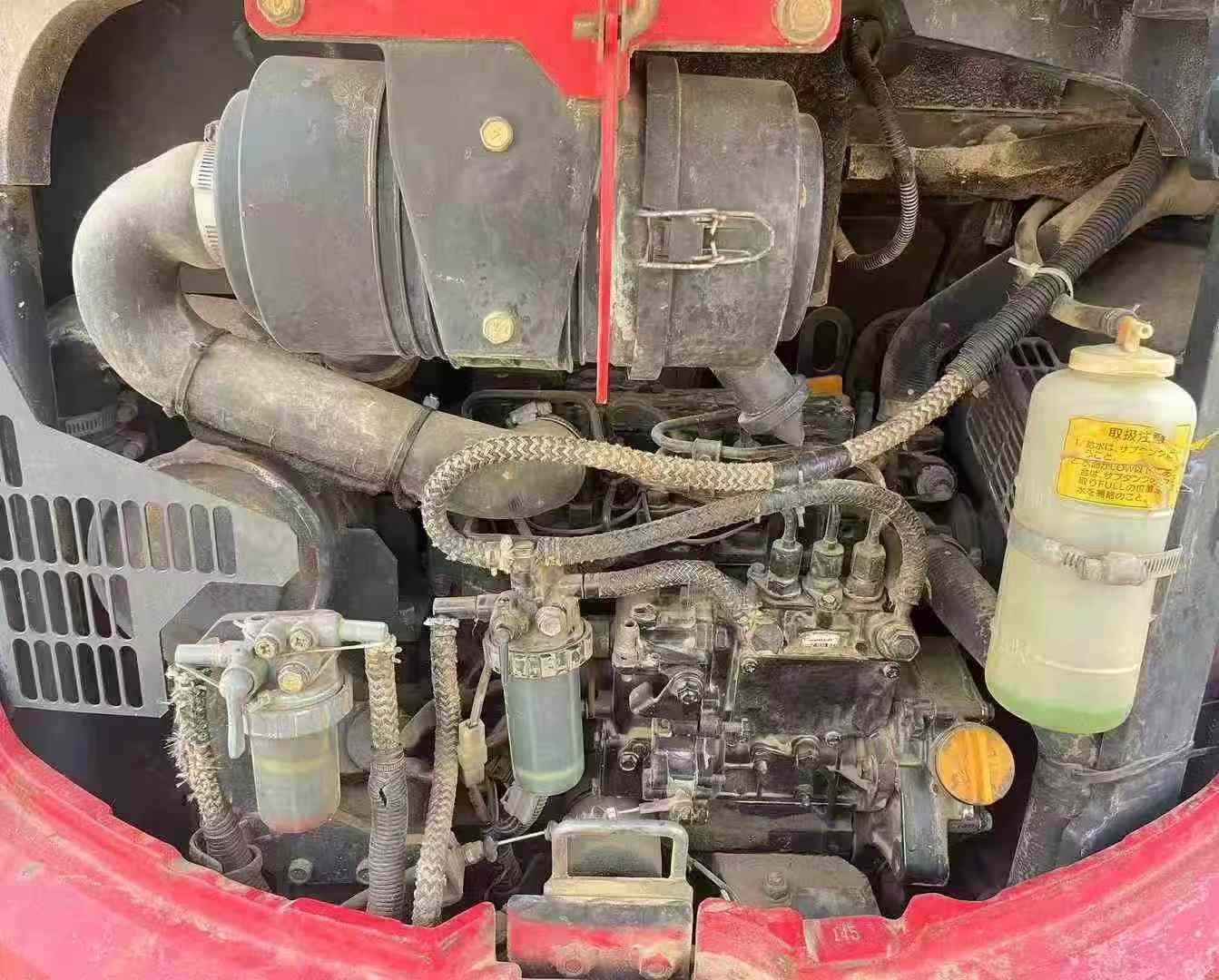

| Engine type | Yanmar 3TNV76-PBV |
| Rated power (kw/rpm) | 14.3 /2400 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1 |
| Ground specific pressure (Kpa) | 27.7 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 17.7 |
| Rod digging force (kN) | 13.1 |
| Travel speed (km/h) | 4.4/2.2 |
| Main overflow set pressure (Mpa) | 20.6 |

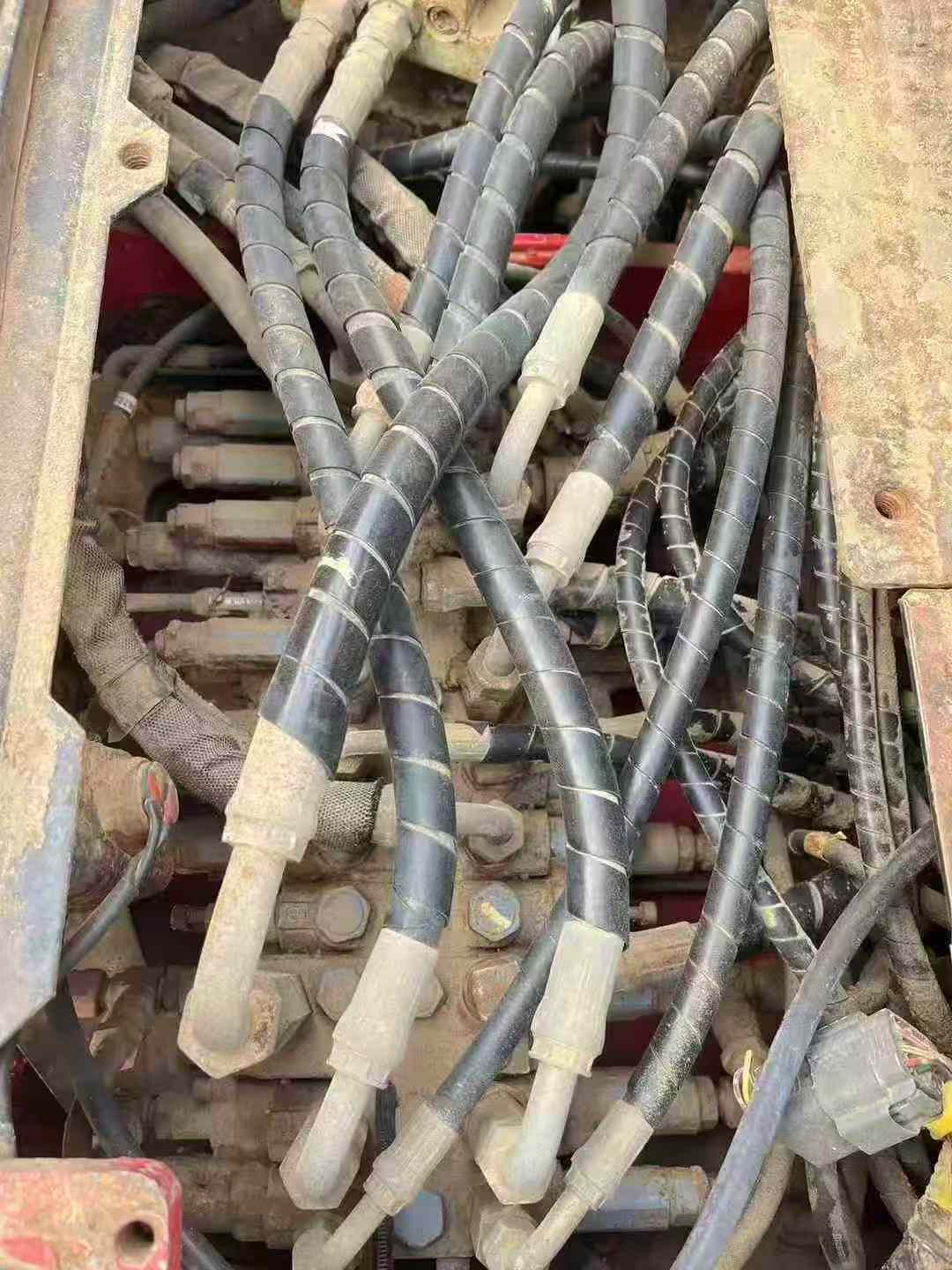

| Maximum flow of main pump (l/min) | 76 |
| Fuel Tank (L) | 28.5 |
| Total transport length (mm) | 3915 |
| Total transport width (mm) | 1380 |
| Total transport height (mm) | 2400 |
| Minimum ground clearance (mm) | 280 |
| Back end turning radius (mm) | 690 |
| Track plate width (mm) | 250 |
| Track ground length (mm) | 1890 |
| Maximum digging depth (mm) | 2600 |
| Maximum excavation height (mm) | 4000 |
| Maximum unloading height (mm) | 2580 |
| Maximum vertical digging depth (mm) | 1900 |
| Dodging plate width × height (mm) | 1380 x 295 |
| Maximum excavation radius of stop surface (mm) | 4160 |
