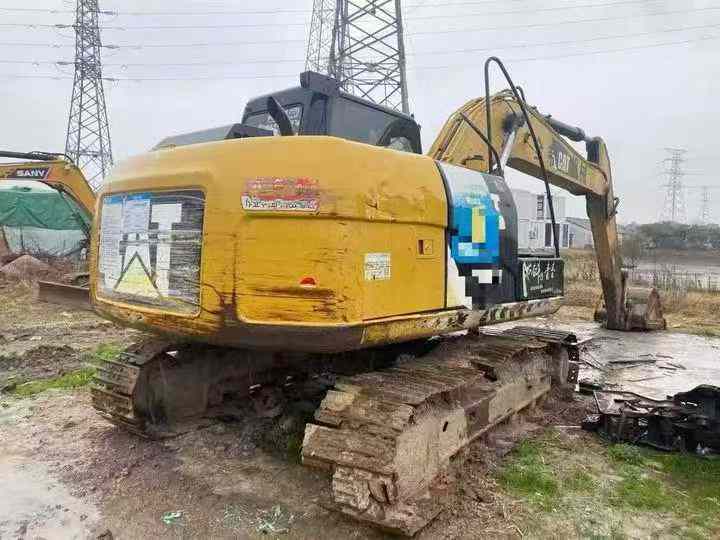

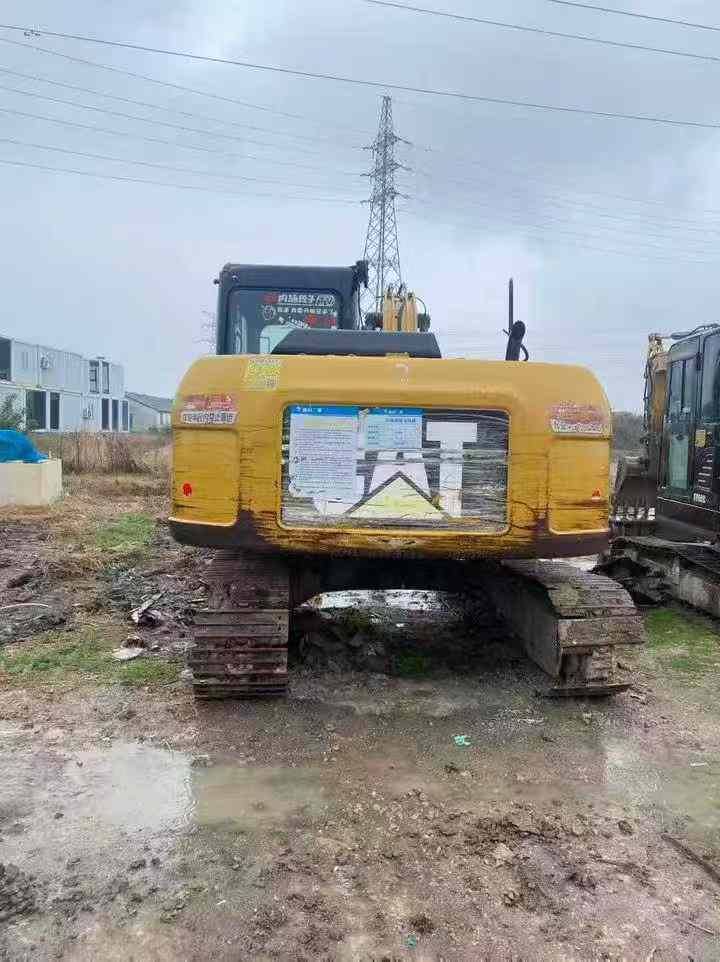

2017 Caterpillar 313D
Product Description
Built for precision and daily productivity, this 2017 Caterpillar 313D delivers 13 tons of stable, responsive performance on mid-sized excavation projects. Operators benefit from excellent sightlines across the 8,220mm maximum reach envelope, while the 2,140mm rear swing radius enables confident maneuvering in congested work zones. Powered by the Cat C4.2 ACERT engine producing 67kW, this machine combines reliable hydraulic flow with predictable control response through its 30.5MPa main system.
- Operator-Centric Design: Spacious cab with enhanced visibility to bucket edge and counterweight clearance, reducing blind spots during rotation and close-quarter digging
- Balanced Handling: 41.8kPa ground pressure with 500mm track plates ensures stable operation on varied terrain without excessive sinking
- Responsive Controls: 127 L/min main pump flow and 12.4rpm swing speed provide smooth, coordinated movements for accurate trench work and loading cycles
- Proven Drivetrain: Water-cooled 4-cylinder engine meets EPA Tier 3 standards with straightforward maintenance access and 250L fuel capacity for extended shifts
Currently
| Specifications | Value |
|---|---|
| No. | 1025052 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
see more
Overview
No.1025052
Brand Name：
CaterpillarModel Number：
313DYear：
2017
Location：
Zhejiang China
Pub Date：
