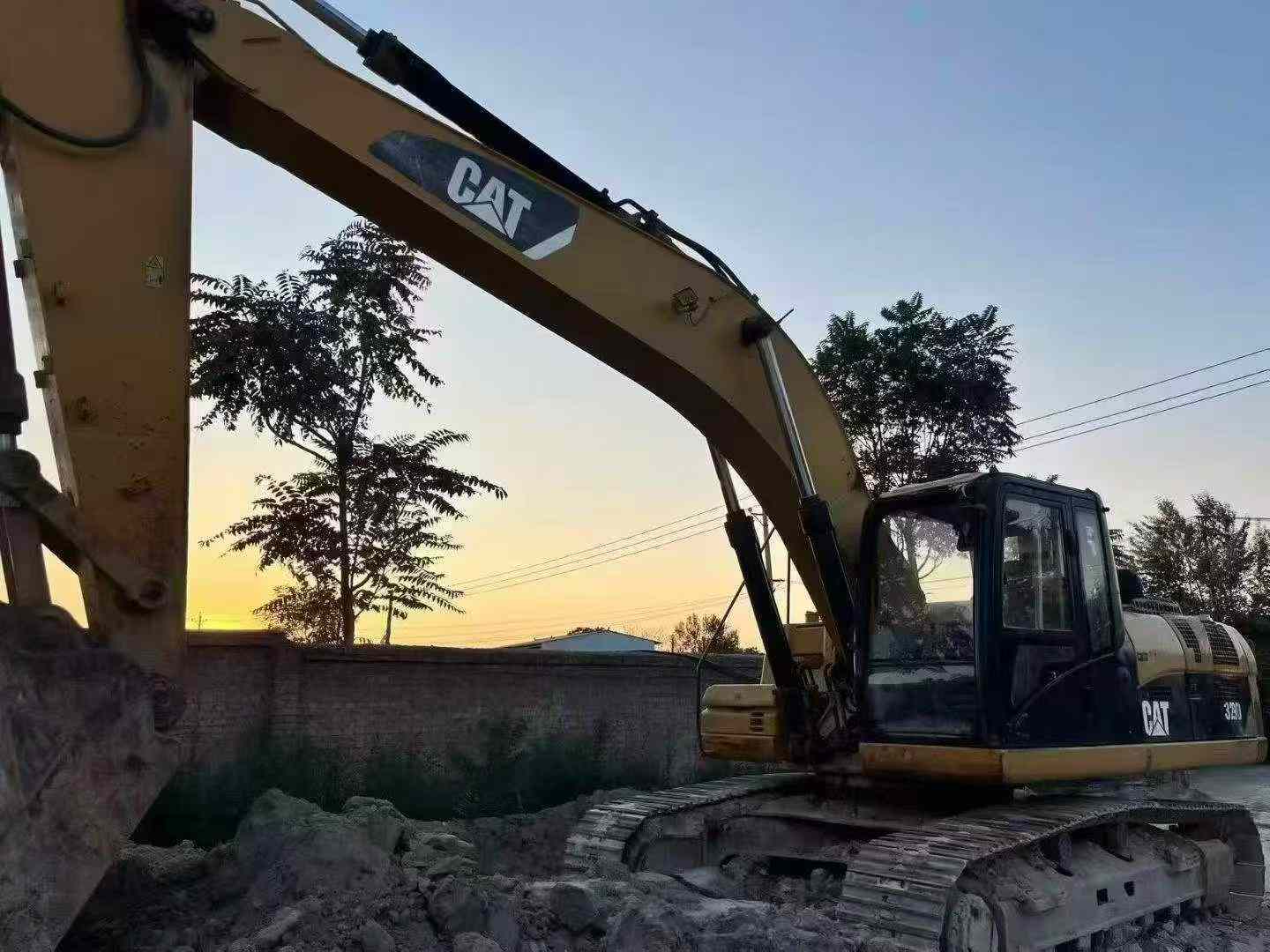

2013 Caterpillar 329D
Product Description
Engineered for demanding excavation operations, this 29-ton hydraulic excavator delivers exceptional performance through proven mechanical design. Powered by the Cat C7ACERT engine producing 152 kW at 2000 rpm, this machine combines a robust 7.2L displacement with water-cooling technology to maintain consistent output across extended work cycles. The hydraulic system operates at 35 MPa working pressure with a maximum main pump flow of 235 l/min, ensuring responsive control and efficient power delivery to all functions.
Key technical specifications include:
- Operating weight: 29,240 kg with 1.1 m³ bucket capacity
- Maximum digging depth of 7,170 mm and reach of 10,600 mm
- 6,150 mm boom and 3,200 mm arm configuration for optimal working envelope
- 520L fuel capacity supporting extended operational periods
- 70% gradeability (35°) with dual travel speeds of 3.5/5.3 km/h
Currently located in Shaoxing, Zhejiang, this Japanese-manufactured unit represents Caterpillar's commitment to precision engineering and hydraulic efficiency. The 329D series remains a benchmark for mid-size excavator performance in infrastructure and heavy construction applications.
| Specifications | Value |
|---|---|

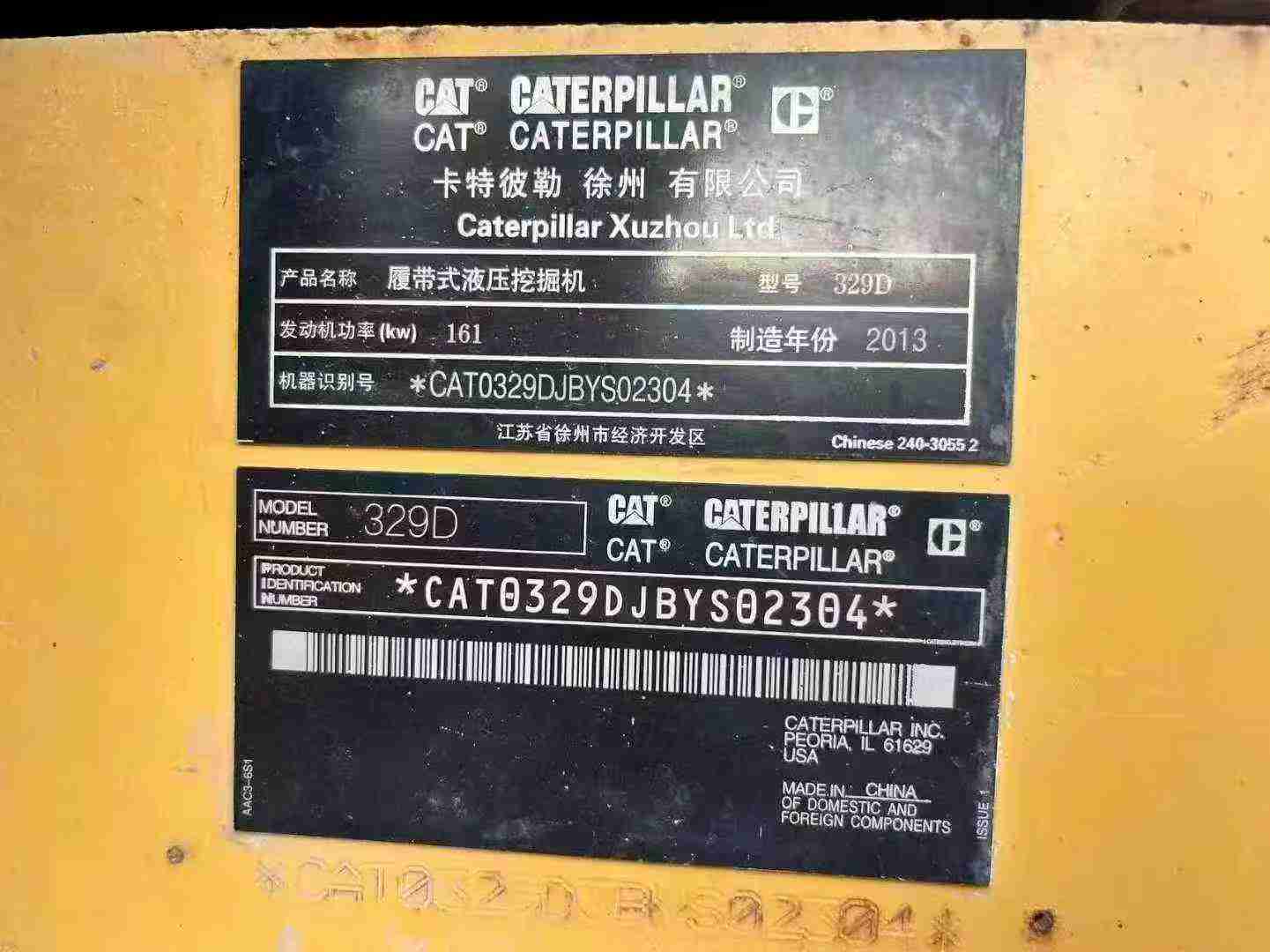

| No. | 1005239 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

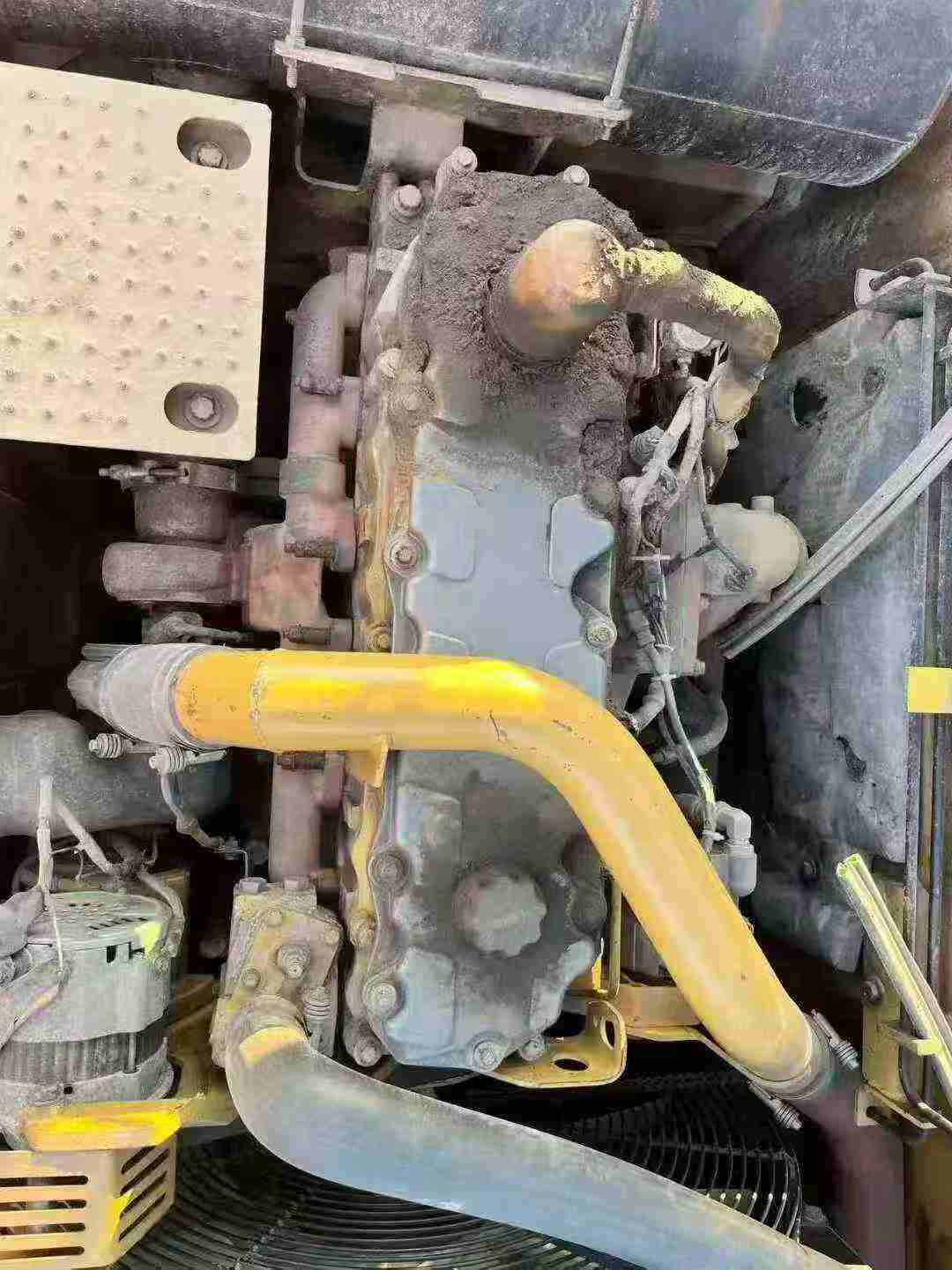

| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.1005239
Brand Name：
CaterpillarModel Number：
329DYear：
2013
Location：
Zhejiang China
Pub Date：
