HOME>>Doosan>>Doosan 150W-7

2011 Doosan 150W-7

1/9

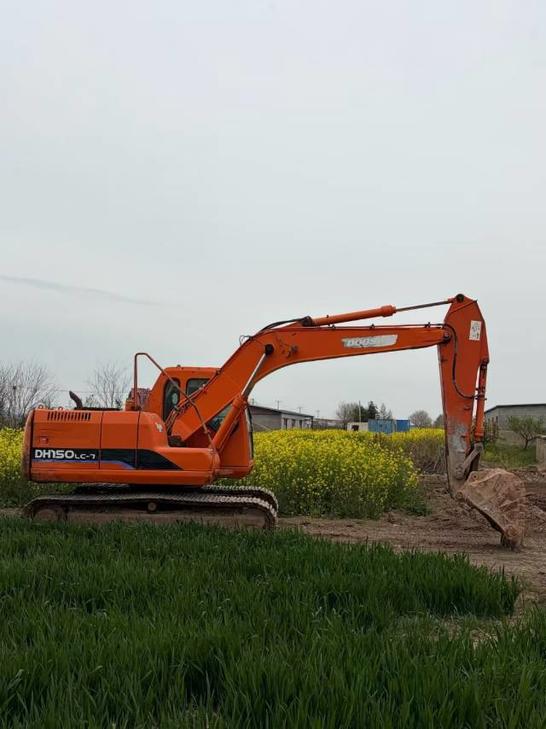

Buy Doosan 150W-7 Used Excavator / 1
Buy Doosan 150W-7 Used Excavator / 2
Buy Doosan 150W-7 Used Excavator / 3
Buy Doosan 150W-7 Used Excavator / 4
Buy Doosan 150W-7 Used Excavator / 5
Buy Doosan 150W-7 Used Excavator / 6
Buy Doosan 150W-7 Used Excavator / 7
Buy Doosan 150W-7 Used Excavator / 8
Buy Doosan 150W-7 Used Excavator / 9

Product Description

This 2011 Doosan 150W-7 wheeled excavator offers reliable performance for demanding construction and material handling applications. Currently located in Jiangsu, China, this machine features all-original components maintained in excellent working condition throughout its operational life.

The unit demonstrates strong operational capabilities with responsive hydraulics and efficient cycle times. Key components including the engine, hydraulic system, and undercarriage show solid performance characteristics. The chassis exhibits good structural integrity with proper maintenance history.

  • Year of Manufacture: 2011
  • Model: Doosan 150W-7
  • Type: Wheeled Excavator
  • Location: Jiangsu Province, China
  • Condition: Original parts, well-maintained
  • Status: Field-ready, operational

This machine is available for immediate deployment and suitable for contractors seeking dependable wheeled excavator capacity. Inspection welcome by appointment.

SpecificationsValue
No.1051875
Tonnage (tons)15
Working weight (kg)12900
Bucket capacity (m³)0.57
Boom length (mm)4300
Rod length (mm)2100/2500
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDB58TIS
Rated power (kw/rpm)96/2200
Cooling modeAir cooling
Cylinder diameter × stroke (mm)102 x 118
Number of cylinders (PCS)6
Forward speed (Km/h)10-37
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)94.1
Rod digging force (kN)68.6
Minimum turning radius (m)77
Maximum tractive force (kN)62
Driving formHydraulic drive
Maximum flow of main pump (l/min)2 x 162
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Boom cylinder - Cylinder diameter × stroke (mm)2-110 x 1030
Bucket rod cylinder - Cylinder diameter × stroke (mm)1-110 x 1085
Bucket cylinder - Cylinder diameter × stroke (mm)1-95 x 885
Main pump typeVariable axial plunger pump
Working Hydraulic Circuit (Mpa)Standard 22.7/ Supercharged 34.3
Fuel Tank (L)280
Hydraulic Tank (L)95
Total transport length (mm)7250
Total transport width (mm)2495
Total transport height (mm)3125(to top of cab)
Full cab height (mm)3116
Counterweight ground clearance (mm)1241
Wheelbase (mm)2800
Single tire width (mm)582
Total tire outside width (mm)2496
Wheel base (mm)1914
Minimum ground clearance (mm)350
Back end turning radius (mm)2210
Maximum digging radius (mm)7530
Maximum excavation radius (mm)7295/7728
Maximum digging depth (mm)4615
Maximum excavation height (mm)8015
Maximum unloading height (mm)5630
Maximum vertical digging depth (mm)4086/4675
Minimum turning radius (mm)2210
see more

Overview

No.1051875

Brand Name:

Doosan

Model Number:

150W-7

Year:

2011

Location:

Jiangsu China

Pub Date
