2020 Doosan DH215-7

1/5

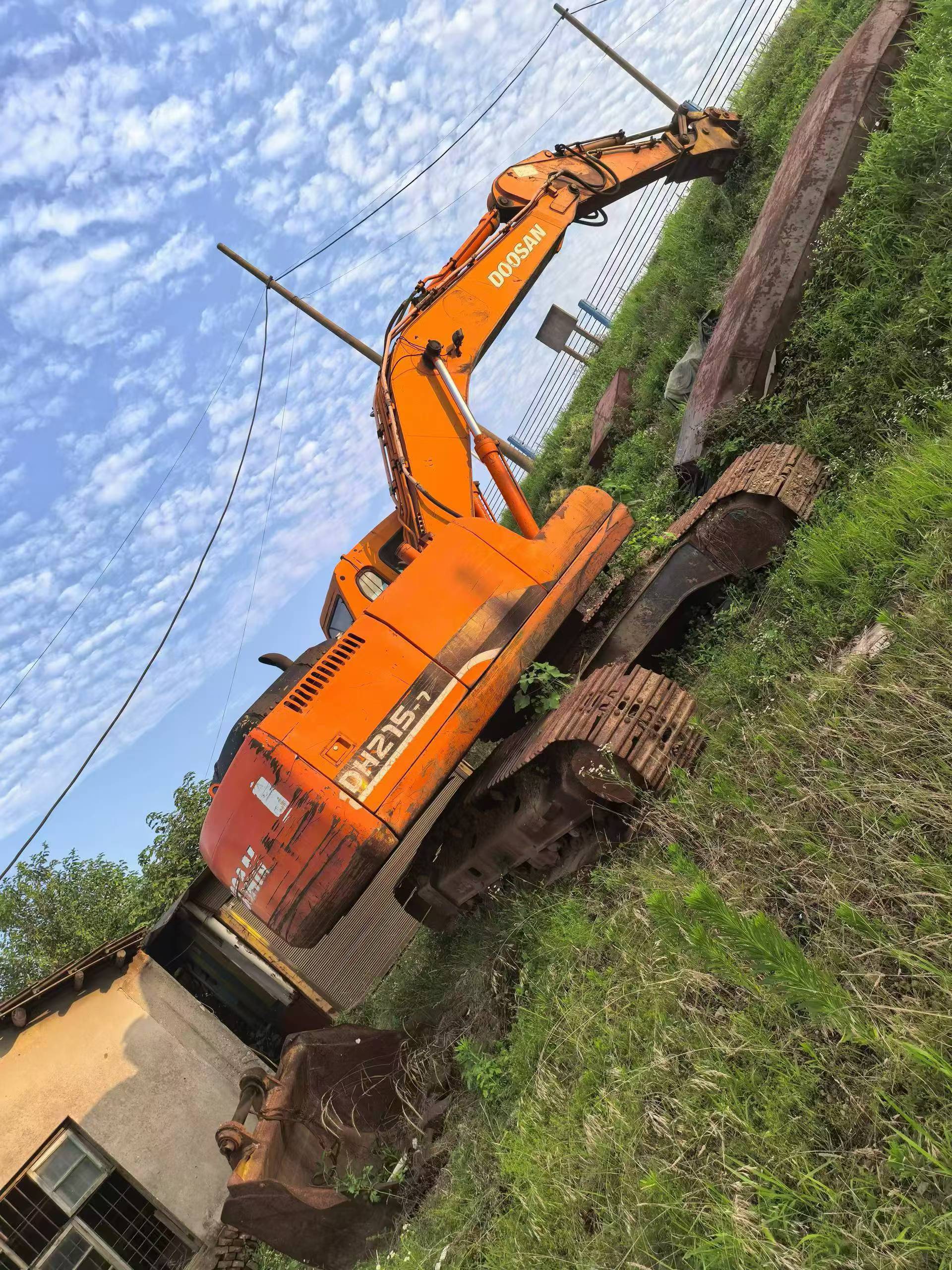

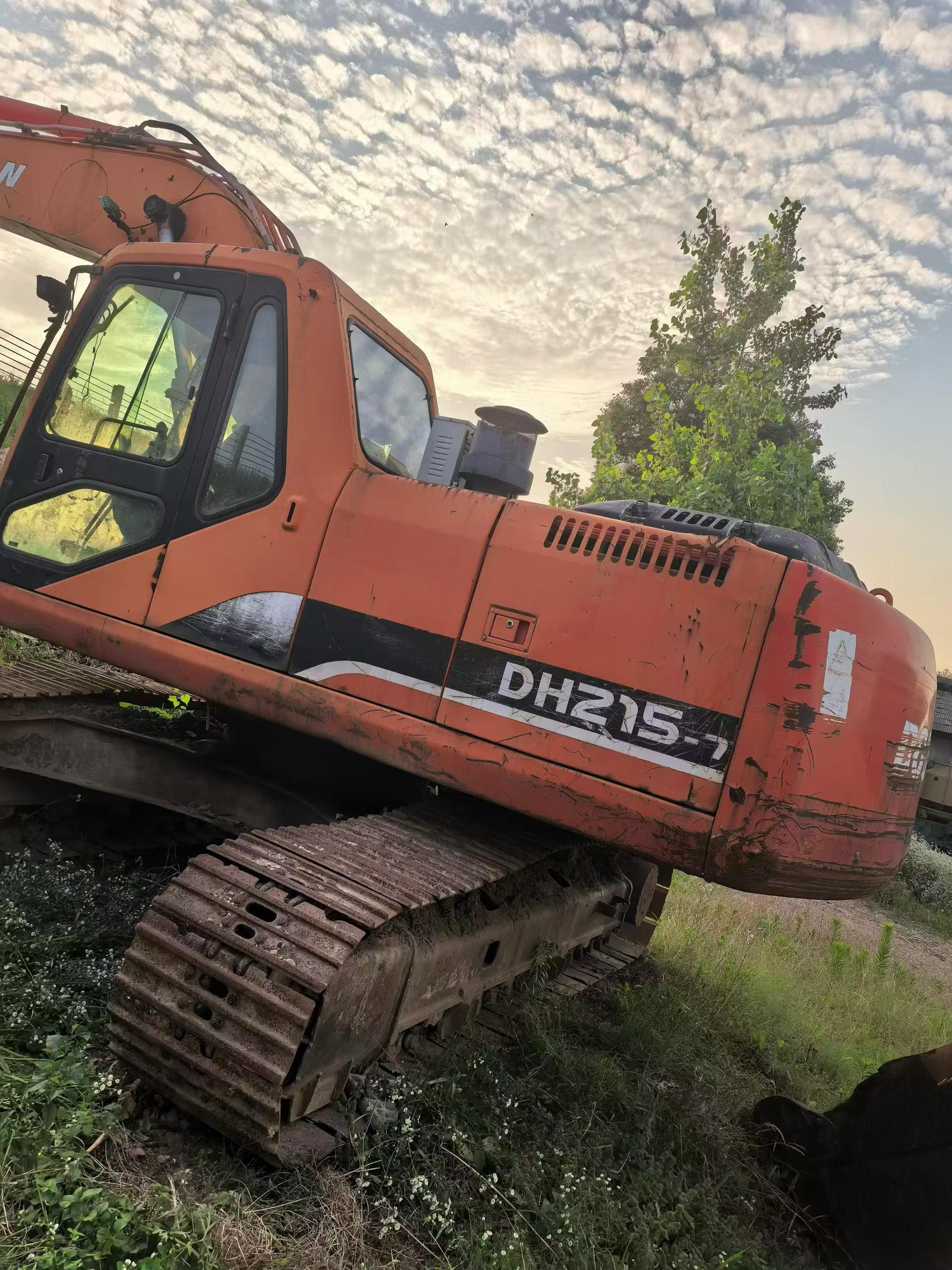

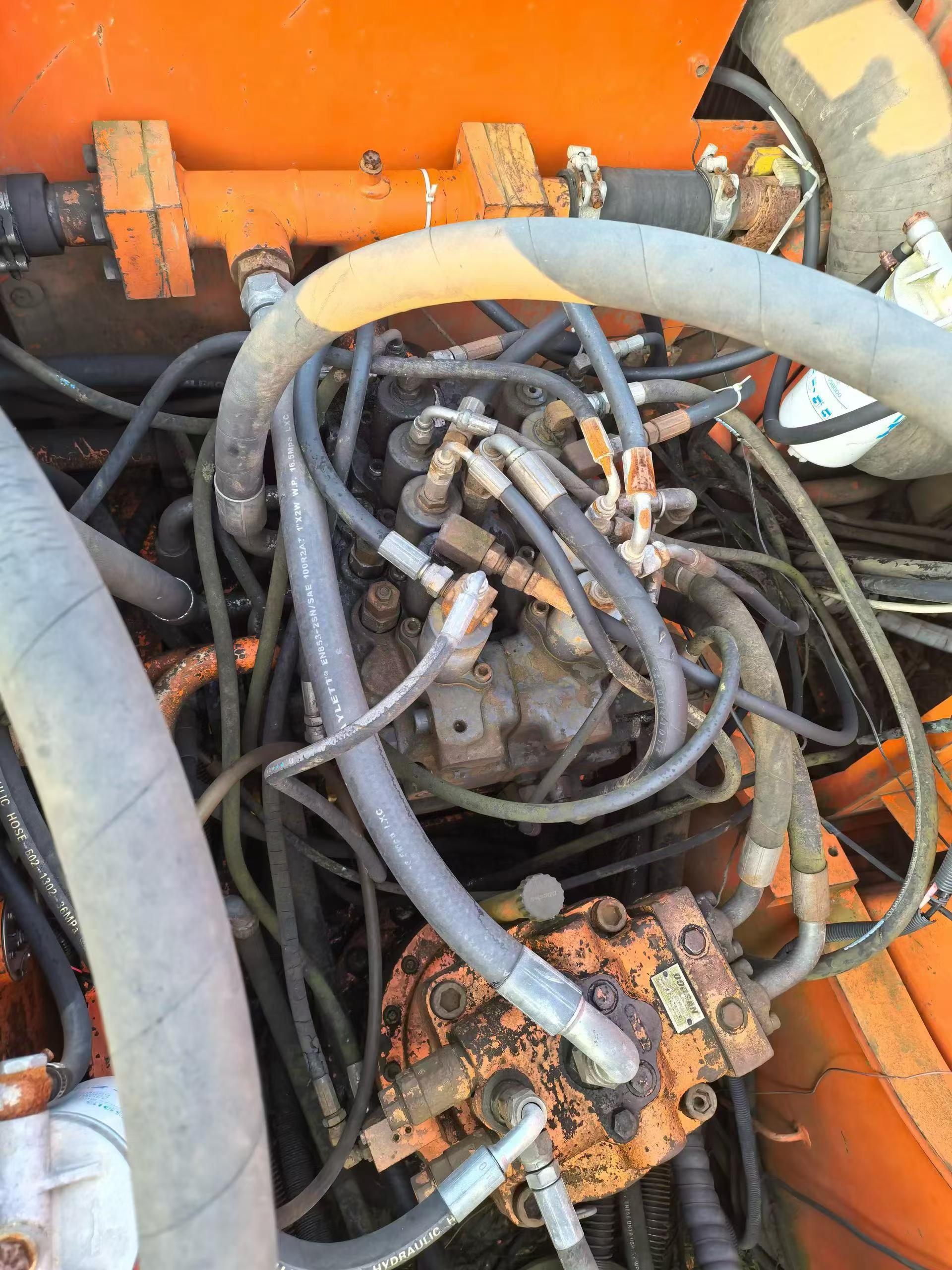

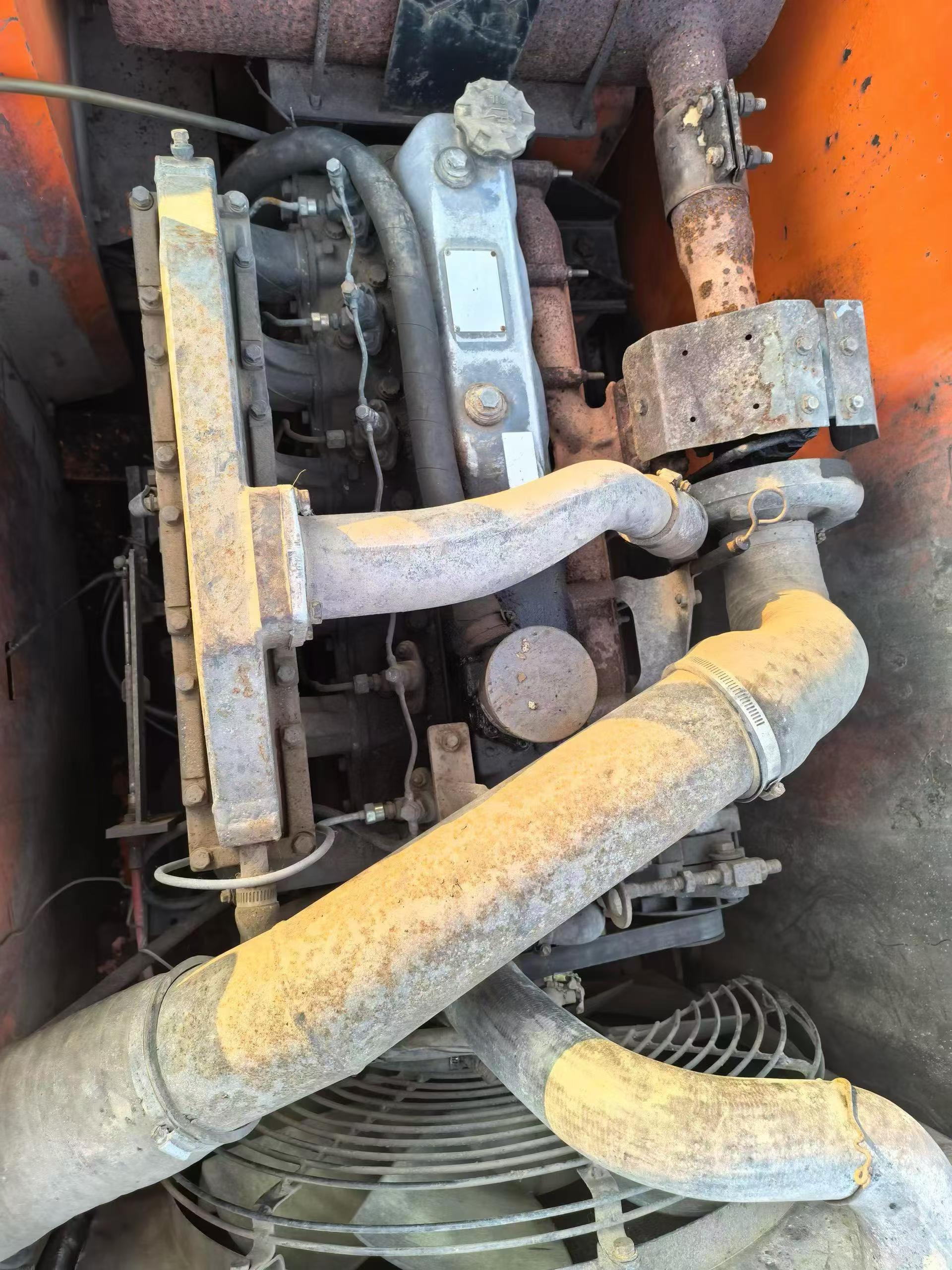

Buy Doosan DH215-7 Used Excavator / 1
Buy Doosan DH215-7 Used Excavator / 2
Buy Doosan DH215-7 Used Excavator / 3
Buy Doosan DH215-7 Used Excavator / 4
Buy Doosan DH215-7 Used Excavator / 5

Product Description

2020 Doosan DH215-7 excavator available from Hunan, China. This 21-ton class hydraulic excavator comes equipped with a grapple attachment, expanding its versatility for material handling, demolition, and sorting applications. The DH215-7 features Doosan's proven Tier 3 engine technology and hydraulic system designed for reliable performance in demanding conditions.

Key features include:

  • Factory-installed grapple attachment for enhanced material handling capability
  • Operating weight approximately 21,500 kg in standard configuration
  • Hydraulic system optimized for combined excavator and attachment operation
  • Spacious ROPS/FOPS certified operator cabin
  • Well-maintained unit from Chinese market

This machine is suited for scrap yards, demolition contractors, and operations requiring both excavation and grasping functionality. Inspection welcomed. Export documentation assistance available.

SpecificationsValue
No.1145377
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.86
Boom length (mm)5700
Rod length (mm)2400/2900/3500
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DB58T1
Rated power (kw/rpm)147/2000
Cooling modeAir cooling
Ground specific pressure (Kpa)52
Rotation speed (rpm)12.1
Bucket digging force (kN)136.2/144.1
Rod digging force (kN)100/104.9
Travel speed (km/h)3.1-5.4
Fuel Tank (L)350
Total transport length (mm)9550
Total transport width (mm)2800
Total transport height (mm)3100
Full cab height (mm)3100
Minimum ground clearance (mm)480
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)22800
Maximum digging radius (mm)9970
Maximum digging depth (mm)6660
Maximum excavation height (mm)9660
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5600
Maximum excavation radius of stop surface (mm)9780
Maximum effective digging depth (mm)6460
see more

Overview

No.1145377

Brand Name:

Doosan

Model Number:

DH215-7

Year:

2020

Location:

Hunan China

Pub Date
