2020 Doosan DH215-9

1/4
Buy Doosan DH215-9 Used Excavator / 1

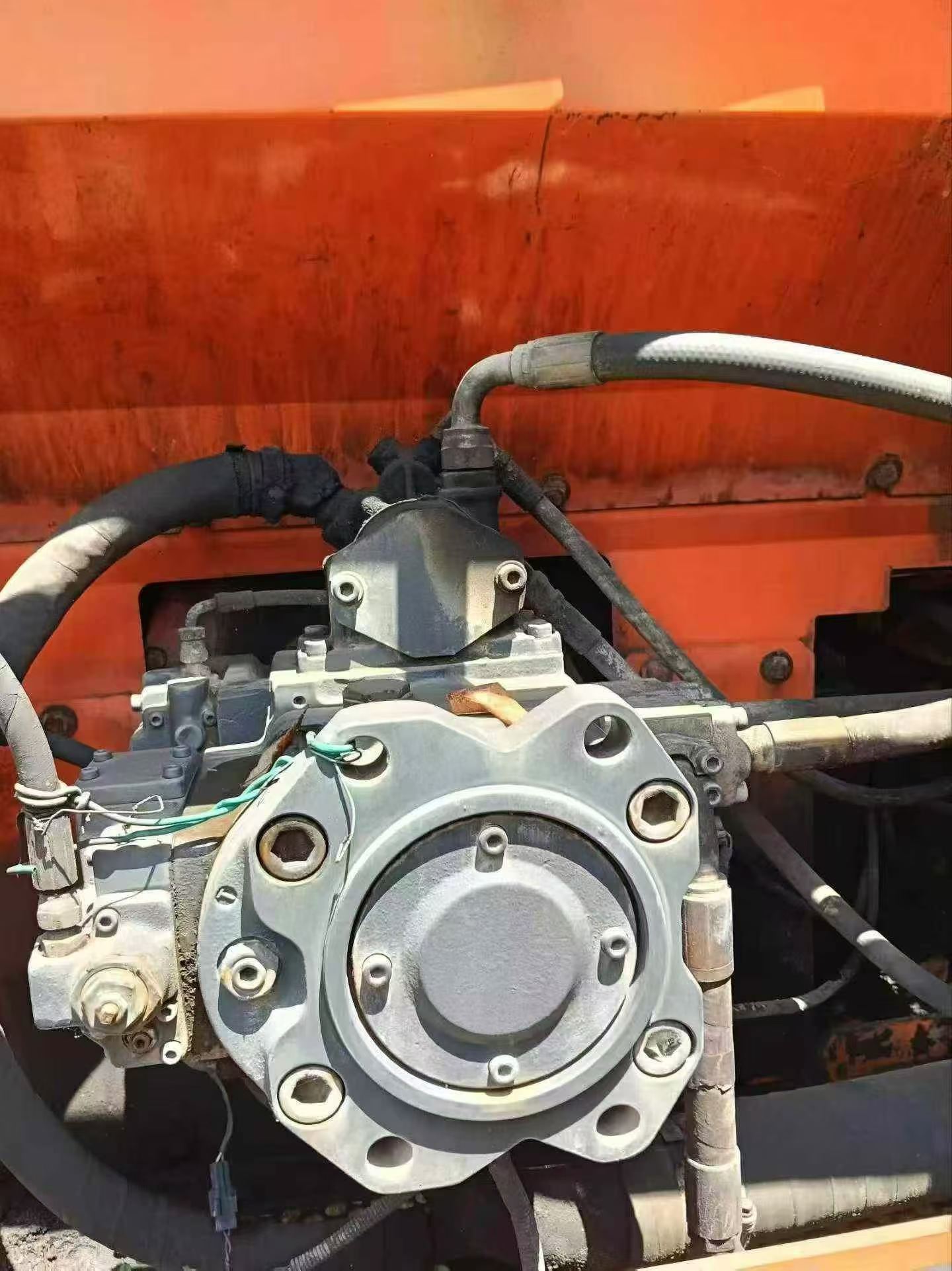

Buy Doosan DH215-9 Used Excavator / 2

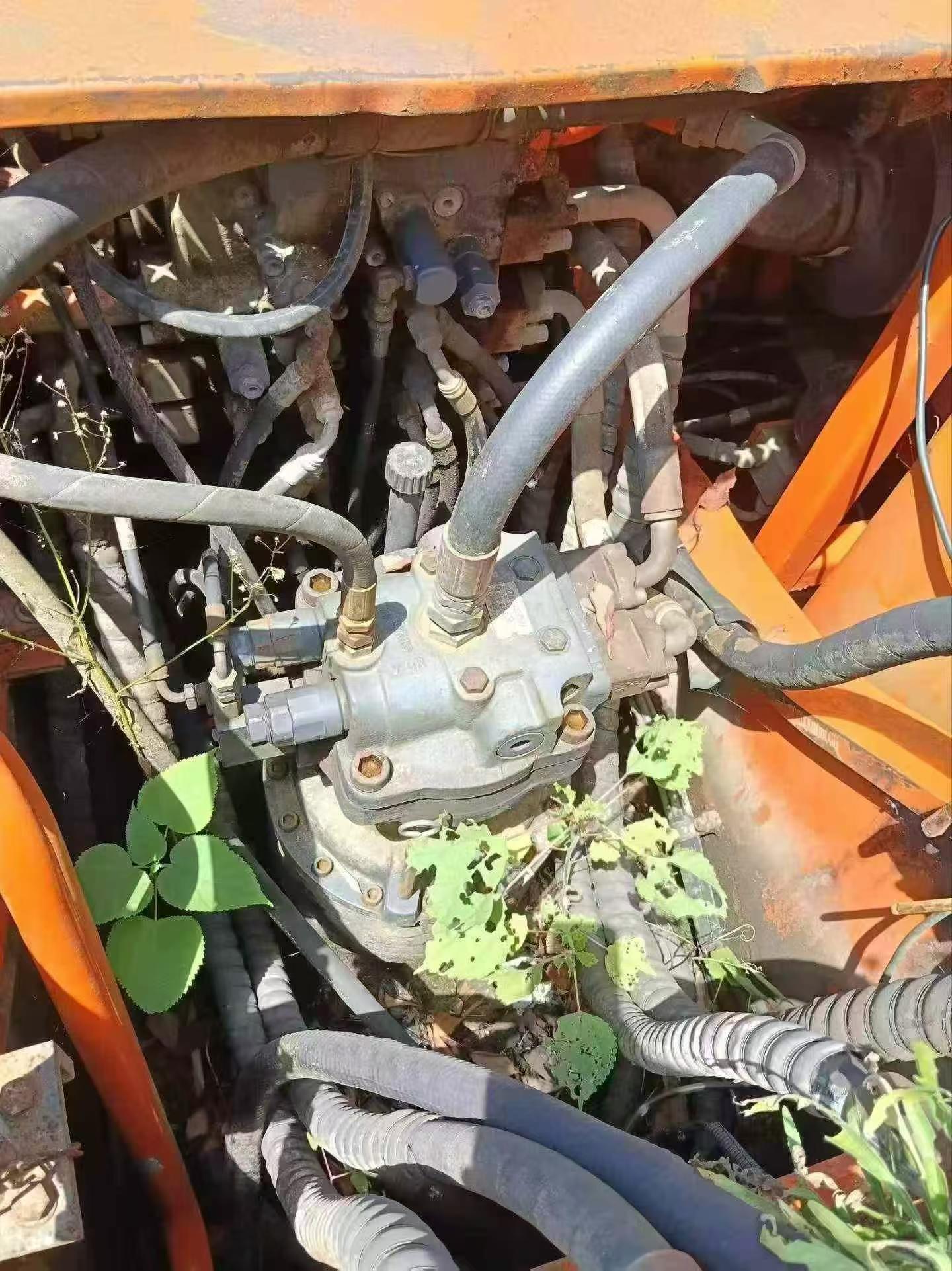

Buy Doosan DH215-9 Used Excavator / 3

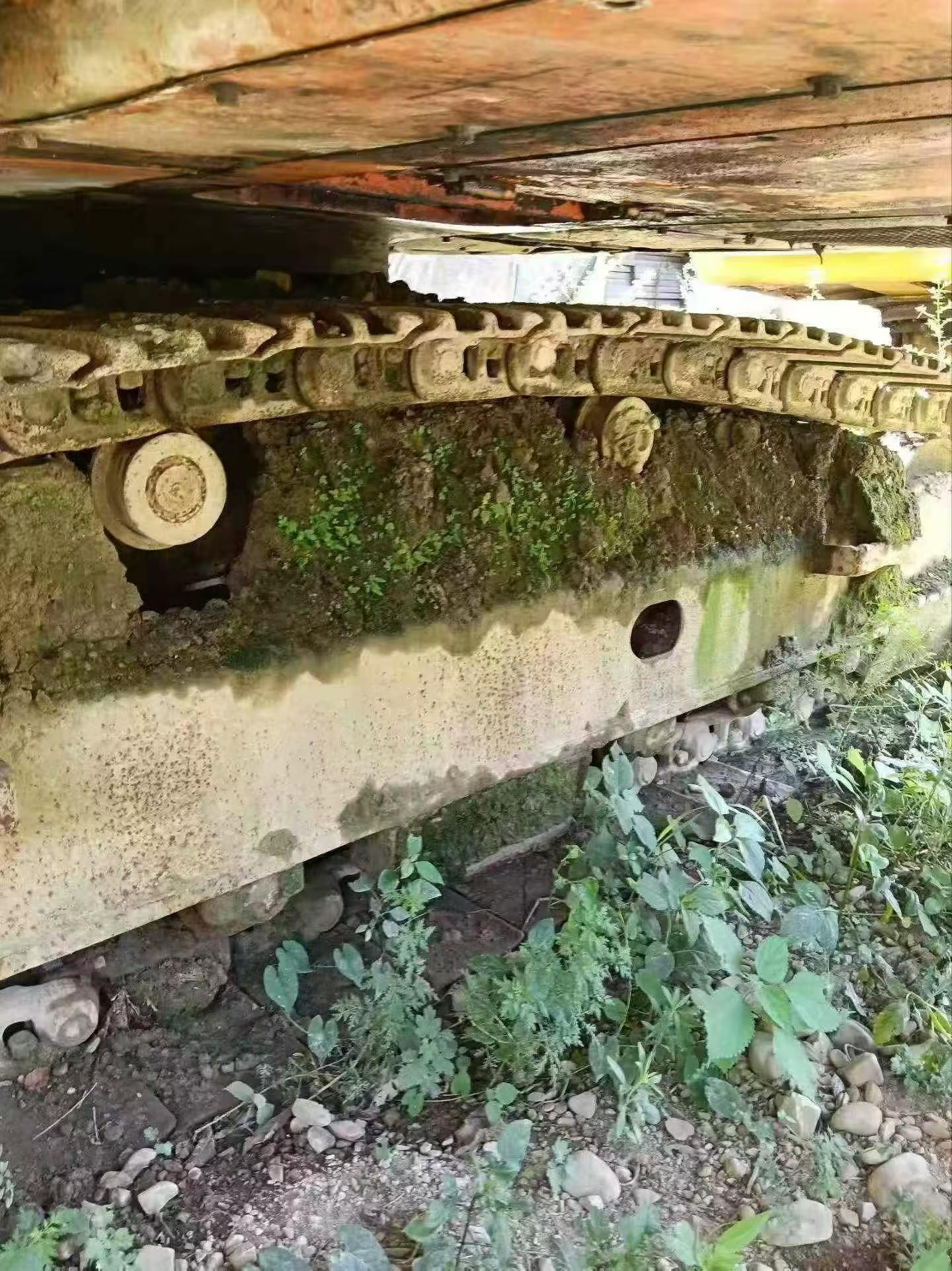

Buy Doosan DH215-9 Used Excavator / 4

Product Description

Discover the reliability and efficiency of the 2020 Doosan DH215-9, now available in Hunan, China. This used excavator, with approximately 70,000 hours of operation, is designed to handle a wide range of construction and excavation tasks with ease. Built for durability and performance, the DH215-9 features robust components and a powerful engine that ensures optimal productivity on any job site.

  • Year: 2020
  • Brand: Doosan
  • Model: DH215-9
  • Operating Hours: ~70,000
  • Location: Hunan, China
SpecificationsValue
No.1123657
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.86/1.0
Boom length (mm)5700
Rod length (mm)2900
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan Doosan DE08TIS
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.071
Working formDirect injection mechanically controlled engine
Ground specific pressure (Kpa)49
Rotation speed (rpm)12.4
Travel speed (km/h)5.4/3.1
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 211
Traveling Hydraulic Circuit (Mpa)32.4
Rotary Hydraulic Circuit (Mpa)27.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)Standard 32.4/ Supercharged 34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 80 x 1050
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1538
Boom cylinders - Number × diameter × stroke (mm)2-120 x 85 x 1245
Fuel Tank (L)350
Hydraulic Tank (L)240
Engine Oil changes (L)28
Coolant (L)42
Total transport length (mm)9600
Total transport width (mm)2800
Total transport height (mm)2870(to top of boom)
Full cab height (mm)3000
Counterweight ground clearance (mm)1105
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)3960
Back end turning radius (mm)2840
Total track length (mm)4065
Track plate width (mm)600
Total track width (mm)2800
Maximum digging radius (mm)9970
Maximum digging depth (mm)6660
Maximum excavation height (mm)9660
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5600
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.1123657

Brand Name:

Doosan

Model Number:

DH215-9

Year:

2020

Location:

Hunan China

Pub Date
