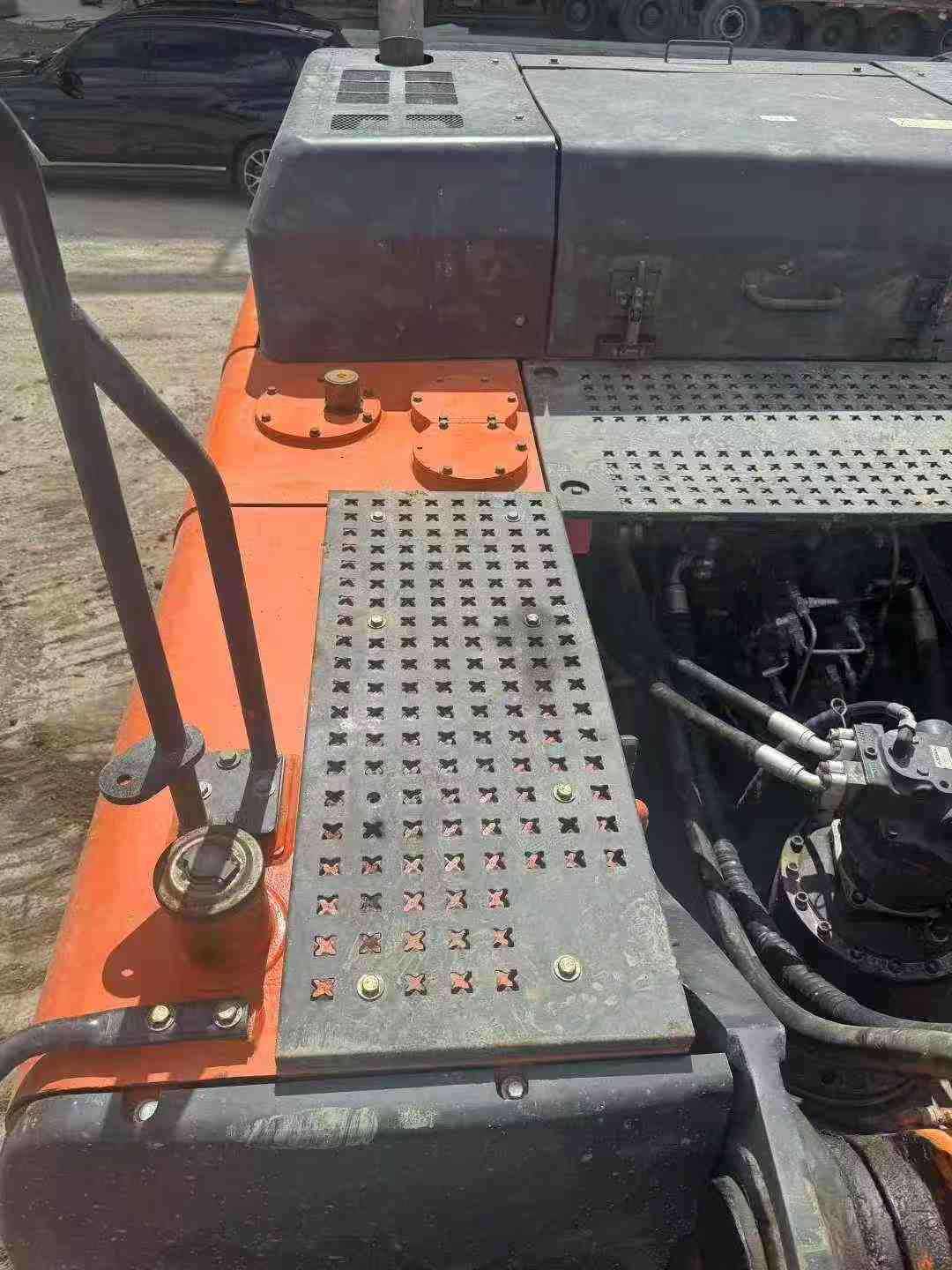

Name: Used Excavators 2020 Doosan DH420LC-7
Brand: Doosan
SKU: USED-1042168
Availability: InStock
Rating: 4.6 (81 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

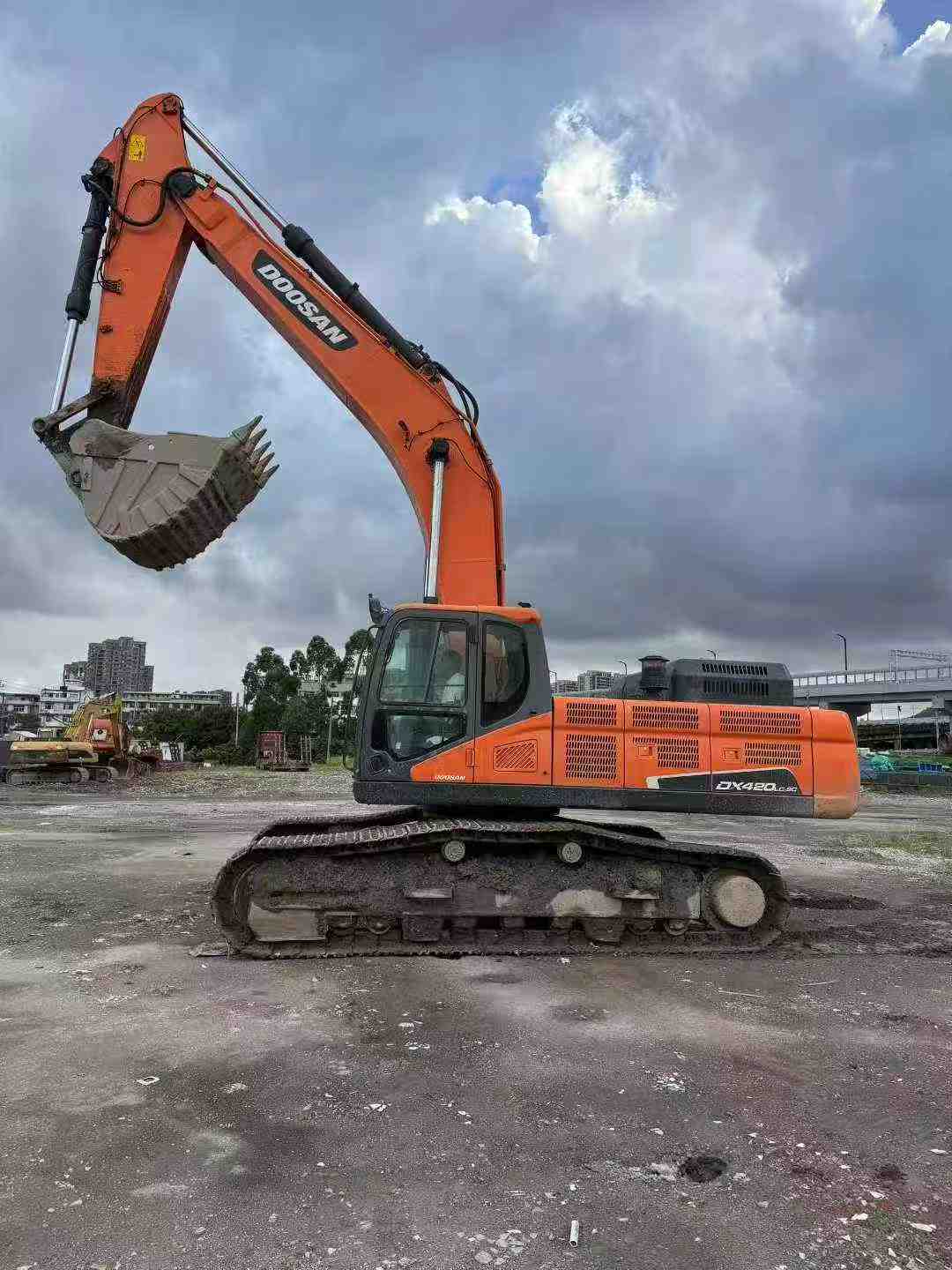

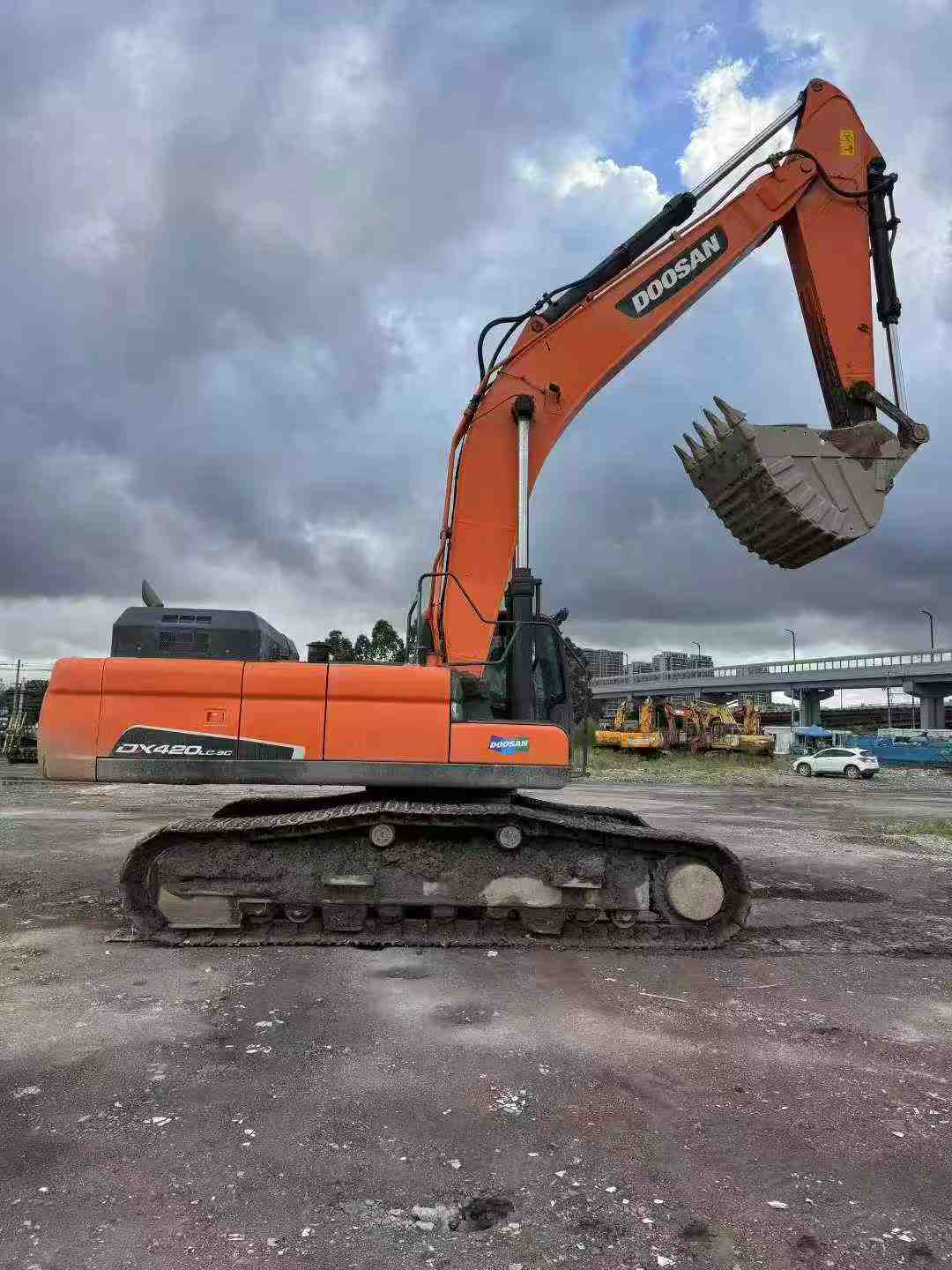

Built for precision and operator confidence, this 2020 Doosan DH420LC-7 excavator delivers 42-ton performance with exceptional machine control. Powered by a Doosan DE12TIS engine producing 210 kW at 2000 rpm, this water-cooled workhorse combines robust digging force—242.1 kN bucket force and 218.5 kN arm force—with refined hydraulics that respond predictably under load. Dual 315 L/min main pumps ensure smooth, simultaneous functions across boom, arm, and swing operations.

<ul>

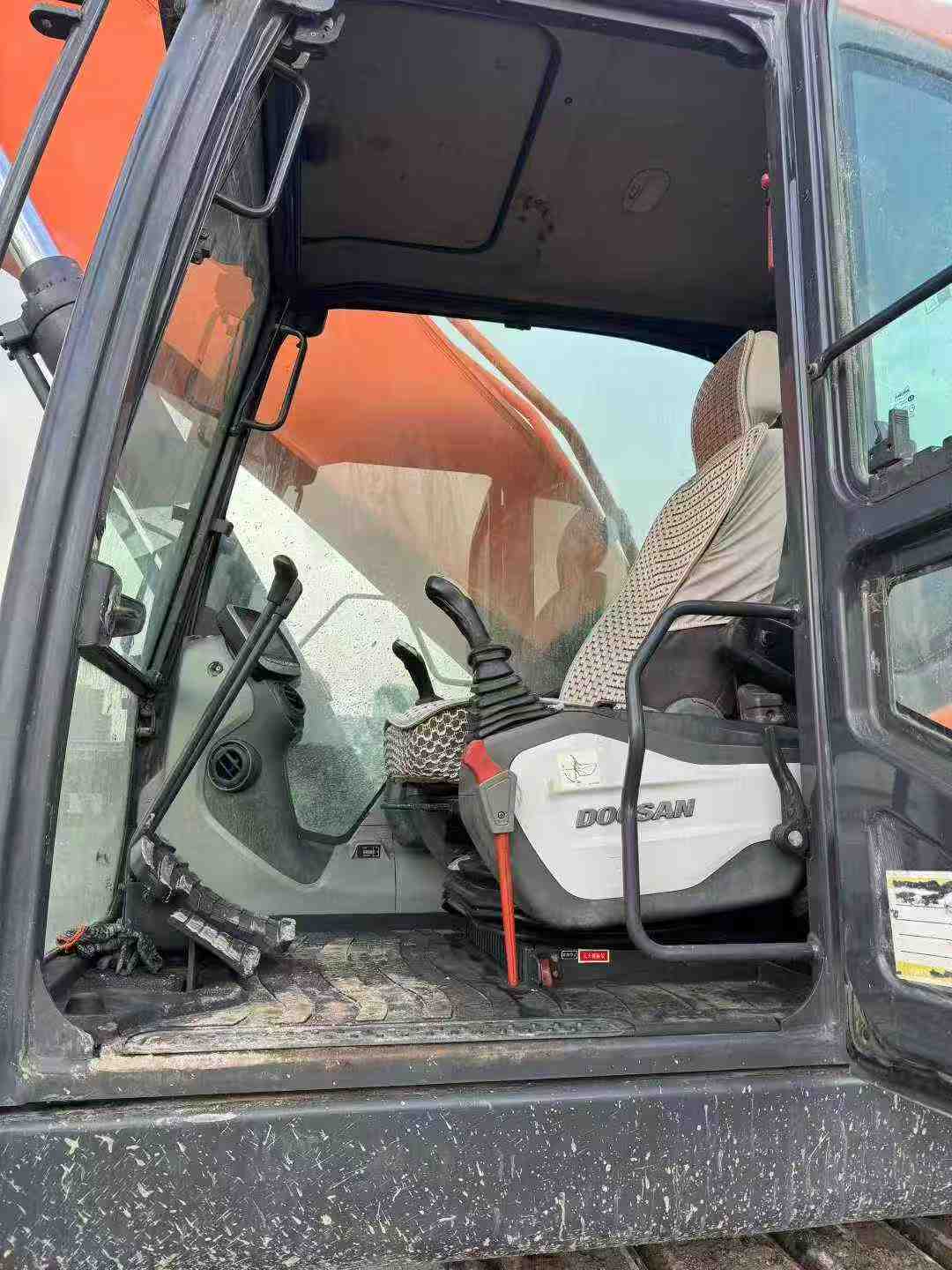

 <li>Spacious cab positioned at 3,150 mm height offers commanding visibility across the 11,520 mm working envelope</li>
 <li>Low 9.5 rpm swing speed enhances load stability and reduces operator fatigue during repetitive cycles</li>
 <li>540 mm ground clearance and 3,660 mm rear swing radius enable confident positioning on uneven terrain</li>
 <li>Variable arm configurations (2,600/3,250/4,000 mm) adapt to trench work or mass excavation tasks</li>
 <li>Hydraulic pilot controls with 24 L/min flow provide fingertip precision for delicate grading or truck loading</li>
</ul>

Currently located in Wenzhou, Zhejiang, this joint-venture manufactured machine represents proven Doosan engineering with 41,200 kg operating weight and 1.44–2.18 m³ bucket capaci

With a powerful Caterpillar 3306TA engine, this 2018 Caterpillar 330B excavator delivers 165.5 kW of power at 1800 rpm, ensuring robust performance and reliability. Equipped with a 480 l/min main pump and a 34.3 Mpa main overflow set pressure, the hydraulic system is designed for efficiency and precision in every operation.
<ul>
<li>Working weight: 32,420 kg</li>
<li>Bucket capacity: 1.5 m³</li>
<li>Boom length: 6,500 mm; Rod length: 3,900 mm</li>
<li>Maximum digging depth: 8,080 mm</li>
<li>Maximum excavation height: 10,770 mm (Cutting)</li>
<li>Travel speed: 4.6 km/h</li>
</ul>
Engineered with a water-cooled, turbocharged, and after-cooled 6-cylinder engine, this excavator offers exceptional durability and performance. The 330B model series is known for its superior engineering, providing operators with a machine that excels in demanding environments. Located in 江苏, this used excavator is ready to meet your heavy-duty construction needs.

Caterpillar 330B

Maximize your excavation budget with this 2019 Hitachi ZH200-5A hybrid excavator, currently located in Hangzhou, Zhejiang. Delivering 20 tons of operational capacity at a fraction of new equipment costs, this machine combines proven Isuzu GI-4HK1XKSA-03 engine reliability with fuel-saving hybrid technology. Rated at 113 kW, it generates 158 kN bucket digging force and reaches 9,920 mm maximum digging radius—performance metrics that rival current models without the premium price tag.

<ul>
<li>Hybrid Power System: Reduces fuel consumption while maintaining full 20-ton working weight performance</li>
<li>Extended Reach: 5,680 mm boom and 2,910 mm arm deliver 6,670 mm maximum digging depth</li>
<li>Operational Efficiency: 0.91 m³ bucket capacity with 400L fuel tank for extended work cycles</li>
<li>Proven Durability: Joint venture quality construction with 4-cylinder Isuzu engine (5.193L displacement)</li>
<li>Versatile Mobility: 70% climbing ability with 3.5-5.5 km/h travel speed for challenging terrain</li>
</ul>

Invest smart. Get premium 20-ton excavator capability with hybrid efficiency at pre-owned value pricing.

Hitachi ZH200-5A

Engineered for precision work in confined spaces, this 2016 Komatsu PC50MR-2 mini excavator delivers operator-centered performance across demanding jobsites. Powered by a reliable 2.2L four-stroke water-cooled direct injection engine, this 5-ton machine combines joint venture manufacturing quality with practical functionality. Operators benefit from exceptional cabin visibility and intuitive controls that reduce fatigue during extended shifts.

<ul>
<li>Compact Maneuverability: 1935mm total track width navigates tight urban environments while maintaining stability</li>
<li>Responsive Handling: Dual travel speeds (4.3/2.6 km/h) provide precise positioning control</li>
<li>Digging Power: 24.4kN rod digging force with 6070mm maximum reach handles varied excavation tasks</li>
<li>Ground Contact: 2000mm track length and 400mm track plates distribute weight effectively across soft terrain</li>
<li>Location: Currently available in Guangzhou, Guangdong</li>
</ul>

Backed by Komatsu's reputation for durability, this PC50MR-2 represents proven technology ideal for contractors prioritizing operator comfort and machine control in residential, utility, an

Komatsu PC50MR-2

Available now in Chongqing, this 2021 Hyundai R215-7 excavator eliminates factory wait times and delivers immediate productivity to your operation. Powered by a robust Hyundai D6BT-C six-cylinder turbocharged engine producing 110kW at 1950rpm, this 21-ton workhorse combines proven reliability with exceptional digging performance. Skip months of lead time—this machine is ready for fast deployment directly to your site.

<ul>
<li>Operating weight: 20,700 kg with 0.92 m³ bucket capacity</li>
<li>Maximum digging reach: 9,930 mm; digging depth: 6,800 mm</li>
<li>Dual variable axial piston pumps (2×220 L/min) for responsive hydraulics</li>
<li>Bucket digging force: 123.3 kN; arm digging force: 95.1 kN</li>
<li>Water-cooled 7L displacement engine built for continuous duty</li>
<li>Current location: Chongqing—ready for immediate inspection and delivery</li>
</ul>

Secure this joint-venture quality excavator today and put it to work while competitors wait for new builds. Contact Fair Trade Machinery for rapid logistics arrangements throughout China and international shipping options.

Hyundai R215-7

Built to withstand the toughest jobsites, this 2016 Sumitomo SH200-5 hydraulic excavator represents proven Japanese engineering at its finest. Operating as a 20-ton workhorse, this machine delivers consistent performance through traditional power systems that contractors have relied on for decades. Currently located in Wenzhou, Zhejiang, this joint venture-manufactured unit combines Sumitomo's legendary durability with practical backhoe functionality designed for demanding excavation work.

<ul>
<li>Year: 2016</li>
<li>Model: Sumitomo SH200-5</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional diesel power</li>
<li>Configuration: Backhoe excavator</li>
<li>Manufacturer Origin: Joint venture/Import quality</li>
<li>Current Location: Wenzhou, Zhejiang Province</li>
</ul>

With years of field-proven service behind it, this SH200-5 demonstrates the build quality that keeps Sumitomo excavators working long after competitors retire. Ready for immediate deployment on your construction, mining, or infrastructure projects worldwide.

Sumitomo SH200-5

Built for demanding excavation work, this 2017 Komatsu PC360-7 delivers operator-focused performance across multiple jobsite conditions. Operating at 36 tons with a 180 kW Komatsu SAA6D114E engine, this machine combines precision hydraulics with proven reliability. The spacious cab provides excellent visibility across the 11,100 mm maximum digging radius, while intuitive controls reduce operator fatigue during extended shifts.

<ul>
 <li>Powerful 227 kN bucket digging force handles tough material efficiently</li>
 <li>Advanced hydraulic system with 535 L/min flow ensures smooth, responsive operation</li>
 <li>Comfortable cab design optimizes sightlines to boom, bucket, and surrounding work area</li>
 <li>Stable 3,700 mm track ground length provides secure footing on uneven terrain</li>
 <li>Three travel speeds (3.2/4.5/5.5 km/h) adapt to site requirements</li>
 <li>Water-cooled turbocharged engine maintains consistent power in Yunnan's varied climate</li>
</ul>

Currently located in Kunming, Yunnan, this PC360-7 represents Komatsu's joint-venture manufacturing quality. The 1.6 m³ bucket capacity and 6,470 mm boom reach make it ideal for infrastructure projects, quarrying, and large-scale earthmoving operations requiring

Komatsu PC360-7

Equipped with a proven Isuzu A-4BG1T engine delivering 60.4 kW of rated power, this 2017 Hitachi EX130H-5 combines responsive hydraulics with operator-centered design. Weighing 12,201.6 kg and supported by 500 mm track plates, the machine maintains a low ground pressure of 38.3 kPa for stable performance across varied terrain. Operators benefit from excellent sight lines and intuitive controls within a full-height 2,720 mm cab, reducing fatigue during extended shifts.

<ul>
 <li>Maximum Digging Depth: 5,360 mm</li>
 <li>Maximum Excavation Radius: 8,140 mm</li>
 <li>Bucket Capacity: 0.3 / 0.19 / 0.66 m³</li>
 <li>Travel Speed: 5.5 km/h</li>
 <li>Fuel Tank Capacity: 250 L</li>
 <li>Hydraulic System: 134 L</li>
 <li>Transport Dimensions: 7,580 mm (L) × 2,490 mm (W) × 2,720 mm (H)</li>
 <li>Location: Kunming, Yunnan</li>
</ul>

With a compact 2,130 mm rear turning radius and 890 mm counterweight clearance, this 13-ton excavator handles confined jobsites while delivering reliable cycle times and precise control for experienced operators.

Hitachi EX130H-5

Maximize your excavation budget with this 2012 Sany SY385C hydraulic excavator from Shandong Tai'an. Delivering 38-ton performance at a fraction of new equipment costs, this Chinese-manufactured machine offers serious capabilities for contractors seeking value without compromise. Powered by a robust 250 kW engine paired with a premium Kawasaki K5V200 main pump, it tackles demanding jobsites with professional-grade reliability.

Key specifications include:
<ul>
<li>1.8 m³ backhoe bucket capacity with 239 kN digging force</li>
<li>10,970 mm maximum digging reach and 7,050 mm depth capability</li>
<li>38,000 kg operating weight with 65.7 kPa ground pressure for stability</li>
<li>70% (35°) climbing ability handles challenging terrain</li>
<li>8.3 rpm rotation speed for efficient cycle times</li>
</ul>

Manufactured in Kunshan, Jiangsu Province, this SY385C represents smart capital allocation for excavation contractors, demolition specialists, and site development firms. Proven performance, substantial capacity, and immediate availability combine to deliver measurable ROI from day one. Contact Fair Trade Machinery today for pricing and shipping options worldwide.

Sany SY385C

Built for demanding excavation work, this 2019 Sany SY205C medium excavator delivers 118 kW of traditional power to tackle digging, grading, and demolition tasks without hesitation. Operating at 21,500 kg working weight with a robust 0.9-1.1 m³ bucket capacity, this machine combines substantial digging force—138 kN bucket force and 109 kN arm force—with precise control for trenching, foundation work, and material handling across construction and infrastructure projects.

<ul>
<li>Excavation Performance: Maximum digging depth of 6,600 mm and reach of 10,280 mm for versatile site coverage</li>
<li>Maneuverability: 2,900 mm rear turning radius and 3,730 mm front working device radius enable operation in confined spaces</li>
<li>Stability & Traction: 70% grading ability (35°) with 47.3 kPa ground pressure ensures solid footing on varied terrain</li>
<li>Transport Dimensions: 9,680 mm length × 2,980 mm width × 3,440 mm height for straightforward logistics</li>
<li>Location: Currently positioned in Wenzhou, Zhejiang, China</li>
</ul>

Manufactured in China with proven Sany engineering, this backhoe-configured excavator arrives ready to deploy on yo

Sany SY205C

Available now in Shandong Dongying, this 2011 Hitachi EX120 eliminates factory wait times and accelerates project timelines. Rated at 12 tons with proven traditional power, this joint venture excavator delivers consistent performance for medium-duty earthmoving, trenching, and site preparation. Skip months of procurement delays—this backhoe-equipped machine is inspection-ready and positioned for rapid deployment to your worksite.

<ul>
<li>Year & Model: 2011 Hitachi EX120</li>
<li>Operating Weight: 12 tons</li>
<li>Power System: Traditional diesel engine</li>
<li>Configuration: Backhoe attachment</li>
<li>Origin: Joint venture/Import manufacturing</li>
<li>Current Location: Shandong Dongying, China</li>
<li>Availability: Immediate purchase and shipment</li>
</ul>

Secure faster logistics from a strategic eastern China hub. This EX120 combines Hitachi's engineering reliability with the commercial advantage of immediate availability, reducing downtime between contract signing and job commencement. Contact Fair Trade Machinery today to arrange inspection and coordinate shipping to your operation.

Hitachi EX120

Built for immediate deployment, this 2016 Hitachi EX120-6 excavator delivers dependable 12-ton performance across digging, grading, and demolition operations. Powered by a proven Isuzu CC-4BG1TC engine generating 66 kW, this machine combines joint venture manufacturing quality with traditional power systems that field crews trust. Currently positioned in Jiangxi, it arrives site-ready with a 0.52 m³ backhoe bucket designed for trenching, foundation work, and material handling tasks.

<ul>
<li>Operational Specs: 12-ton class with 66 kW rated output for consistent digging force</li>
<li>Engine: Isuzu CC-4BG1TC diesel – field-proven reliability in demanding conditions</li>
<li>Bucket Configuration: 0.52 m³ backhoe attachment for precision excavation</li>
<li>Manufacturing: Joint venture/import quality standards</li>
<li>Location: Jiangxi – available for inspection and deployment</li>
</ul>

Designed for contractors requiring dependable mid-size excavation capacity, this EX120-6 transitions seamlessly from utility trenching to site preparation work. Traditional power architecture ensures straightforward maintenance and parts availability across g

Hitachi EX120-6

Engineered with precision by Sumitomo's joint venture manufacturing division, this 2016 SH120-5 delivers 12-ton performance through proven traditional power systems and advanced hydraulic architecture. Built for demanding excavation operations, the machine features a maximum digging radius of 8,270mm and reaches depths up to 5,540mm, while maintaining exceptional vertical digging capability at 4,960mm. The backhoe configuration provides maximum excavation height of 9,160mm with unloading clearance reaching 6,760mm—critical specifications for loading high-sided trucks and working around obstacles.

Compact maneuverability defines this model's operational advantage. Both front and rear turning radii measure just 2,050mm, enabling tight-quarter work on congested job sites without sacrificing reach or power. Currently located in Wenzhou, Zhejiang, this SH120-5 represents Sumitomo's commitment to hydraulic efficiency and structural durability. The model series consistently demonstrates superior fuel economy relative to output, reduced maintenance intervals, and exceptional component longevity under continuous operation.

Ideal for contractors requiring reliable mid-size excavation capacity with proven Japanese engineering s

Sumitomo SH120-5

Positioned in Zhejiang Wenzhou and available for immediate dispatch, this 2019 Sany SY205C excavator eliminates factory wait times and accelerates your project timeline. Rated at 20 tons with a robust 118 kW engine, this machine delivers 138 kN bucket digging force and reaches a maximum digging depth of 6,600 mm—specifications proven across demanding construction and earthmoving operations.

Key performance features include:
<ul>
<li>21,500 kg working weight with 0.9-1.1 m³ bucket capacity</li>
<li>10,280 mm maximum digging radius for extended reach applications</li>
<li>5.4 km/h travel speed enabling rapid site repositioning</li>
<li>70% gradeability (35°) for challenging terrain access</li>
<li>600 mm track plates ensuring stability on varied ground conditions</li>
</ul>

Manufactured in China under Sany's quality standards, this backhoe-equipped unit ships directly from Wenzhou port, reducing logistics complexity for international buyers. Skip extended lead times—secure fast deployment to your jobsite with verified documentation and transparent export support from Fair Trade Machinery.

Built for precision and all-day productivity, this 2012 Caterpillar 320D delivers exceptional operator comfort and machine control across demanding jobsites. Powered by the robust Caterpillar C6.4 ACERT engine generating 103 kW at 2000 rpm, this 20-ton excavator combines reliable hydraulic performance with intuitive handling characteristics that reduce operator fatigue during extended shifts.

Operators benefit from excellent sightlines and stable platform control, critical for accurate digging and loading operations. With a maximum digging depth of 6,710 mm and reach extending to 9,850 mm, this machine handles trenching, loading, and grading tasks with consistent precision. The hydraulic system delivers 205 l/min flow through a proven circuit design, ensuring smooth, responsive controls whether operating the 5,700 mm boom or 2,900 mm arm.

<ul>
<li>20,930 kg operating weight with 1 m³ bucket capacity</li>
<li>140.1 kN bucket digging force for tough material penetration</li>
<li>Water-cooled 6-cylinder engine with 6.37 L displacement</li>
<li>11.5 rpm swing speed and 70% gradeability</li>
<li>410 L fuel capacity for extended runtime</li>
<li>Currently located in Dali, Yunnan Province</li>
</ul>

Caterpillar 320D

Acquire proven Japanese engineering at exceptional value with this 2016 Komatsu PC200-7 excavator, currently located in Putian, Fujian. Operating at 20 tons with a robust Komatsu SAA6D102E-2 engine delivering 107 kW, this machine offers professional-grade performance without the premium price tag of new equipment. Built through joint venture manufacturing to exacting Komatsu standards, it combines a generous 0.8 m³ bucket capacity with impressive digging forces of 149 kN (bucket) and 145 kN (rod).

<ul>
<li>Maximum Reach: 9,380 mm digging radius, 5,380 mm depth capability</li>
<li>Hydraulic Power: Dual variable piston pumps (2×214 L/min flow rate)</li>
<li>Versatile Configuration: Dual rod lengths (1,840/2,410 mm) for varied applications</li>
<li>Efficient Operation: Water-cooled 5.883L engine with 400L fuel capacity</li>
<li>Proven Reliability: Traditional power system with straightforward maintenance</li>
</ul>

Invest strategically in equipment that delivers consistent productivity across earthmoving, excavation, and material handling operations while preserving capital for fleet expansion or operational needs.

Komatsu PC200-7

Built to withstand the most demanding job sites, this 2013 Doosan DH420 excavator represents a decade of proven performance in heavy construction. Operating at 42 tons with traditional power systems, this joint venture-manufactured machine has established itself as a reliable workhorse across countless projects. Its backhoe configuration delivers the versatility needed for excavation, trenching, and material handling applications where durability matters most.

Currently located in Zhejiang Jinhua, this excavator demonstrates the robust engineering Doosan is known for worldwide. A machine that has stood the test of time proves its quality through continued operation—this DH420 exemplifies that principle. For contractors seeking dependable equipment with a documented track record, this unit offers the productivity and longevity that keeps projects moving forward.

<ul>
<li>Operating Weight: 42 tons</li>
<li>Year: 2013</li>
<li>Power System: Traditional</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint Venture/Import</li>
<li>Location: Zhejiang Jinhua, China</li>
</ul>

Specifications	Value
No.	1042168
Tonnage (tons)	42
Working weight (kg)	41200
Bucket capacity (m³)	1.44-2.18
Boom length (mm)	6700
Rod length (mm)	2600/3250/4000
Country of origin	Yantai, Shandong Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Doosan DE12TIS
Rated power (kw/rpm)	210/2000
Cooling mode	water-cooling
Rotation speed (rpm)	9.5
Bucket digging force (kN)	242.1/264.6
Rod digging force (kN)	218.5/139.1; 176.4/193.1; 152.9/166.6
Travel speed (km/h)	3.3-5.5
Maximum flow of main pump (l/min)	2 x 315
Traveling Hydraulic Circuit (Mpa)	26.5
Rotary Hydraulic Circuit (Mpa)	26.5
Main pump type	Parallel inclined axial piston pump
Working Hydraulic Circuit (Mpa)	Standard 31.4/ Supercharged 34.3
Pilot pump flow (L/min)	24
Total transport length (mm)	11690
Total transport width (mm)	3350
Total transport height (mm)	3575
Full cab height (mm)	3150
Counterweight ground clearance (mm)	1277
Minimum ground clearance (mm)	540
Back end turning radius (mm)	3660
Onboard width (mm)	2990
Total track length (mm)	5215
Track gauge (mm)	2750
Track plate width (mm)	600
Total track width (mm)	3350
Track ground length (mm)	4250
Maximum digging radius (mm)	11520
Maximum digging depth (mm)	7725
Maximum excavation height (mm)	11000
Maximum unloading height (mm)	7845
Maximum vertical digging depth (mm)	4400
Maximum excavation radius of stop surface (mm)	11310
Maximum effective digging depth (mm)	7570

2020 Doosan DH420LC-7
