2021 Doosan DX340LC-9C

1/9
Buy Doosan DX340LC-9C Used Excavator / 1
Buy Doosan DX340LC-9C Used Excavator / 2
Buy Doosan DX340LC-9C Used Excavator / 3

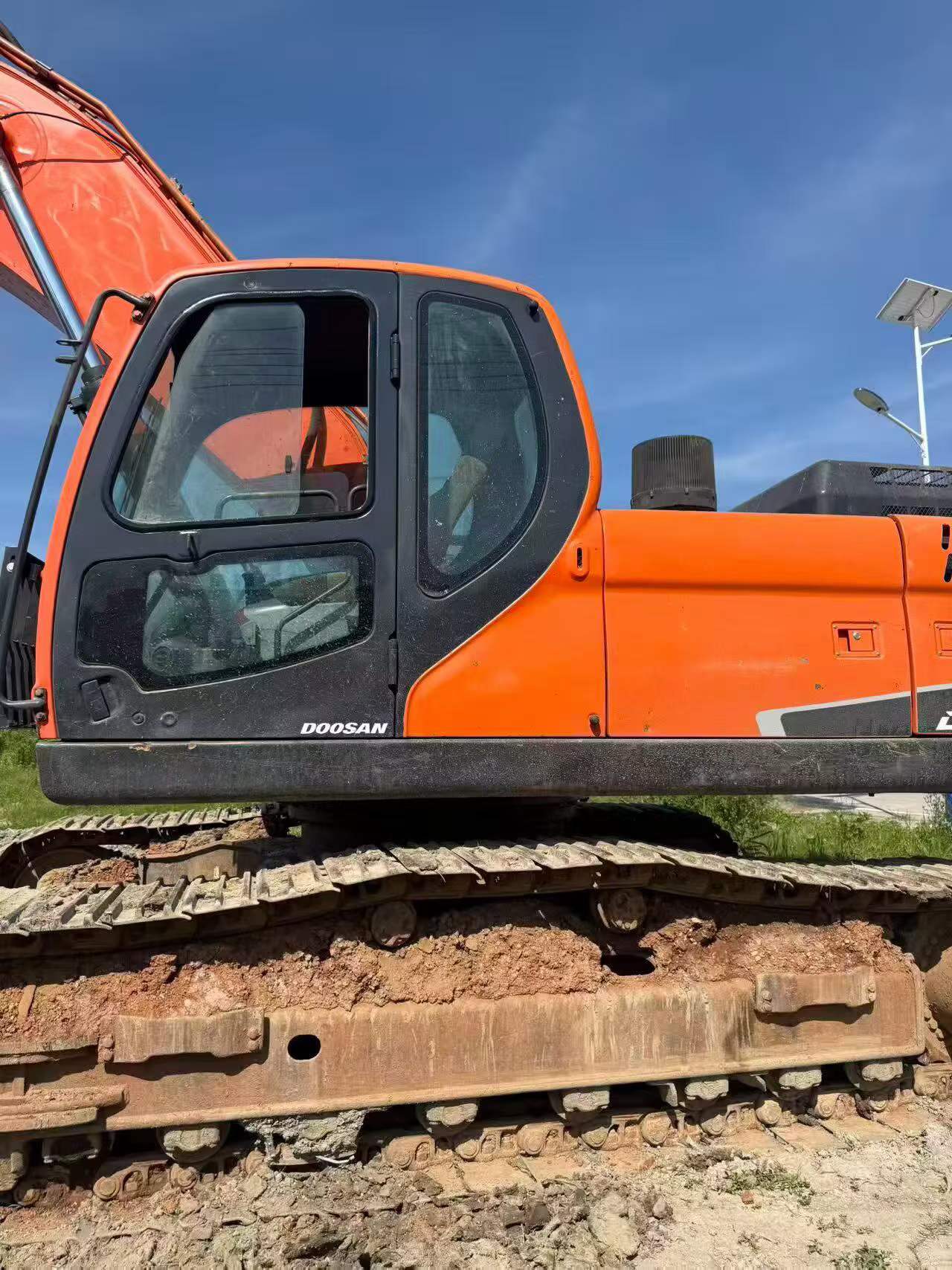

Buy Doosan DX340LC-9C Used Excavator / 4

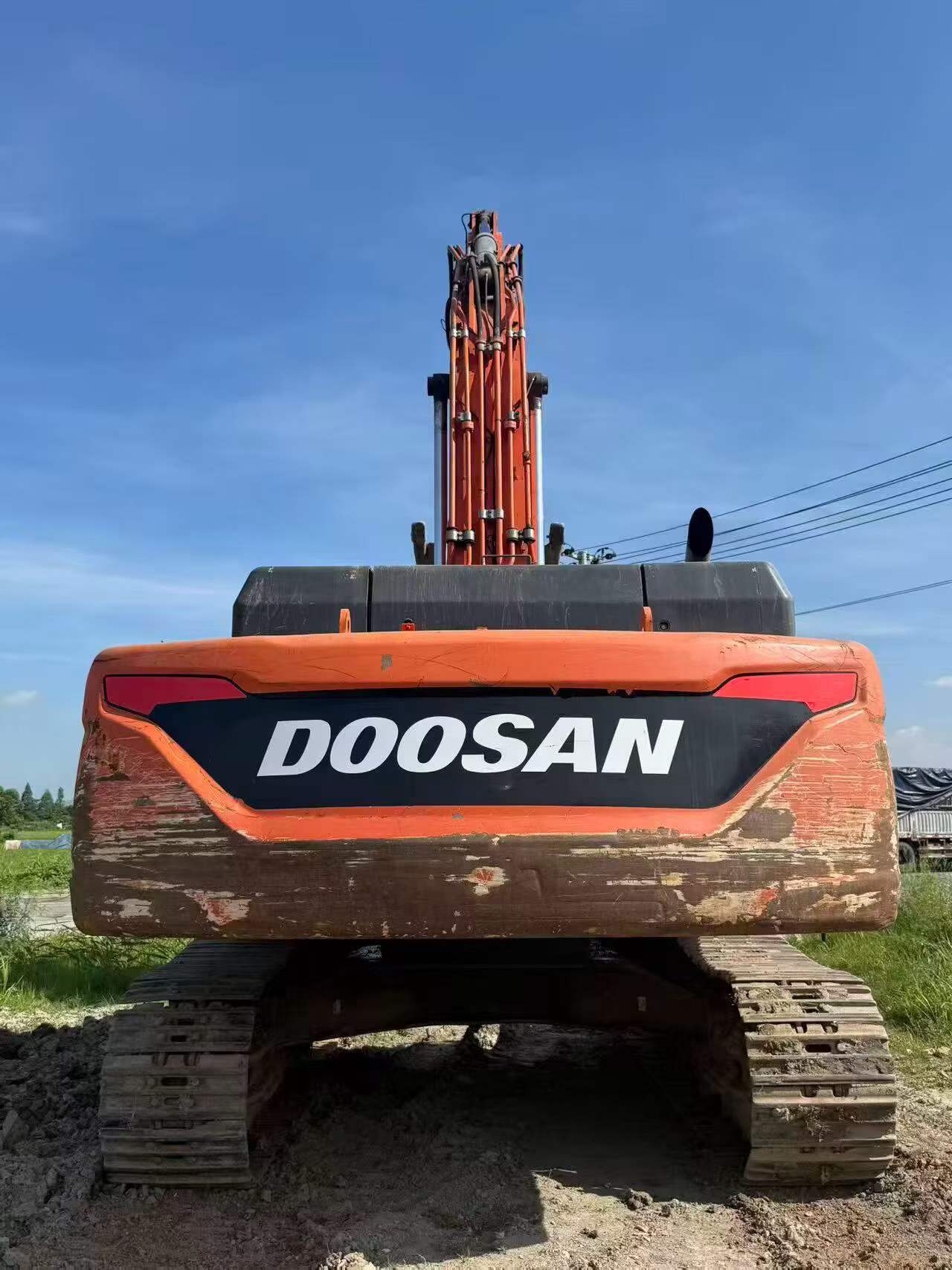

Buy Doosan DX340LC-9C Used Excavator / 5
Buy Doosan DX340LC-9C Used Excavator / 6

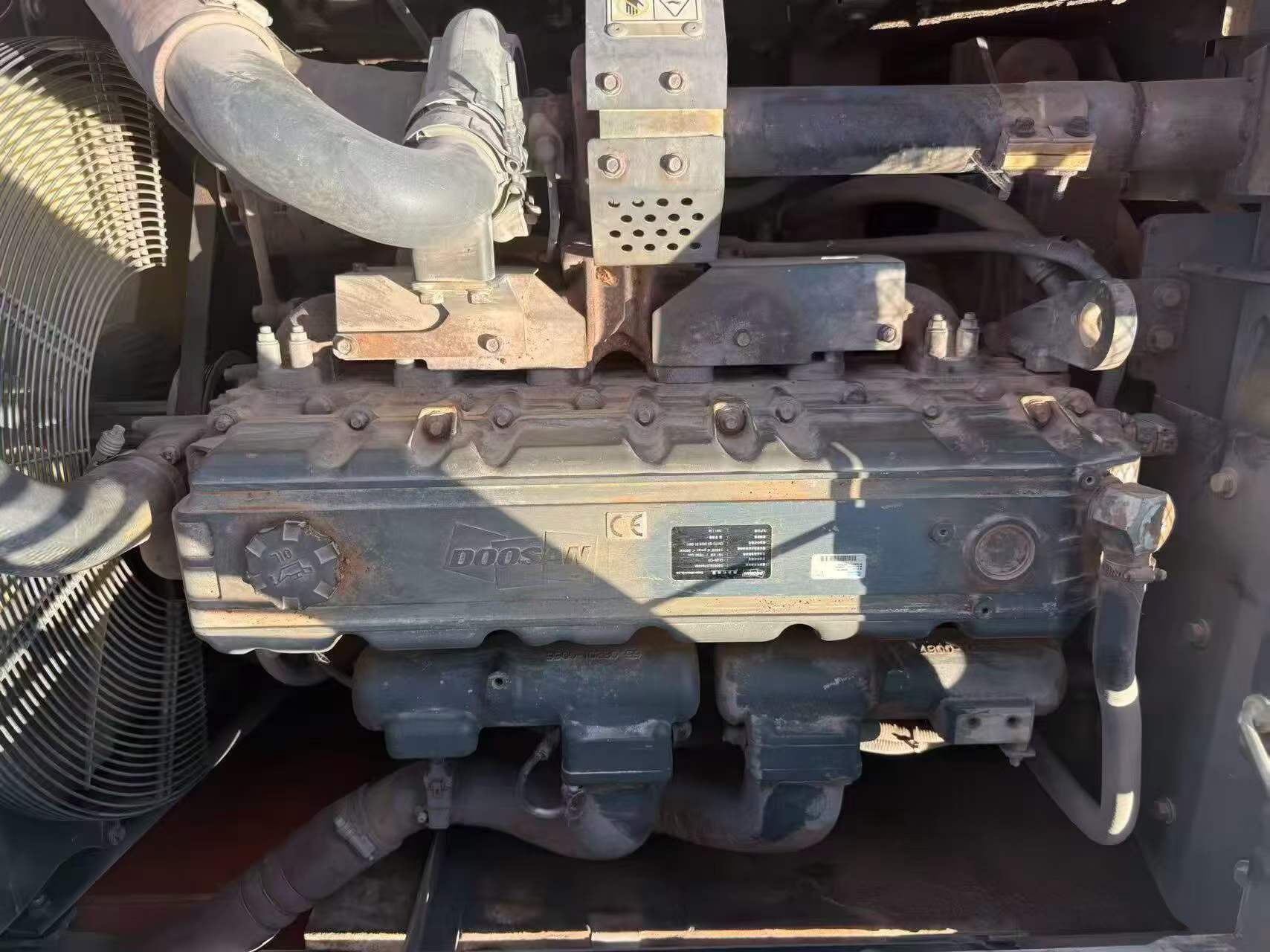

Buy Doosan DX340LC-9C Used Excavator / 7
Buy Doosan DX340LC-9C Used Excavator / 8

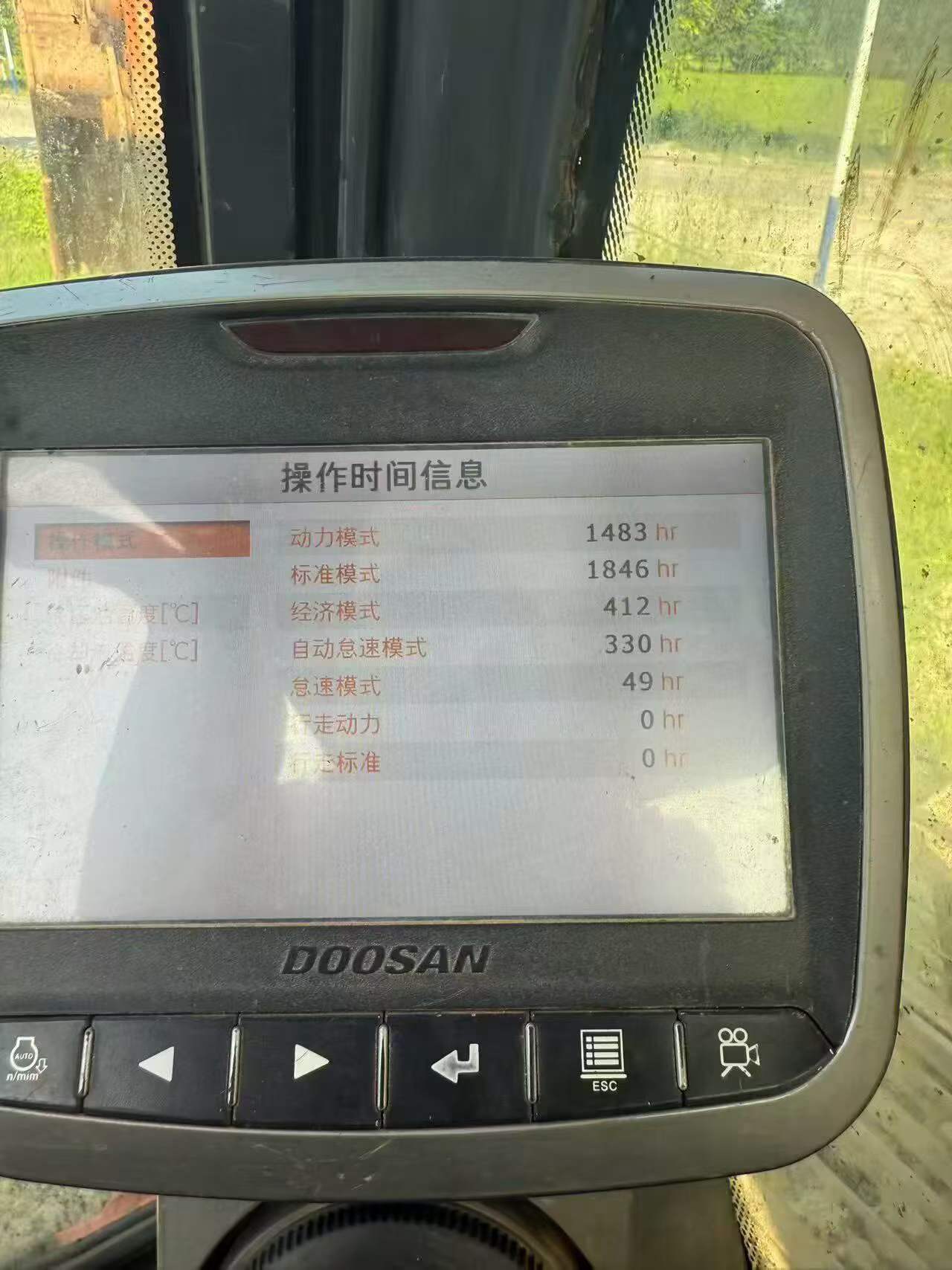

Buy Doosan DX340LC-9C Used Excavator / 9

Product Description

Discover the 2021 Doosan DX340LC-9C, a robust and reliable excavator available in Zhejiang, China. This used machine is in excellent condition with its original paint, indicating minimal wear and consistent maintenance. The key components of the DX340LC-9C remain untouched and in their original, pristine state, ensuring you receive a high-performing, dependable piece of equipment. Equipped with the factory-installed air conditioning system, it provides comfort during operation, even at idle speeds. All documentation and paperwork are complete, facilitating a smooth and hassle-free transaction.

  • Year: 2021
  • Brand: Doosan
  • Model: DX340LC-9C
  • Location: Zhejiang, China
  • Condition: Original paint, no touch-ups
  • Features: Factory air conditioning, all major components in original condition
  • Documentation: Complete and ready for transfer
SpecificationsValue
No.1100829
Tonnage (tons)34
Working weight (kg)34100
Bucket capacity (m³)1.4~1.6
Boom length (mm)6500
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDL08
Rated power (kw/rpm)191/1800
Cylinder diameter × stroke (mm)108 x 139
Number of cylinders (PCS)6
Ground specific pressure (Kpa)66
Rotation speed (rpm)8.6
Bucket digging force (kN)246
Rod digging force (kN)181
Travel speed (km/h)5.0/3.1
Turning torque (Nm)13500
Maximum flow of main pump (l/min)2 x 266
Bucket cylinders - Number × diameter × stroke (mm)1-145 x 95 x 1300
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 120 x 1805
Boom cylinders - Number × diameter × stroke (mm)2-150 x 100 x 1430
Fuel Tank (L)324
Total transport length (mm)11405
Total transport width (mm)3280
Total transport height (mm)3590
Full cab height (mm)3125
Counterweight ground clearance (mm)1195
Minimum ground clearance (mm)510
Back end turning radius (mm)3530
Onboard width (mm)2990
Total track length (mm)4640
Track plate width (mm)600
Maximum digging radius (mm)11320
Maximum digging depth (mm)7060
Maximum excavation height (mm)10345
Maximum unloading height (mm)11168
Maximum vertical digging depth (mm)3970
Maximum excavation radius of stop surface (mm)10690
see more

Overview

No.1100829

Brand Name:

Doosan

Model Number:

DX340LC-9C

Year:

2021

Location:

Zhejiang China

Pub Date
