Product Description

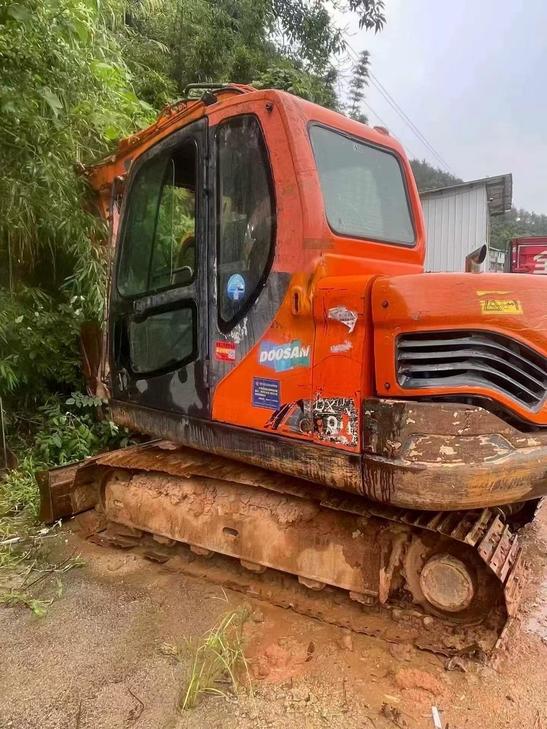

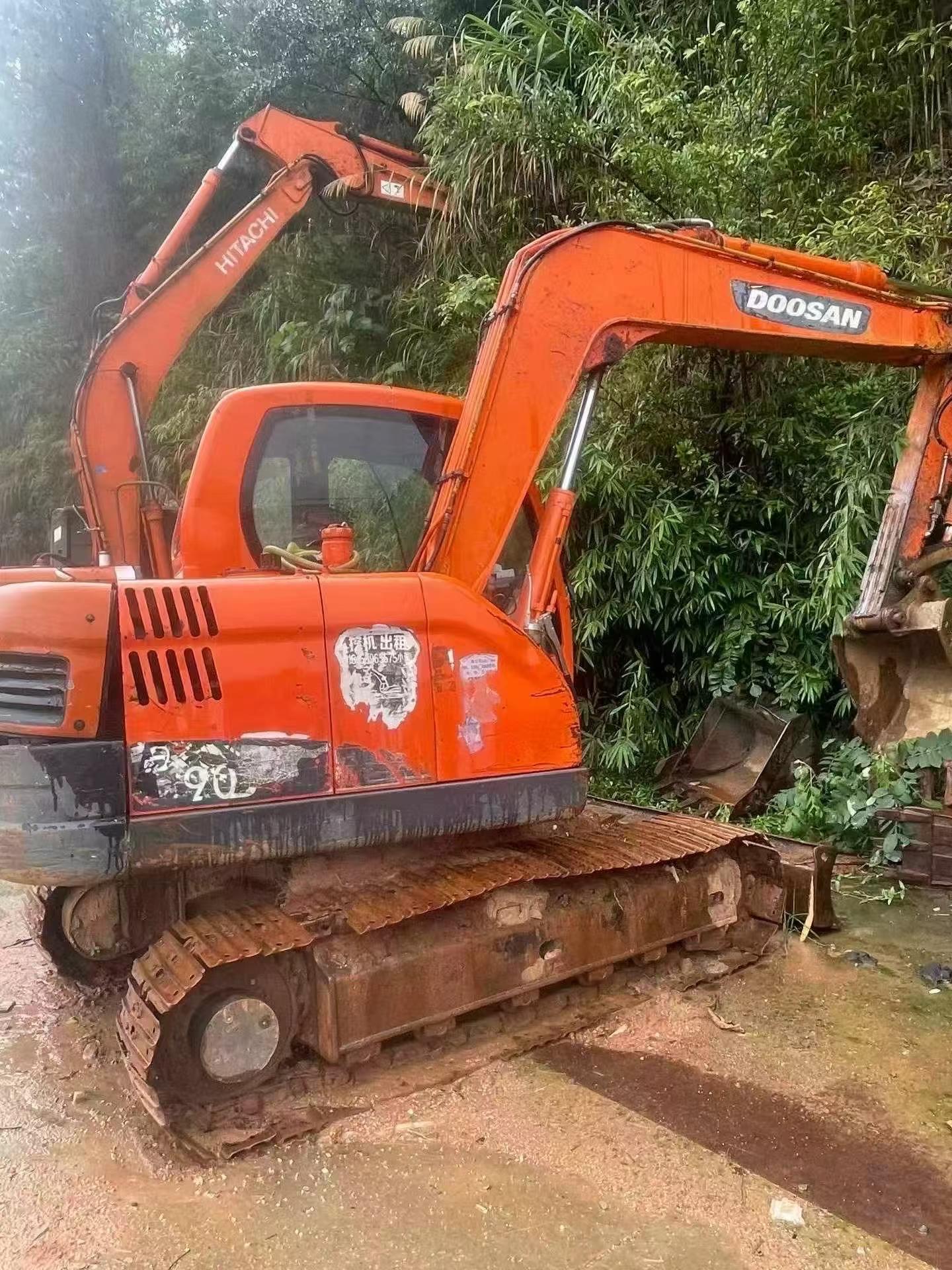

Discover the reliability and efficiency of the 2015 Doosan DX75, available now in Zhejiang, China. This compact excavator, priced at over 50,000 RMB, is designed to meet the demanding needs of construction and excavation projects. Known for its robust performance and durability, the DX75 offers a powerful yet fuel-efficient engine, ensuring optimal productivity with minimal operating costs. Ideal for a variety of applications including digging, trenching, and site preparation, this machine provides the versatility needed on any job site. Invest in a trusted piece of machinery that combines quality, value, and performance.
- Year: 2015
- Brand: Doosan
- Model: DX75
- Location: Zhejiang, China
- Price: Over 50,000 RMB
| Specifications | Value |
|---|---|
| No. | 1120019 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

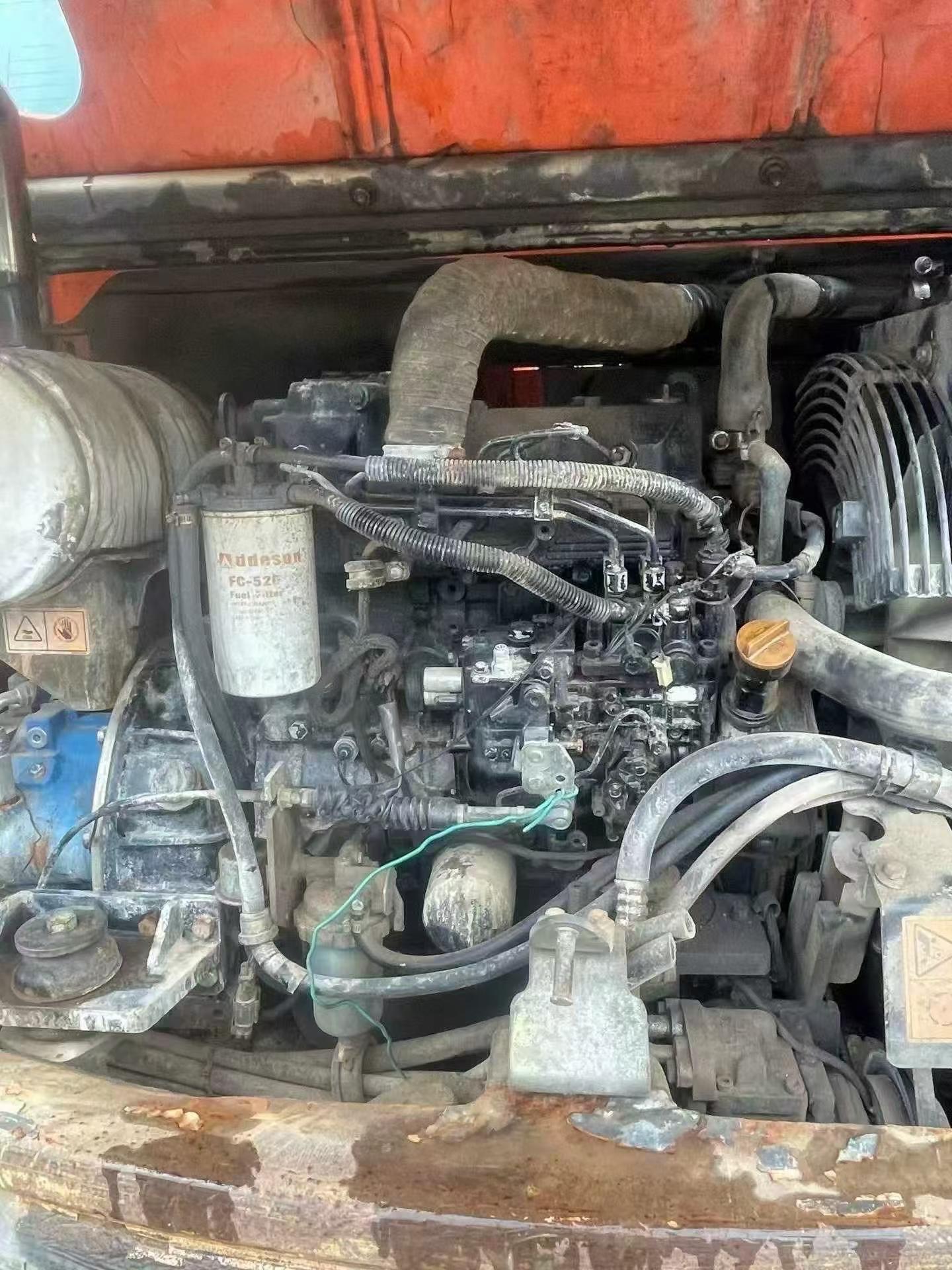

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
