HOME>>Hitachi>>Hitachi EX350H-5

2020 Hitachi EX350H-5

1/4
Buy Hitachi EX350H-5 Used Excavator / 1

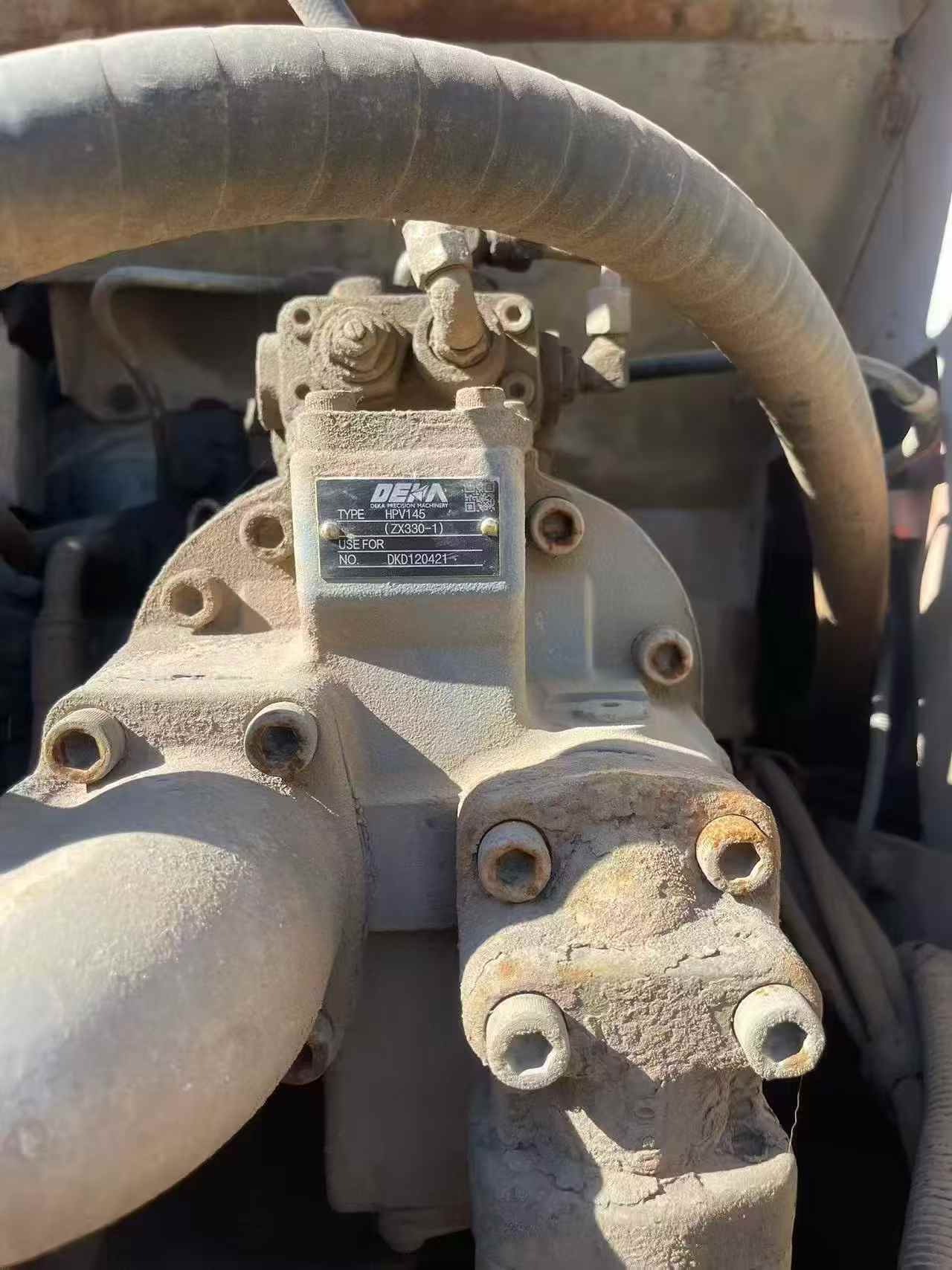

Buy Hitachi EX350H-5 Used Excavator / 2

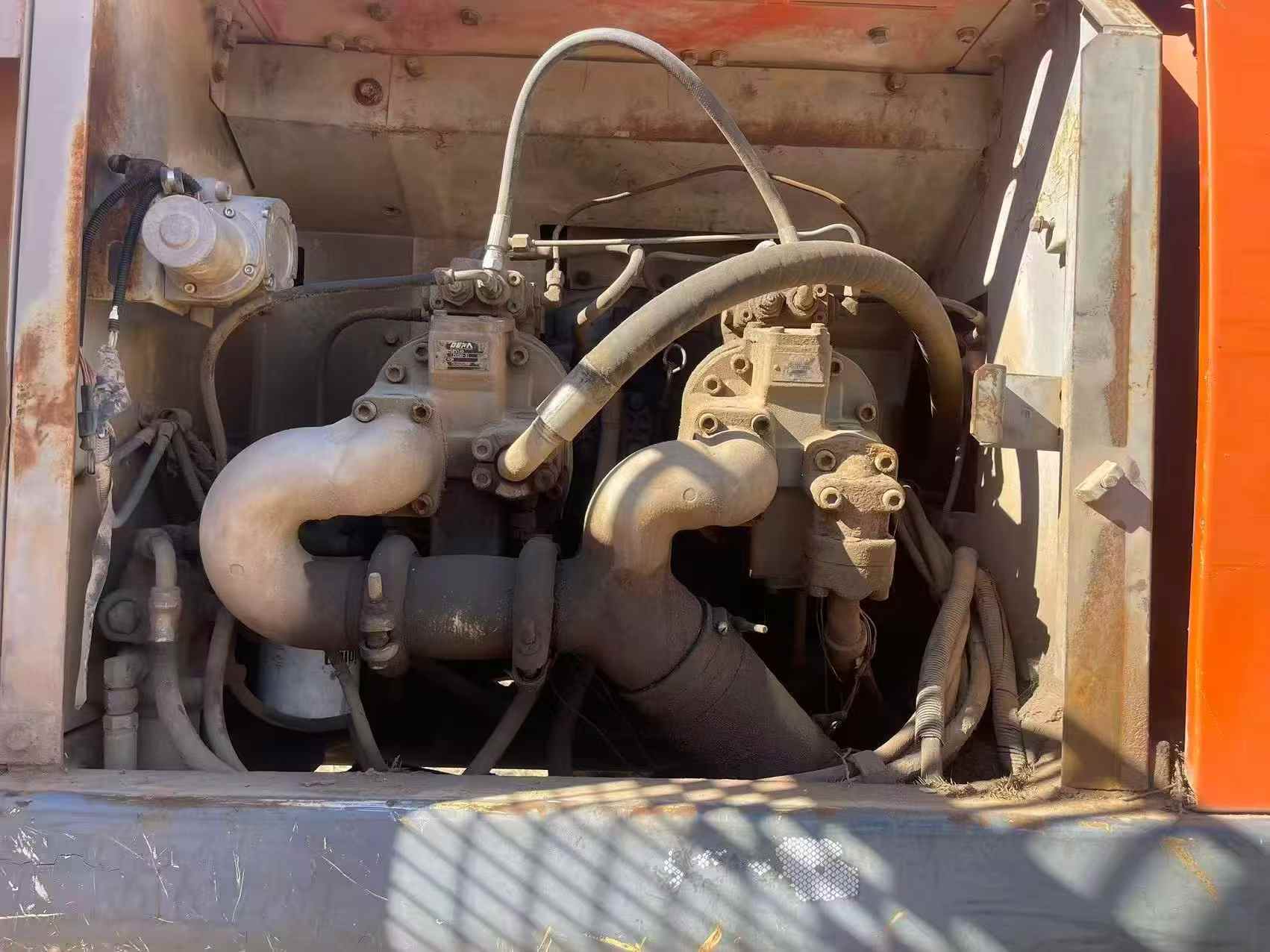

Buy Hitachi EX350H-5 Used Excavator / 3

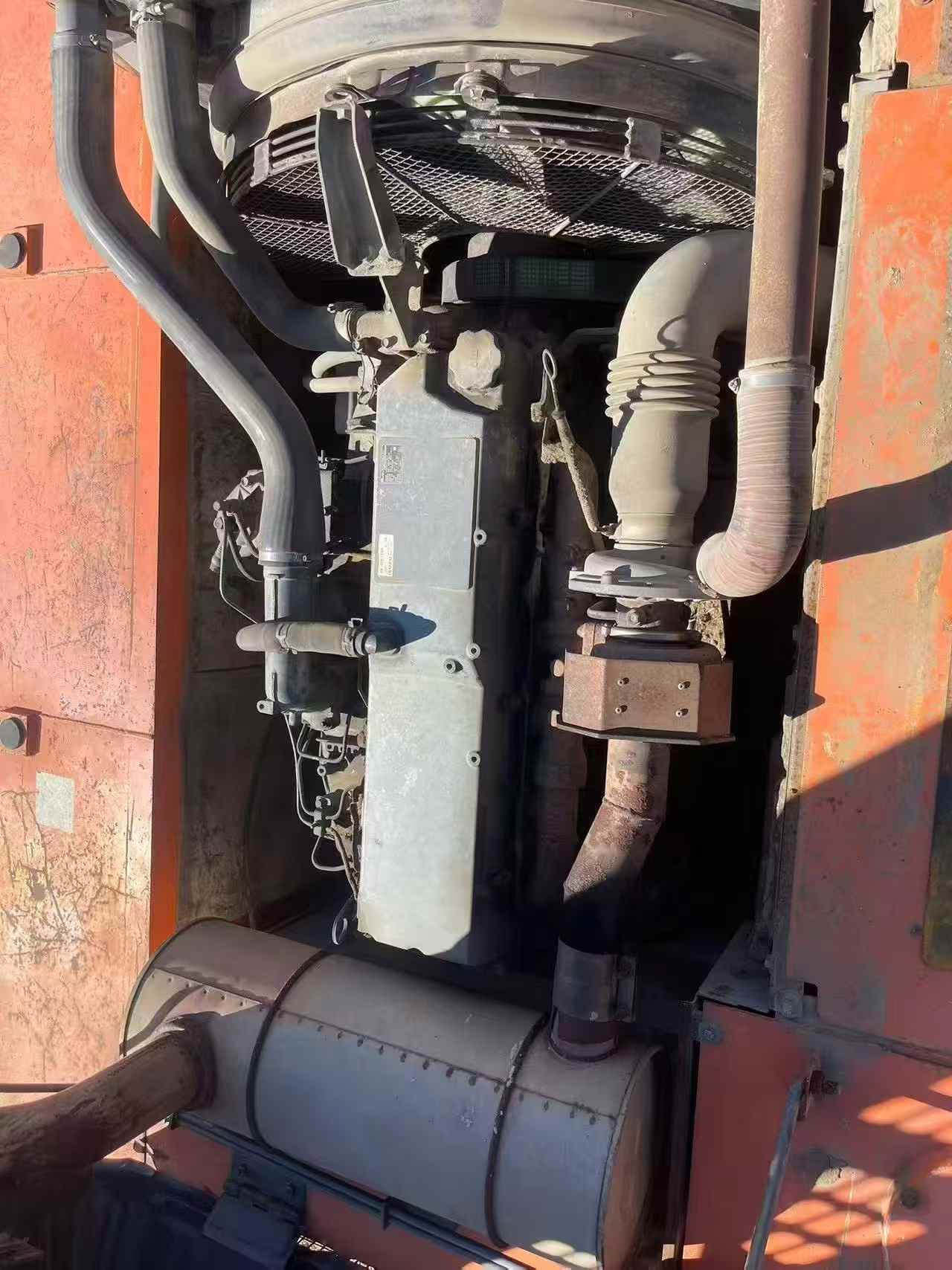

Buy Hitachi EX350H-5 Used Excavator / 4

Product Description

This 2020 Hitachi EX350H-5 hydraulic excavator is available from our Guangxi, China location. Built on Hitachi's proven -5 series platform, this 35-ton class machine delivers reliable performance for medium to heavy-duty excavation, demolition, and earthmoving applications. The EX350H-5 features enhanced hydraulic efficiency and fuel economy compared to earlier generations, making it well-suited for high-volume production environments.

Key features include:

  • Hitachi HIOS III hydraulic system for responsive control
  • Spacious ROPS/FOPS certified operator cabin
  • Advanced monitoring and diagnostic systems
  • Durable undercarriage designed for extended service life
  • Multiple working modes for optimized fuel consumption

This used excavator represents a cost-effective solution for contractors and operators seeking proven Japanese engineering. Inspection reports and operating hours available upon request.

SpecificationsValue
No.1162660
Tonnage (tons)35
Working weight (kg)32613.3
Bucket capacity (m³)1.4
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu B-6SD1T
Rated power (kw/rpm)169/1900
Ground specific pressure (Kpa)66
Travel speed (km/h)5.5
Fuel Tank (L)560
Total transport length (mm)10950
Total transport width (mm)3190
Total transport height (mm)3230
Full cab height (mm)3110
Counterweight ground clearance (mm)1140
Minimum ground clearance (mm)500
Back end turning radius (mm)3290
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3730
Maximum digging depth (mm)7380
Maximum excavation height (mm)10230
Maximum unloading height (mm)7130
Maximum vertical digging depth (mm)6480
Maximum excavation radius of stop surface (mm)11100
see more

Overview

No.1162660

Brand Name:

Hitachi

Model Number:

EX350H-5

Year:

2020

Location:

Guangxi China

Pub Date:

Are you interested in this machine?

Please contact us
