2019 Hitachi ZX210K-5A

1/3

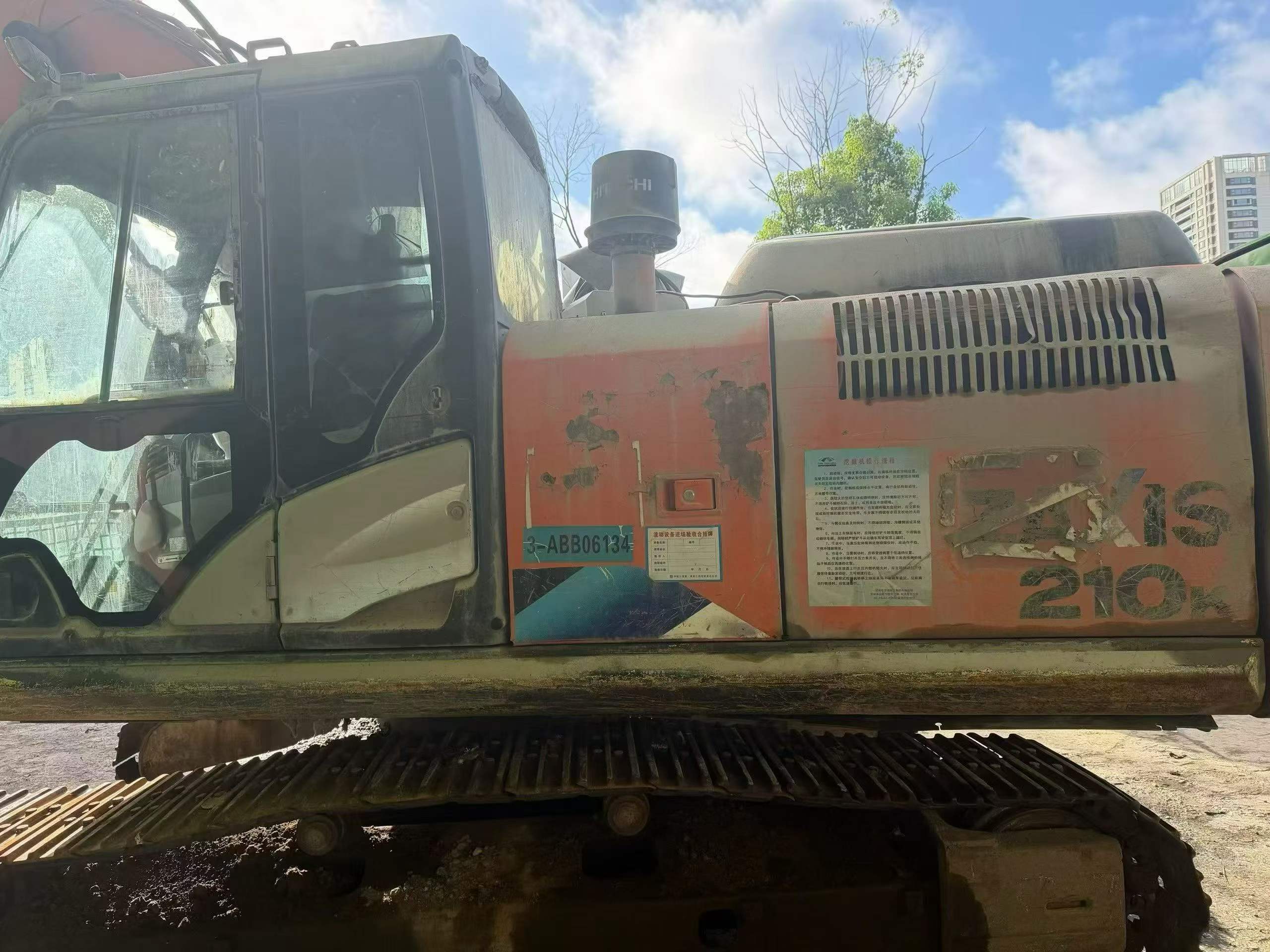

Buy Hitachi ZX210K-5A Used Excavator / 1

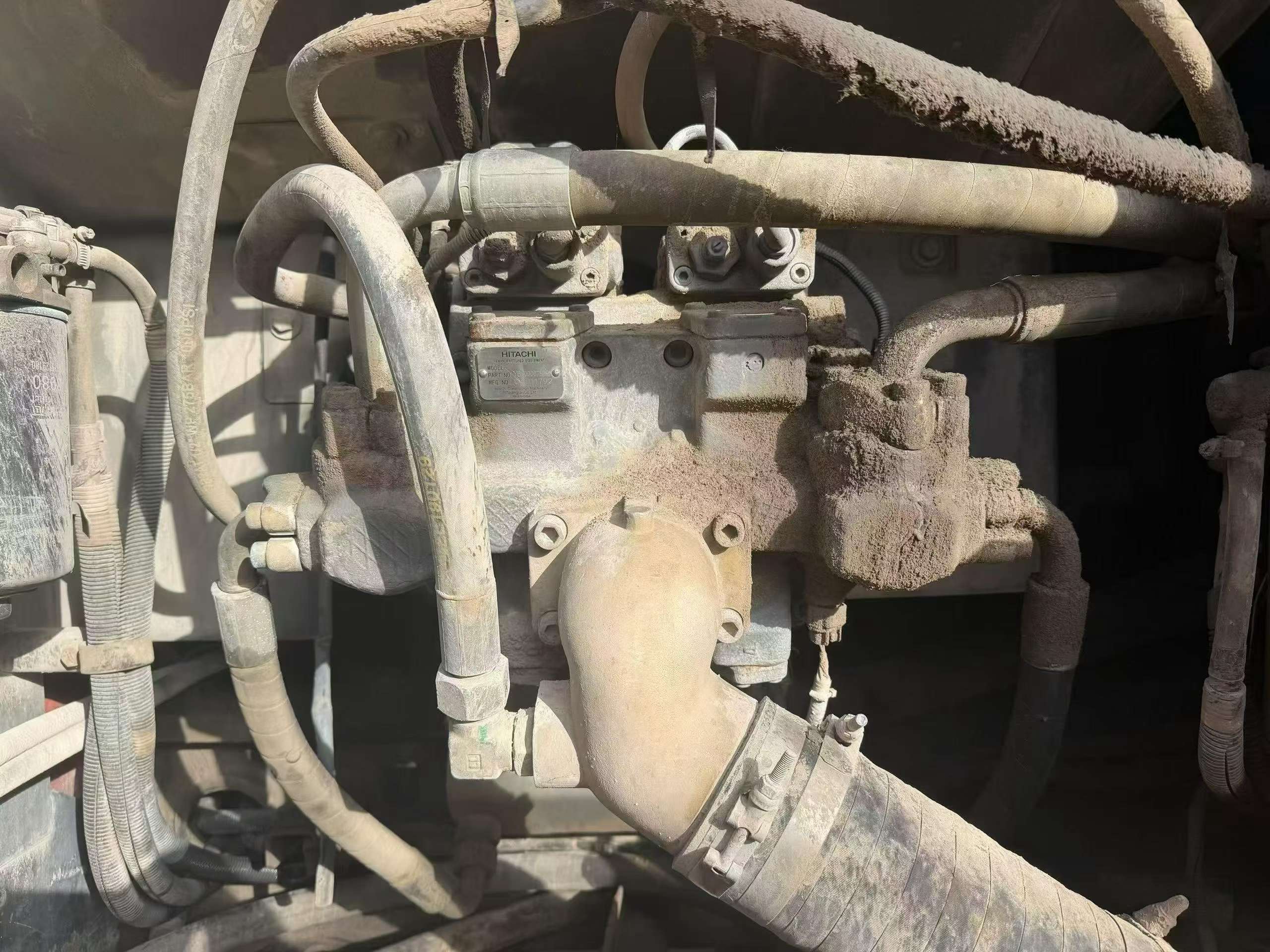

Buy Hitachi ZX210K-5A Used Excavator / 2

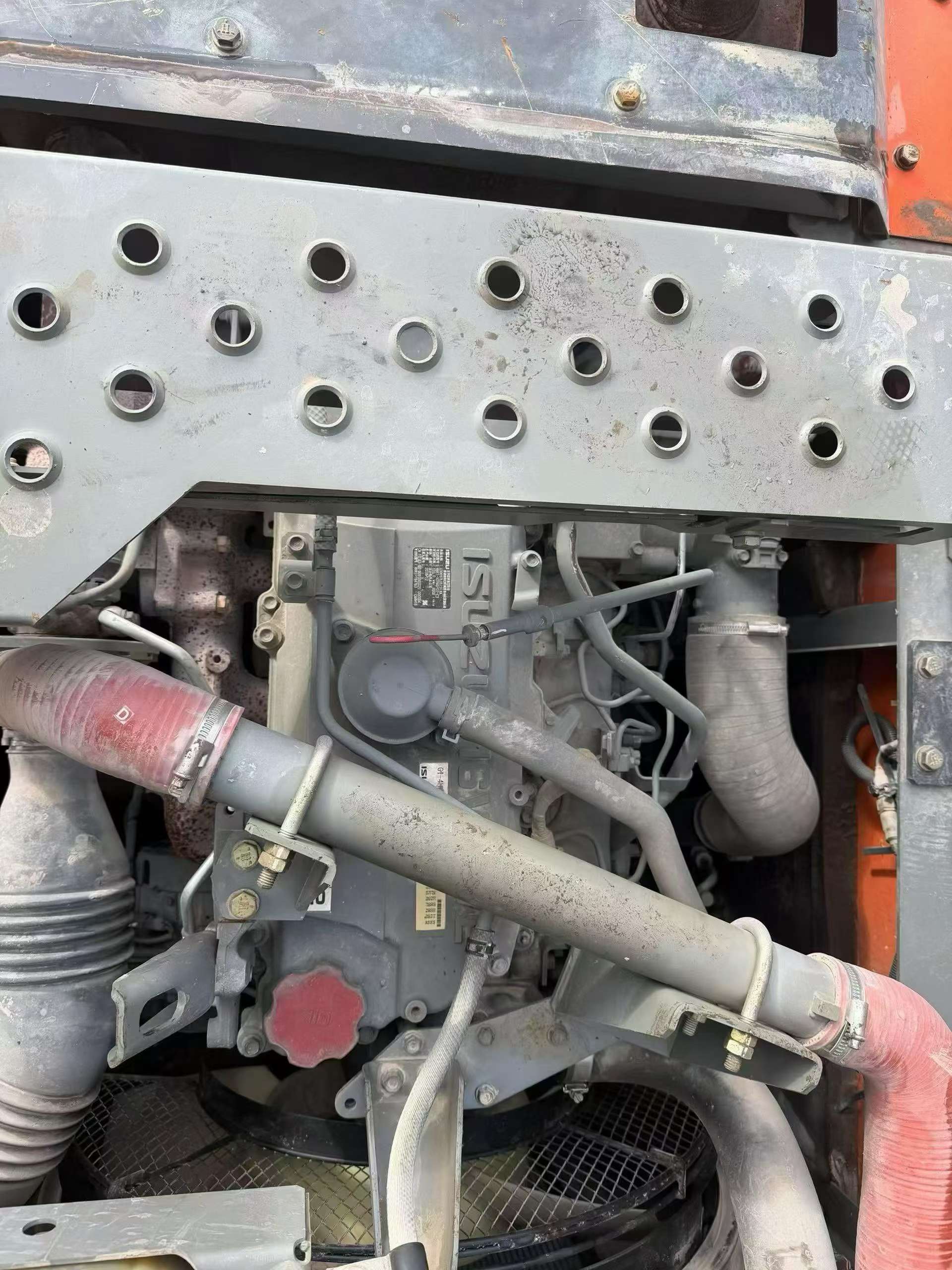

Buy Hitachi ZX210K-5A Used Excavator / 3

Product Description

Discover the reliability and efficiency of the 2019 Hitachi ZX210K-5A, available for immediate shipment from our location in Fujian, China. This robust excavator is designed to meet the demands of various construction and excavation projects, offering a blend of power, performance, and durability. With its advanced technology and operator-friendly features, the ZX210K-5A ensures optimal productivity on any job site.

  • Year: 2019
  • Brand: Hitachi
  • Model: ZX210K-5A
  • Location: Fujian, China
  • Condition: Used, ready for immediate use
SpecificationsValue
No.1135065
Tonnage (tons)21
Working weight (kg)21000~21100
Bucket capacity (m³)0.91~1.0
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu GI-4HK1XKSA-02
Rated power (kw/rpm)113 / 2000
Cooling modewater-cooling
Displacement (L)5.193
Working form4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled
Ground specific pressure (Kpa)47
Rotation speed (rpm)13.5
Climbing ability (%)70
Bucket digging force (kN)158
Rod digging force (kN)114
Travel speed (km/h)5.5 / 3.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Main pump type2 variable axial piston pumps, 1 gear pump
Fuel Tank (L)400
Hydraulic Tank (L)200
Engine Oil changes (L)23
Total transport length (mm)9660
Total transport width (mm)2880
Total transport height (mm)3010
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3180
Back end turning radius (mm)2890
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Maximum digging radius (mm)9920
Maximum digging depth (mm)6670
Maximum excavation height (mm)10040
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)5990
Maximum excavation radius of stop surface (mm)9750
see more

Overview

No.1135065

Brand Name:

Hitachi

Model Number:

ZX210K-5A

Year:

2019

Location:

Fujian China
