Product Description
Built for precision and all-day productivity, this 2020 Hitachi ZX210K-5A delivers 21-ton performance with operator-first engineering. Powered by a 113 kW Isuzu turbocharged engine, it combines 158 kN bucket digging force with refined hydraulic response across dual variable axial piston pumps. Operators benefit from enhanced cabin visibility, reduced vibration levels, and intuitive joystick controls that translate to confident handling on demanding jobsites.
- Operating Weight: 21,000–21,100 kg

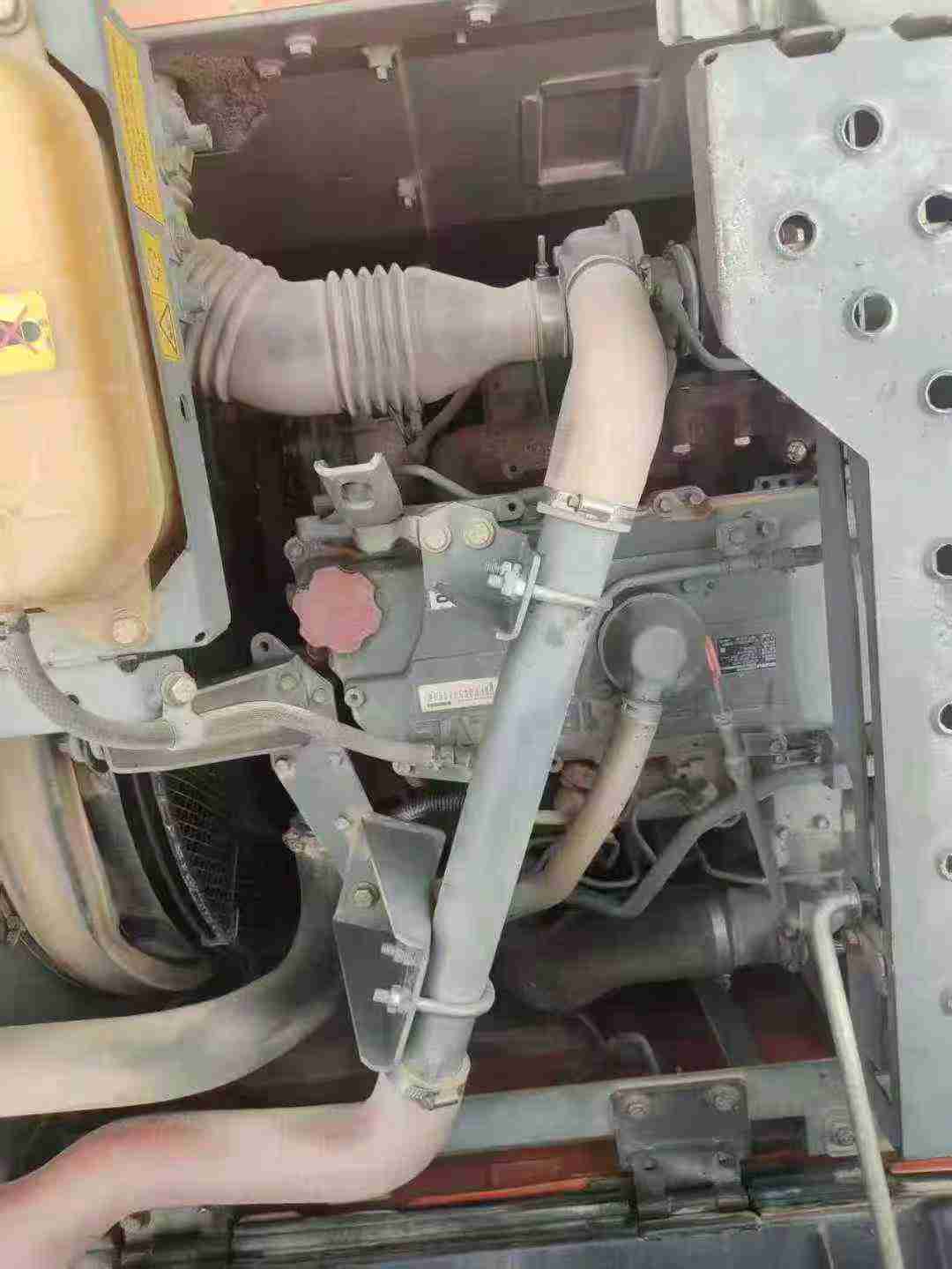

- Engine: Isuzu 4HK1, 113 kW @ 2000 rpm, water-cooled, turbocharged
- Digging Reach: 9,920 mm max radius / 6,670 mm depth
- Bucket Capacity: 0.91–1.0 m³
- Stability: 47 kPa ground pressure, 70% gradeability
- Hydraulics: 34.3 MPa system pressure, dual variable pumps
- Fuel Capacity: 400 L
- Location: Hangzhou, Zhejiang
Wide track gauge and low center of gravity ensure stable operation on slopes and uneven terrain, while spacious cabin design minimizes operator fatigue during extended shifts.
| Specifications | Value |
|---|---|
| No. | 1027081 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000~21100 |
| Bucket capacity (m³) | 0.91~1.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113 / 2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5 / 3.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |

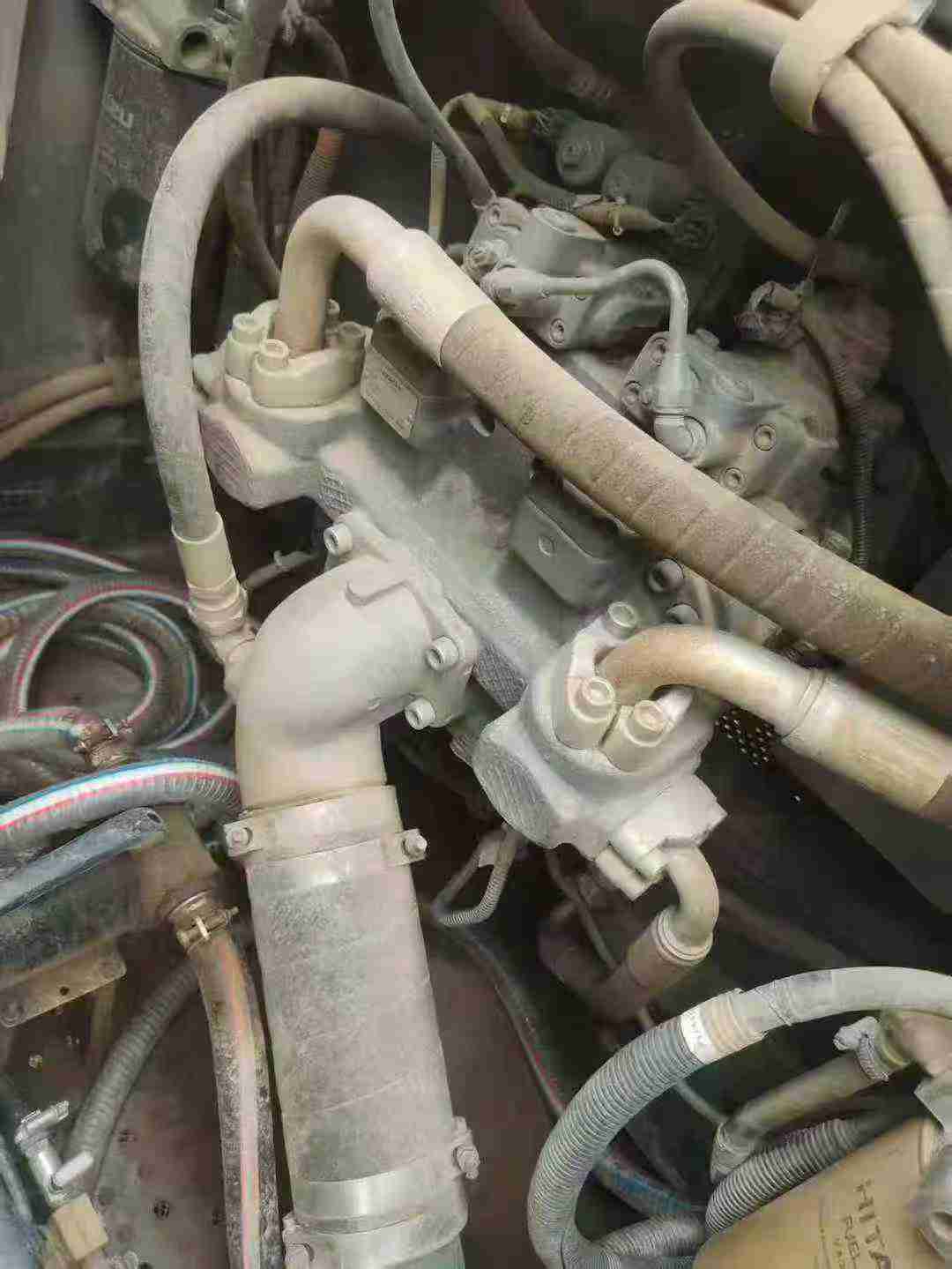

| Main pump type | 2 variable axial piston pumps, 1 gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2880 |
| Total transport height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
