Product Description

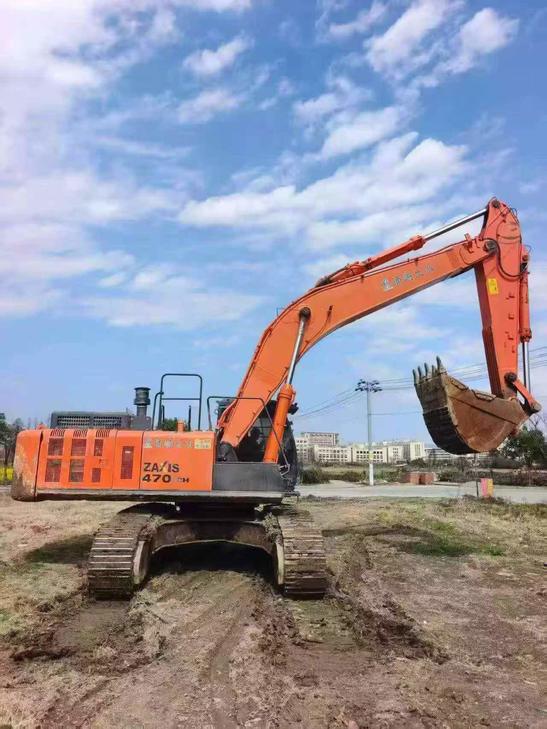

2020 Hitachi ZX470LCH-5G hydraulic excavator available in Zhejiang, China. This imported unit represents the final production series of Hitachi's renowned ZX-5G lineup before the brand transition. Machine presents in original factory condition with no aftermarket modifications or component replacements, appealing to operators seeking unaltered OEM specification equipment.
The ZX470LCH-5G combines Hitachi's proven hydraulic technology with enhanced fuel efficiency and reduced emissions compliance. Long crawler configuration provides stability for demanding applications including heavy earthmoving, quarry work, and large-scale construction projects.
- Operating weight class: 47 metric tons
- Original factory condition throughout
- Complete maintenance documentation available
- Suitable for infrastructure and mining applications
Inspection welcomed. Equipment located in Zhejiang Province with arrangements available for viewing by qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1085605 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 47200 |
| Bucket capacity (m³) | 2.1(Rock bucket) |
| Boom length (mm) | 6300 |
| Rod length (mm) | Model 2900 (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-6WG1XYSA-01 |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.691 |
| Working form | Direct injection, turbocharged |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 3.4/5.5 |
| Rotary hydraulic motor type | Axial piston motor x 2 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 360 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 116 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 330 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 55 |
| Total transport length (mm) | 11560 |
| Total transport width (mm) | 4300 |
| Total transport height (mm) | 3480 |
| Full cab height (mm) | 3450 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 723 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2890/2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490/2990 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 5790 |
| Maximum excavation height (mm) | 10660 |
| Maximum unloading height (mm) | 7320 |
| Maximum vertical digging depth (mm) | 4260 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10210 |
| Maximum effective digging depth (mm) | 5620 |
