2021 Hyundai R205VS

1/9
Buy Hyundai R205VS Used Excavator / 1

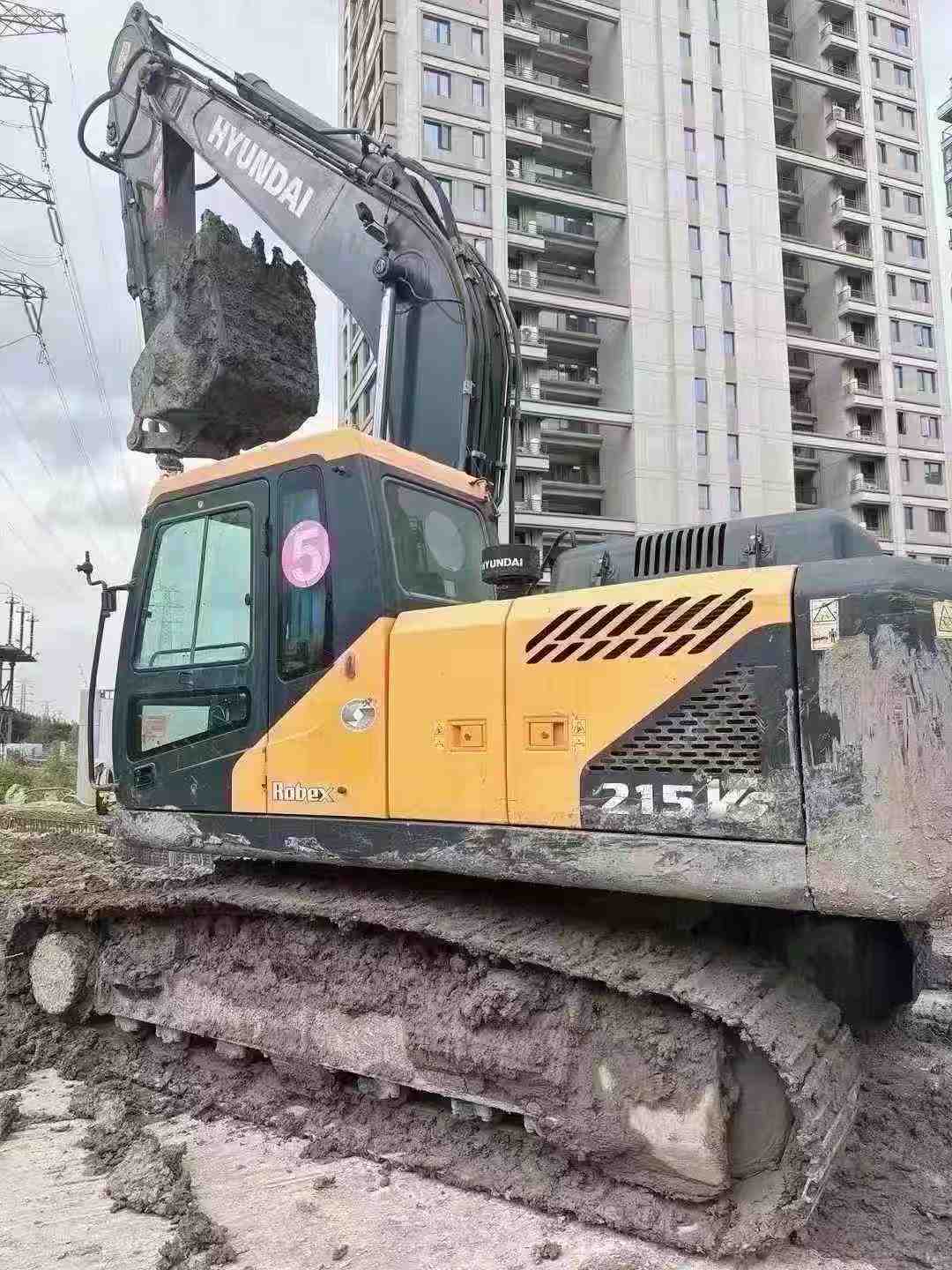

Buy Hyundai R205VS Used Excavator / 2
Buy Hyundai R205VS Used Excavator / 3

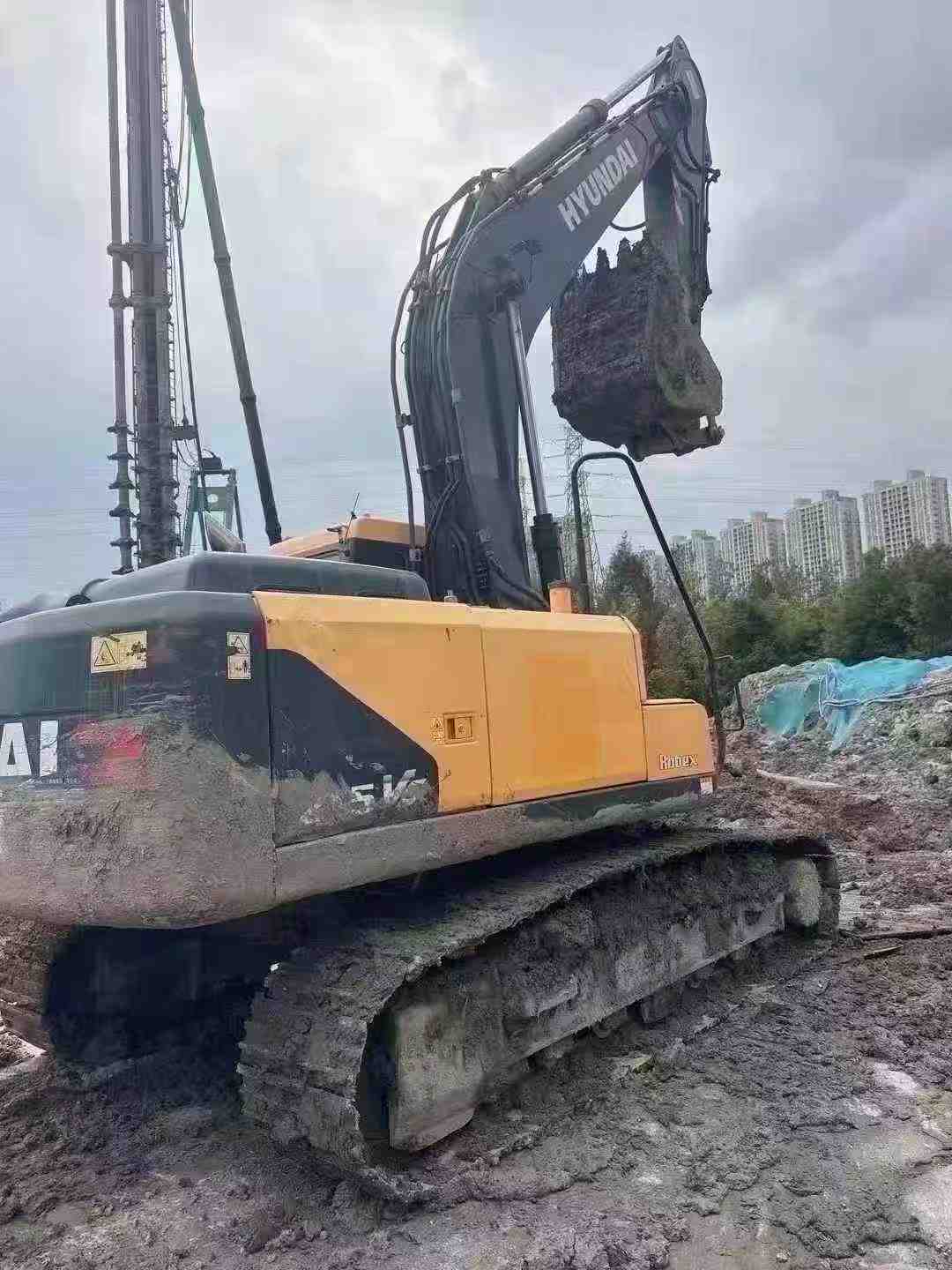

Buy Hyundai R205VS Used Excavator / 4

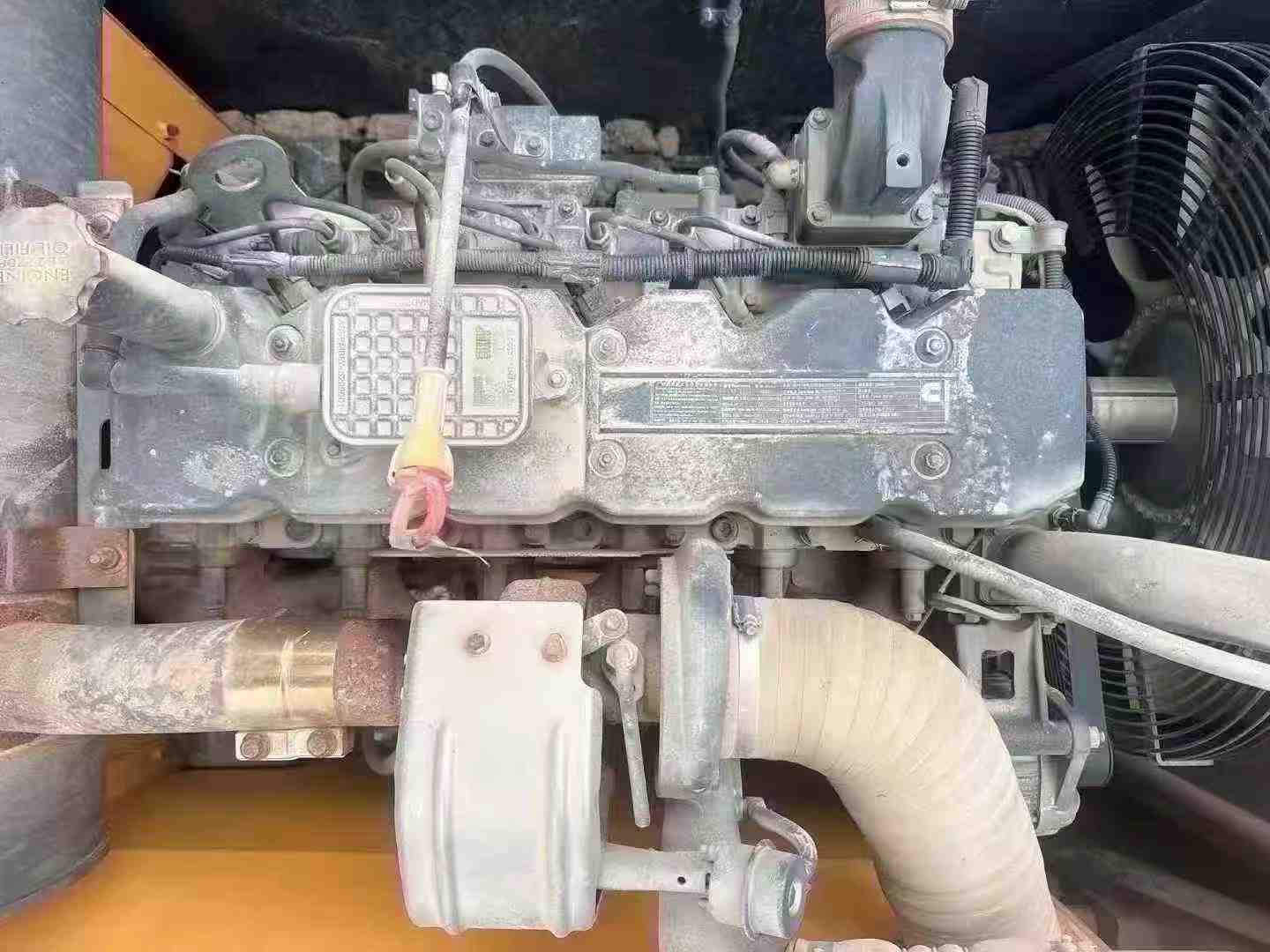

Buy Hyundai R205VS Used Excavator / 5
Buy Hyundai R205VS Used Excavator / 6

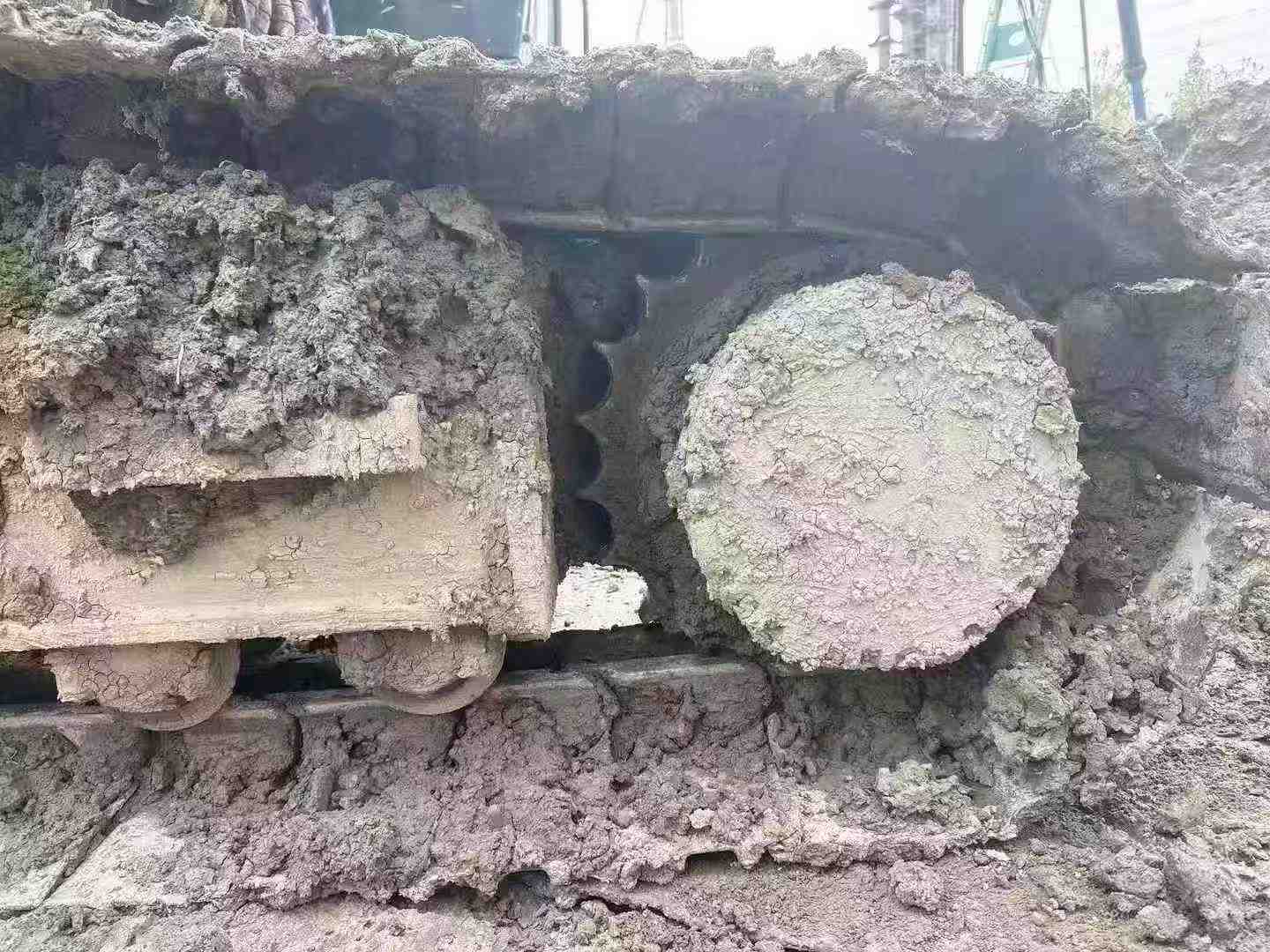

Buy Hyundai R205VS Used Excavator / 7

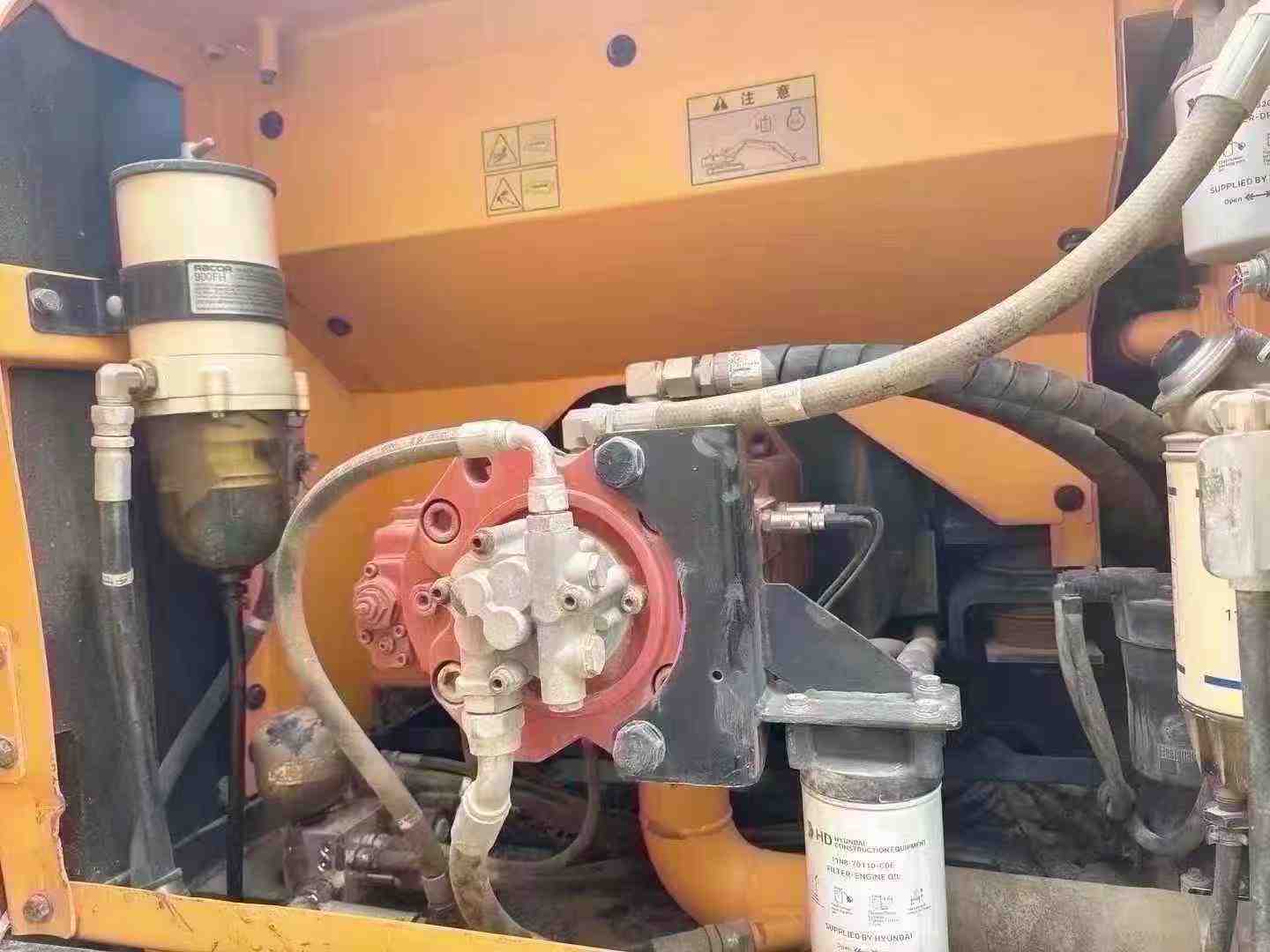

Buy Hyundai R205VS Used Excavator / 8

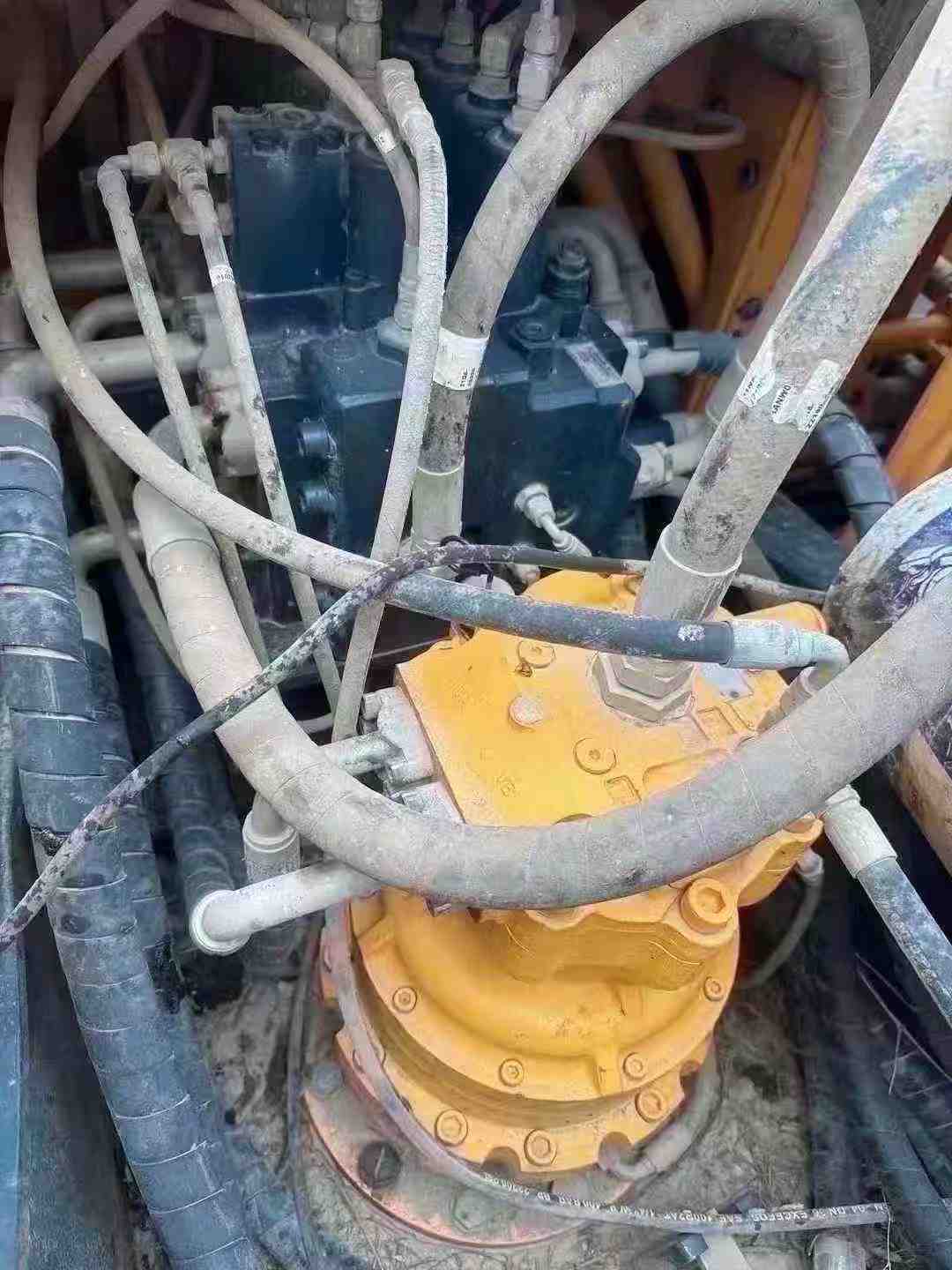

Buy Hyundai R205VS Used Excavator / 9

Product Description

Built for the long haul, this 2021 Hyundai R205VS excavator demonstrates why Korean engineering has earned its reputation in heavy construction. Operating at 20 tons with a robust 19,900 kg working weight, this machine combines a powerful Cummins QSB7 engine (125 kW at 1900 rpm) with dual variable plunger pumps delivering 2×222 L/min for consistent hydraulic performance across demanding jobsites.

Proven durability meets practical capability in this well-maintained unit from Zhejiang, Hangzhou. Key specifications include:

  • Maximum digging reach of 9,720 mm with 6,550 mm depth capability
  • 0.9 m³ backhoe bucket paired with 5,650 mm boom and 2,700 mm arm
  • 340L fuel capacity and 270L hydraulic system for extended operation
  • 70% climbing ability with 11.2 rpm rotation speed for versatile positioning
  • Compact transport dimensions: 9,500 mm × 2,800 mm × 2,970 mm

With minimal operational hours for its age, this R205VS represents a proven workhorse ready to deliver reliable performance for years to come. Comprehensive maintenance records available upon request.

SpecificationsValue
No.1036538
Tonnage (tons)20
Working weight (kg)19900
Bucket capacity (m³)0.9
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Displacement (L)6.7
Rotation speed (rpm)11.2
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)3000
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Onboard width (mm)2740
Total track length (mm)4160
Track ground length (mm)3360
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.1036538

Brand Name:

Hyundai

Model Number:

R205VS

Year:

2021

Location:

Zhejiang China

Pub Date
