Product Description

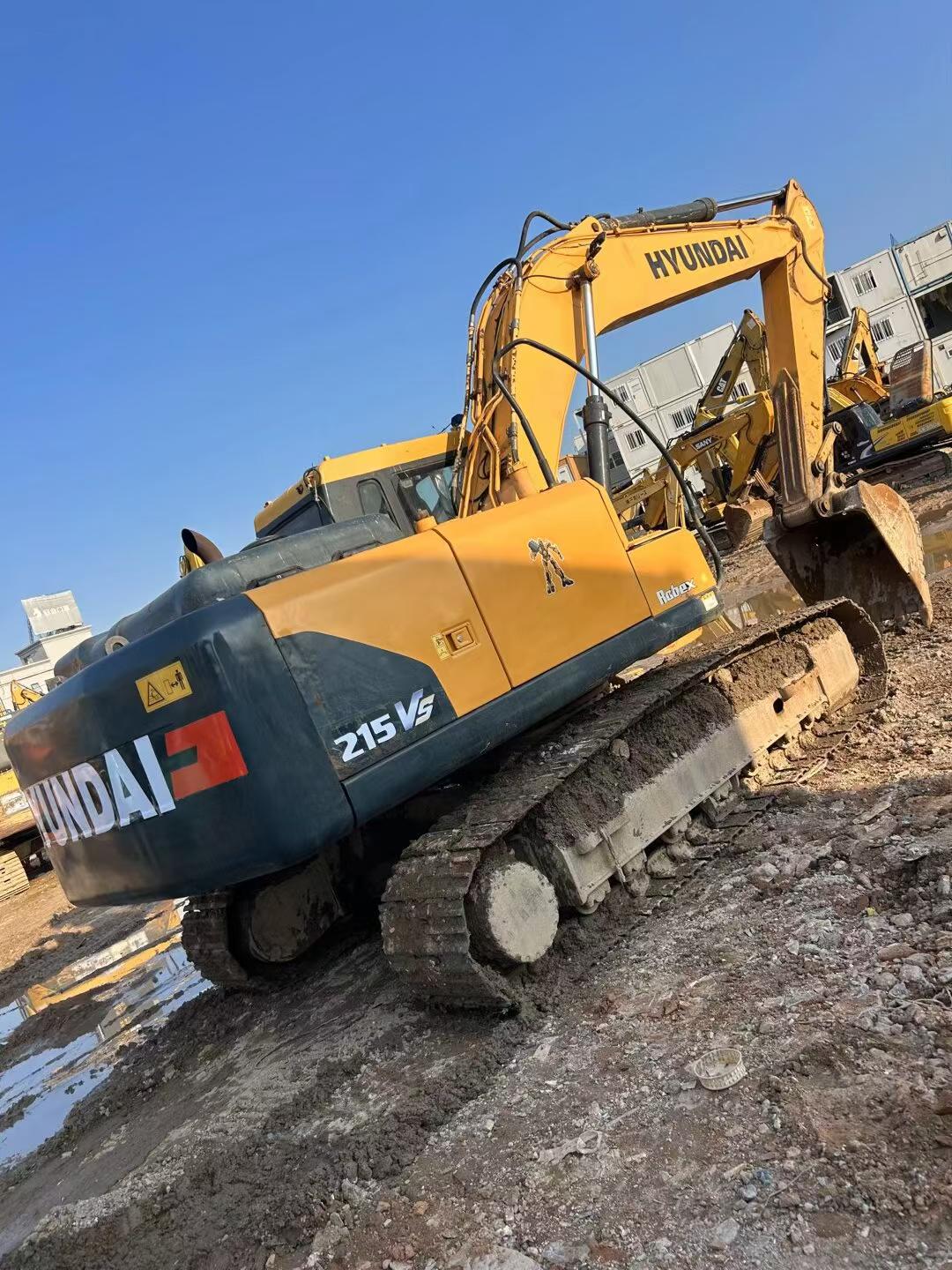

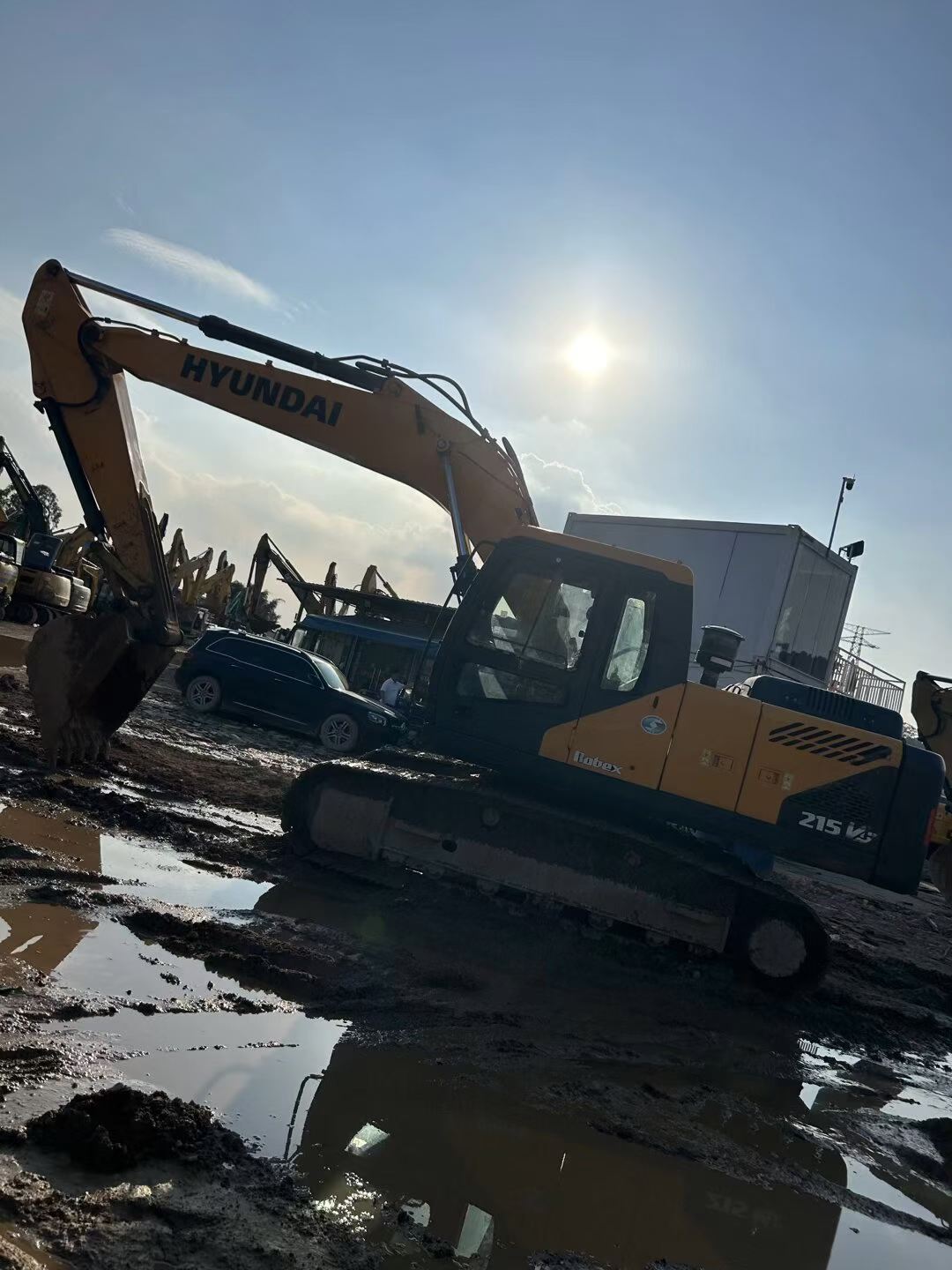

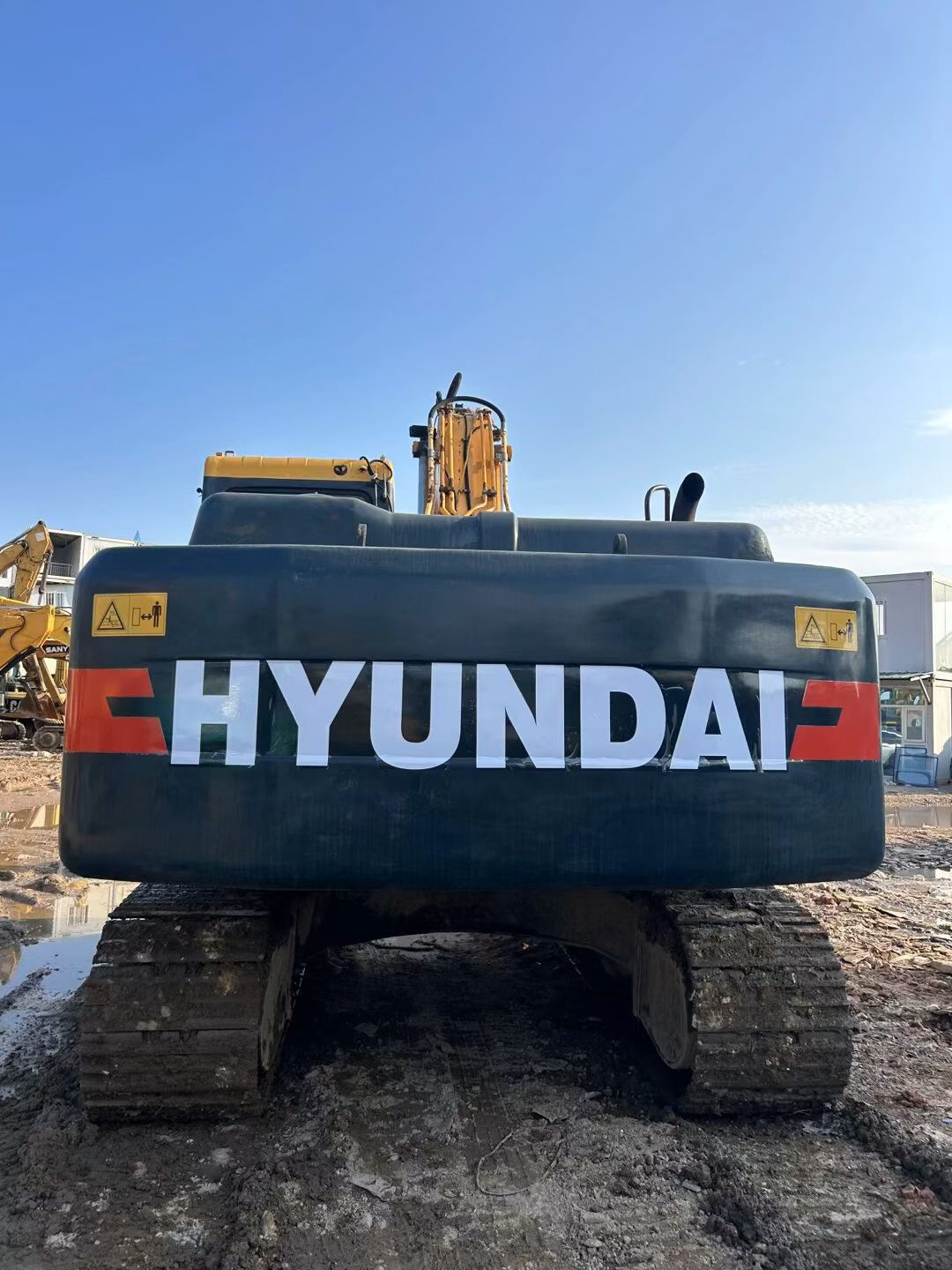

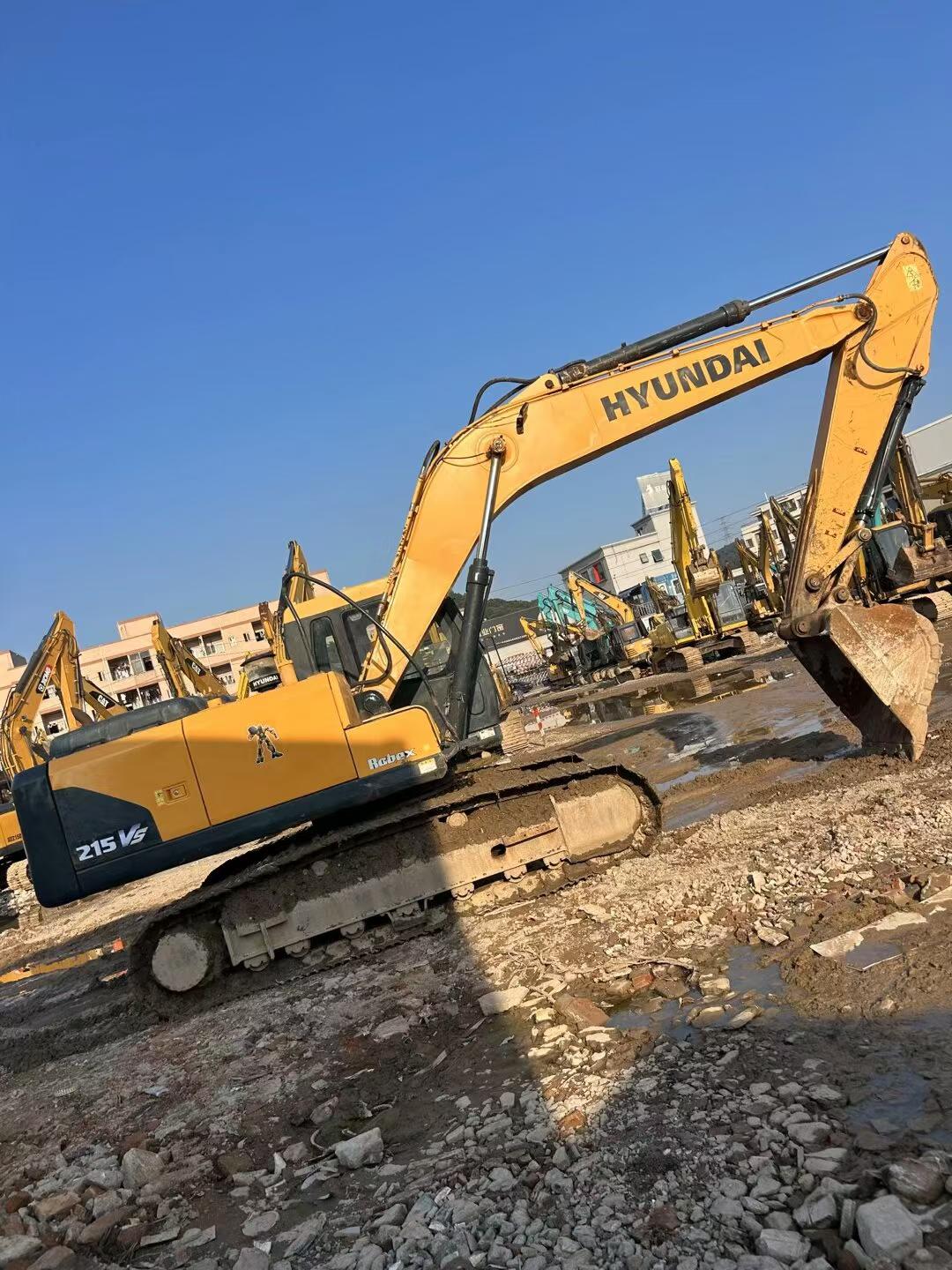

Discover the 2018 Hyundai R215-7, a robust and reliable excavator currently available in Guangdong, China. This machine has been meticulously maintained and is ready for immediate deployment to your construction site. Known for its durability and efficiency, the R215-7 model is a preferred choice for demanding projects. Priced at over 140,000, this used excavator offers an excellent cost-to-performance ratio, making it a smart investment for any construction company looking to enhance their fleet with a high-quality, well-maintained piece of equipment.
- Year: 2018
- Brand: Hyundai
- Model: R215-7
- Location: Guangdong, China
- Condition: Excellent, ready for immediate use
| Specifications | Value |
|---|---|
| No. | 1134877 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

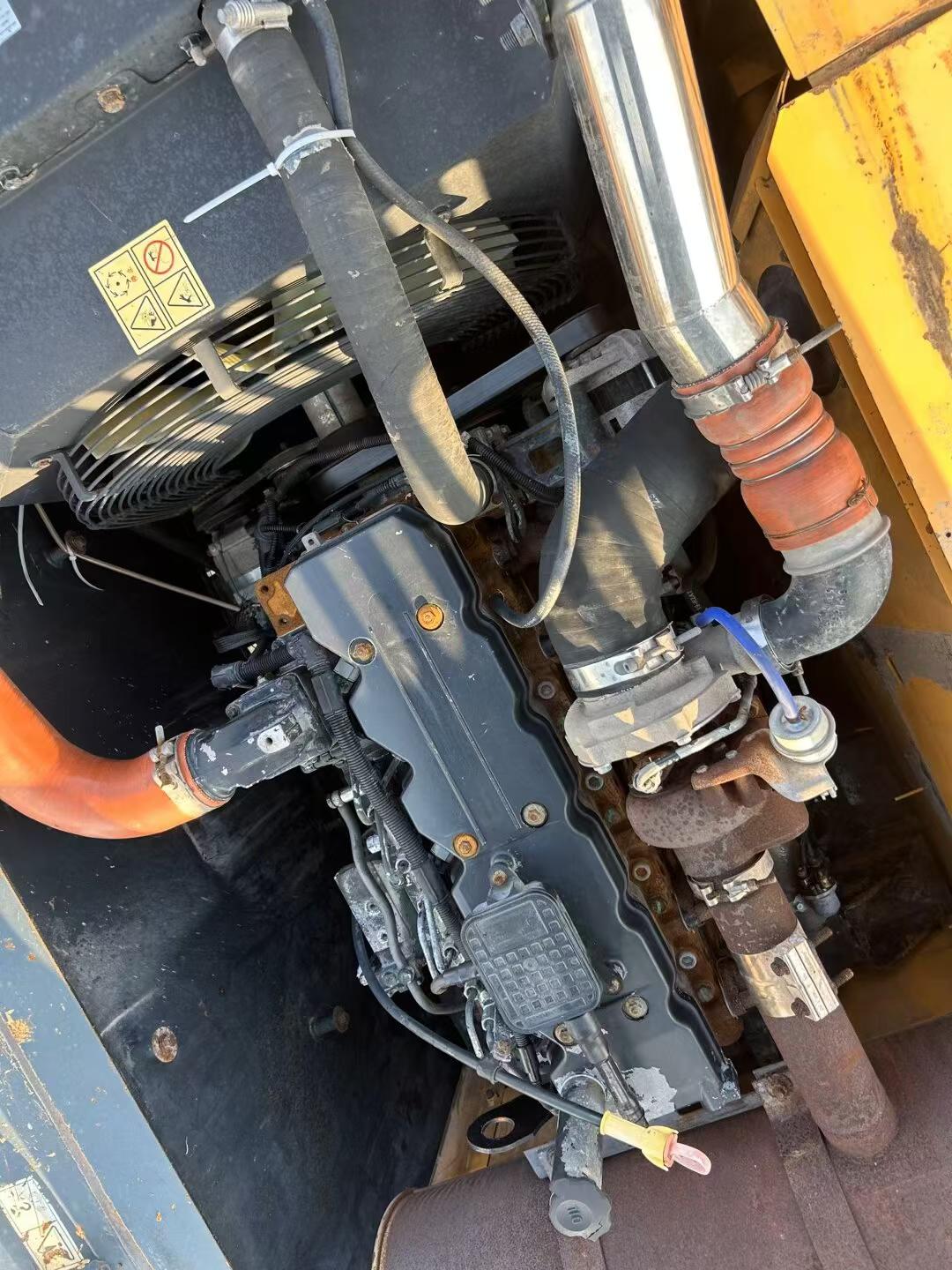

| Engine type | Hyundai D6BT-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 123.3 |
| Rod digging force (kN) | 95.1 |
| Travel speed (km/h) | 3.5/5.2 |
| Main overflow set pressure (Mpa) | 47 |

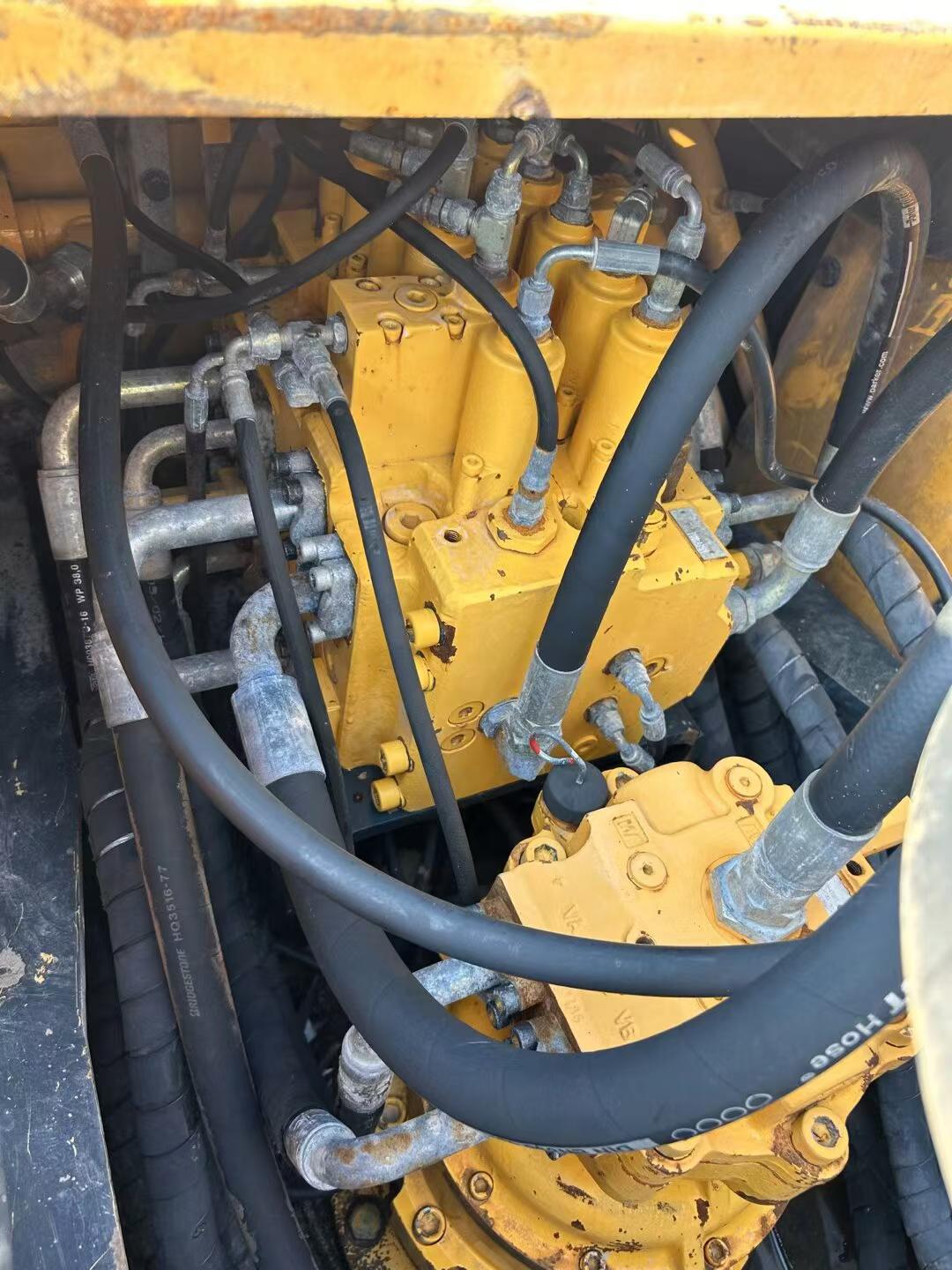

| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 280 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 280 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 32.7 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |

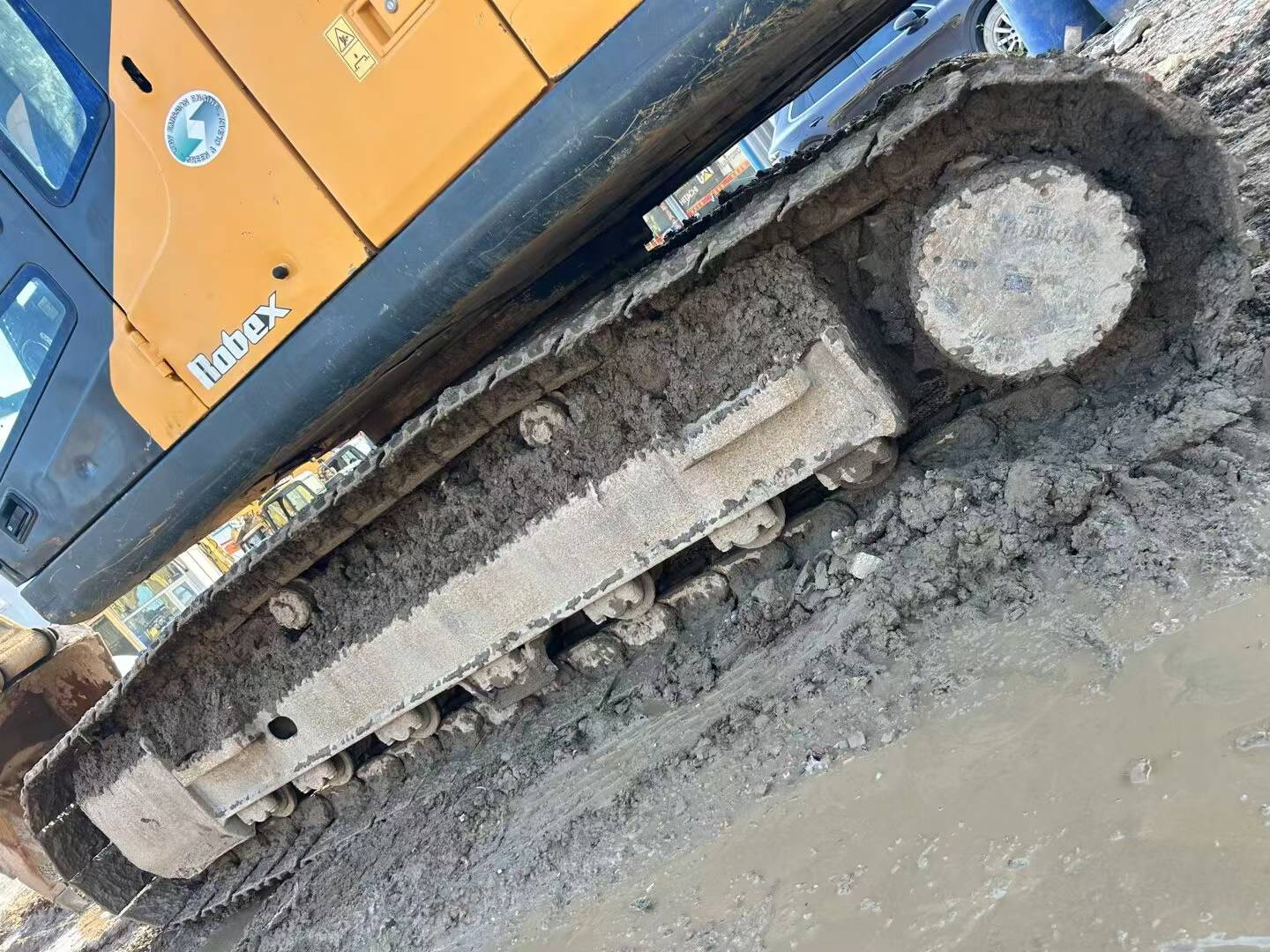

| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
