Product Description

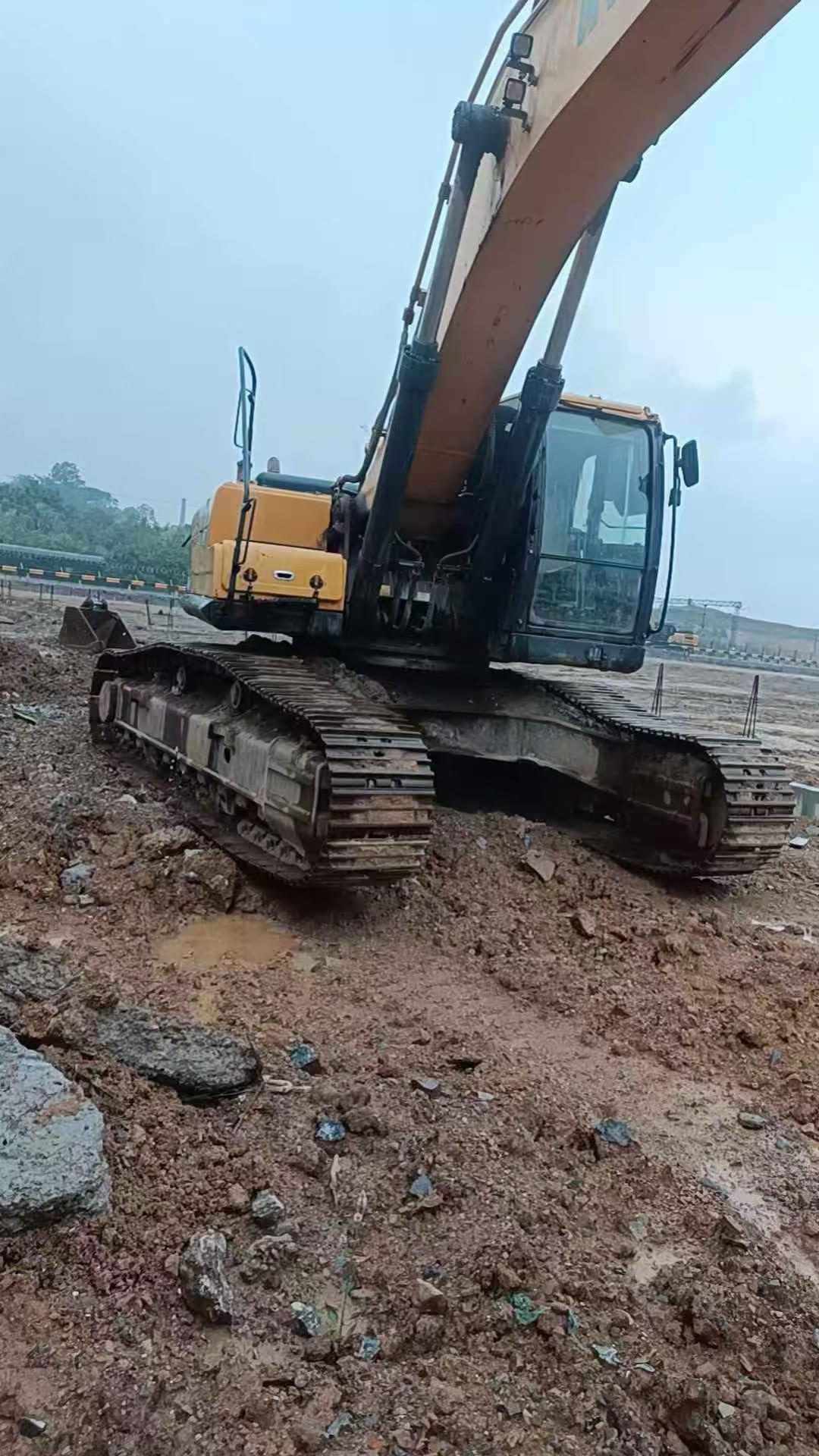

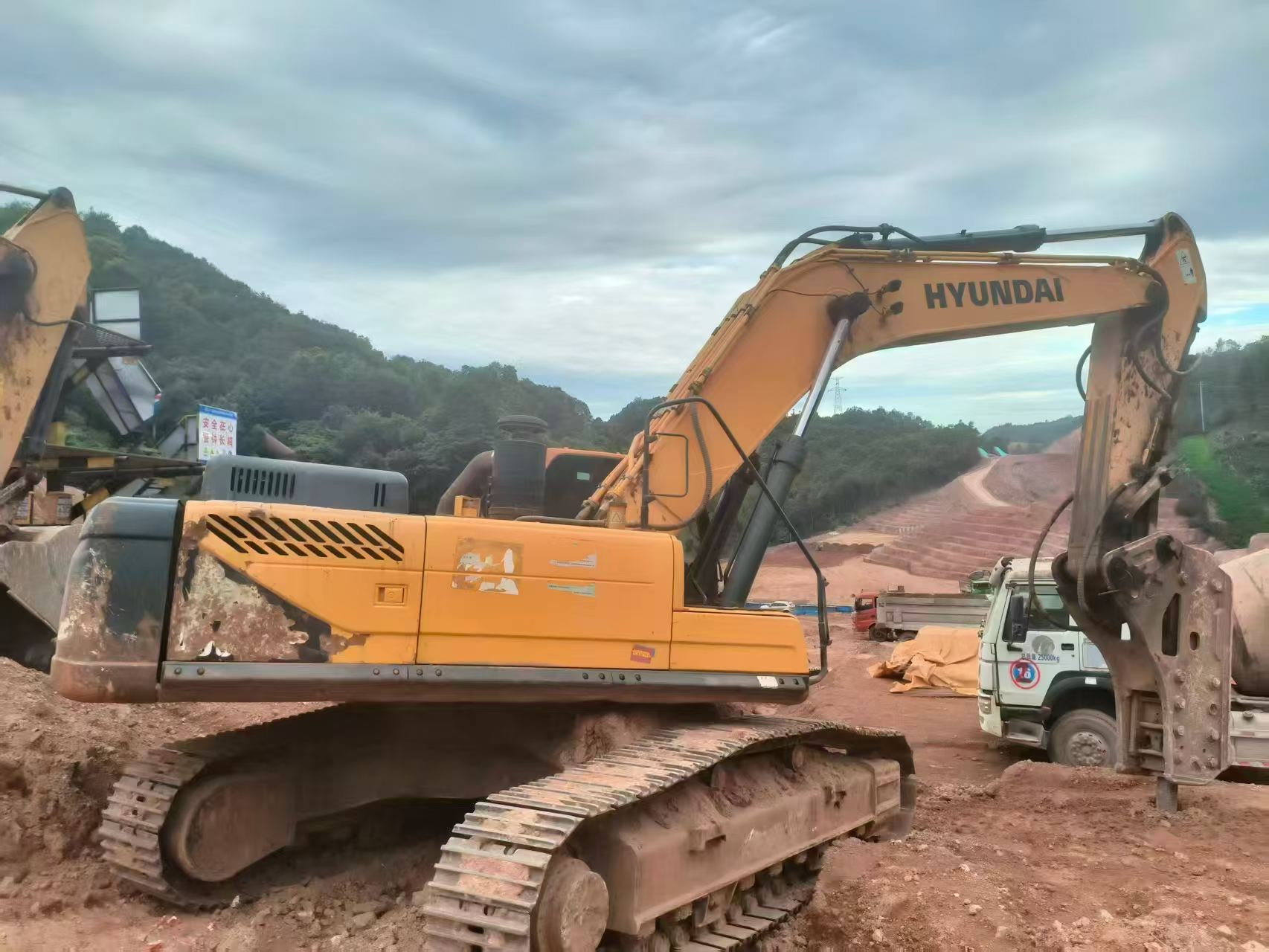

This 2018 Hyundai R385LVS excavator is available from Jiangsu, China. The machine comes equipped with a Daemo DK175 hydraulic breaker attachment, making it suitable for demolition, quarrying, and heavy excavation applications. The R385LVS is a large crawler excavator in Hyundai's heavy-duty range, designed for demanding worksite conditions.
- Year of manufacture: 2018
- Model: Hyundai R385LVS
- Equipped with Daemo DK175 hydraulic breaker
- Current location: Jiangsu Province, China
- Suitable for mining, quarrying, and demolition projects
This used excavator offers proven performance for contractors and operators seeking reliable equipment for rock breaking and excavation work. Contact us for inspection arrangements, pricing, and shipping options to your location.
| Specifications | Value |
|---|---|
| No. | 1145368 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

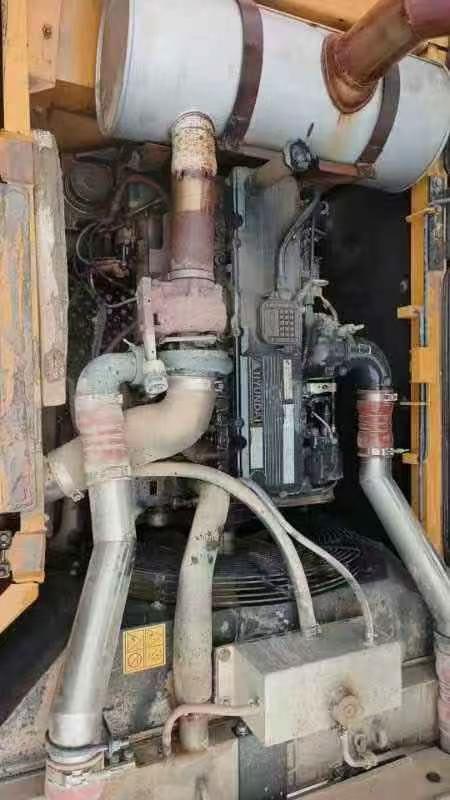

| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |

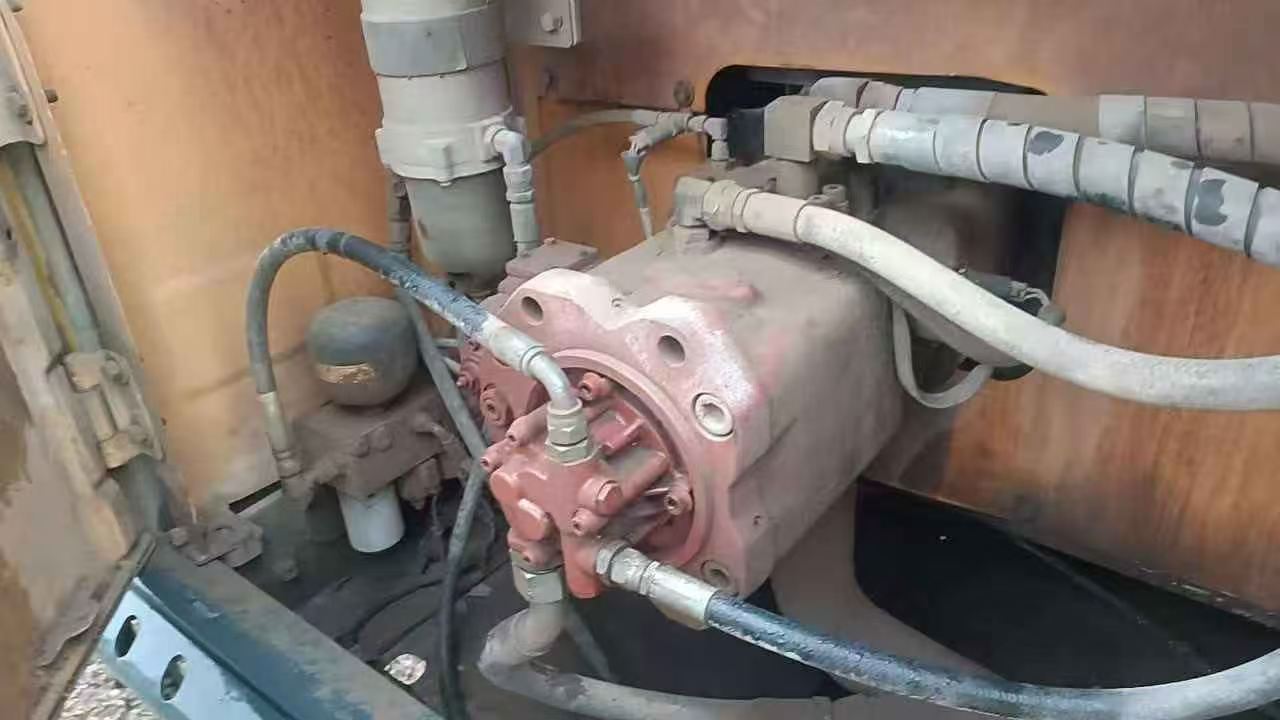

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |

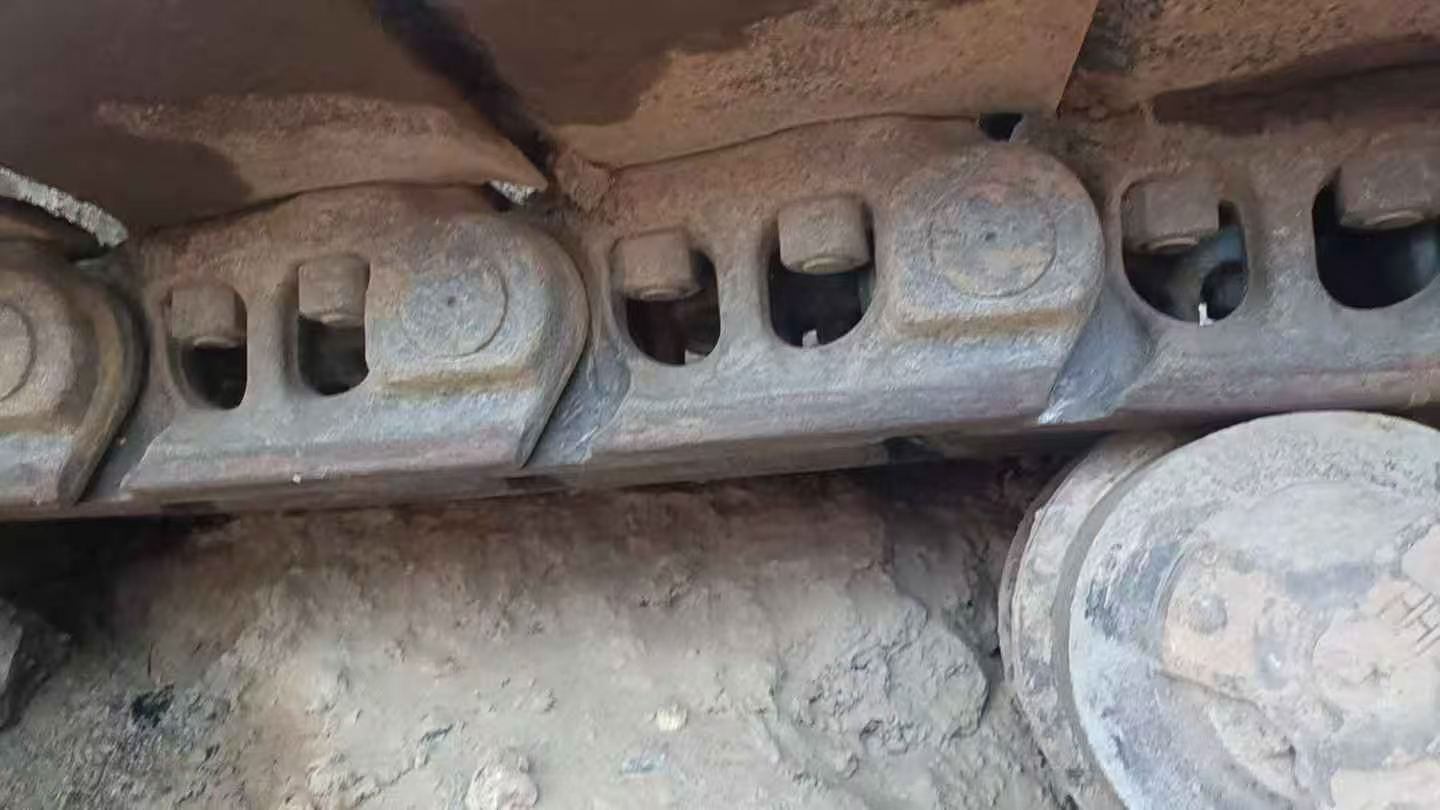

| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
