Product Description

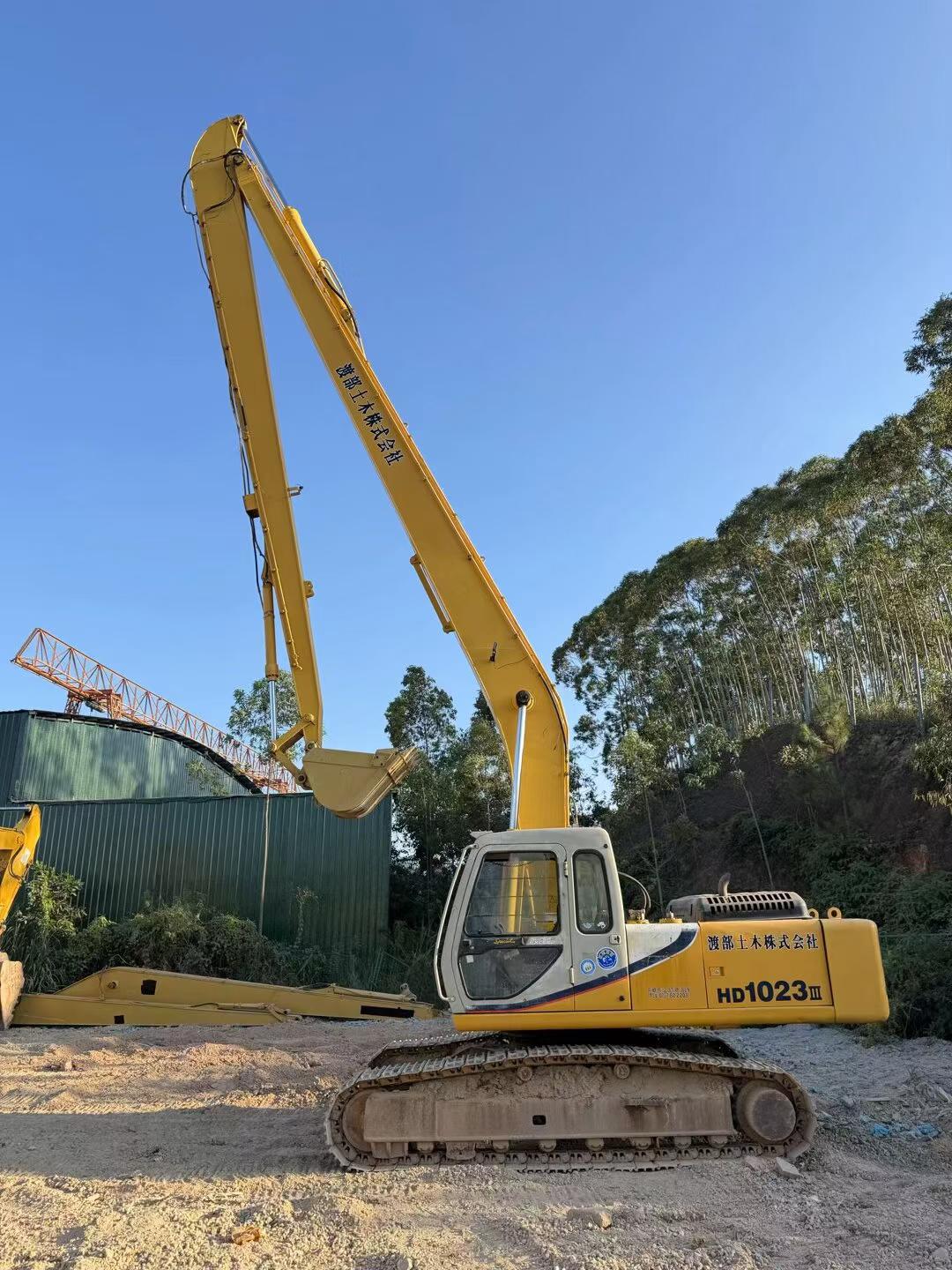

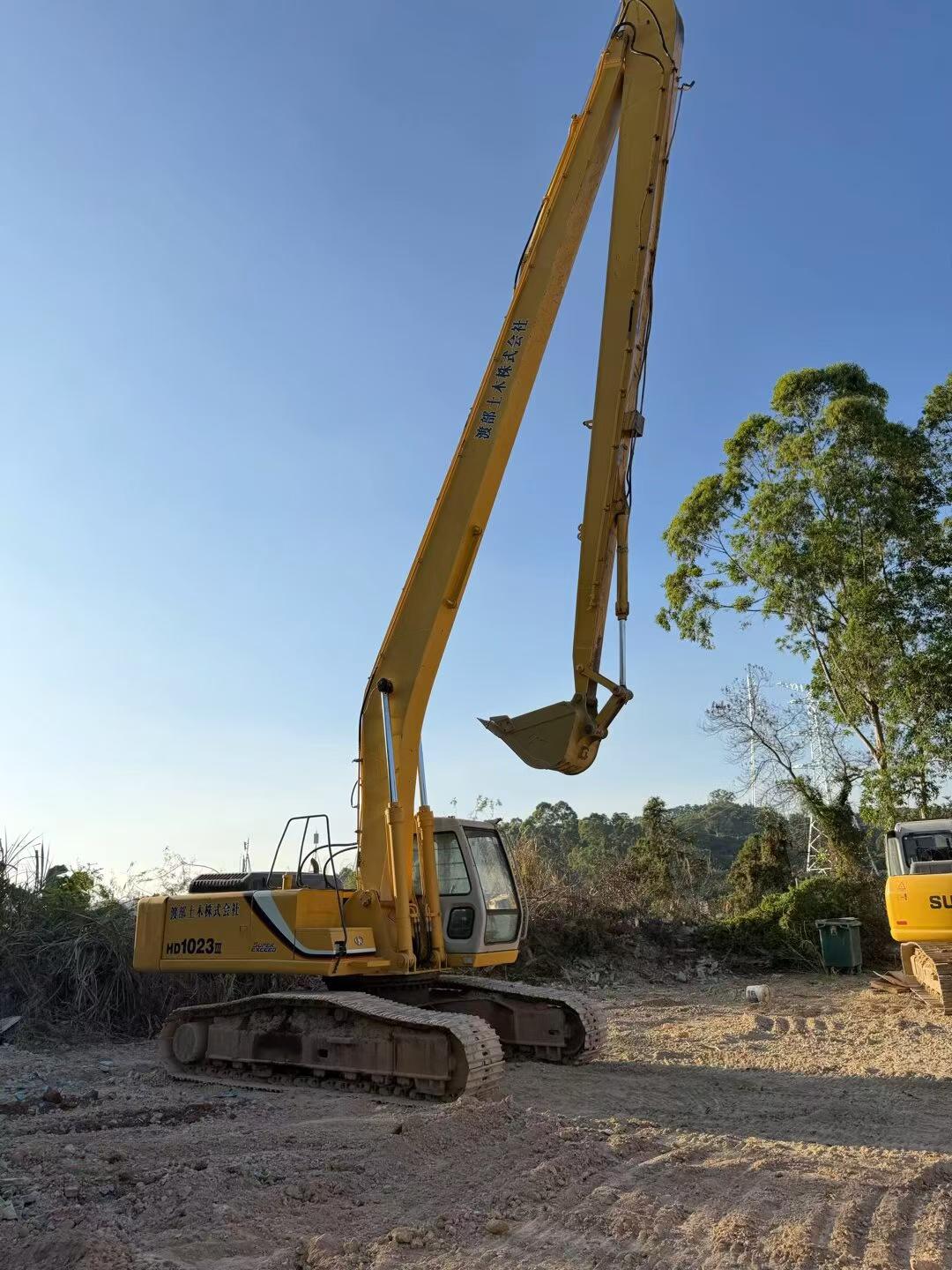

This 2020 Kato HD1023-LC excavator is a premium machine equipped with a 20-meter extended boom, ideal for deep excavation and specialized construction projects. Located in Guangdong, China, this unit delivers exceptional hydraulic performance with smooth, responsive controls that enhance operator efficiency on demanding job sites.
Key features include:

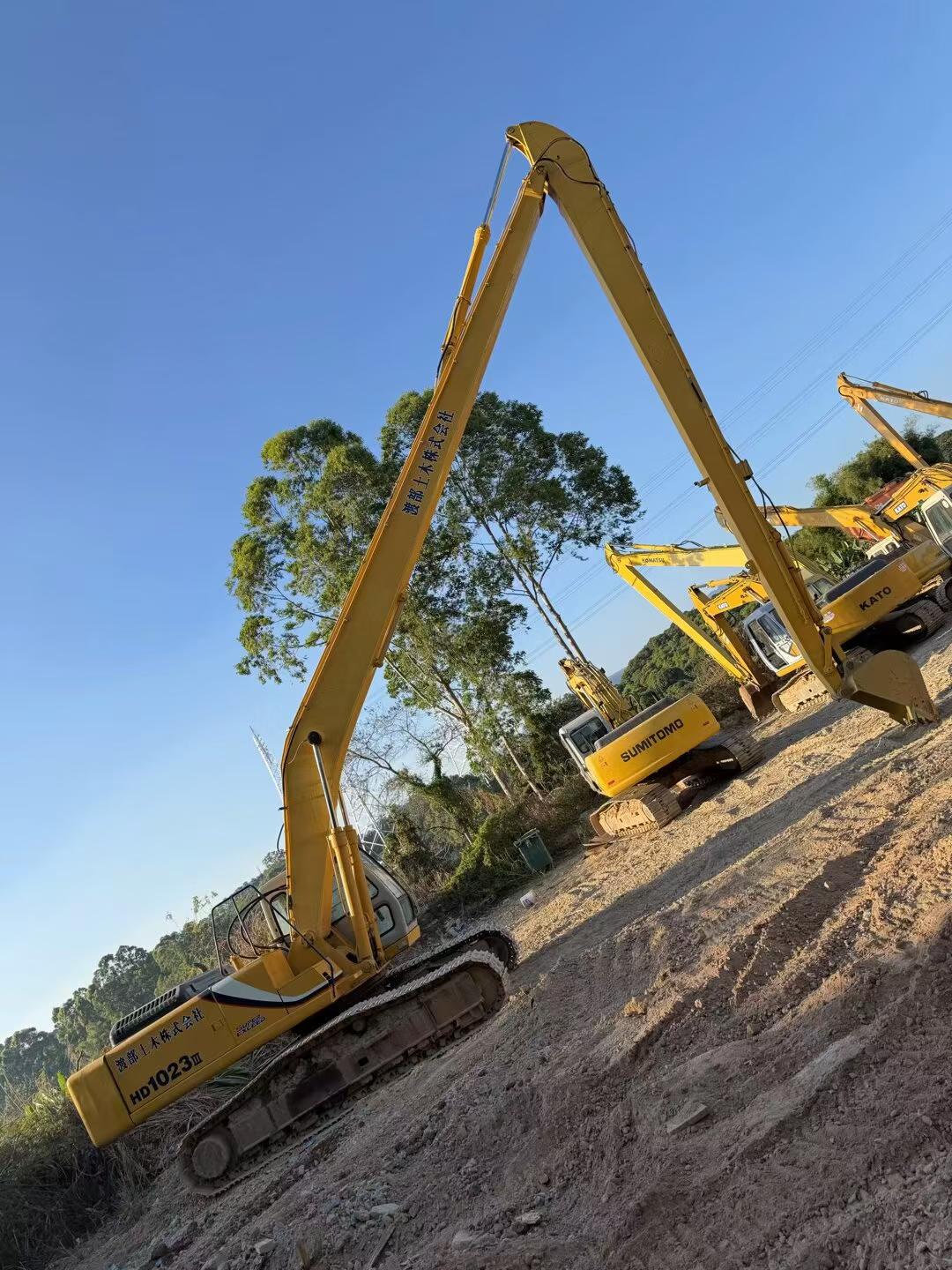

- Extended 20-meter long reach boom configuration
- Excellent hydraulic system performance
- Well-maintained condition, work-site ready
- Reliable Kato engineering and build quality
This crawler excavator has been carefully maintained and is ready for immediate deployment. The HD1023-LC model is known for its durability and versatility in construction, demolition, and material handling applications. Suitable for contractors seeking dependable used equipment with extended reach capabilities.
| Specifications | Value |
|---|---|
| No. | 1170414 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23600 |
| Bucket capacity (m³) | 0.55-1.5 |
| Boom length (mm) | 5870 |
| Rod length (mm) | 2960 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

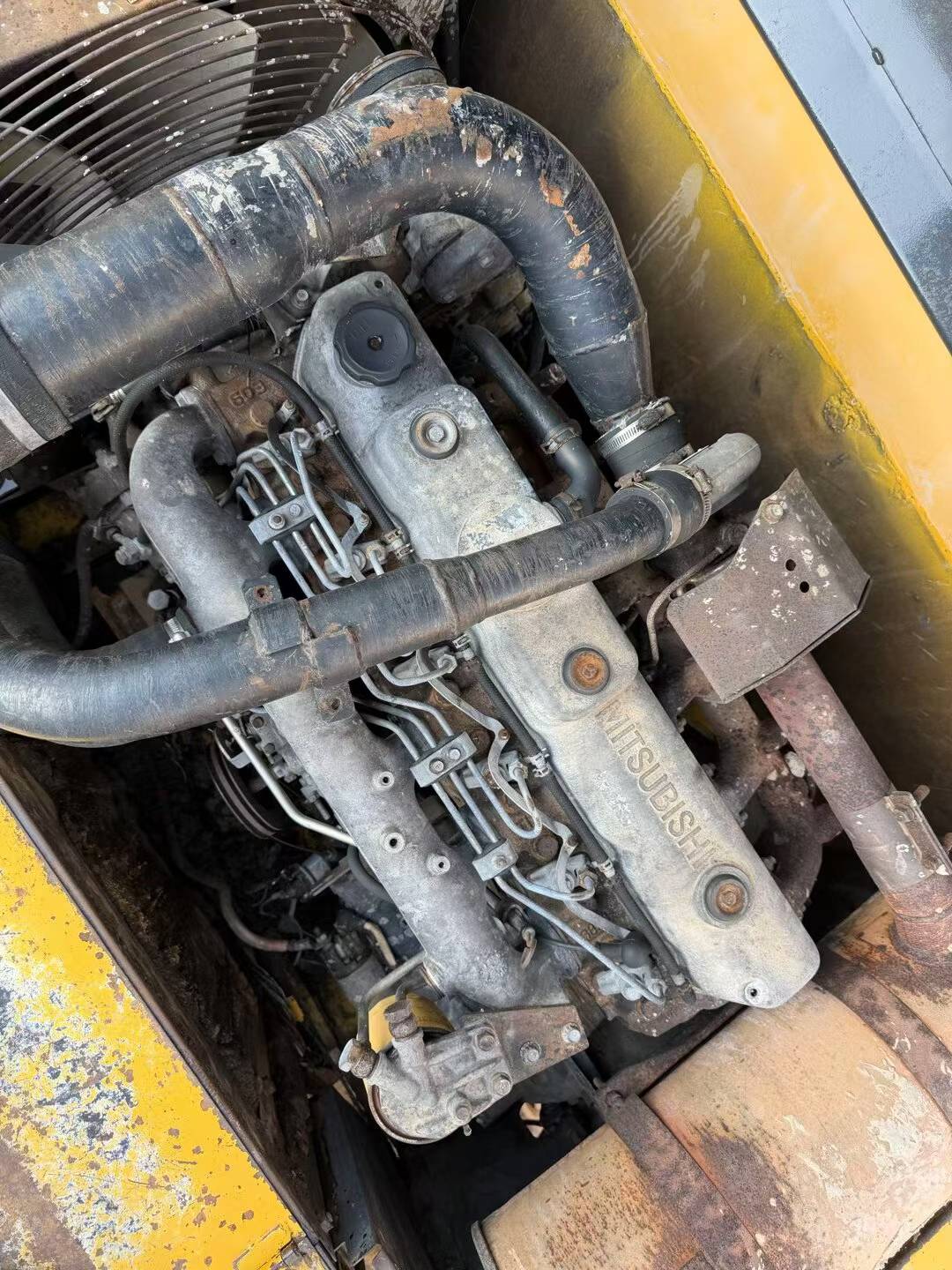

| Engine type | Mitsubishi 6D16-TE1 |
| Rated power (kw/rpm) | 125/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 47.1 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 156.9 (Standard mode) /174.6 (Extra mode) |
| Rod digging force (kN) | 112.8 (Standard mode) /125.5 (Extra mode) |
| Travel speed (km/h) | 2.7/3.9/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 249 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 25.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10080 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3120 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 3100 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10170 |
| Maximum effective digging depth (mm) | 6850 |
