Product Description

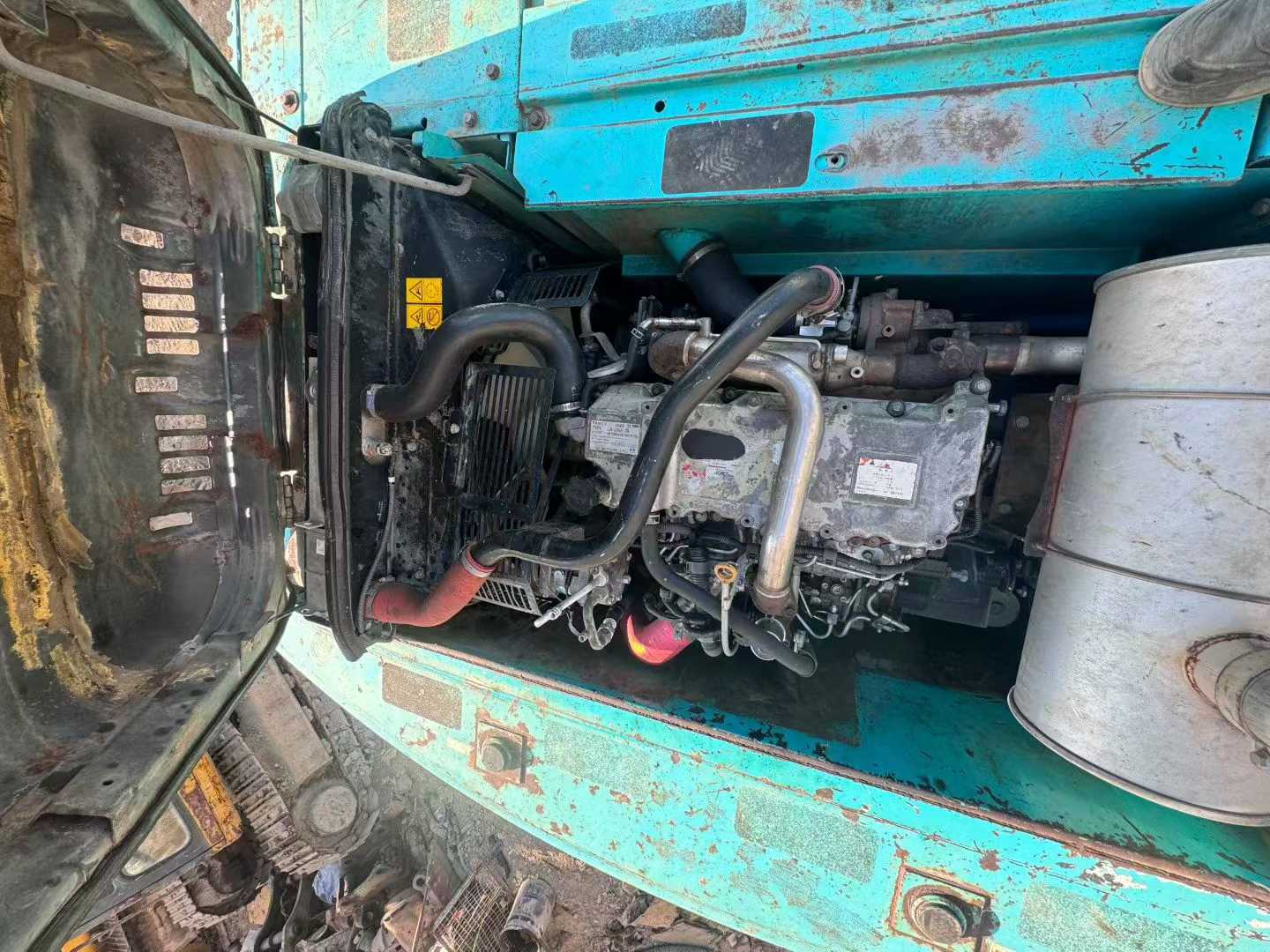

Built for precision and daily productivity, this 2016 Kobelco SK200 delivers reliable performance across demanding job sites. Operating at 20 tons with a Mitsubishi 6D34-TLU2D engine producing 110 kW at 2000 rpm, this excavator combines power with refined control. Water-cooled turbocharged technology with built-in intercooling ensures consistent output during extended shifts.

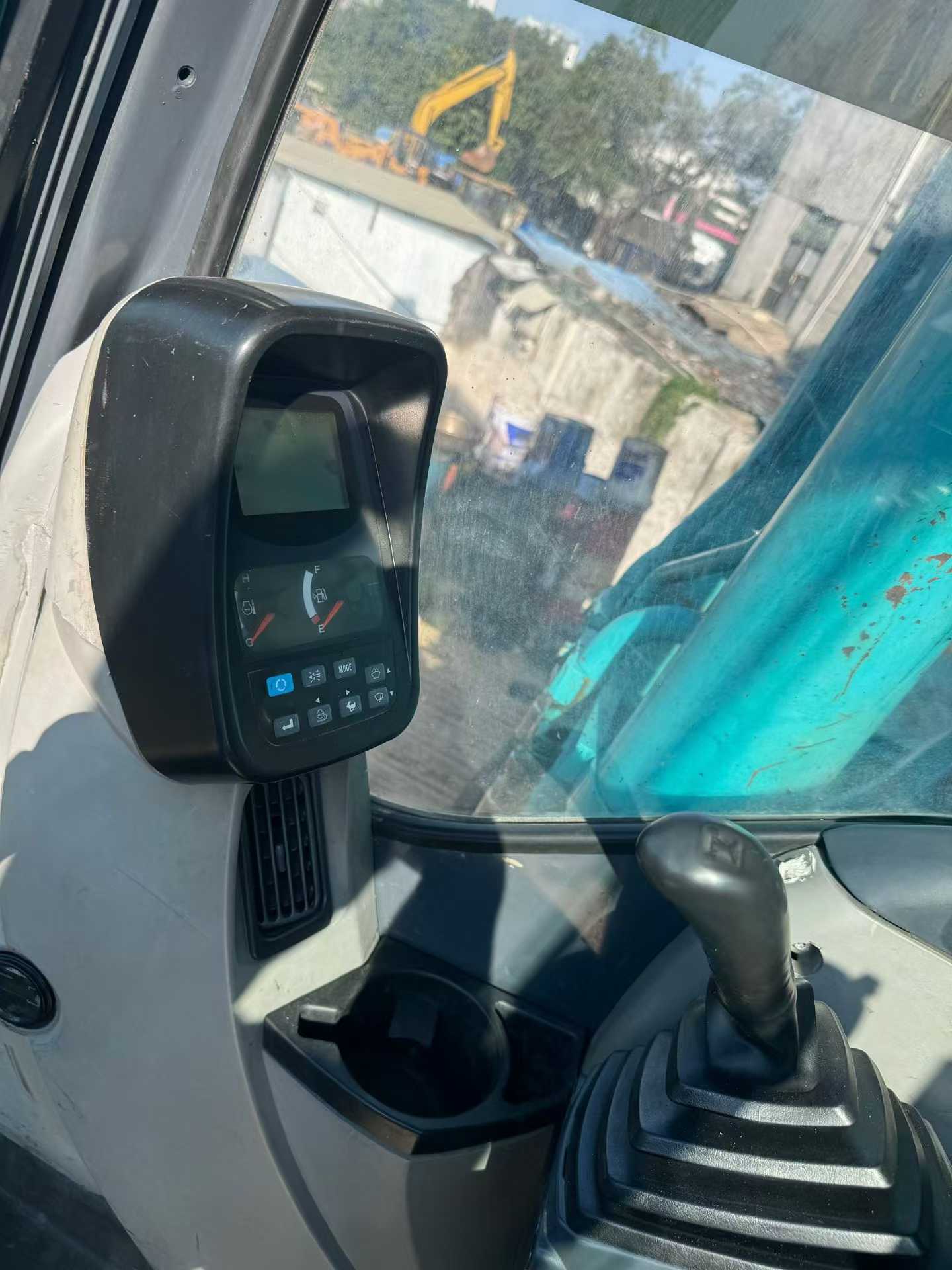

Operators benefit from superior visibility and intuitive handling throughout the work cycle. Dual-speed travel capability (4.0/6.0 km/h) enables efficient repositioning, while the 11 rpm rotation speed supports smooth, controlled movements. Cabin design prioritizes sightlines to the bucket and surrounding area, reducing operator fatigue during long hours.
- Bucket digging force: 143 kN (157 kN supercharged)
- 0.8 m³ backhoe bucket capacity

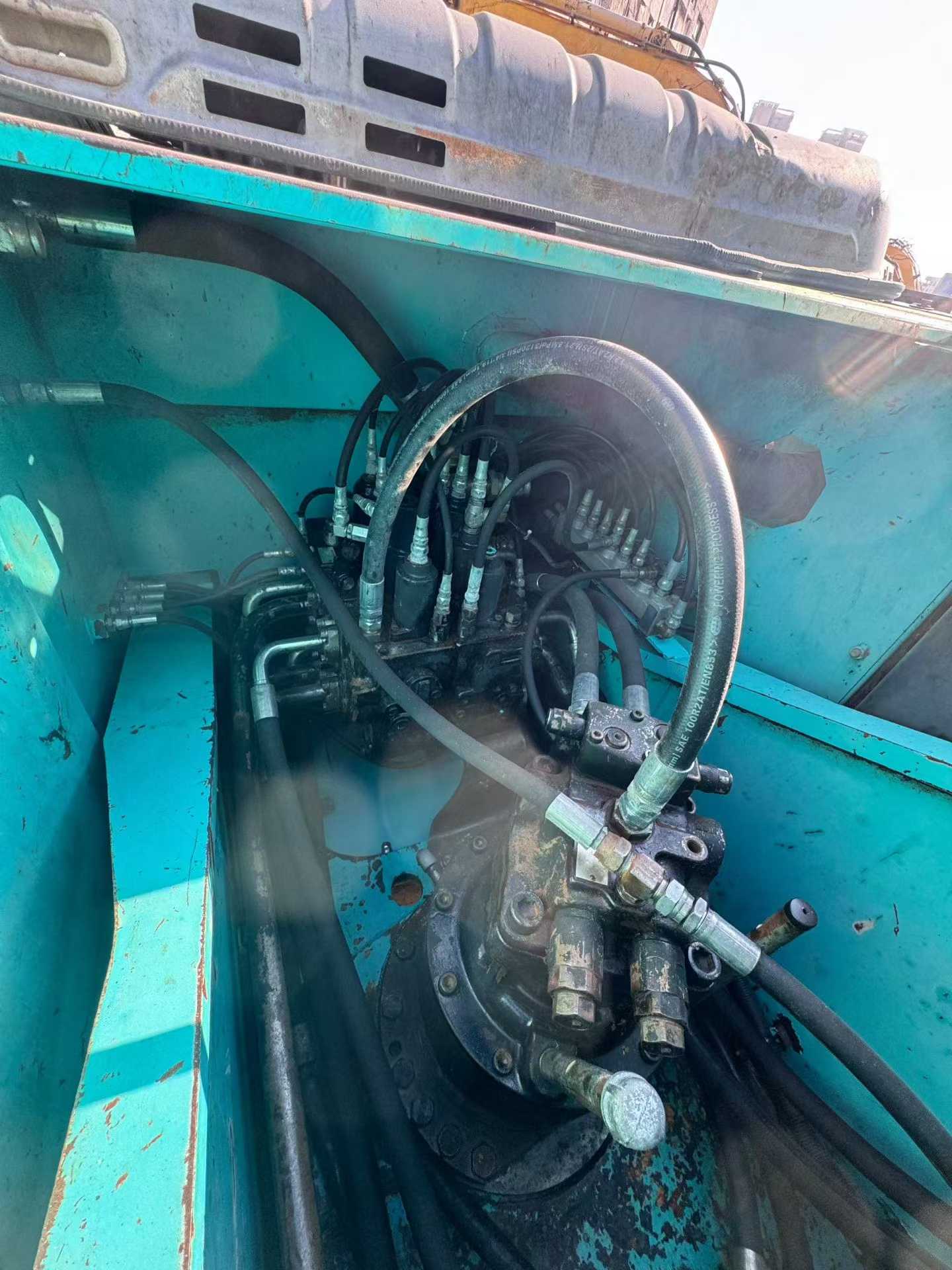

- Double variable displacement axial piston pump system
- 70% climbing ability for challenging terrain
- 340L fuel tank for extended operation
- Currently located in Foshan, Guangdong
Stability remains consistent with optimized ground pressure (45/35 kPa) and choice of 600 mm or 800 mm track plates. Ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1016980 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
