2011 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

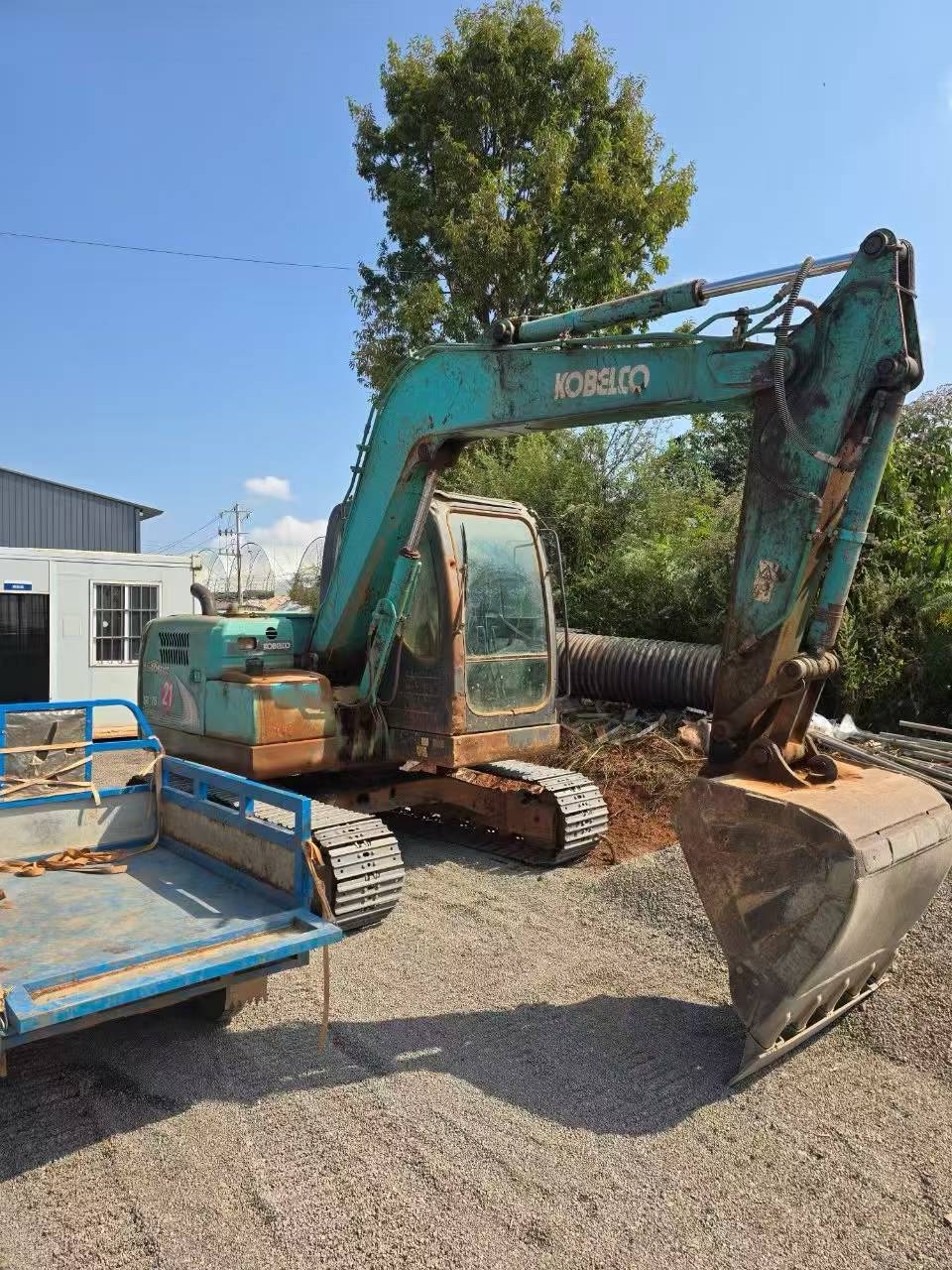

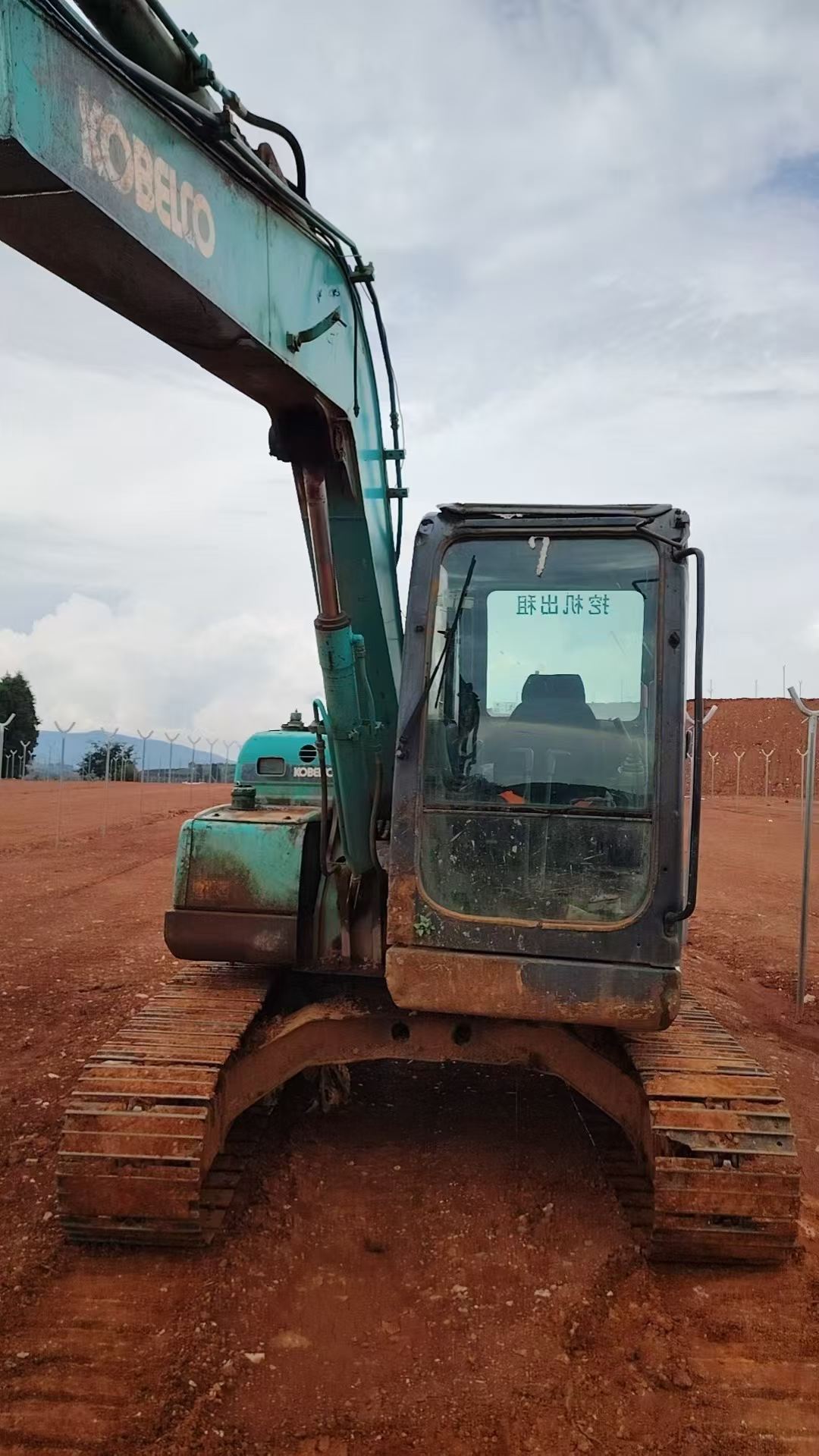

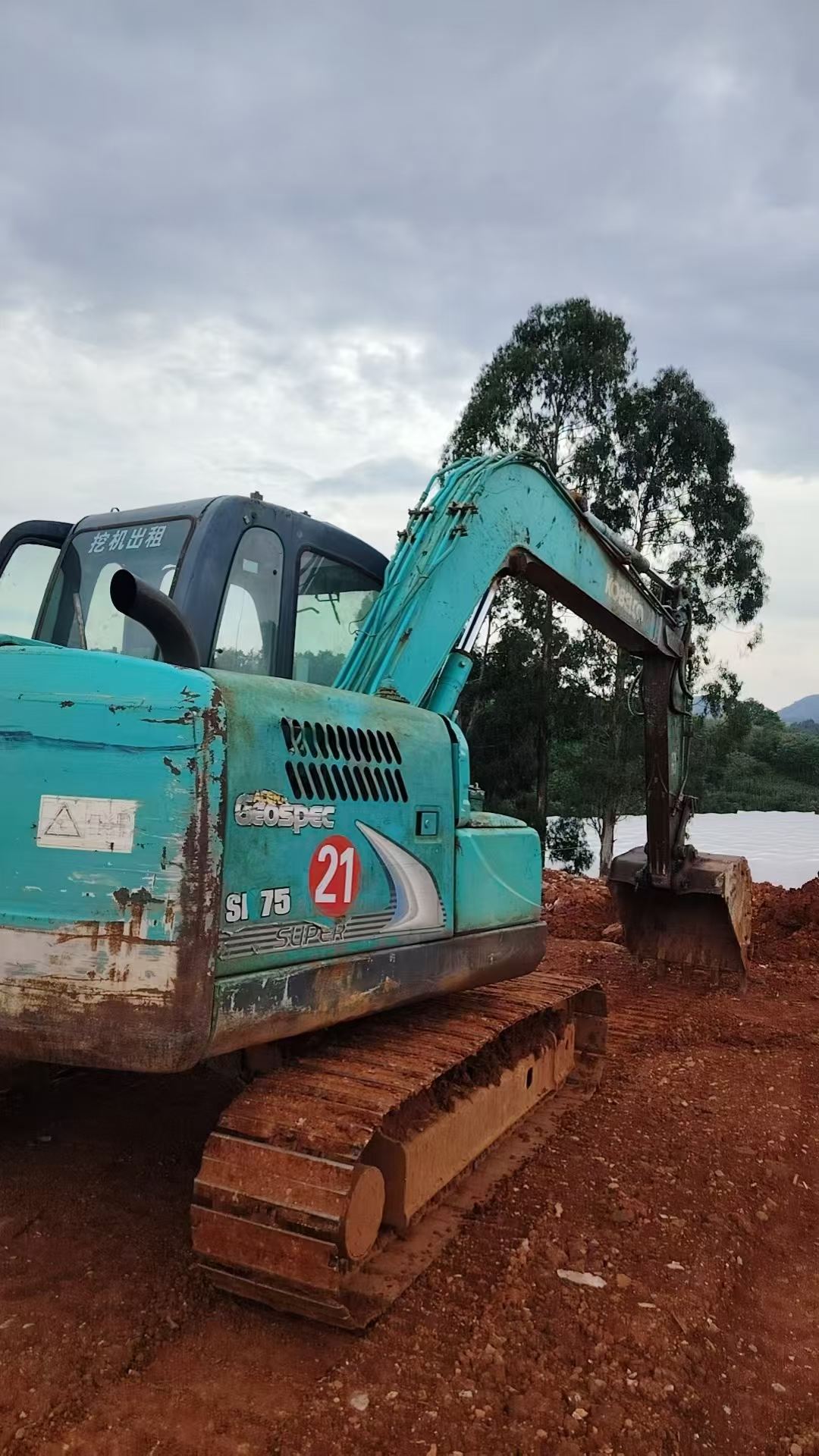

This 2011 Kobelco SK75 midi excavator is available from Yunnan, China. With over 40,000 operating hours, this machine has proven itself as a reliable worksite performer. The SK75 represents Kobelco's commitment to fuel efficiency and operator comfort in the 7-ton class, making it suitable for urban construction, utility work, and site development projects.

Key features of the Kobelco SK75 include:

  • Compact dimensions for confined job sites

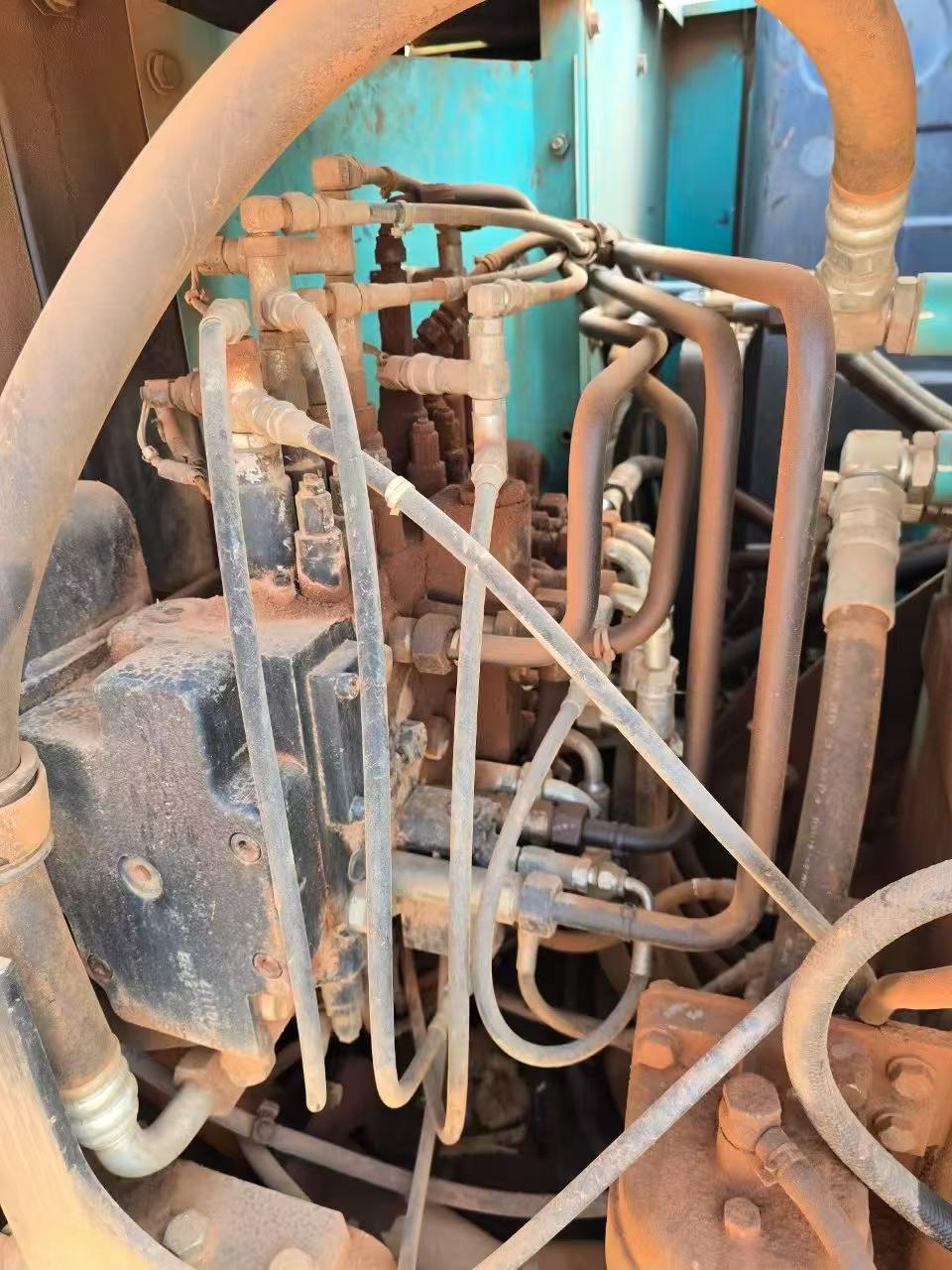

  • Proven hydraulic system for consistent performance
  • Kobelco's fuel-efficient engine technology

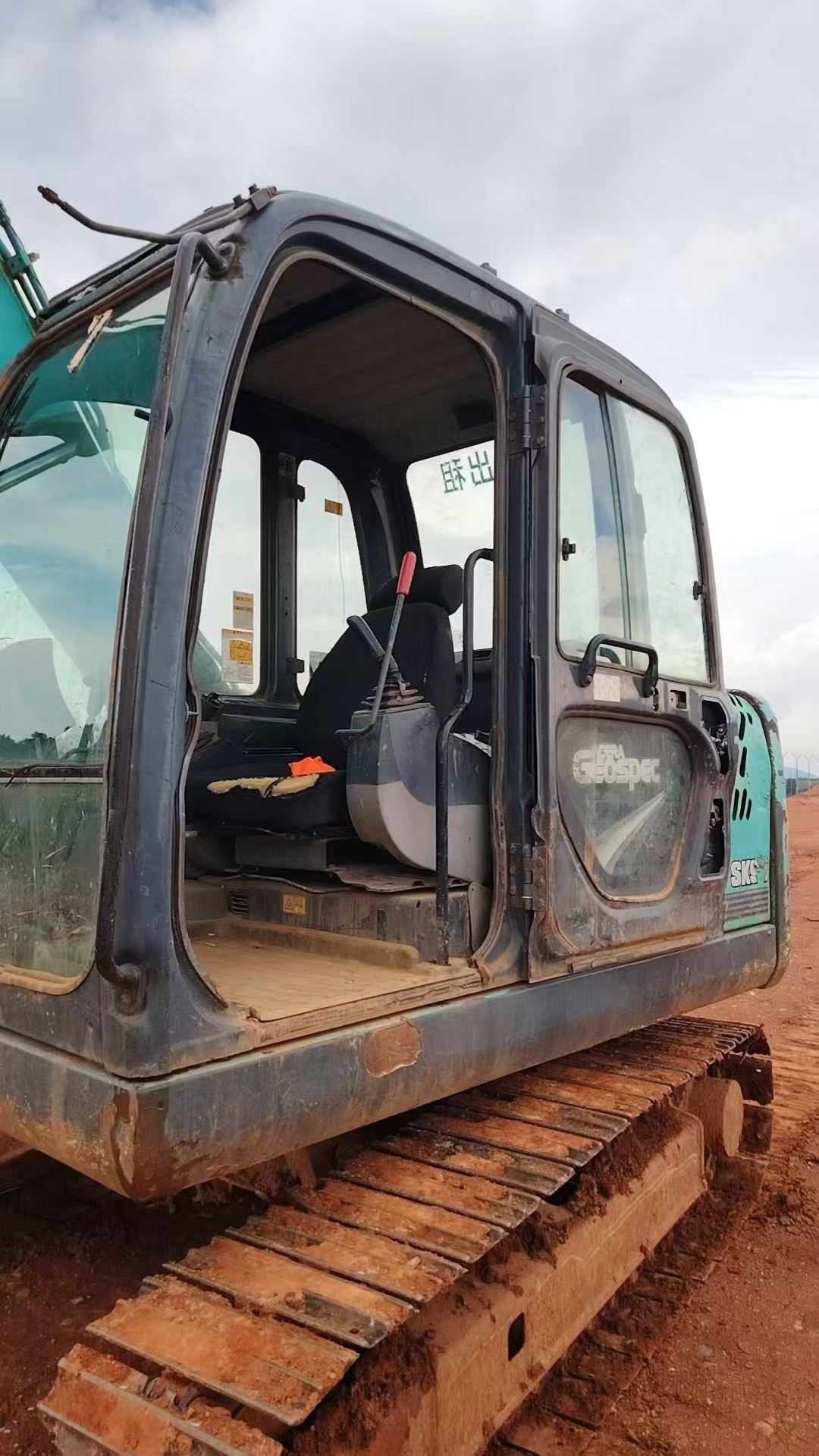

  • Spacious operator cabin with good visibility
  • Versatile attachment compatibility

This unit has accumulated significant operational experience in construction environments. Inspection is recommended to verify current mechanical condition. Suitable for buyers seeking an economical midi excavator for general earthmoving and excavation applications.

SpecificationsValue
No.1162573
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

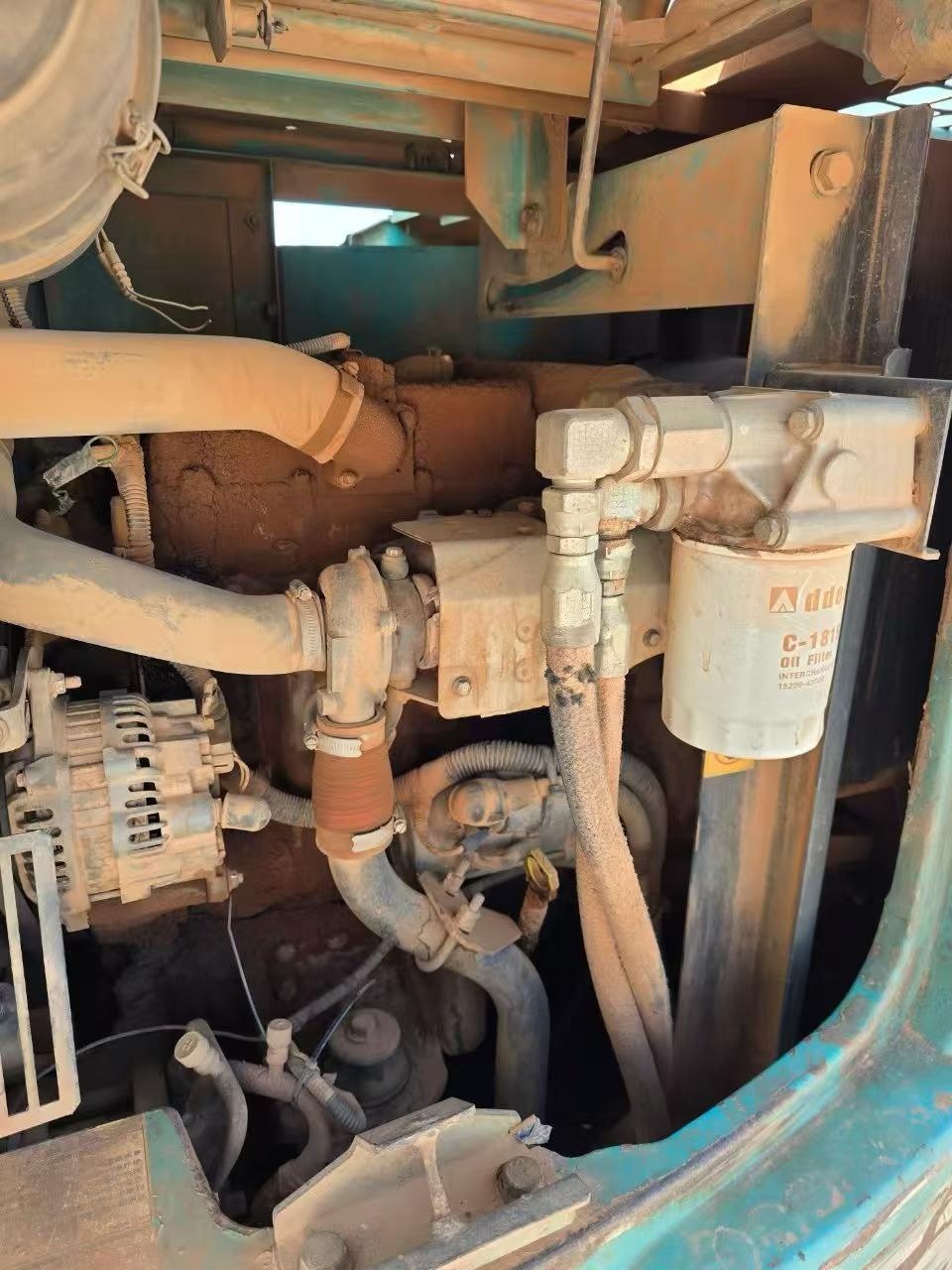

Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1162573

Brand Name:

Kobelco

Model Number:

SK75

Year:

2011

Location:

Yunnan China

Pub Date:
