Product Description

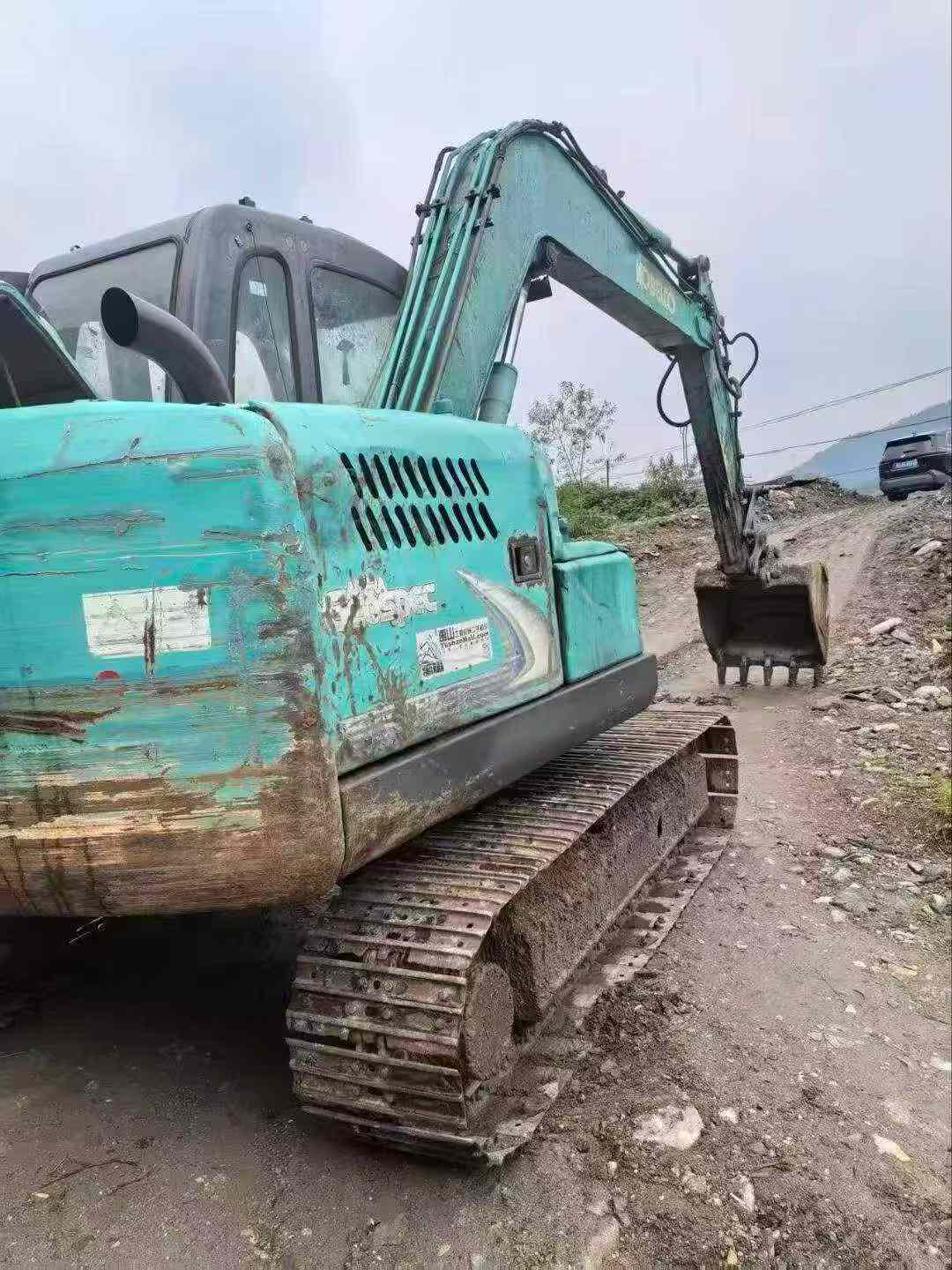

This 2013 Kobelco SK75 midi excavator is currently located in Sichuan, China and available for export. The SK75 is recognized in the construction and earthmoving sectors for its compact footprint combined with reliable hydraulic performance, making it suitable for utility work, site preparation, and general excavation projects.
Key features of the Kobelco SK75 include:
- Operating weight approximately 7.5 tonnes
- Compact design for urban and confined jobsites
- Fuel-efficient engine configuration
- Durable undercarriage and track system
- Proven reliability in Asian operating conditions
With over a decade of field use, this machine represents an economical option for contractors seeking dependable midi-class excavation capacity. Inspection and technical evaluation are recommended prior to purchase. Contact us for full equipment specifications, condition reports, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1161406 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

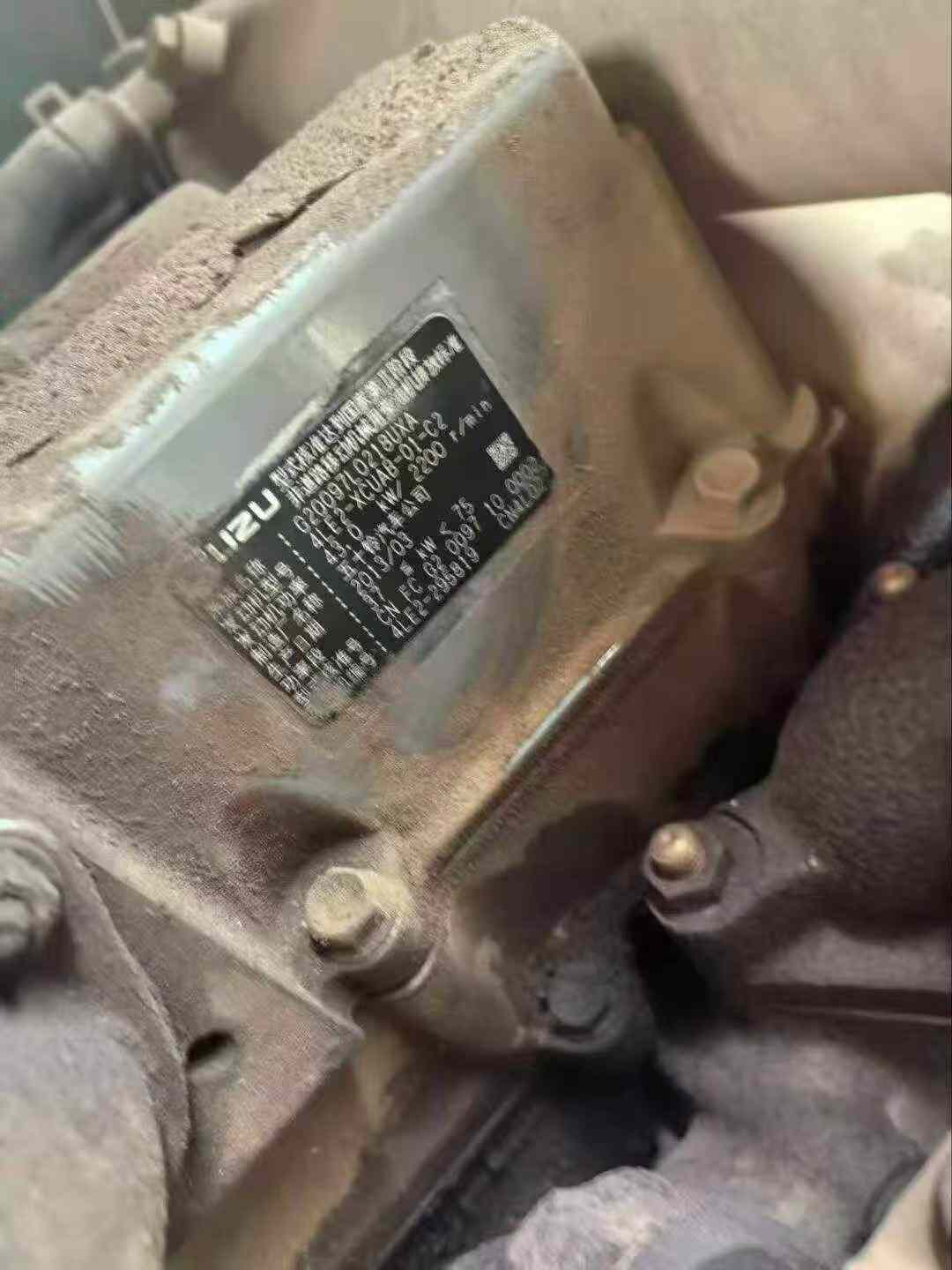

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

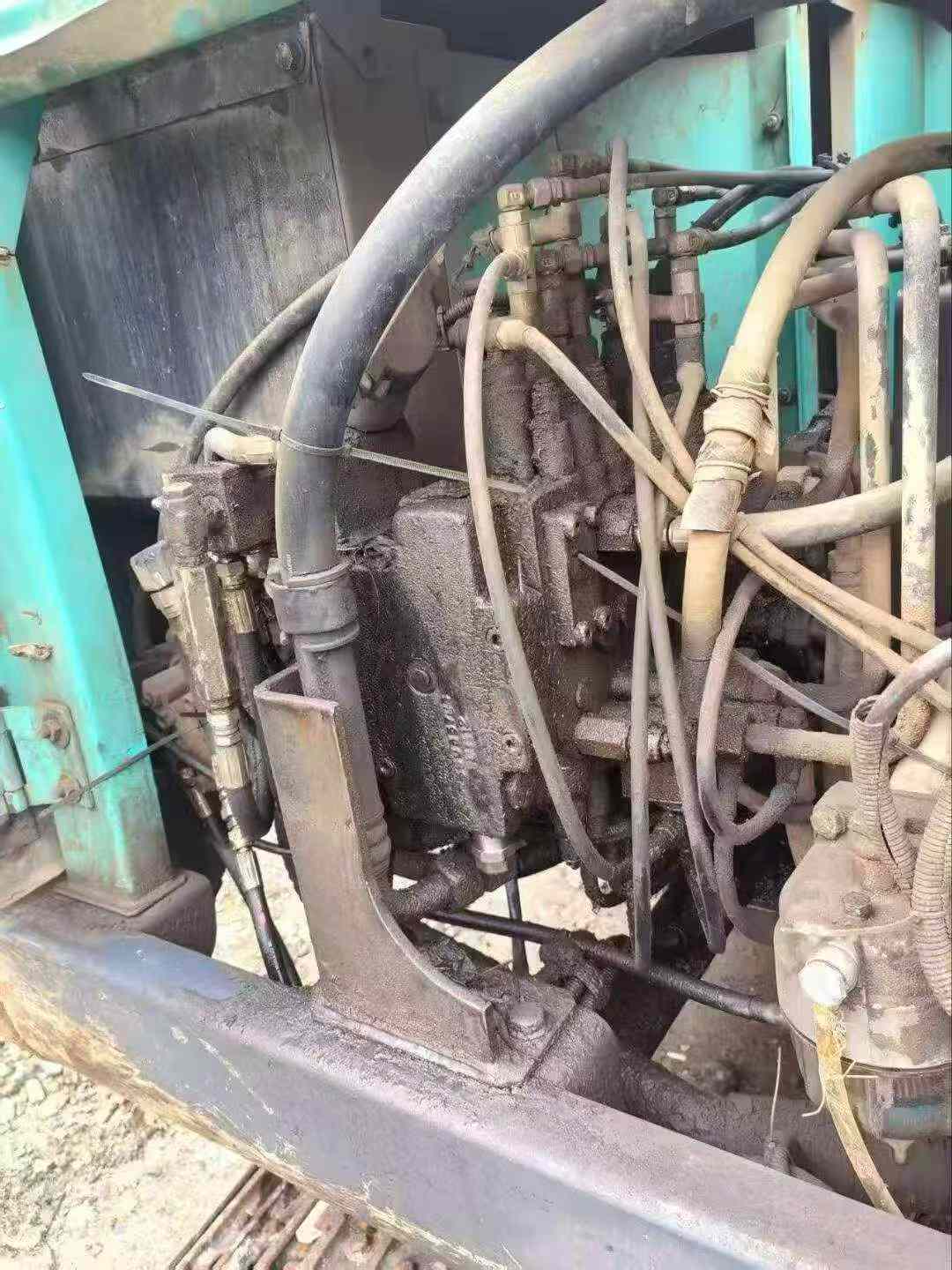

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
