Product Description

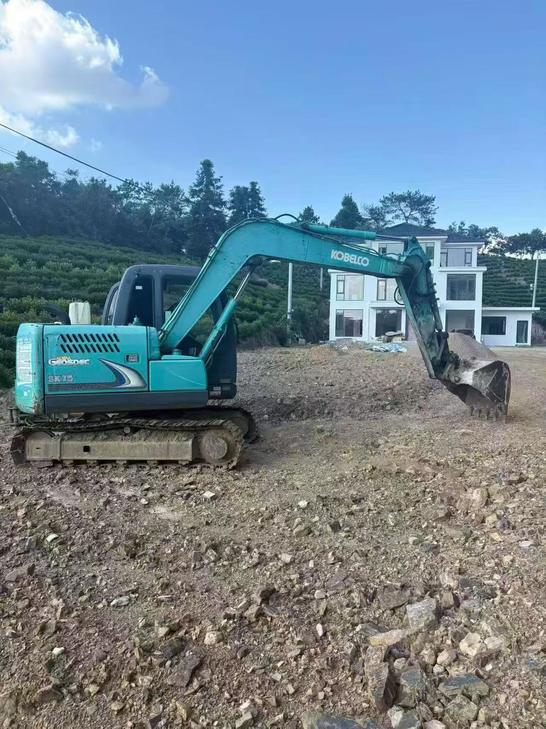

This 2017 Kobelco SK75 mini excavator offers reliable performance for contractors and site development projects. Manufactured in late 2017, this 7.5-ton class machine combines Kobelco's proven hydraulic efficiency with compact dimensions suited for confined jobsites and utility work.
Key specifications include:
- Operating weight: Approximately 7,500 kg
- Engine: Diesel-powered with reduced emissions
- Hydraulic system: Kobelco's advanced flow control
- Tracks: Rubber or steel available depending on configuration
- Current location: Hunan Province, China
The SK75 series is recognized for fuel efficiency and operator comfort, making it suitable for earthmoving, trenching, and landscaping applications. This unit is available for inspection in Hunan. Contact us for detailed condition reports, operational hours, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1173772 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
