Product Description

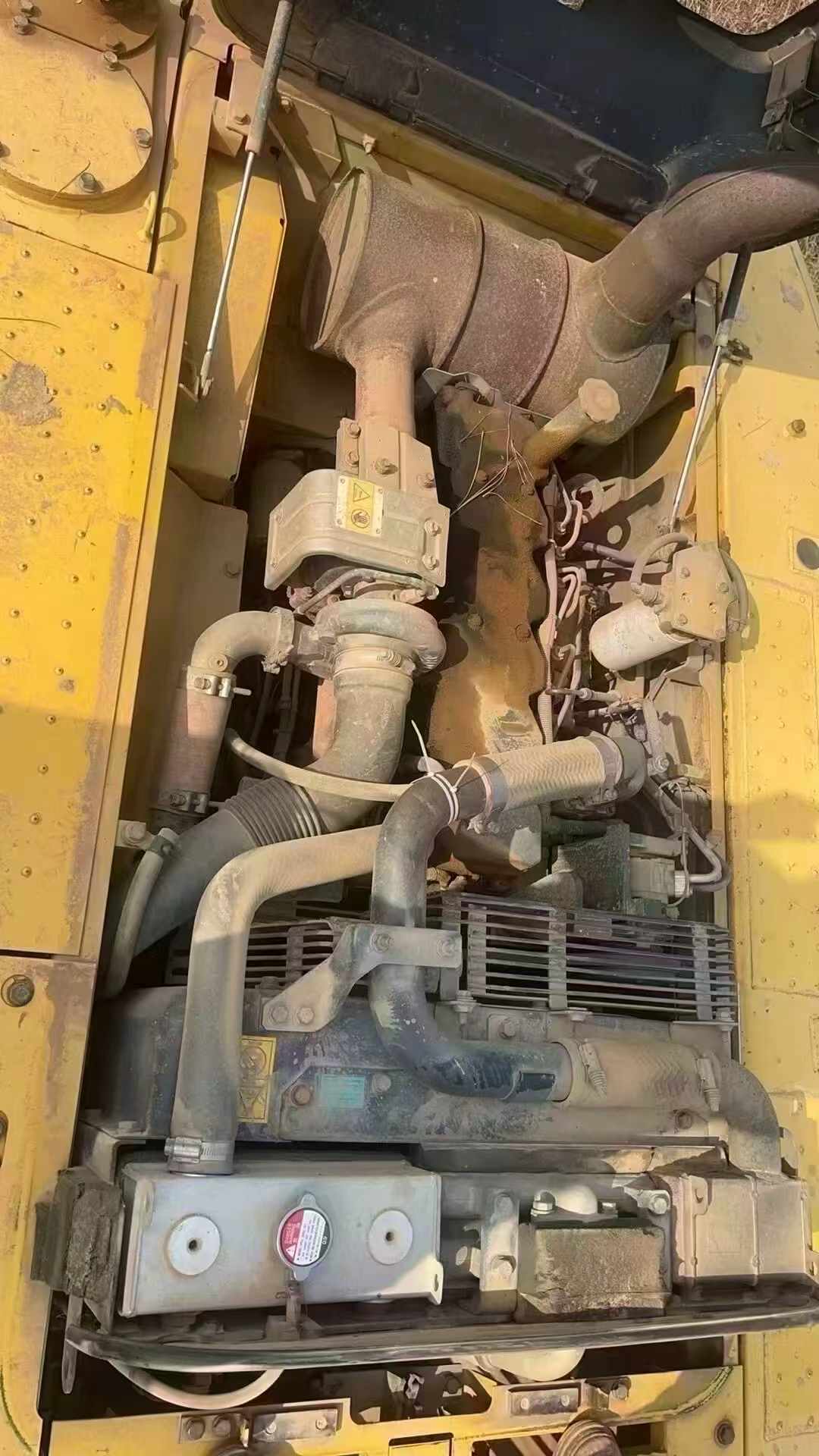

Proven through over a decade of field operation, this 2009 Komatsu PC200-8N1 excavator exemplifies Japanese engineering excellence and enduring reliability. Currently located in Huizhou, Guangdong, this 20-ton workhorse demonstrates the legendary durability that has made Komatsu a global industry standard. Powered by the robust SAA6D107E-1-A engine delivering 110kW at 2000rpm, this machine combines efficient 6-cylinder performance with a proven track record of consistent output in demanding applications.
- Operating Weight: 19,500 kg with 0.8m³ bucket capacity
- Maximum Digging Reach: 9,875mm with 6,620mm depth capability
- Powerful Digging Forces: 149kN bucket force, 108kN arm force
- Efficient Hydraulics: 34.8 MPa working circuit with 232L system capacity
- Durable Undercarriage: 600mm track plates, 2,200mm gauge for stability
- Reliable Cooling: Water-cooled 6.69L displacement engine
Built to withstand the rigors of heavy construction, this PC200-8N1 represents a solid investment in tested machinery that continues to deliver professional-grade performance. Ready for immediate deployment in excavation, earthmoving, and material handling operations worldwide.
| Specifications | Value |
|---|---|
| No. | 1014187 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
