Product Description

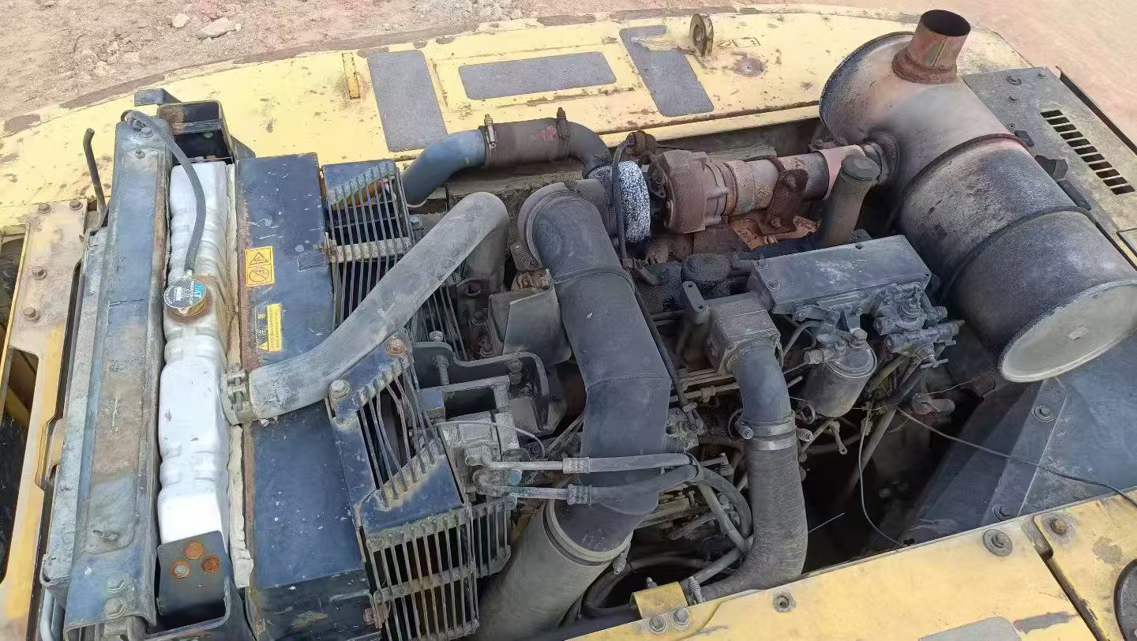

Engineered with Komatsu's proven SAA6D114E powerplant, this 36-ton excavator delivers 180 kW at 1900 rpm through an 8.27L six-cylinder, water-cooled, turbocharged engine. Hydraulic performance centers on a robust 535 L/min main pump feeding axial plunger motors for rotation and dual-motor travel systems, providing precise control across boom, arm, and bucket functions with circuit pressures optimized at 37.3 MPa (travel) and 27.9 MPa (swing).
Built for heavy-duty excavation, the PC360-7 combines a 6470mm boom with a 3185mm arm to achieve an impressive 11100mm maximum digging reach and 7380mm digging depth. Bucket digging force reaches 227 kN, while rod digging force delivers 171 kN—sufficient for demanding material conditions. The 1.6 m³ bucket capacity balances productivity with the machine's 33,000 kg operating weight.
Key technical specifications include:
- Maximum digging height: 10,210mm with 7,110mm unloading clearance
- Travel speeds: 3.2/4.5/5.5 km/h across variable terrain
- Climbing ability: 70% gradient (35°)
- Swing speed: 9.5 rpm for efficient cycle times
- Ground pressure: 67.7 kPa via 600mm triple-grouser tracks
Currently located in Hunan, this join
| Specifications | Value |
|---|---|
| No. | 1036338 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
