Product Description

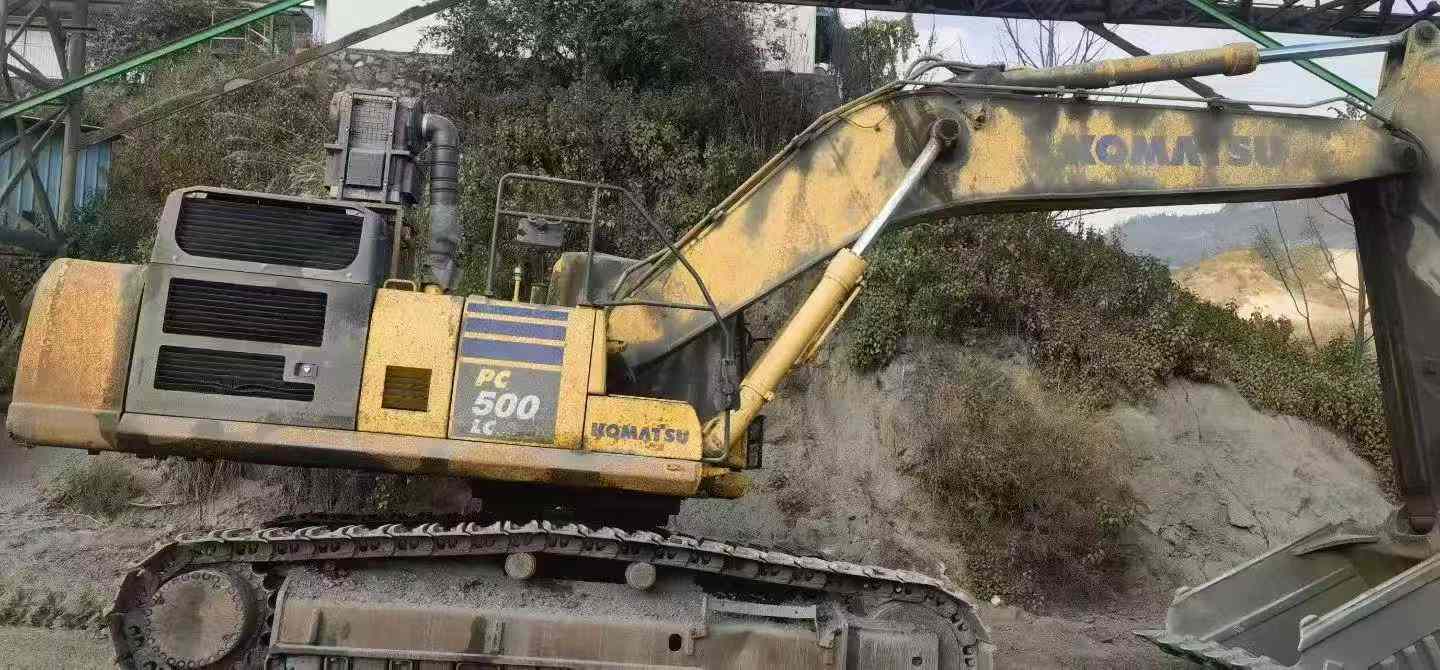

Built for demanding excavation operations, this 2021 Komatsu PC500LC-10M0 represents proven engineering backed by one of the industry's most trusted names. Operating at 50 tons with a robust SAA6D125E-5 engine delivering 269 kW at 1900 rpm, this machine combines substantial digging force (267 kN bucket, 228 kN arm) with the reliability that keeps Komatsu equipment working long after competitors retire.
Currently located in Luzhou, Sichuan, this excavator offers buyers a critical advantage: Komatsu's extensive parts network throughout China ensures minimal downtime and predictable maintenance costs. With a maximum digging reach of 11,985 mm and bucket capacity up to 3.22 m³, productivity remains consistent across heavy-duty applications.
- Working weight: 49,800 kg with water-cooled 11.04L displacement engine
- Advanced hydraulics: 690 L/min main pump flow, variable piston pump system
- Superior resale value: Komatsu equipment maintains market demand due to proven durability
- Parts availability: Comprehensive dealer support reduces operational risk
- Travel speed: 3.0-5.5 km/h with 70% climbing capability
Investing in Komatsu means investing in long-term operational secu
| Specifications | Value |
|---|---|
| No. | 994014 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 49800 |
| Bucket capacity (m³) | 2.5-3.22 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 269/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 87 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 228 |
| Maximum tractive force (kN) | 329 |
| Travel speed (km/h) | 3.0-5.5 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1350 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-170*1570 |
| Fuel Tank (L) | 640 |
| Hydraulic Tank (L) | 279 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 45 |
| Total transport length (mm) | 12260 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3460 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 570 |
| Minimum turning radius of front working device (mm) | 5050 |
| Back end turning radius (mm) | 3765 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 11985 |
| Maximum digging depth (mm) | 7695 |
| Maximum excavation height (mm) | 10885 |
| Maximum unloading height (mm) | 7650 |
| Maximum vertical digging depth (mm) | 6335 |
| Maximum excavation radius of stop surface (mm) | 11760 |
Overview
No.994014
Brand Name：
KomatsuModel Number：
PC500LC-10M0Year：
2021
Location：
Sichuan China
Pub Date：
