Name: Used Excavators 2019 Komatsu PC56-7
Brand: Komatsu
SKU: USED-1035728
Availability: InStock
Rating: 4.2 (87 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

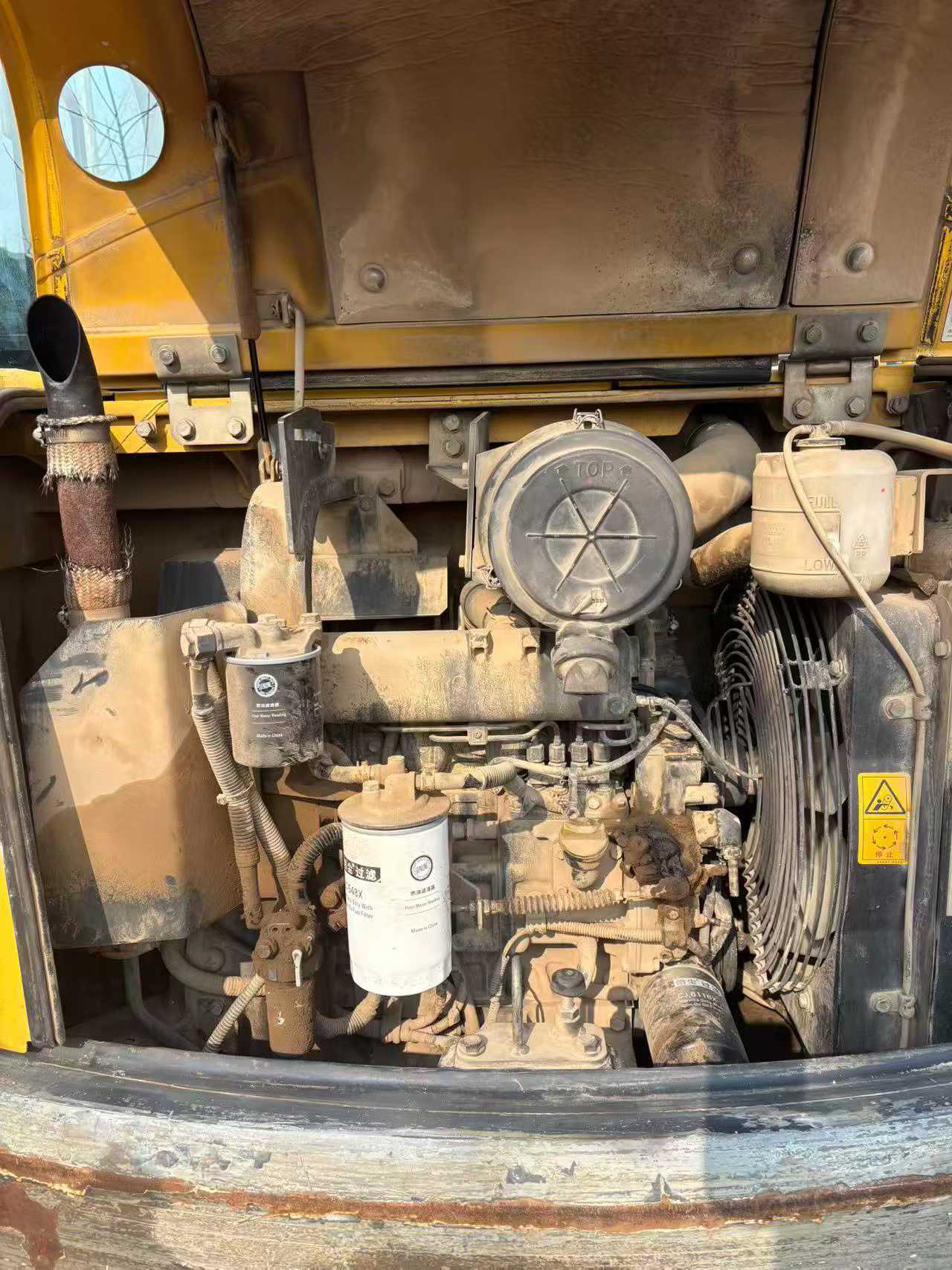

Powered by the robust Komatsu S4D87E-1 engine delivering 34.5 kW at 2300 rpm, this 2019 PC56-7 mini excavator represents proven engineering from Komatsu's Jining manufacturing facility. The 4-stroke, water-cooled direct injection motor with 2.434L displacement provides reliable performance across demanding jobsites, while the advanced hydraulic system operates at 26.5 MPa working pressure with fixed plunger rotary motor and dual variable plunger travel motors for precise control.

Key technical specifications include:
<ul>
<li>Operating weight: 5,300 kg with bucket capacity range 0.055-0.22 m³</li>
<li>Maximum digging reach: 6,130 mm with 3,810 mm digging depth</li>
<li>Compact transport dimensions: 5,935 mm length × 1,960 mm width × 2,550 mm height</li>
<li>Dual-speed travel: 2.6/4.1 km/h with 320 mm ground clearance</li>
<li>9 rpm rotation speed with 1,650 mm rear swing radius</li>
<li>120L fuel capacity and 55L hydraulic tank for extended operation</li>
</ul>

Currently located in Dezhou, Shandong Province, this machine combines Japanese engineering quality with practical performance for construction, landscaping, and utility projects worldwide.

Proven performance meets global support with this 2022 Caterpillar 336E hydraulic excavator, currently located in Guizhou. Operating at 36 tons with a robust 35,500 kg working weight, this machine delivers 236 kW of power through its reliable CAT C9ACERT engine—a water-cooled powerhouse engineered for durability and efficiency. With a maximum digging radius of 11,040 mm and backhoe bucket configuration, it handles demanding earthmoving tasks across construction, mining, and infrastructure projects.

Caterpillar's reputation in the used equipment market remains unmatched. Parts availability spans every continent, minimizing downtime and simplifying maintenance scheduling. Resale value holds strong due to brand recognition and consistent demand from contractors worldwide. This 336E meets European Stage IIIB and Tier 4 emission standards, ensuring regulatory compliance in multiple markets while maintaining fuel efficiency.

Key specifications include:
<ul>
<li>Rated power: 236 kW at 1800 RPM</li>
<li>Joint venture/import manufacturing quality</li>
<li>Traditional power system for straightforward servicing</li>
<li>Water-cooled engine for optimal thermal management</li>
</ul>

Invest in equipment backed by Caterpill

Caterpillar 336E

Built for precision work in confined spaces, this 2015 Hitachi ZX70-3 delivers exceptional operator control across demanding job sites. Weighing 6,470 kg with a 0.33 m³ bucket capacity, this 7-ton excavator combines compact dimensions with serious digging power—55 kN bucket force and 4,170 mm maximum depth ensure productive cycles in utility, landscaping, and urban construction applications.

Powered by a reliable Isuzu AU-4LE2X engine (40.5 kW at 2000 rpm), the ZX70-3 features water-cooled efficiency and dual variable axial piston pumps for responsive hydraulic performance. Operators benefit from smooth 10.5 rpm rotation speed, excellent visibility over the 2,600 mm cab height, and confident maneuverability with a tight 1,720 mm front turning radius. Travel speeds of 3.4/5.3 km/h and 70% climbing ability tackle varied terrain with stability.

Key Specifications:
<ul>
<li>Maximum digging reach: 6,320 mm</li>
<li>Transport dimensions: 6,080 × 2,260 × 2,600 mm</li>
<li>Ground pressure: 30 kPa for minimal surface disturbance</li>
<li>Hydraulic system: 100 L capacity with 26 MPa working pressure</li>
<li>Currently located in Guizhou, China</li>
</ul>

Hitachi ZX70-3

Engineered with Caterpillar's proven Cat C4.2 ACERT engine delivering 67 kW of net power, this 2023 313D excavator combines robust hydraulics with precision control for demanding jobsites. The water-cooled 4.25L displacement engine meets US EPA Tier 3 and European IIIA emissions standards while maintaining exceptional fuel efficiency from its 250L tank capacity.

Hydraulic performance defines this 13-ton machine's capabilities:
<ul>
<li>Maximum main pump flow of 127 L/min ensures responsive operation</li>
<li>82 kN bucket digging force and 63 kN rod digging force tackle tough materials</li>
<li>30.5 MPa main overflow pressure provides consistent power delivery</li>
<li>8,220 mm maximum excavation radius covers extensive work areas</li>
<li>5,580 mm maximum digging depth handles deep foundation work</li>
</ul>

Built at Xuzhou, Jiangsu under joint venture manufacturing standards, this 313D features a 4,650 mm boom and 2,500 mm rod configuration optimized for versatility. With 13,430 kg operating weight, 500 mm standard track plates, and 41.8 kPa ground pressure, this excavator balances stability with minimal surface disruption. Currently located in Wenzhou, Zhejiang, ready for immediate deployment.

Caterpillar 313D

Secure proven excavation power without the premium price tag. This 2020 XCMG XE200 delivers 20-ton performance with traditional diesel reliability, offering exceptional value for contractors seeking quality joint venture engineering at used equipment rates. Currently located in Jiangxi Ji'an, this machine represents a strategic acquisition for operators who demand excavator capability without new equipment depreciation.

<ul>
<li>Year: 2020</li>
<li>Model: XCMG XE200</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Bucket Configuration: Backhoe</li>
<li>Manufacturer Origin: Joint venture/Import</li>
<li>Current Location: Jiangxi Ji'an, China</li>
</ul>

Invest intelligently in equipment that maintains operational standards while protecting your capital. The XE200 combines XCMG's engineering heritage with the financial advantage of pre-owned machinery—delivering job site productivity at a fraction of new market cost. Contact Fair Trade Machinery for inspection details and competitive export pricing.

XCMG XE200

Built for demanding jobsites, this 8-ton excavator delivers proven performance through its Cummins B3.3 engine, generating 60kW at 2200 rpm with water-cooled turbocharged efficiency. Operators benefit from precise hydraulic control via Toshiba variable pump technology, enabling smooth manipulation of the 3710mm boom and 1650mm arm across a maximum digging radius of 6375mm and depth reaching 4140mm.

Stability remains paramount with a 7425kg working weight distributed across 2119mm track ground contact, maintaining 34.2 kPa ground pressure while achieving 35° climbing capability. The plunger hydraulic motors for both rotation (12 rpm) and travel functions ensure responsive handling during complex excavation tasks. Dual travel speeds of 4.2/2.7 km/h provide flexibility between transit and precision work.

<ul>
<li>Bucket digging force: 53.6 kN with 0.14-0.34 m³ capacity range</li>
<li>Compact dimensions: 6155mm length, 2220mm width for confined spaces</li>
<li>786mm counterweight clearance supports obstacle navigation</li>
<li>Located in Ganzhou, Jiangxi for regional inspection</li>
</ul>

XCMG XE80

Built for operators who demand precision and endurance, the 2019 Kobelco SK260LC-8 is a 26-ton hydraulic excavator engineered in Japan and now available from Jiangsu, China. Powered by a Hino J05E four-cylinder, water-cooled turbocharged engine producing 131 kW at 2,100 rpm, this machine delivers consistent performance across demanding jobsites. The spacious, low-vibration cab offers wide-angle visibility and intuitive pilot controls, reducing operator fatigue during extended shifts. Standard hydraulic crushing pipelines add versatility straight from the factory.

<ul>
 <li>Engine: Hino J05E | 131 kW / 2,100 rpm | 5.123L displacement | Turbocharged, intercooled, direct injection</li>
 <li>Operating Weight: 25,200 kg | Bucket Capacity: 1.3 m³</li>
 <li>Digging Force: Bucket 170 kN | Arm 119 kN</li>
 <li>Maximum Digging Depth: 7,000 mm | Maximum Digging Radius: 10,310 mm</li>
 <li>Travel Speed: 3.6 / 5.8 km/h | Gradeability: 70% (35°)</li>
 <li>Main Pump: Dual variable displacement axial piston pumps | Max flow: 2 × 246 L/min</li>
 <li>Track Width: 600 mm | Transport Dimensions: 10,120 × 3,190 × 3,200 mm</l

Kobelco SK260LC-8

Proven reliability meets exceptional value in this 2015 Hitachi EX120 excavator, currently located in Hunan. Operating in the trusted 12-ton class, this joint venture/import machine delivers the durability and parts support that have made Hitachi a benchmark for resale strength in the used equipment market. Equipped with traditional power and a versatile backhoe bucket, this model offers dependable performance for contractors seeking long-term operational stability without the premium of new equipment pricing.

<ul>
<li>Year: 2015</li>
<li>Brand: Hitachi</li>
<li>Model: EX120</li>
<li>Tonnage: 12 tons</li>
<li>Power Type: Traditional power</li>
<li>Manufacturer: Joint venture/Import</li>
<li>Bucket Configuration: Backhoe</li>
<li>Location: Hunan, China</li>
</ul>

Hitachi's global parts network ensures minimal downtime and straightforward maintenance across service intervals. With strong resale fundamentals and a reputation for extended component life, the EX120 represents a strategic acquisition for operations prioritizing total cost of ownership over machine lifespan.

Hitachi EX120

Engineered with precision for confined-space operations, this 2015 XCMG XE15 mini excavator delivers robust performance through proven Japanese components. Powered by a Yanmar 3TNV82A 3-cylinder engine generating 16.5 kW at 2200 rpm, the machine combines water-cooled efficiency with a 1.33L displacement for reliable output in demanding environments. Hydraulic superiority defines this unit: dual Japan Fujikoshi main pumps flow at 2×19.8+14.1 L/min with 24 MPa system pressure, driving a bucket digging force of 13.9 kN and rod force of 8.8 kN—exceptional figures for a 1.64-ton working weight class.

Core Technical Specifications:
<ul>
<li>Maximum digging reach: 3915 mm / Maximum depth: 2320 mm</li>
<li>Boom/rod configuration: 1690 mm / 1100 mm for optimal breakout geometry</li>
<li>Compact transport dimensions: 3760×1080×2400 mm</li>
<li>11 rpm swing speed with 18 MPa rotary circuit pressure</li>
<li>30° gradeability with 23.8 kPa ground pressure minimizing site disturbance</li>
<li>0.044 m³ backhoe bucket capacity for precision trenching</li>
</ul>

Currently located in Hunan, China, this Xuzhou-manufactured unit represents XCMG's commitment to hydraulic efficiency and component-grade engineering in the

XCMG XE15

Engineered for precision and reliability, this 2021 Doosan DX215-9C excavator delivers 21-ton performance with operator-centric design. Powered by a Doosan DL06 engine producing 115 kW at 1900 rpm, this machine combines robust hydraulic power with exceptional maneuverability for demanding job sites. Currently located in Guizhou, this joint venture model represents proven technology built for the Asian market.

Operators benefit from superior visibility and ergonomic control in the spacious cab, positioned 2,985 mm at full height for commanding sightlines across the work area. Hydraulic responsiveness comes from dual variable piston pumps delivering 2 × 191 L/min, enabling smooth simultaneous functions. The 0.92 m³ bucket generates 136.2 kN digging force, while the 5,700 mm boom and 2,900 mm arm provide a maximum reach of 9,873 mm and digging depth of 6,592 mm.

<ul>
<li>Operating weight: 20,600 kg with stable 45.8 kPa ground pressure</li>
<li>Rotation speed: 9.8 rpm for efficient positioning</li>
<li>Travel speeds: 5.3 km/h (high) / 2.9 km/h (low)</li>
<li>Fuel capacity: 400 L for extended operation</li>
<li>Transport dimensions: 9,506 × 2,800 × 2,891 mm</li>
</ul>

Doosan DX215-9C

Engineered for precision and all-day productivity, this 2016 Kobelco SK260LC-8 excavator delivers exceptional operator-centered performance across demanding job sites. Powered by a reliable Hino J05E engine producing 131 kW at 2100 rpm, this 26-ton machine combines robust digging force with refined control systems that reduce fatigue during extended shifts.

Operators benefit from enhanced visibility and ergonomic cabin design, standard features that defined Kobelco's 2016 Dash-8 series. The hydraulic system—featuring dual variable displacement axial piston pumps delivering 2×246 L/min—provides smooth, responsive control across all functions. With 170 kN bucket digging force and a maximum reach of 10,310 mm, this SK260LC-8 handles heavy excavation while maintaining stability through its 3,850 mm track ground length and optimized 25,200 kg working weight.

<ul>
<li>Hino J05E turbocharged engine with intercooling for consistent power delivery</li>
<li>Spacious cabin with superior sightlines to bucket, tracks, and surroundings</li>
<li>1.3 m³ backhoe bucket capacity ideal for trenching and mass excavation</li>
<li>Factory-installed hydraulic breaker circuit for immediate attachment versatility</li>
<li>Currently located in J

Built for demanding excavation work, this 2016 Sumitomo SH360-5 delivers 36 tons of reliable performance with proven traditional power systems. Operators benefit from exceptional cabin visibility across all working angles, reducing blind spots and improving site safety during complex digging operations. The machine's advanced hydraulic system ensures smooth, precise control even under heavy loads, while the factory-installed backhoe configuration maximizes versatility across construction and earthmoving applications.

Stability remains consistent on uneven terrain thanks to Sumitomo's reinforced undercarriage design and optimized weight distribution. Controls respond intuitively, minimizing operator fatigue during extended shifts. Currently located in Hangzhou, Zhejiang, this joint venture-manufactured excavator represents solid engineering backed by international quality standards.

<ul>
<li>36-ton operating weight for medium to heavy-duty projects</li>
<li>Enhanced cabin sightlines for safer operation</li>
<li>Traditional power system with proven reliability</li>
<li>Backhoe bucket configuration included</li>
<li>Smooth hydraulic responsiveness for precision work</li>
</ul>

Sumitomo SH360-5

Built for precision work in tight spaces, this 2021 XCMG XE35U mini excavator delivers 22.2 kW of reliable power through its proven 3TNV88-B water-cooled engine. With a 4-ton operating weight and 0.12 m³ bucket capacity, this compact machine tackles trenching, utility installation, and site preparation with a maximum digging depth of 3,060 mm and digging radius extending to 5,300 mm. The robust hydraulic system generates 28.6 kN bucket digging force and 20.3 kN arm digging force, powering through demanding soil conditions.

Currently located in Hangzhou, Zhejiang, this excavator arrives site-ready with:
<ul>
<li>Compact transport dimensions (4,970 × 1,740 × 2,535 mm) for easy mobilization</li>
<li>Zero tail swing design with 1,740 mm working width</li>
<li>30% grading capability and 31.6 kN maximum tractive force</li>
<li>108 L/min hydraulic flow for responsive operation</li>
<li>Integrated blade (305 mm lift / 360 mm depth) for backfilling and leveling</li>
</ul>

Equipped with dual-speed travel (3.6/2.2 km/h) and a tight 870 mm turning radius, this Chinese-manufactured excavator handles residential construction, landscaping, and utility projects efficiently.

XCMG XE35U

Built for relentless performance, this 2025 XCMG XE75C mini excavator represents proven Chinese engineering at its finest. Operating at 7 tons with a working weight of 7,450 kg, this machine delivers consistent power through its v2607 engine, rated at 43 kW and 2000 rpm. Designed for demanding jobsites, it combines a 0.30 m³ bucket capacity with impressive digging force—57 kN bucket force and 38 kN rod force—ensuring productivity across excavation, trenching, and material handling applications.

Durability defines every component. With a 130L fuel tank and 115L hydraulic tank, extended operation periods minimize downtime. Maximum digging depth reaches 4,020 mm while maximum digging radius extends to 6,260 mm, providing versatile reach for confined urban sites or open terrain. Transport dimensions of 6,150 mm length by 2,230 mm width ensure easy mobilization between projects.

Currently located in Shenzhen, Guangdong, this workhorse offers:
<ul>
<li>Maximum tractive force: 68.32 kN for challenging ground conditions</li>
<li>Ground specific pressure: 33.5 kPa for reduced surface impact</li>
<li>Dual travel speeds: 5.4/2.9 km/h for operational flexibility</li>
<li>Maximum flow of 160 l/min from main pump</li>
</ul>

<

XCMG XE75C

Secure proven performance without the premium price tag. This 2016 Kobelco SK135 delivers the reliability Japan-engineered machinery is known for, now available at a fraction of new equipment cost. Operating at 13 tons with a robust Mitsubishi D04FR engine producing 74kW at 2000rpm, this excavator handles demanding jobsites with confidence. Its 0.52m³ bucket capacity and 90.1kN digging force tackle tough material efficiently, while the 8640mm maximum digging radius provides exceptional reach for medium-scale operations.

<ul>
<li>13,100kg working weight optimizes stability and fuel economy</li>
<li>8110mm maximum digging depth for foundation and trenching work</li>
<li>Dual travel speeds (3.4/5.6 km/h) enhance site mobility</li>
<li>275L fuel tank extends operational hours between refills</li>
<li>11.5rpm rotation speed accelerates cycle times</li>
<li>Currently located in Sichuan, ready for deployment</li>
</ul>

Joint venture manufacturing ensures quality components and parts availability. For contractors seeking maximum ROI, this SK135 represents smart capital allocation—paying less upfront while maintaining productivity standards your projects demand.

Kobelco SK135

Built for precision and daily productivity, this 2014 Doosan DH220-3 excavator delivers 22 tons of reliable digging power with operator-centric engineering. Equipped with traditional power systems and joint venture manufacturing standards, this backhoe-configured machine emphasizes stability and control across demanding jobsites. Currently located in Jiangsu, it represents proven technology from Doosan's third-generation hydraulic excavator line.

<ul>
<li>Operator Advantage: Enhanced cabin visibility reduces blind spots during swing operations and trench work</li>
<li>Stable Platform: Wide track gauge and low center of gravity minimize lateral movement on slopes</li>
<li>Responsive Controls: Hydraulic pilot joysticks provide proportional control for smooth bucket positioning</li>
<li>Ergonomic Design: Adjustable seat and intuitive dashboard layout reduce fatigue during extended shifts</li>
<li>Field-Proven Durability: Traditional powertrain offers straightforward maintenance and parts availability</li>
</ul>

Ideal for contractors prioritizing machine handling and operator comfort, this DH220-3 combines mid-size capacity with the refined con

Doosan DH220-3

Expand your operational capacity with this 2016 Kobelco SK200-2 excavator, a proven 20-ton workhorse engineered for fleet reliability. Sourced from Jiangsu, this joint venture-built machine delivers the performance contractors demand when primary equipment is deployed elsewhere or project timelines overlap. Traditional power architecture ensures straightforward maintenance protocols and parts compatibility across diverse jobsite conditions.

<ul>
 <li>Specifications: 20-ton operating weight, backhoe configuration</li>
 <li>Power System: Traditional diesel platform for maximum uptime</li>
 <li>Build Quality: Joint venture/Import manufacturing standards</li>
 <li>Strategic Value: Eliminates downtime during equipment rotation or simultaneous projects</li>
 <li>Current Location: Jiangsu, China – ready for global export</li>
</ul>

Contractors managing multiple sites recognize the cost of idle crews waiting for equipment. This SK200-2 slots seamlessly into existing fleets, providing immediate deployment capability without the capital expense of new machinery. Backhoe configuration handles excavation, trenching, and material handling across re

Specifications	Value
No.	1035728
Tonnage (tons)	5
Working weight (kg)	5300
Bucket capacity (m³)	0.055-0.22
Country of origin	Jining, Shandong Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Komatsu S4D87E-1
Rated power (kw/rpm)	34.5/2300
Cooling mode	water-cooling
Displacement (L)	2.434
Working form	4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm.
Ground specific pressure (Kpa)	30.7
Rotation speed (rpm)	9
Travel speed (km/h)	2.6/4.1
Rotary hydraulic motor type	Fixed plunger type x 1
Type of walking hydraulic motor	Variable plunger type x 2
Traveling Hydraulic Circuit (Mpa)	26.5
Rotary Hydraulic Circuit (Mpa)	19.6
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	26.5
Bucket cylinders - Number × diameter × stroke (mm)	75 x 580 x 50
Bucket rod cylinders - Number × diameter × stroke (mm)	85 * 709.5 * 55
Boom cylinders - Number × diameter × stroke (mm)	90 * 689.5 * 55
Fuel Tank (L)	120
Hydraulic Tank (L)	55
Engine Oil changes (L)	9.7
Coolant (L)	8
Total transport length (mm)	5935
Total transport width (mm)	1960
Total transport height (mm)	2550
Full cab height (mm)	2550
Minimum ground clearance (mm)	320
Back end turning radius (mm)	1650
Total track length (mm)	2500
Track gauge (mm)	1560
Track plate width (mm)	400
Total track width (mm)	1960
Track ground length (mm)	1980
Maximum digging radius (mm)	6130
Maximum digging depth (mm)	3810
Maximum excavation height (mm)	5860
Maximum unloading height (mm)	4130
Maximum vertical digging depth (mm)	3060
Bulldozer lift or depth (mm)	355
Maximum excavation radius of stop surface (mm)	5980

2019 Komatsu PC56-7
