Product Description

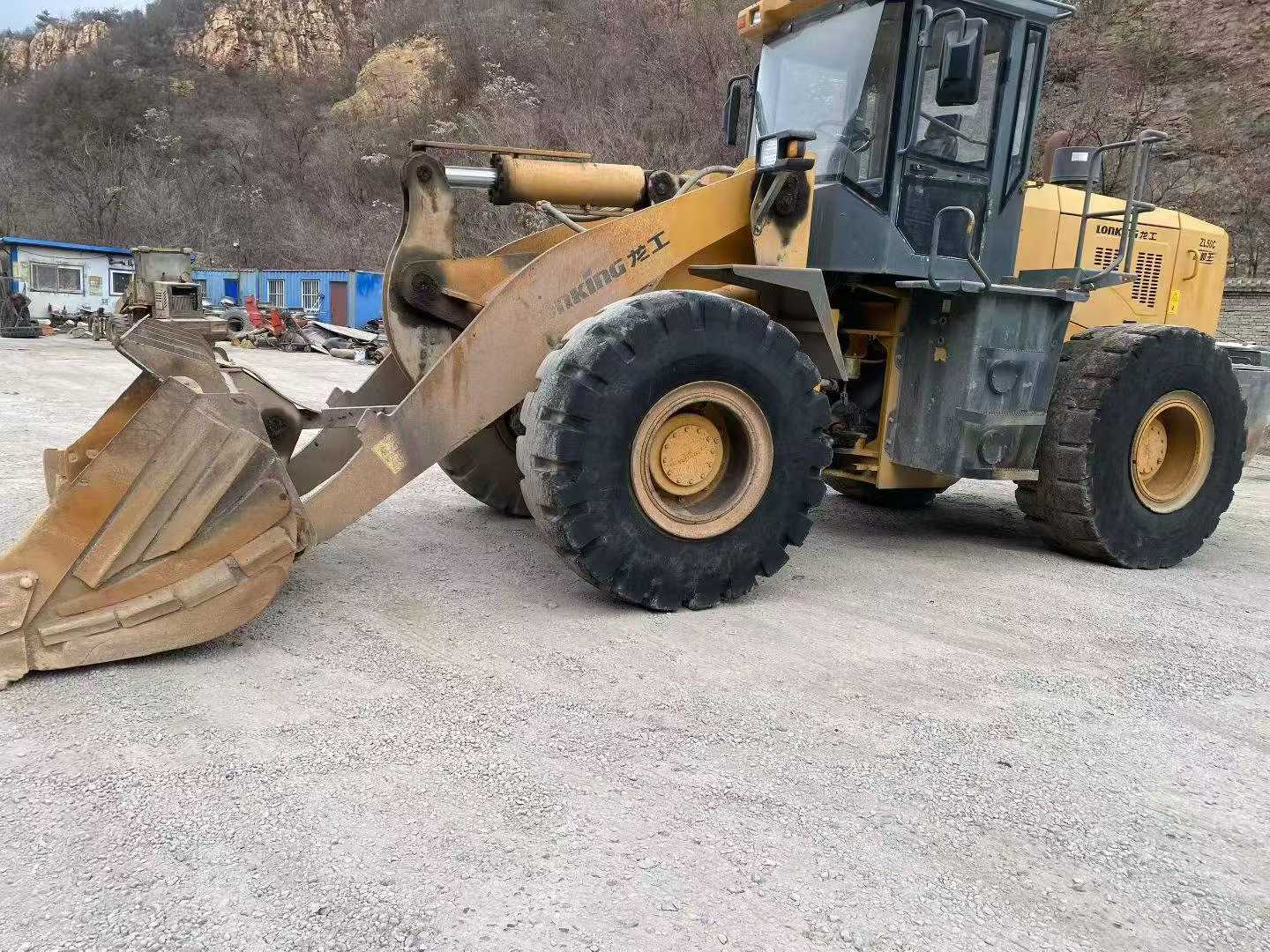

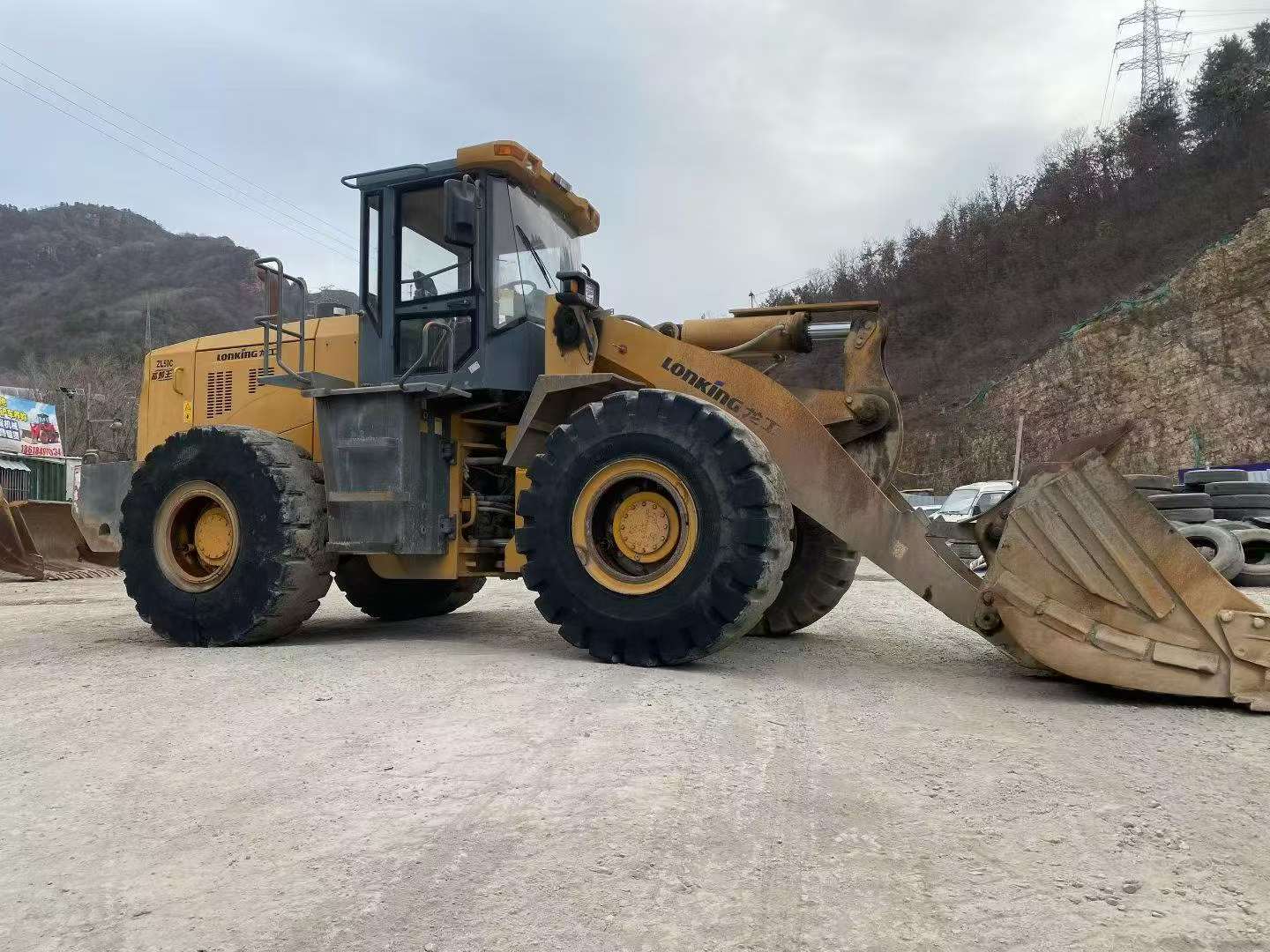

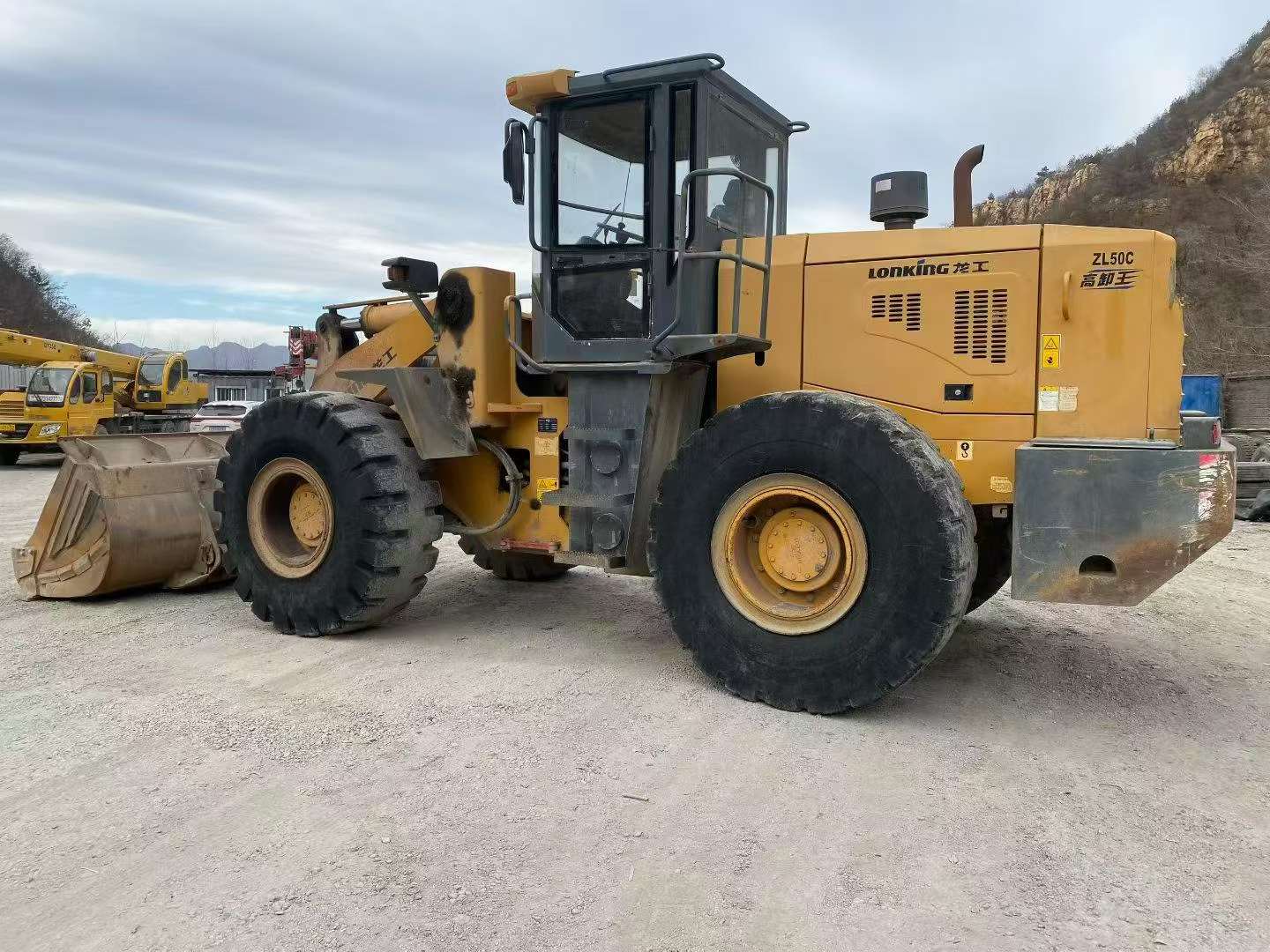

Engineered for demanding construction and material handling operations, this 2015 Lonking ZL50C wheel loader delivers consistent performance with its 162kW water-cooled engine and 5,000kg rated load capacity. Operating at a robust 16,600kg machine weight, this unit provides exceptional stability across uneven terrain while maintaining precise control during high-capacity loading cycles.
Operators benefit from superior visibility and maneuverability in tight job sites. With a compact 6,242mm minimum turning radius and responsive hydraulic controls, positioning accuracy remains consistent throughout extended shifts. The spacious cabin design typical of this model generation ensures comfortable operation during repetitive loading tasks.

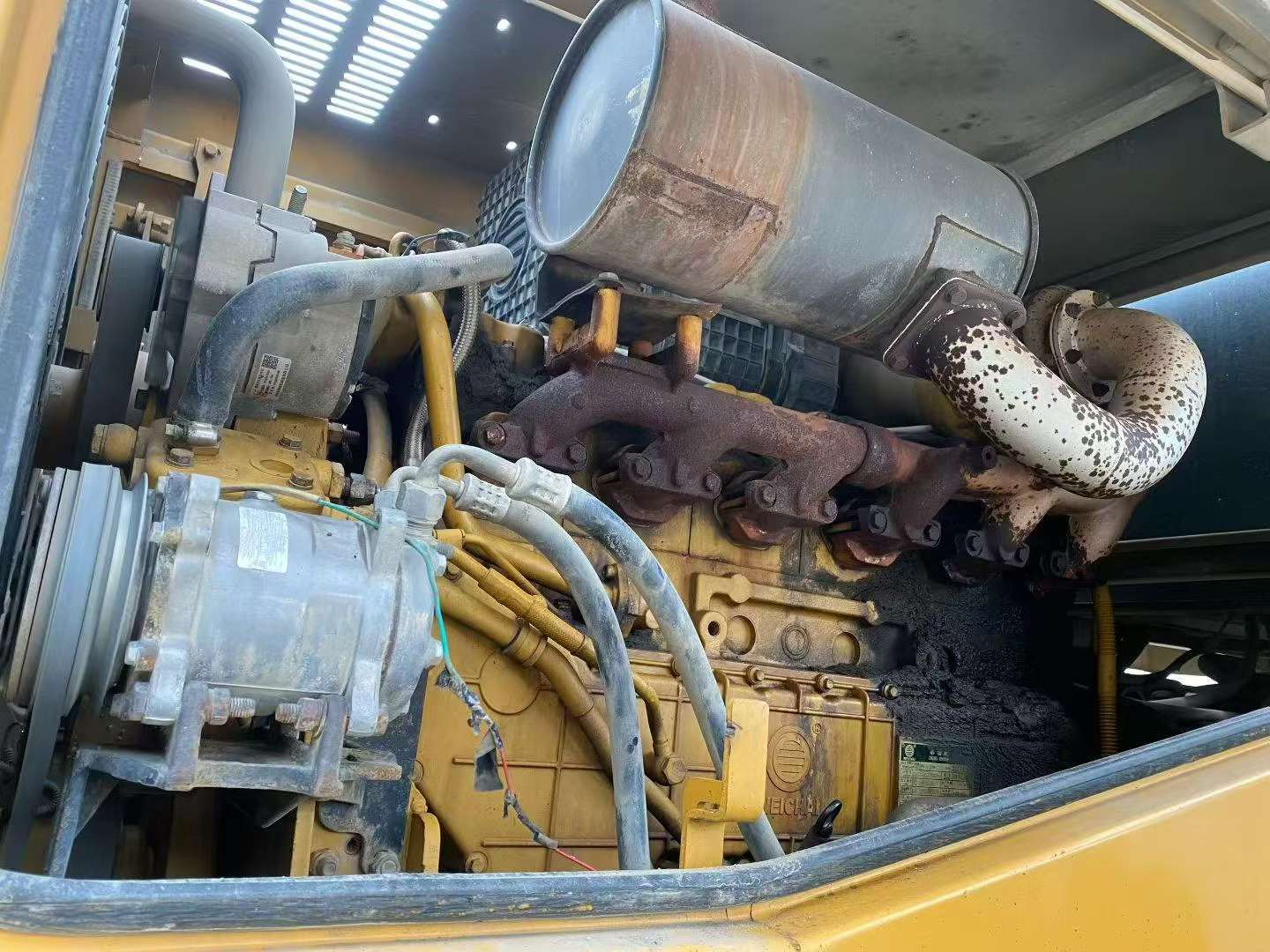

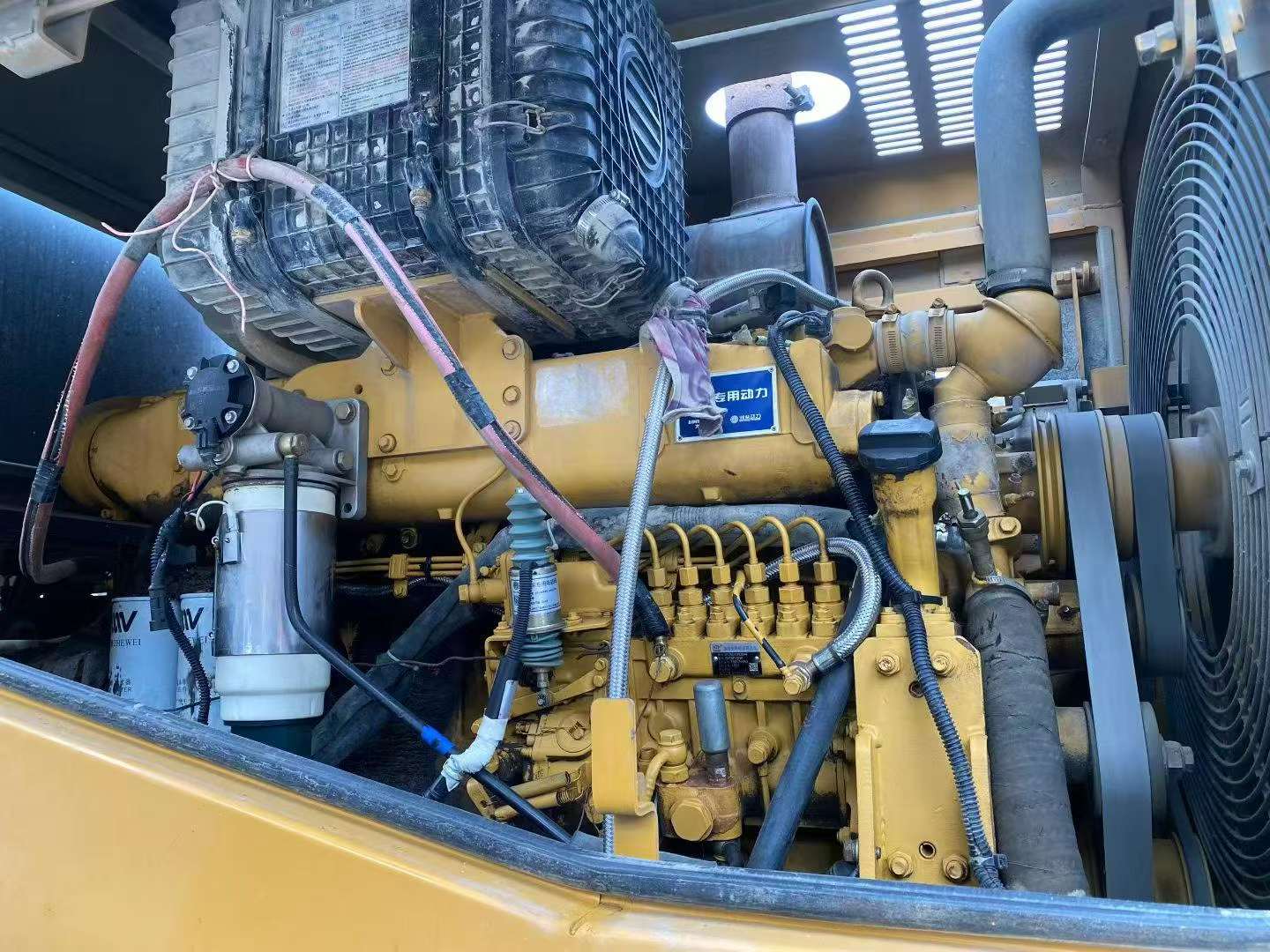

- Rated Power: 162kW at 2200rpm with 9.726L displacement
- Max Unloading Height: 3,103mm with 1,204mm reach
- Digging Force: 170kN for penetrating compacted materials
- Cycle Times: 6-second lift, 11-second total cycle
- Travel Speed: Two-range transmission (10.2 - 35 km/h)
- Dimensions: 8,000mm L × 3,000mm W × 3,400mm H
- Location: Baoding, Hebei Province
Currently available from our Hebei facility, this ZL50C represents prove
| Specifications | Value |
|---|---|
| No. | 1018394 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | water-cooling |
| Working form | |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16600 |
| Max - Unloading height (mm) | 3103 |
| Unloading distance (mm) | 1204 |
| Wheelbase (mm) | 3230 |
| Wheel base (mm) | 2240 |
| Machine length (mm) | 8000 |
| Machine width (mm) | 3000 |
| Machine height (mm) | 3400 |
| Steering Angle | |
| Minimum turning radius of outer wheel center line | 6242 |
| Turning radius - Outside of bucket (mm) | 7230 |
| Lift (s) | 6 |
| Ternary sum (s) | 11 |
| Speed 1 gear (km/h) | 10.2 |
| Speed 2 (km/h) | 35 |
