2020 Sany 215C-9

1/9

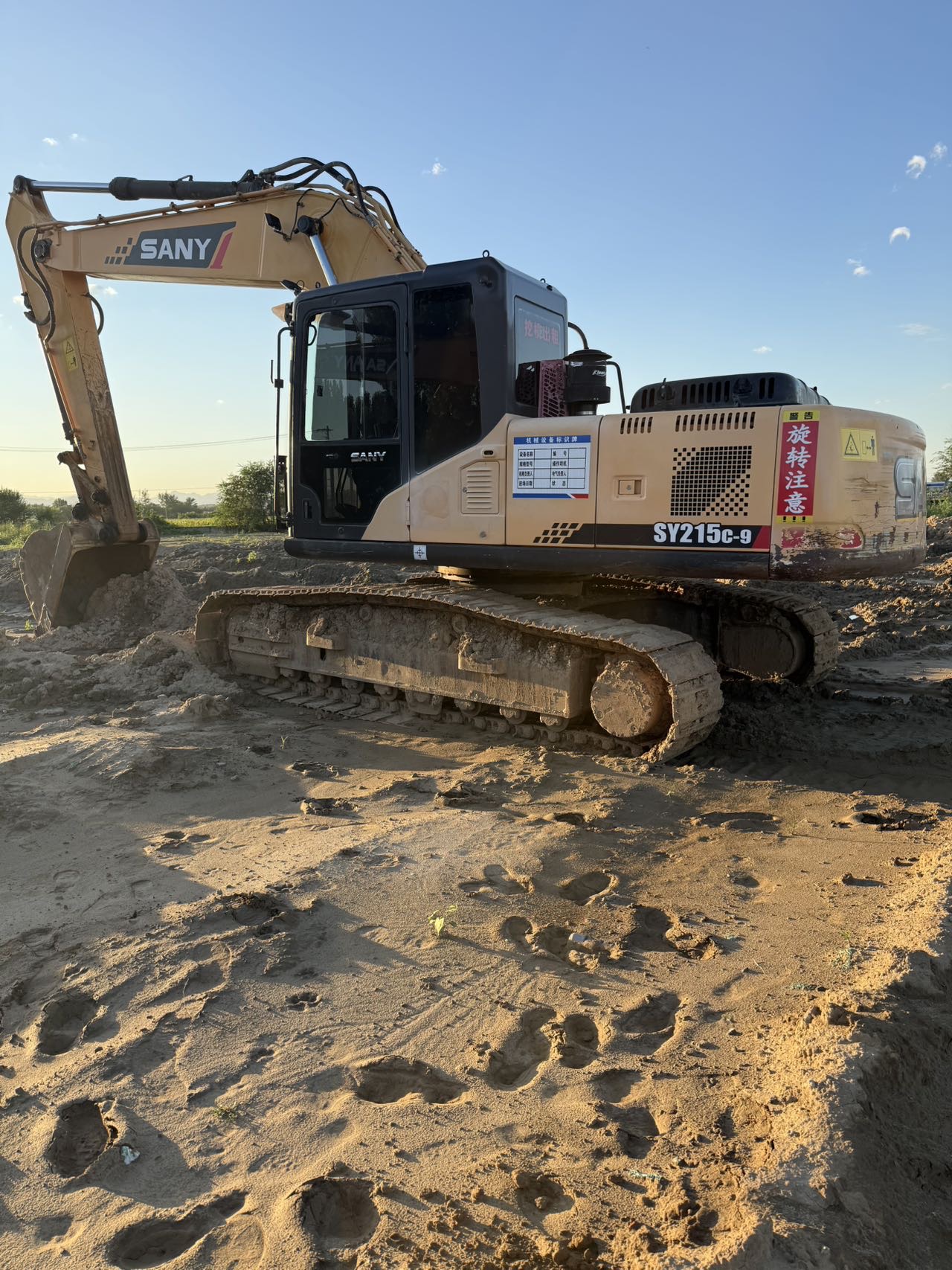

Buy Sany 215C-9 Used Excavator / 1

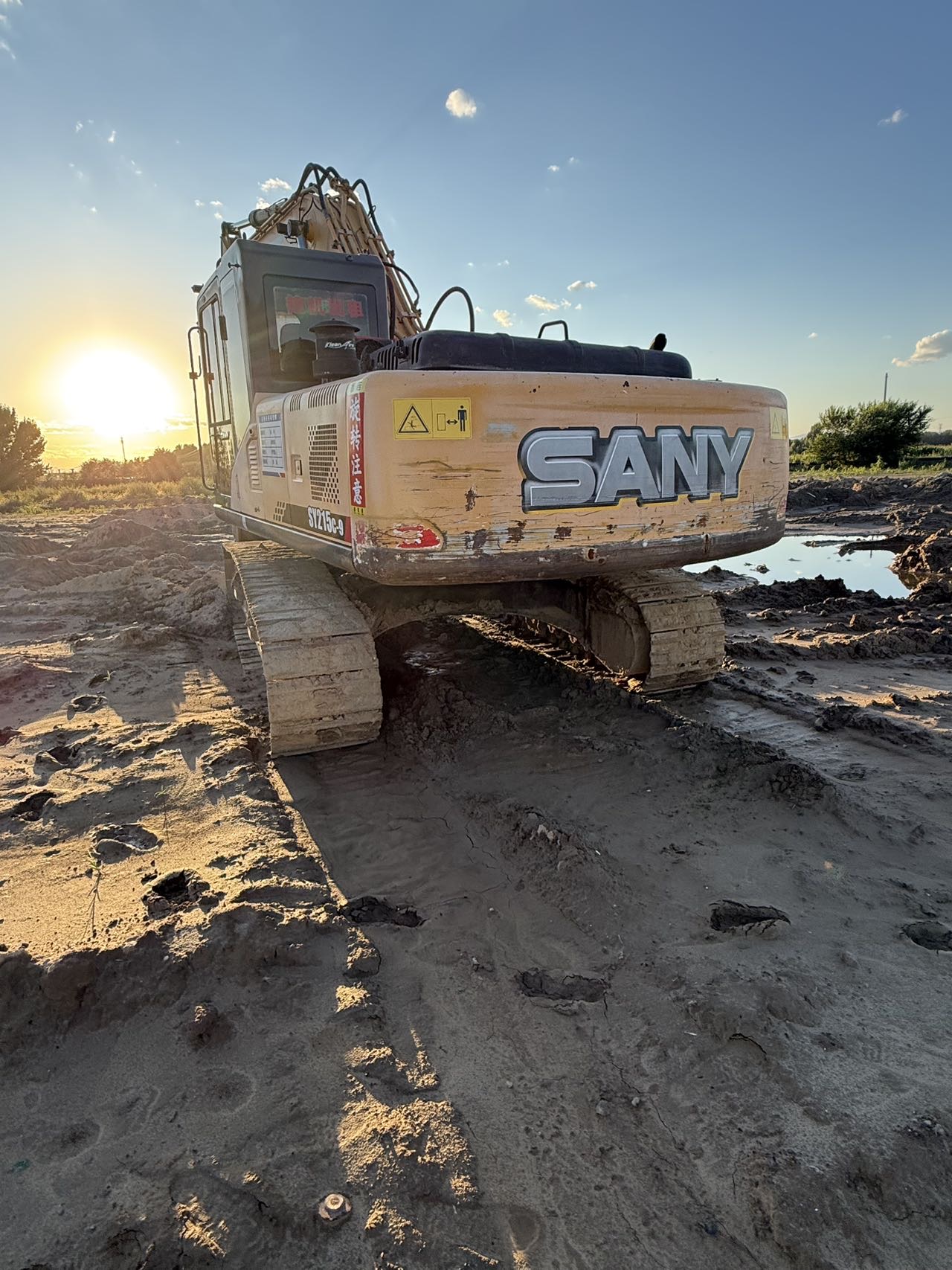

Buy Sany 215C-9 Used Excavator / 2

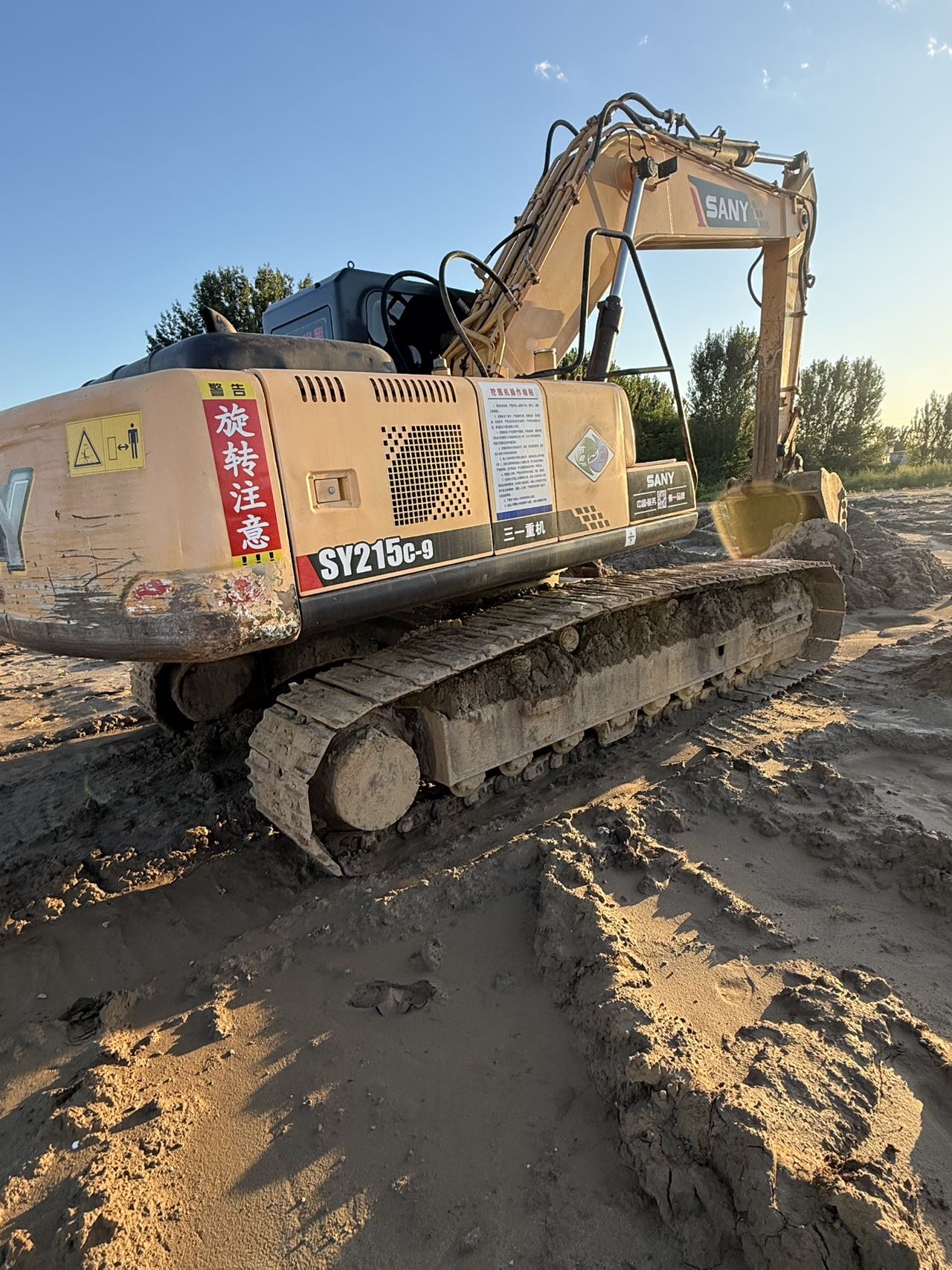

Buy Sany 215C-9 Used Excavator / 3

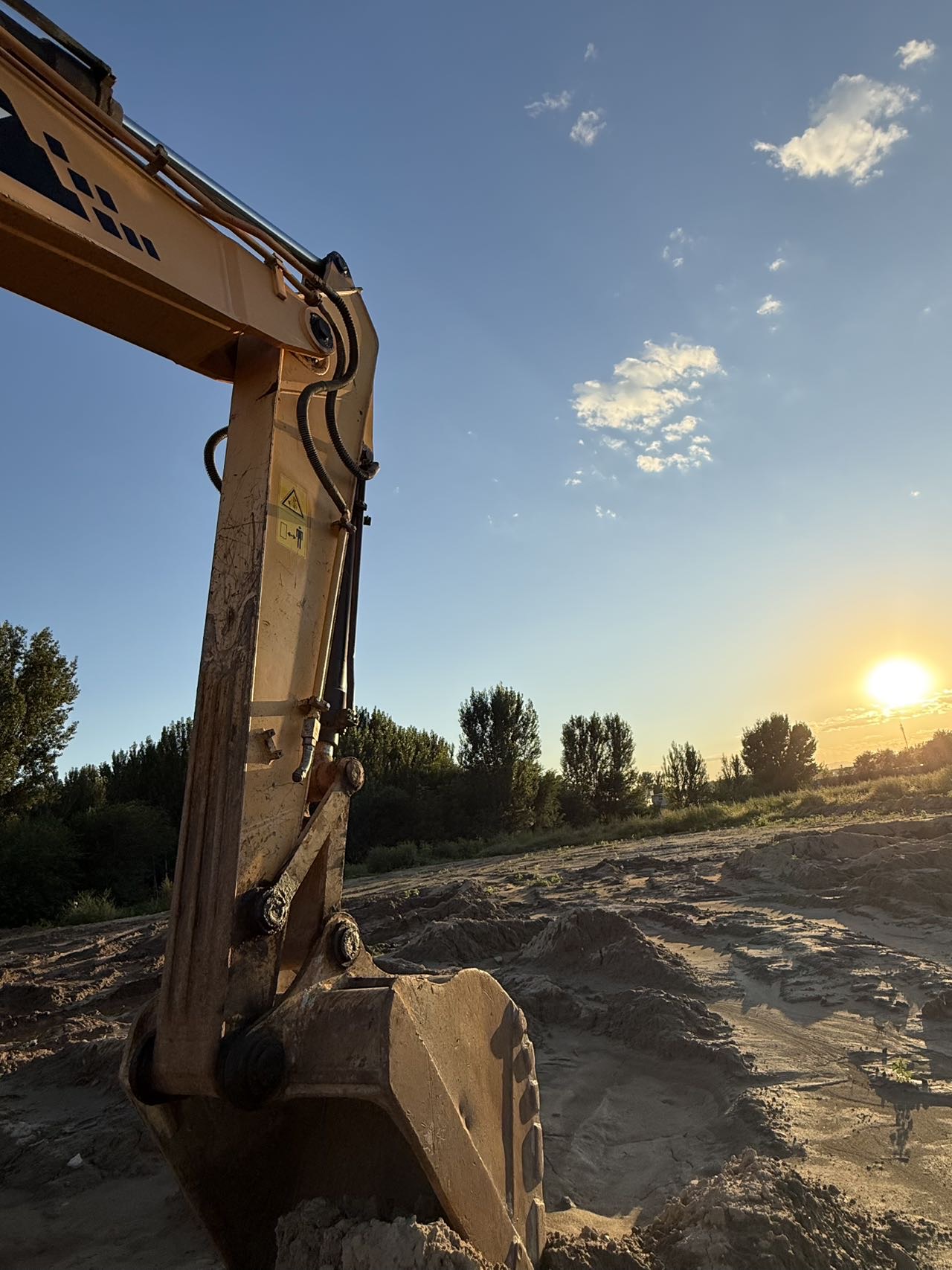

Buy Sany 215C-9 Used Excavator / 4

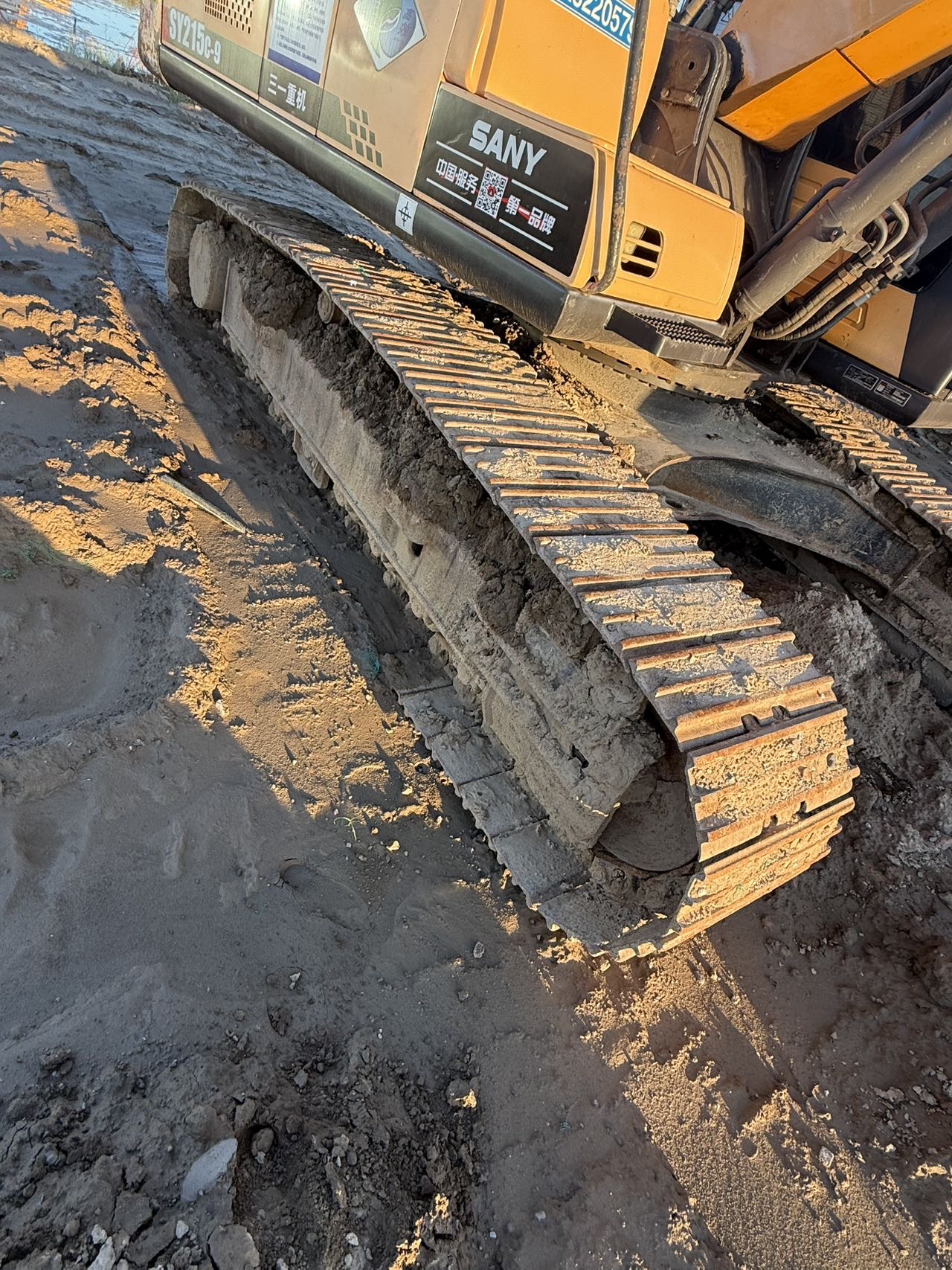

Buy Sany 215C-9 Used Excavator / 5

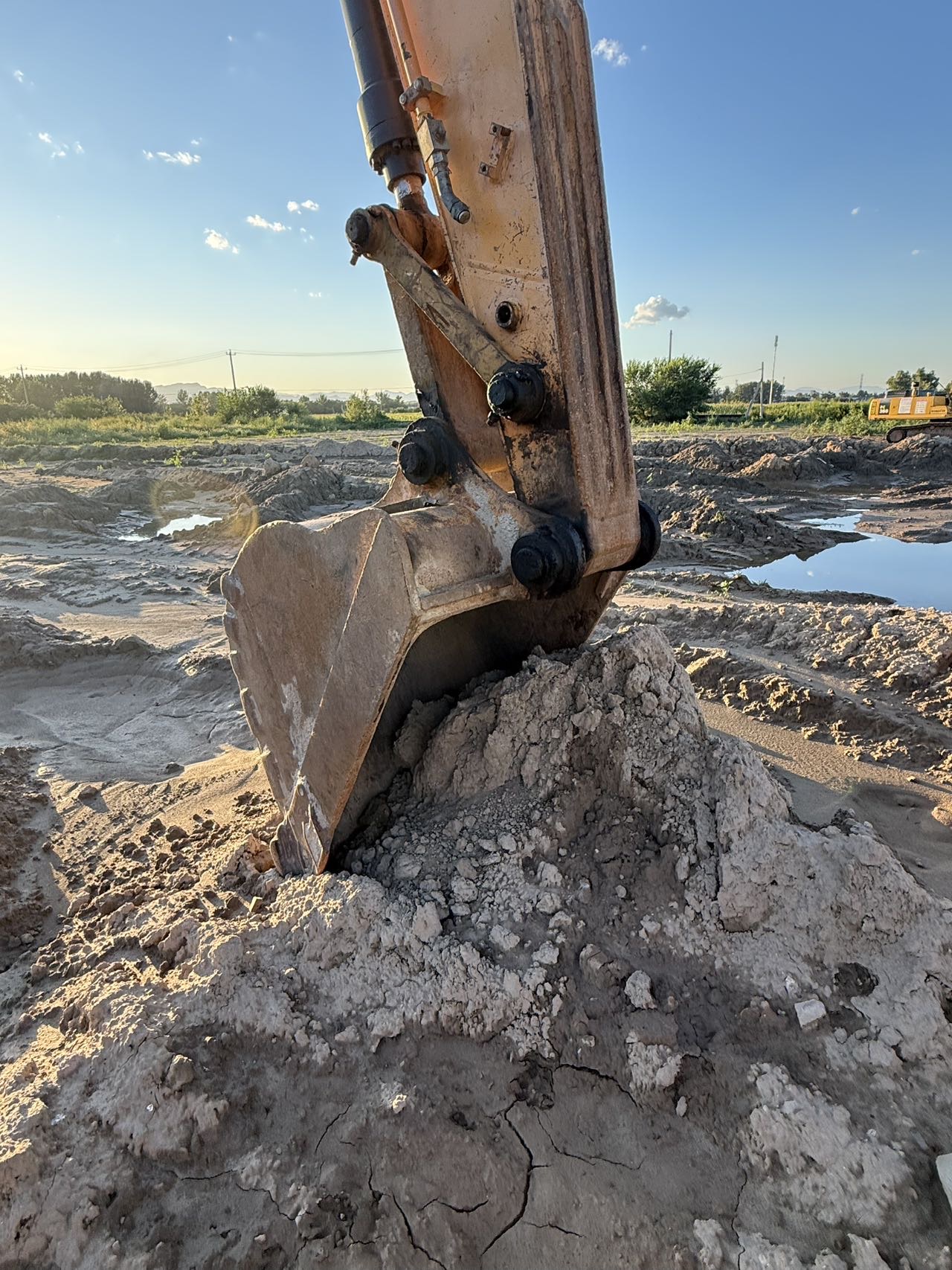

Buy Sany 215C-9 Used Excavator / 6

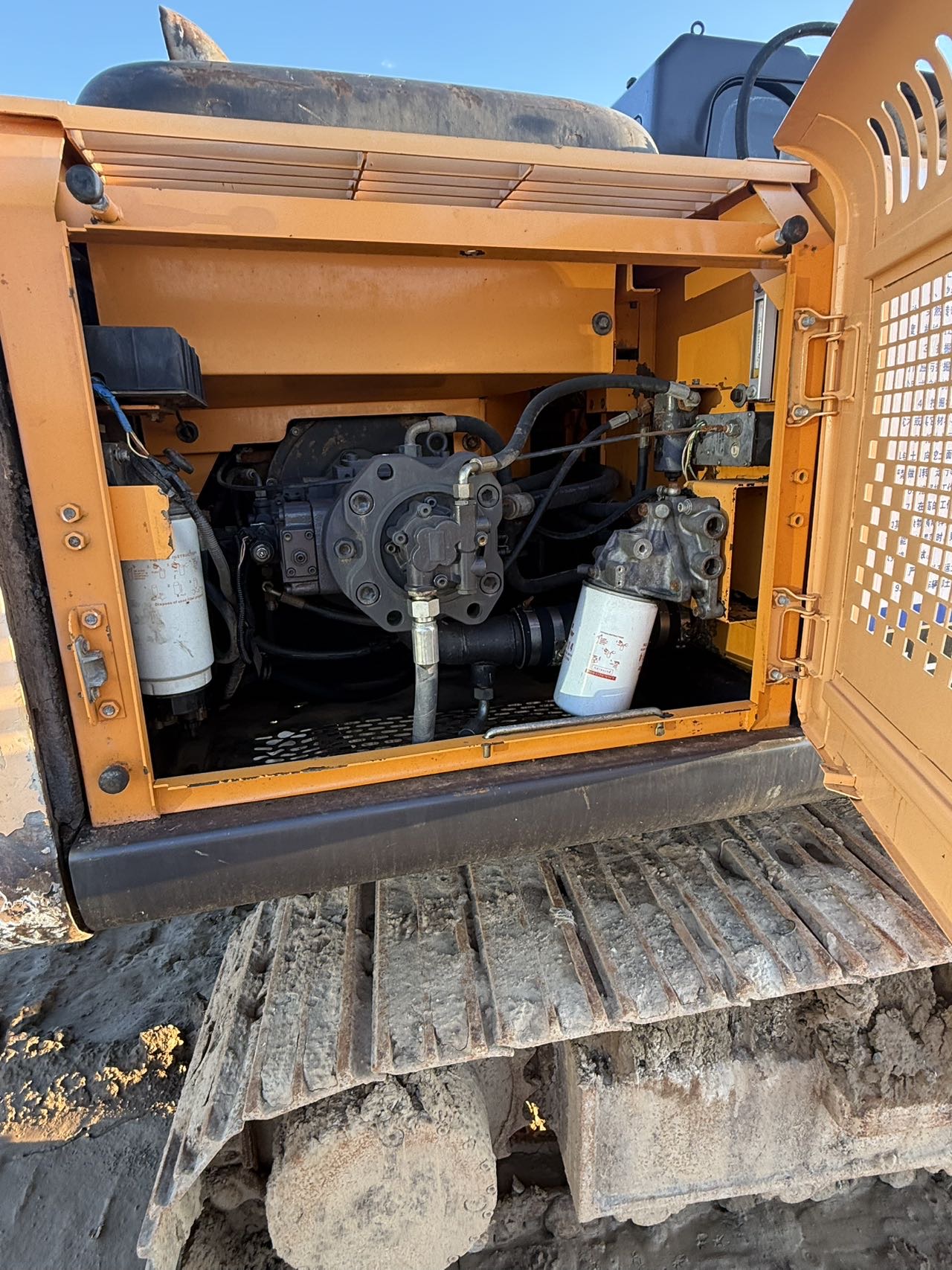

Buy Sany 215C-9 Used Excavator / 7

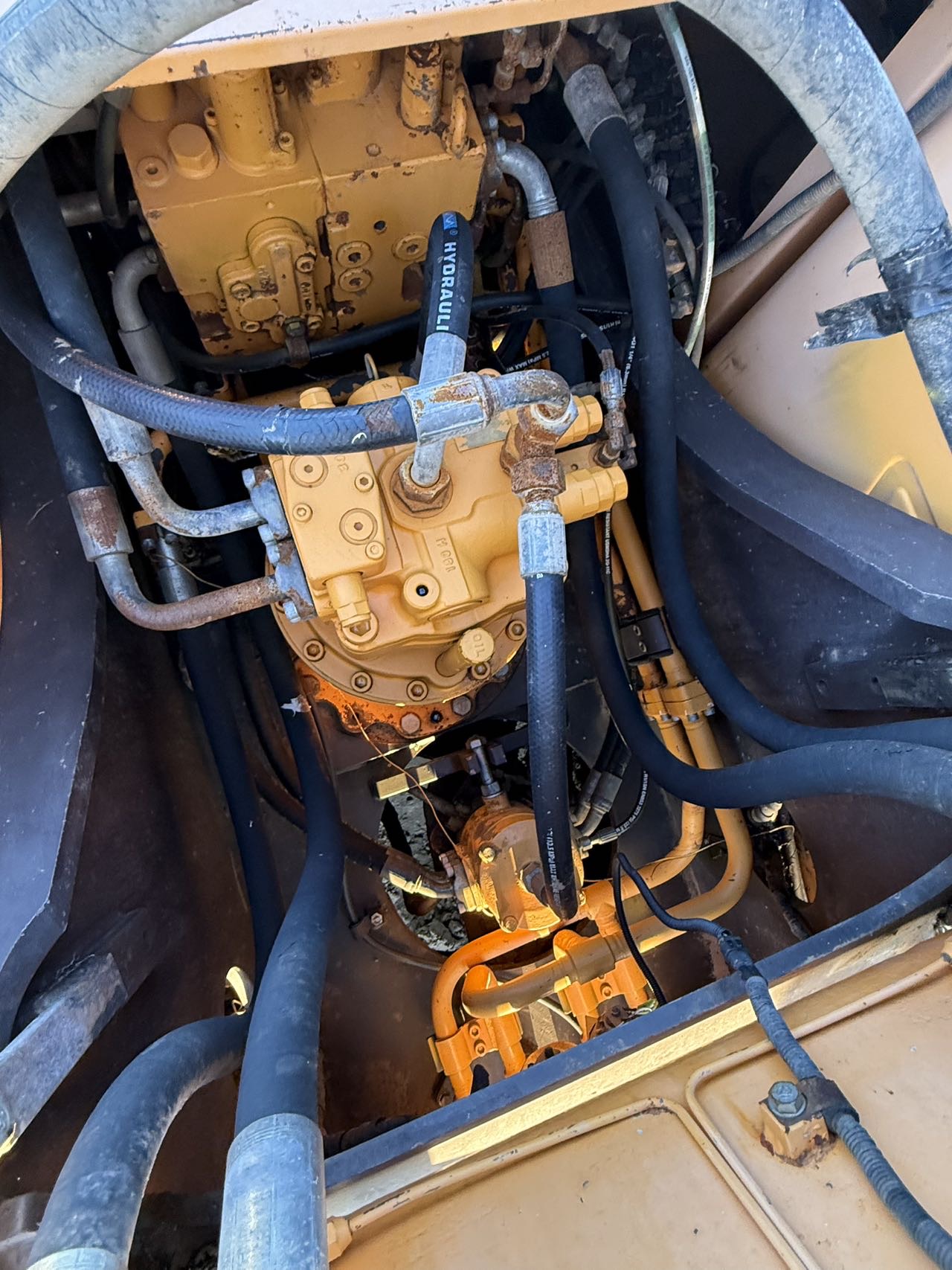

Buy Sany 215C-9 Used Excavator / 8

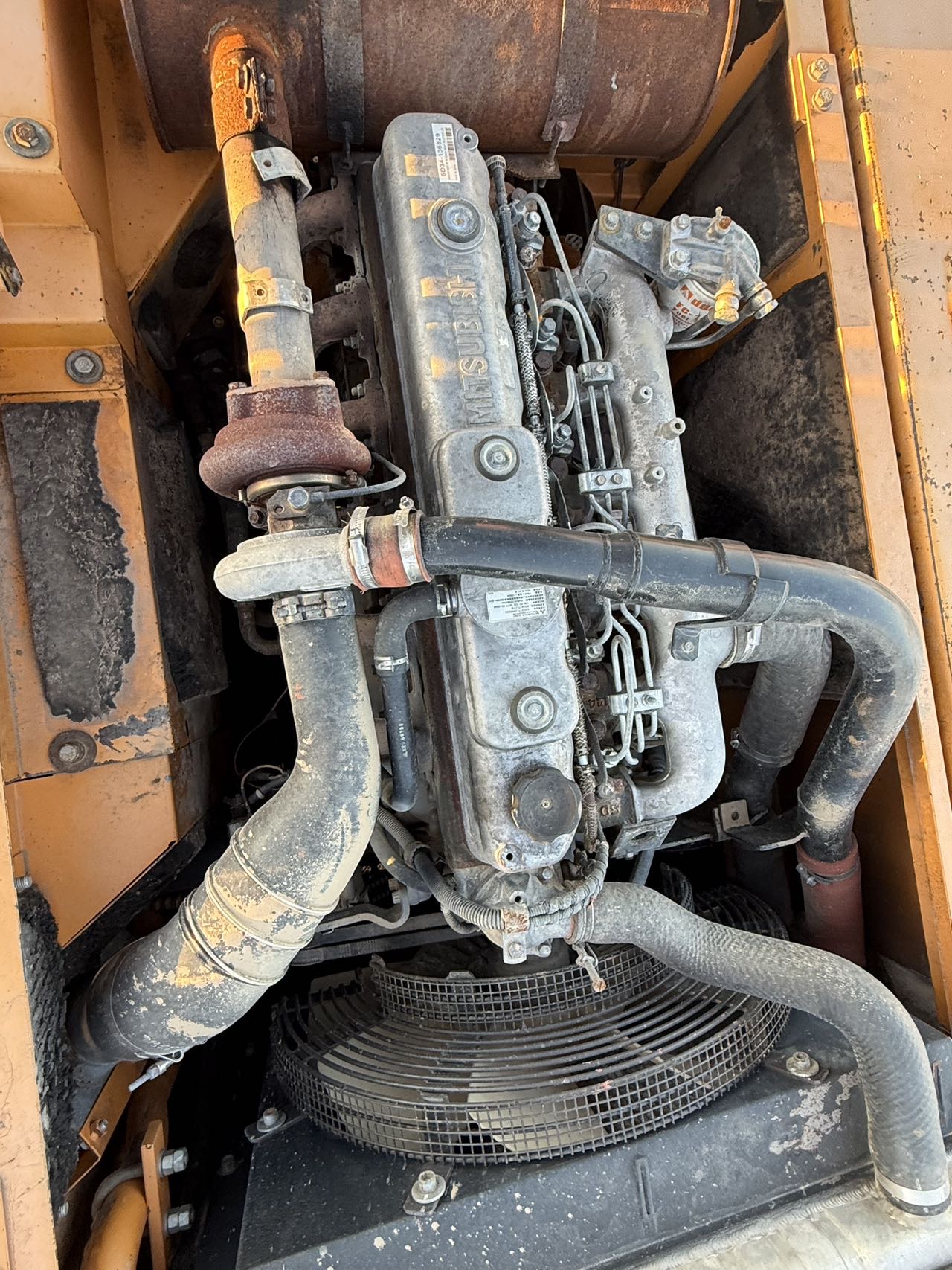

Buy Sany 215C-9 Used Excavator / 9

Product Description

For sale is a 2020 Sany 215C-9 excavator, currently located in Hebei, China. This machine has been actively used on construction sites and is known for its robust performance. The engine delivers ample power, and the hydraulic system functions reliably. Despite some minor dirt from regular use, the core components are well-maintained, ensuring efficient and versatile operation. Ideal for construction companies or individual contractors, this excavator is ready to handle a variety of tasks. Serious inquiries and those interested in viewing the machine are welcome to contact us directly for more details.

  • Year: 2020
  • Brand: Sany
  • Model: 215C-9
  • Location: Hebei, China
SpecificationsValue
No.1135546
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.1135546

Brand Name:

Sany

Model Number:

215C-9

Year:

2020

Location:

Hebei China

Pub Date
