Product Description

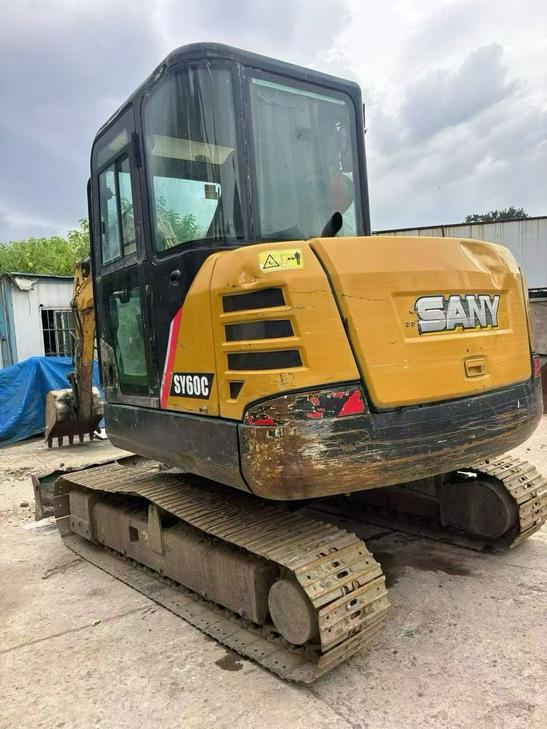

Well-maintained 2020 Sany 60C-9 excavator available for immediate sale from Jiangsu, China. This mid-size crawler excavator was purchased new in 2020 and has been carefully operated throughout its service life. The machine demonstrates excellent working condition with strong operational performance across all systems.
Key highlights include:
- Complete documentation and paperwork in order
- Ready for immediate deployment
- Reliable performance from Sany's proven 6-ton class platform
- Suitable for construction, earthmoving, and utility applications
The Sany 60C-9 series is known for its fuel efficiency, operator comfort, and serviceability. This unit is currently in stock and available for inspection. Contact us for detailed specifications, additional photos, or to arrange a site visit in Jiangsu province.
| Specifications | Value |
|---|---|
| No. | 1161501 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6,000 |
| Bucket capacity (m³) | 0.23 (optional 0.21) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

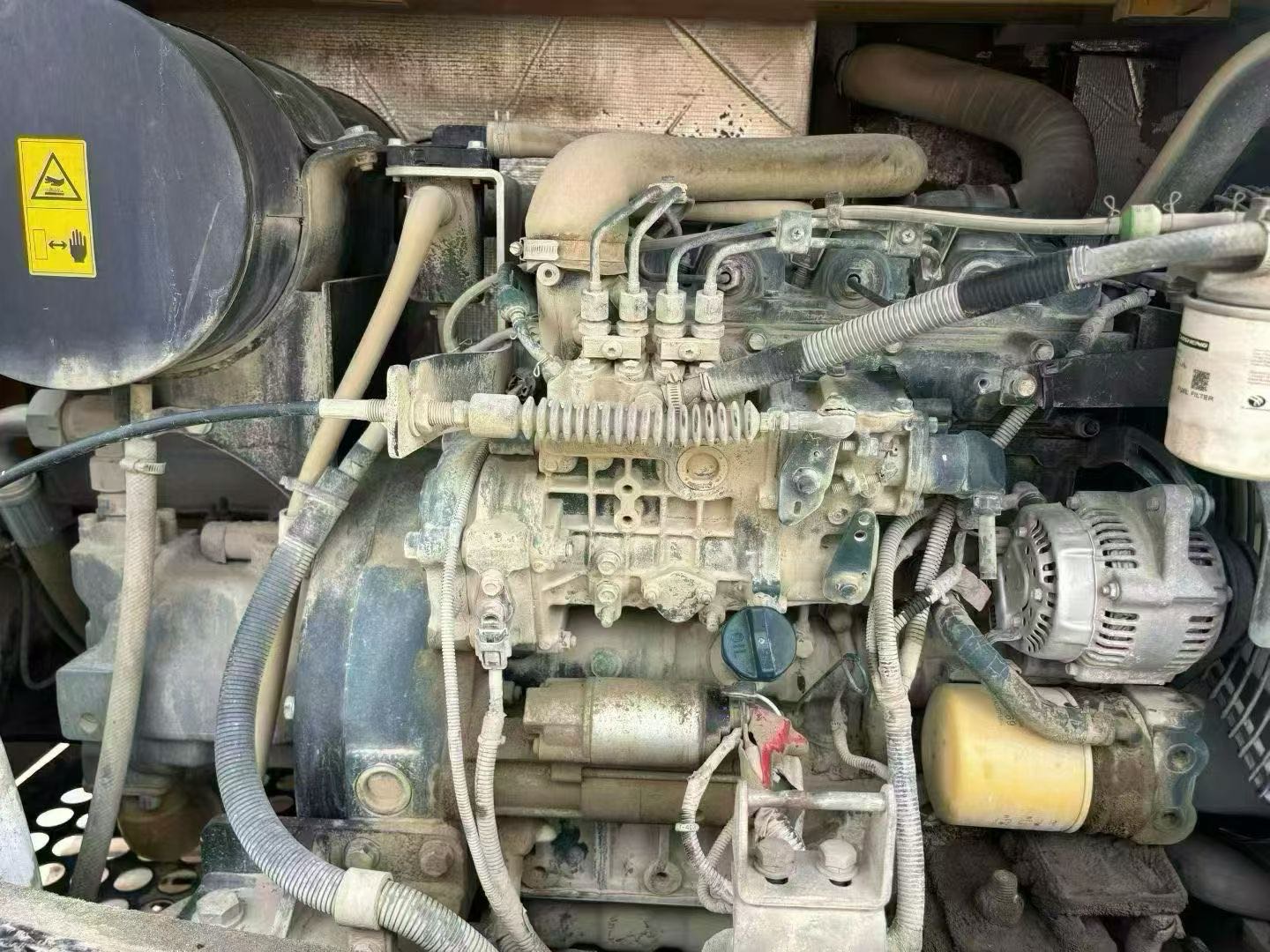

| Engine type | Isuzu 4JG1-NABGB-04-C2 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4-cylinder |
| Displacement (L) | 3.059 |
| Working form | Four cylinder, four stroke, direct injection engine |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 2555 |
| Back end turning radius (mm) | 1640 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Height 400 |
