Product Description

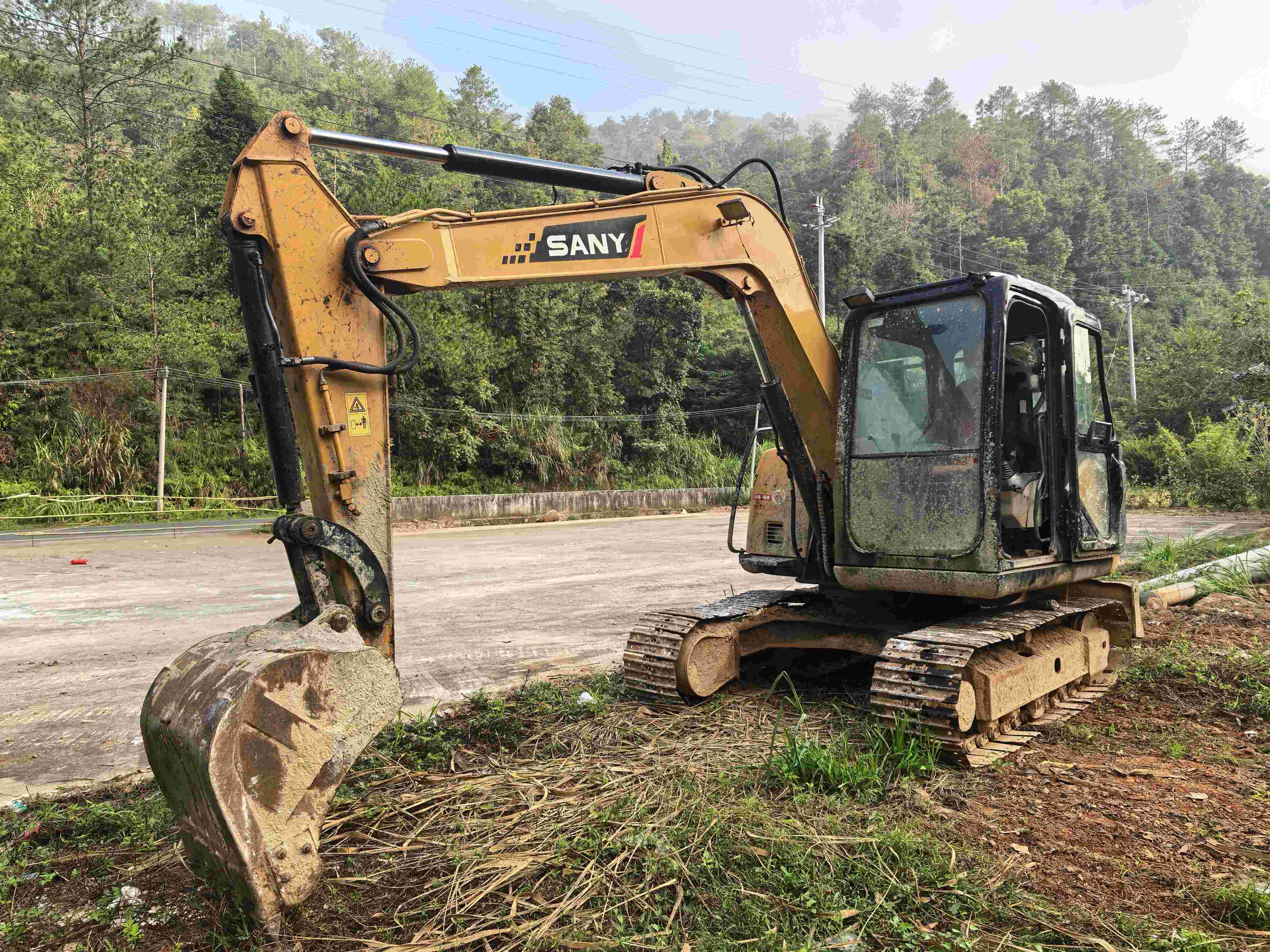

Well-maintained 2012 Sany 75C-9 excavator available in Guangdong, China. This first-owner machine underwent comprehensive servicing less than two weeks ago and is ready for immediate deployment. The unit features a reliable Isuzu engine in good working condition with clean engine and hydraulic systems throughout.
- Operating weight class: 7.5 tonnes
- Track width: 2.2 meters
- Pin-to-center distance: 310mm
- Boom opening: 200mm
- Pin diameter: 50mm (both pins)
- Engine: Isuzu diesel
- Recent full service completed
- Single owner since new
Inspection and test operation available on-site in Meizhou. Machine shows consistent maintenance history and operational readiness. Suitable for contractors seeking dependable mid-size excavation equipment with verified service records.
| Specifications | Value |
|---|---|
| No. | 1162032 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.28 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-4JG1PAC |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke direct injection diesel engine |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1720 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | Lift 350/ depth 360 |
| Dodging plate width × height (mm) | Altitude 405 |
