Product Description

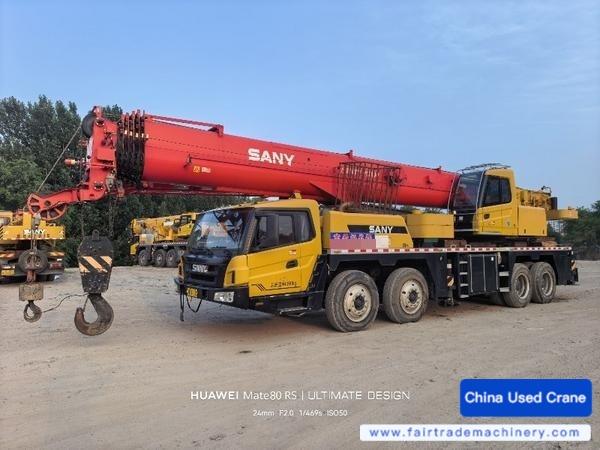

This 2022 Sany STC550T truck crane represents an exceptional opportunity for contractors seeking reliable lifting capacity. Originally manufactured in 2021 and registered in June 2022, this single-owner unit from Tangshan demonstrates minimal operational use and careful maintenance.
Key specifications include:
- Lifting capacity: 55 tons
- Main boom length: 52 meters
- Counterweight: 10.5 tons
- Single owner, complete service history
- Currently located in Hebei, China
The STC550T is engineered for demanding construction and industrial applications, offering excellent reach and stability. This well-maintained crane is competitively priced for immediate sale. Serious buyers with clear understanding of specifications are encouraged to contact us directly for transaction details.
| Specifications | Value |
|---|---|
| No. | 1121516 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51000 |
| Bucket capacity (m³) | 3.1-3.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 300/1800 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.4/3.1 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 560 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum digging radius (mm) | 12841 (broken) |
| Maximum digging depth (mm) | 8077 (broken) |
| Maximum excavation height (mm) | 12279 (broken) |
| Maximum excavation radius of stop surface (mm) | 10655 (broken) |
