2021 Sany SY135C

1/9
Buy Sany SY135C Used Excavator / 1
Buy Sany SY135C Used Excavator / 2
Buy Sany SY135C Used Excavator / 3
Buy Sany SY135C Used Excavator / 4
Buy Sany SY135C Used Excavator / 5
Buy Sany SY135C Used Excavator / 6
Buy Sany SY135C Used Excavator / 7
Buy Sany SY135C Used Excavator / 8
Buy Sany SY135C Used Excavator / 9

Product Description

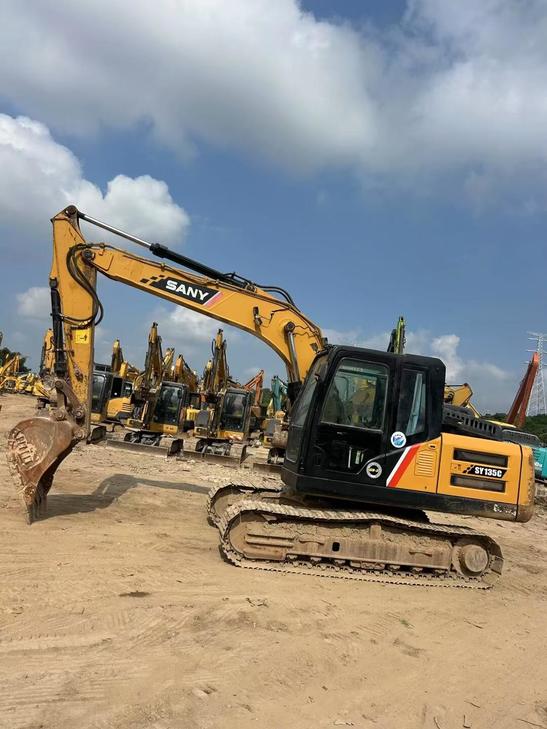

This 2021 Sany SY135C excavator offers proven reliability with 8,500 operational hours logged. Located in Guangdong, China, this 13.5-ton class machine is work-ready and cleared for immediate deployment to your job site. The SY135C features Sany's robust hydraulic system and fuel-efficient design, making it suitable for earthmoving, trenching, and general construction applications.

  • Year: 2021
  • Model: Sany SY135C

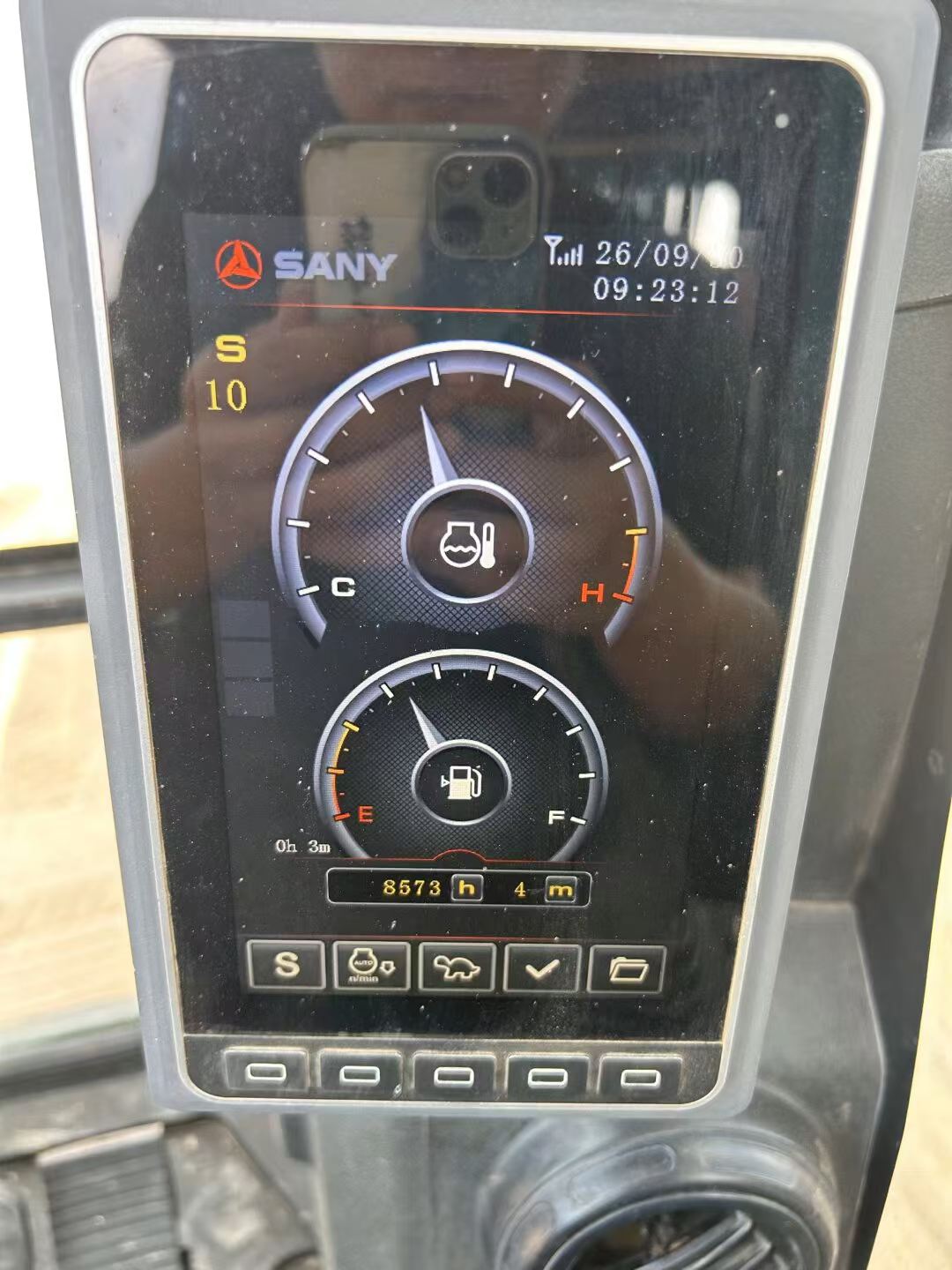

  • Hours: 8,500
  • Location: Guangdong, China
  • Condition: Performance verified, site-ready
  • Operating Weight: Approximately 13.5 tons

This unit has been maintained according to operational standards and is priced competitively within the mid-tier market range. The SY135C's compact footprint and powerful digging force make it versatile for urban construction and infrastructure projects. Inspection reports available upon request.

SpecificationsValue
No.1161794
Tonnage (tons)13
Working weight (kg)13500
Bucket capacity (m³)0.22-0.7 (0.6)
powerTraditional power
manufacturerMade in China
bucketbackhoe

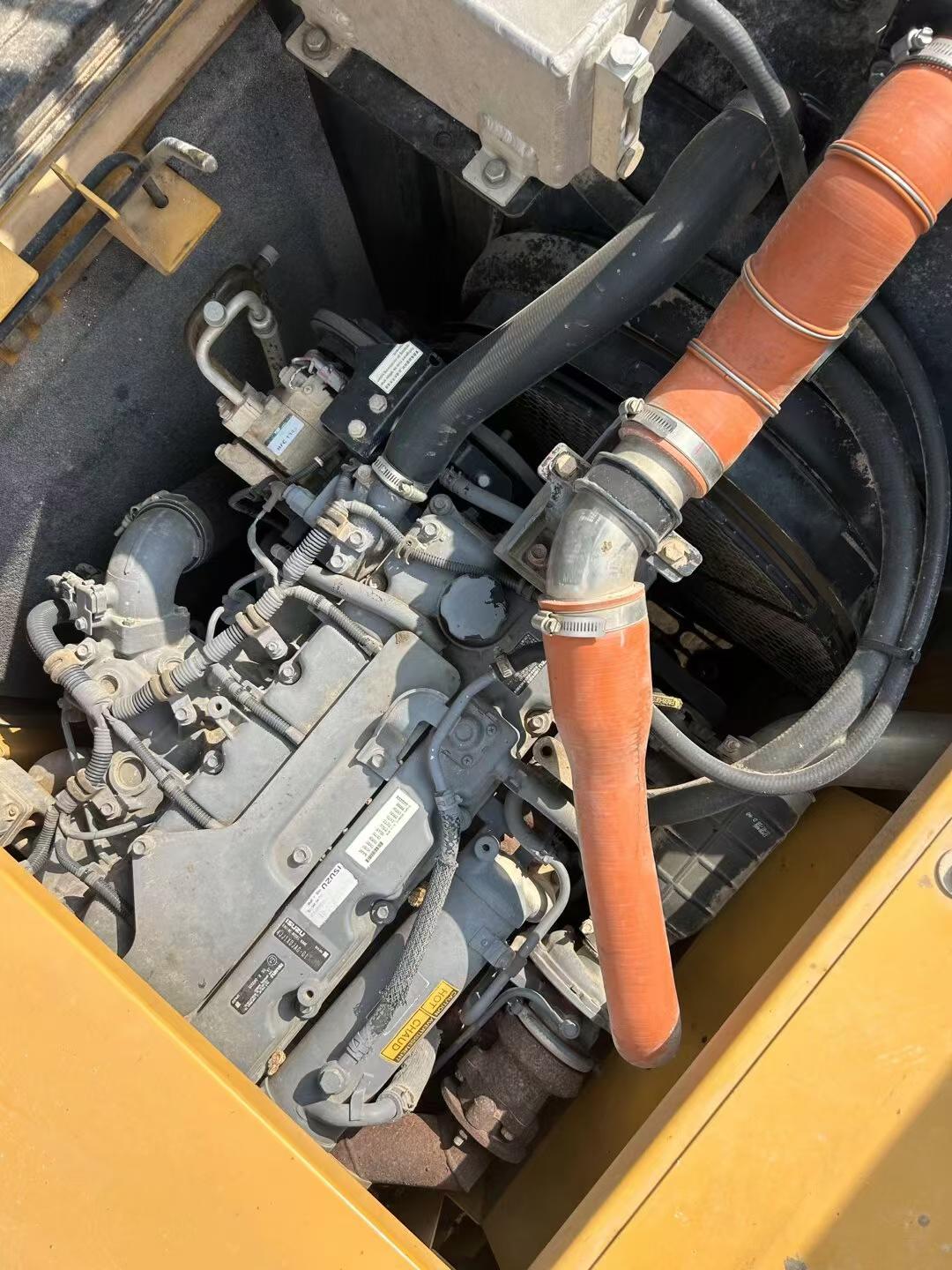

Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)12
Climbing ability (%)70% (35°)
Bucket digging force (kN)92.7
Rod digging force (kN)66.13
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7700
Total transport width (mm)2550
Total transport height (mm)2815
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2500
Back end turning radius (mm)2240
Onboard width (mm)2490
Total track length (mm)3665
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2930
Maximum height at minimum turning radius (mm)6500
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)44
Maximum digging radius (mm)8290
Maximum digging depth (mm)5510
Maximum excavation height (mm)8685
Maximum unloading height (mm)6180
Maximum vertical digging depth (mm)4890
see more

Overview

No.1161794

Brand Name:

Sany

Model Number:

SY135C

Year:

2021

Location:

Guangdong China

Pub Date:
