2014 Sany SY195C

1/9

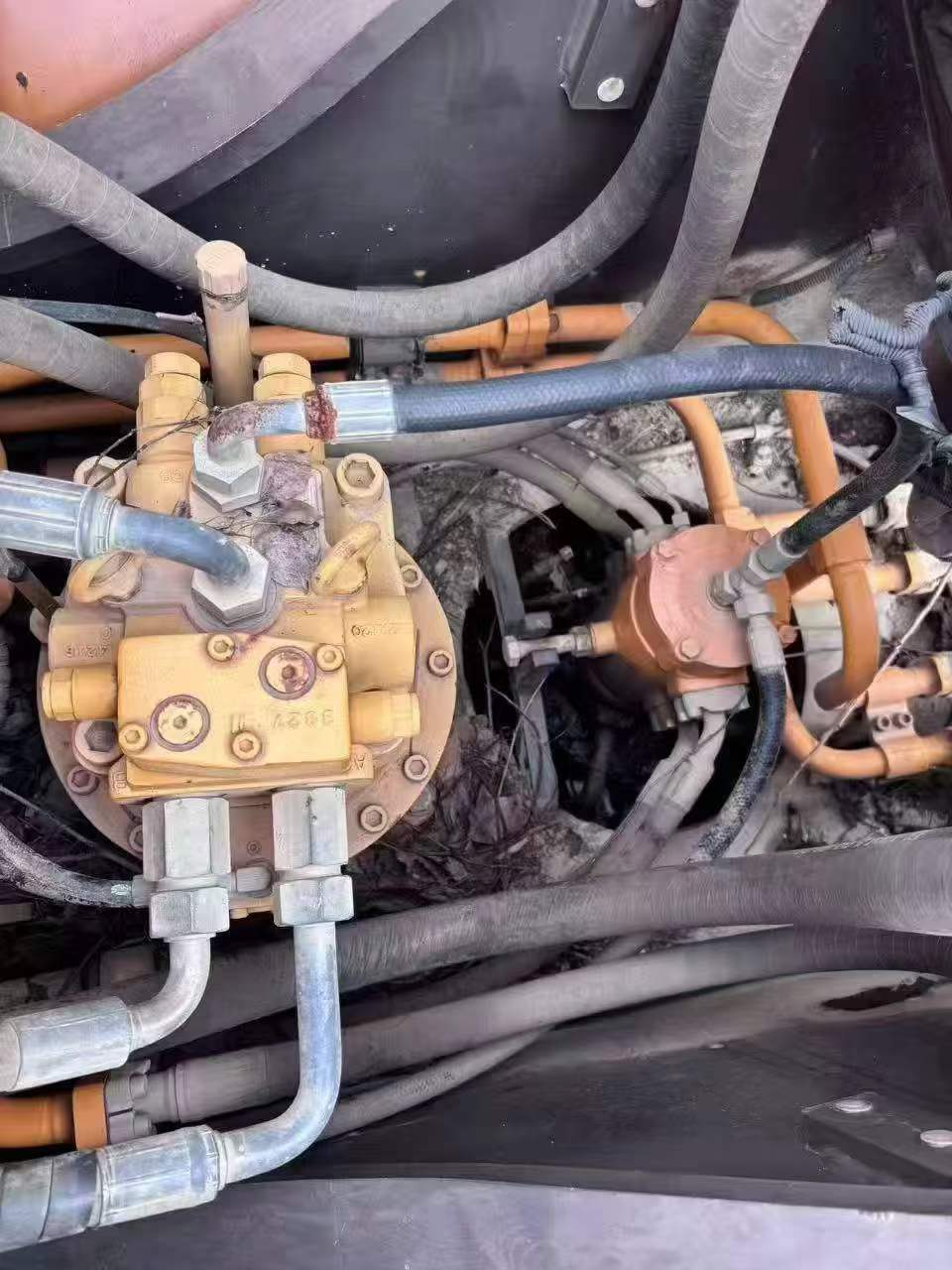

Buy Sany SY195C Used Excavator / 1

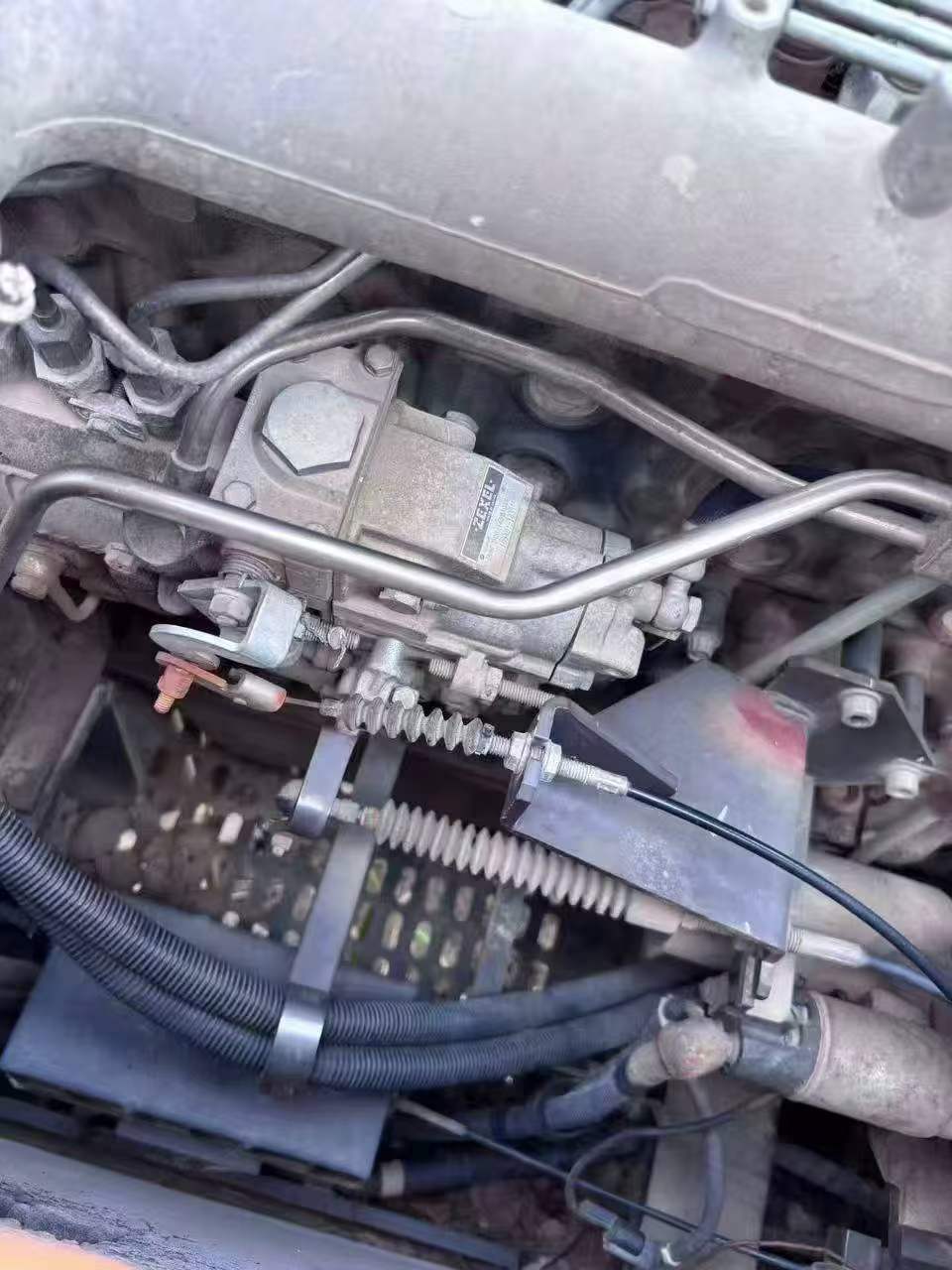

Buy Sany SY195C Used Excavator / 2

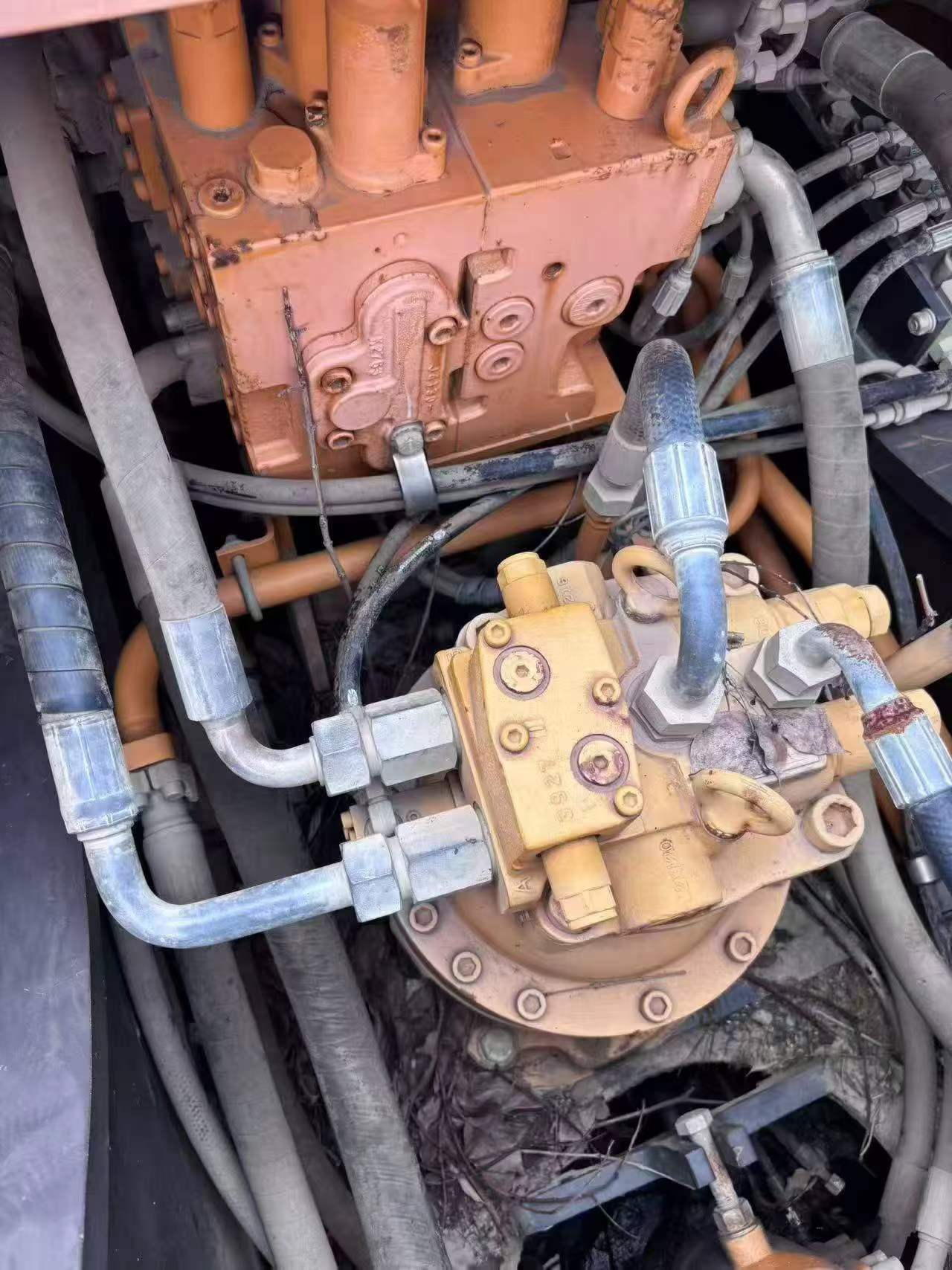

Buy Sany SY195C Used Excavator / 3
Buy Sany SY195C Used Excavator / 4

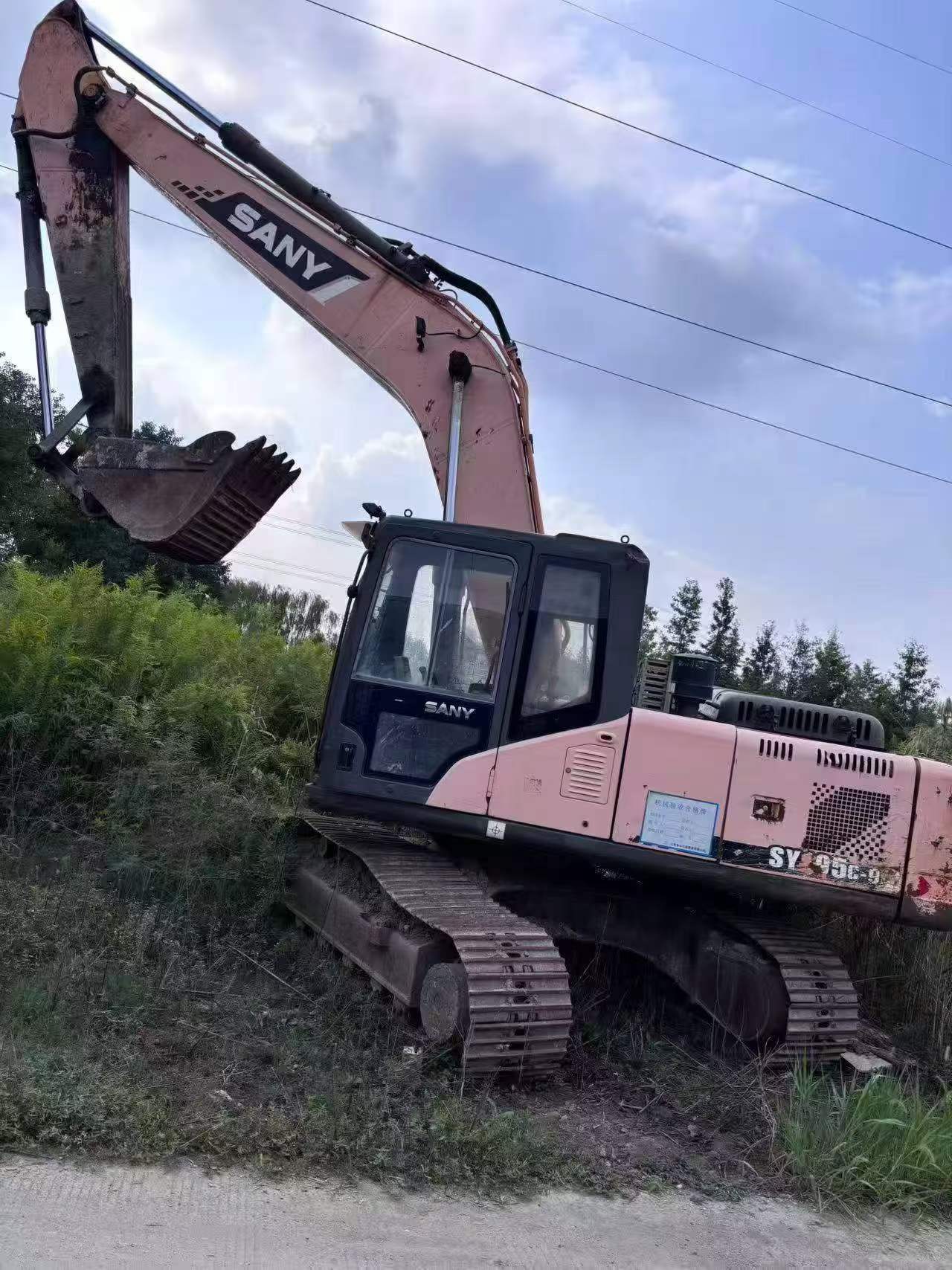

Buy Sany SY195C Used Excavator / 5

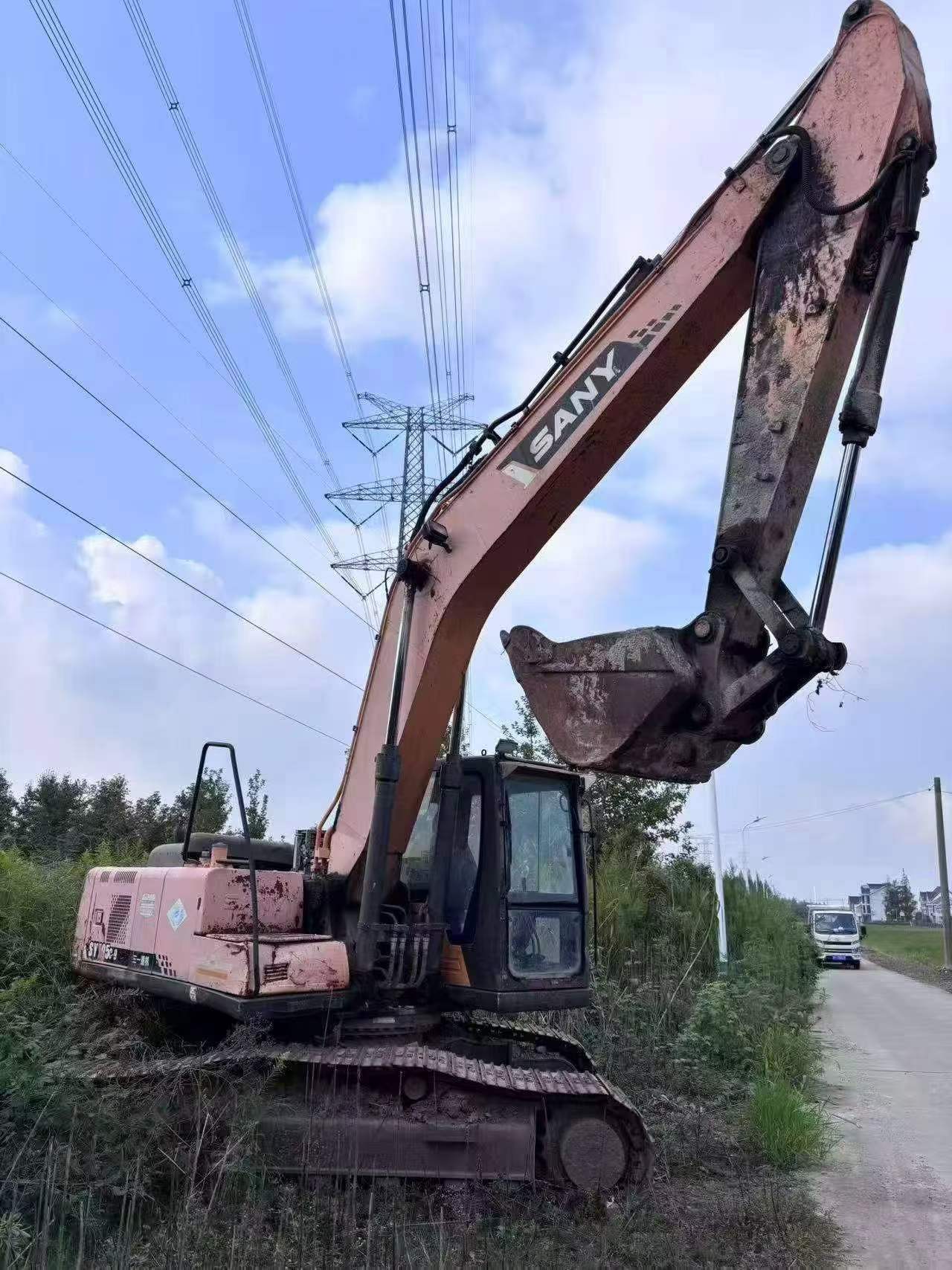

Buy Sany SY195C Used Excavator / 6

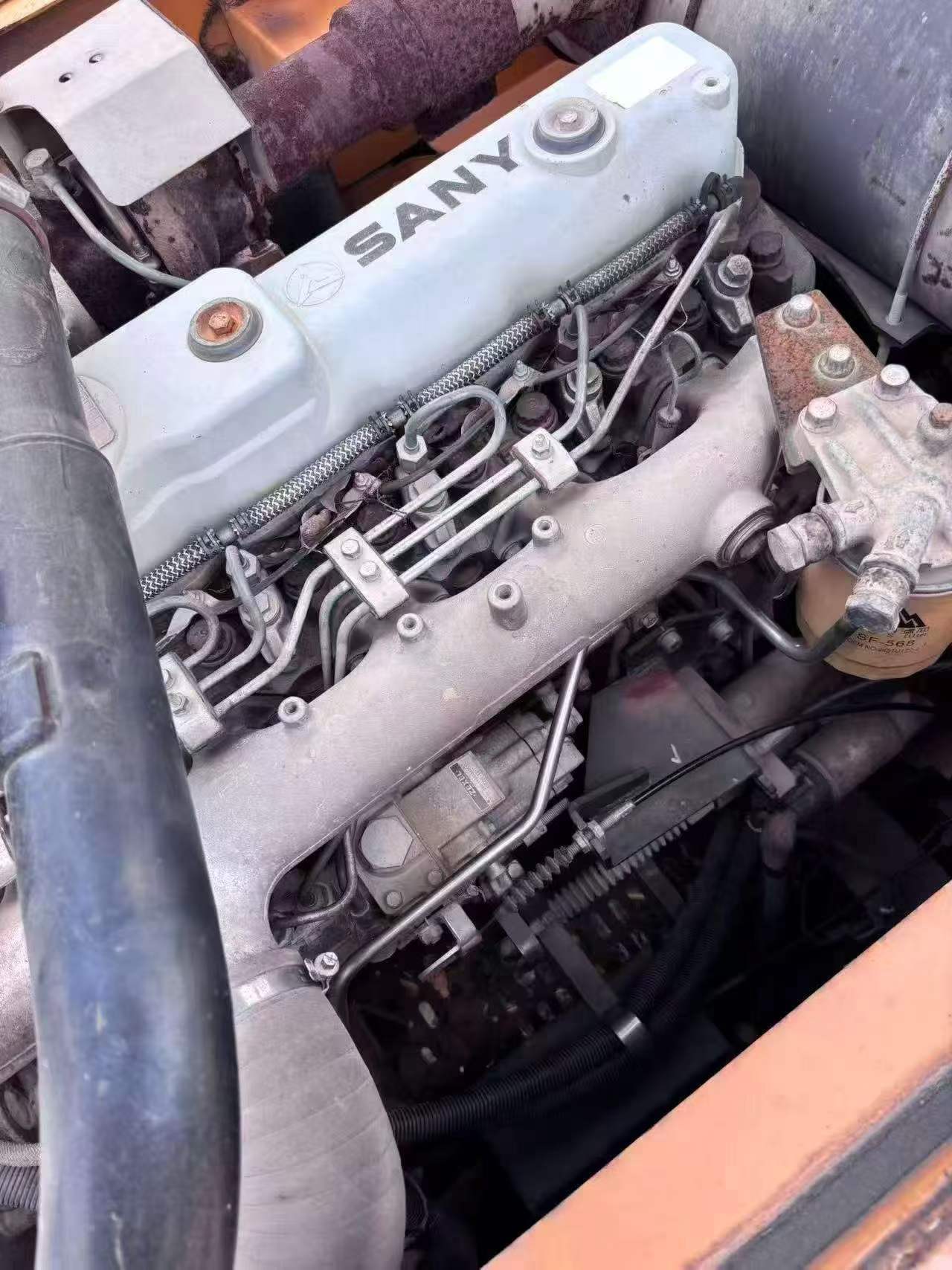

Buy Sany SY195C Used Excavator / 7

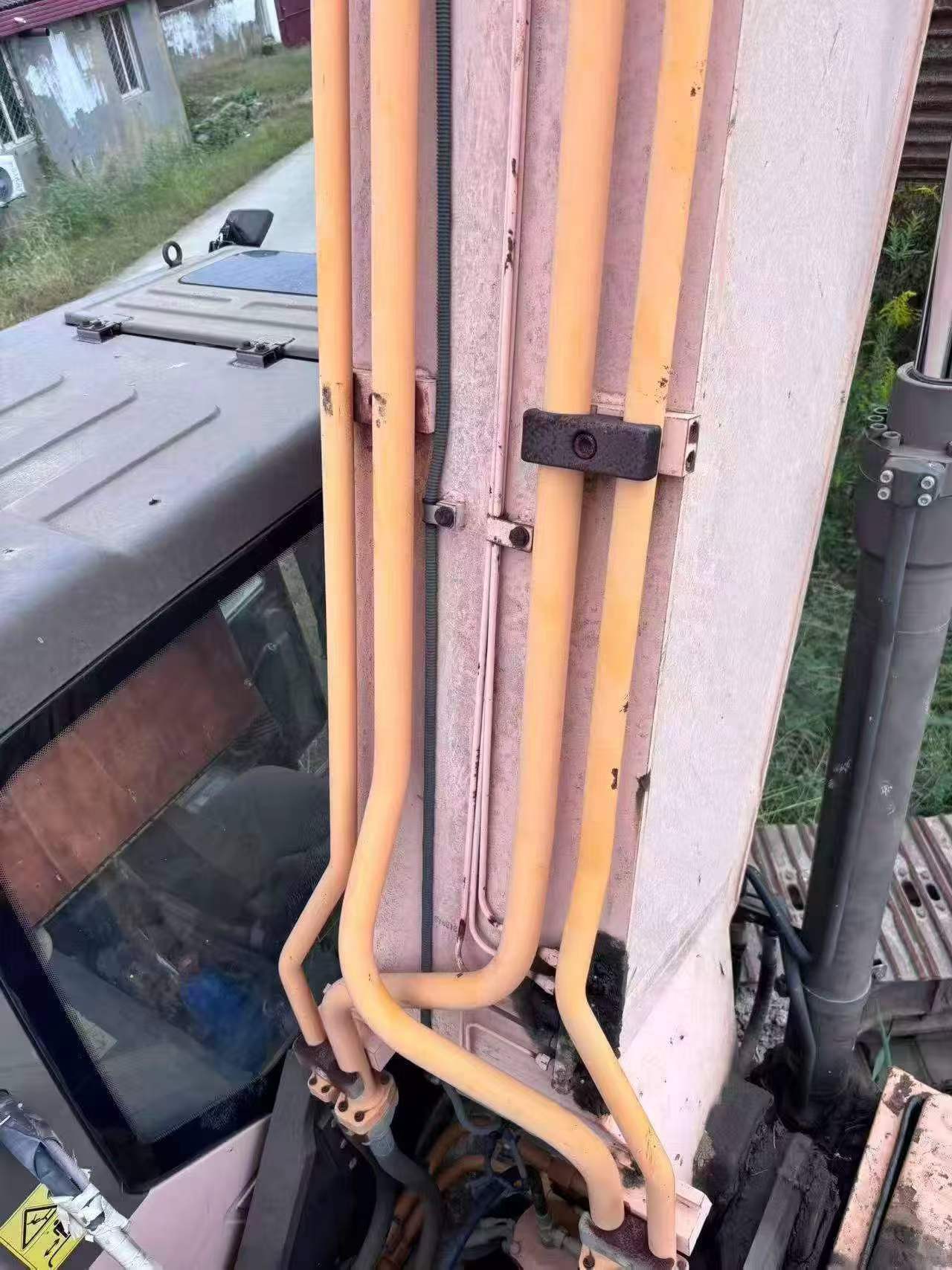

Buy Sany SY195C Used Excavator / 8

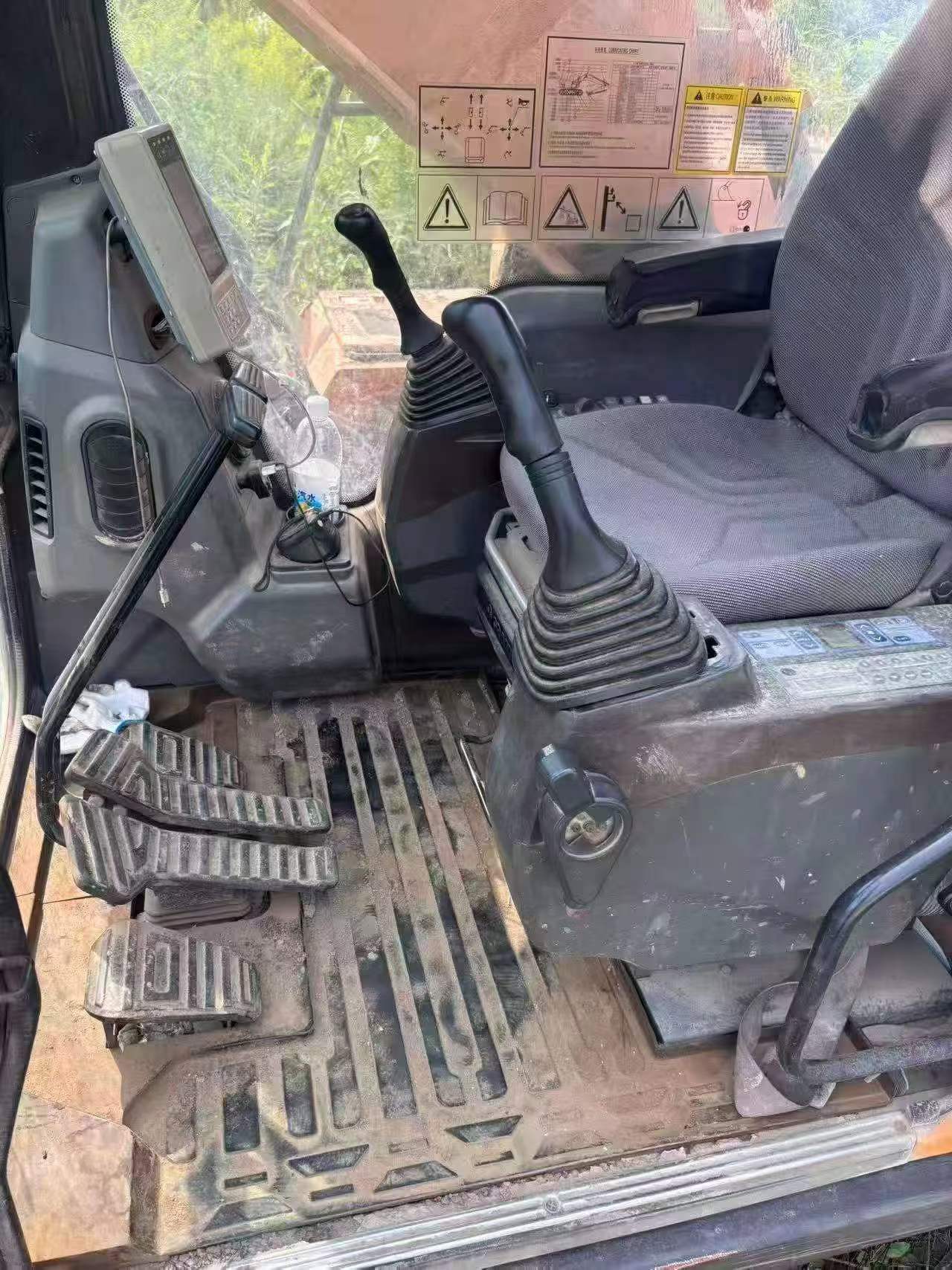

Buy Sany SY195C Used Excavator / 9

Product Description

This 2014 Sany SY195C hydraulic excavator represents a solid mid-size solution for contractors seeking reliable performance at competitive pricing. Sourced from Zhejiang, China, this machine has been maintained in exceptional condition and demonstrates the fuel efficiency that defines the SY195C platform.

The SY195C series is engineered for durability in demanding applications including earthmoving, trenching, and site development. Sany's reputation for building robust undercarriages and hydraulic systems makes this model a cost-effective choice for operations prioritizing uptime and low operational costs.

  • Year: 2014
  • Model: Sany SY195C
  • Operating Weight Class: ~19.5 tonnes
  • Location: Zhejiang, China
  • Condition: Well-maintained
  • Key Advantage: Fuel-efficient operation

Inspection and shipping arrangements available upon request. Suitable for export or domestic deployment.

SpecificationsValue
No.1161576
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
