Product Description

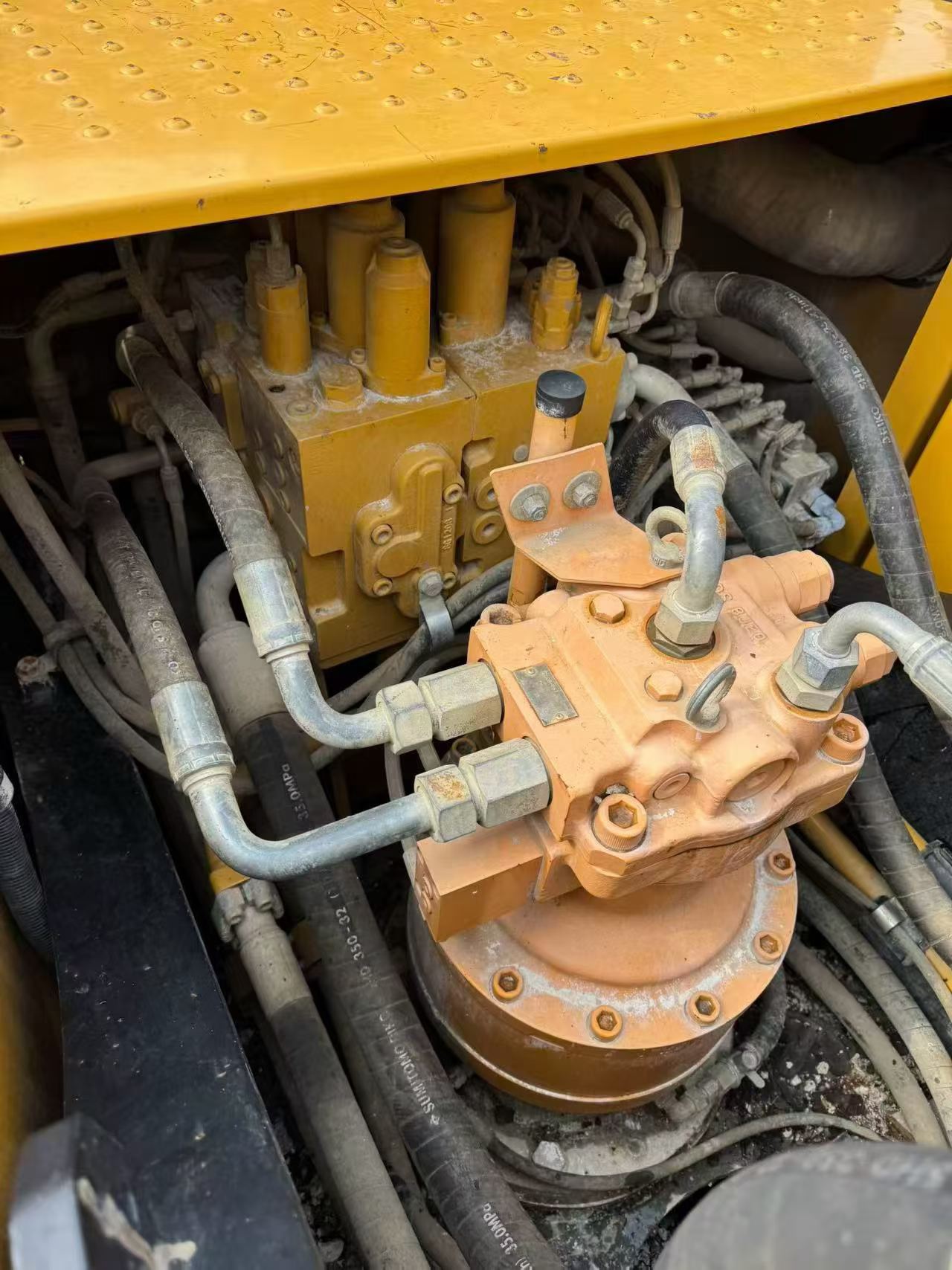

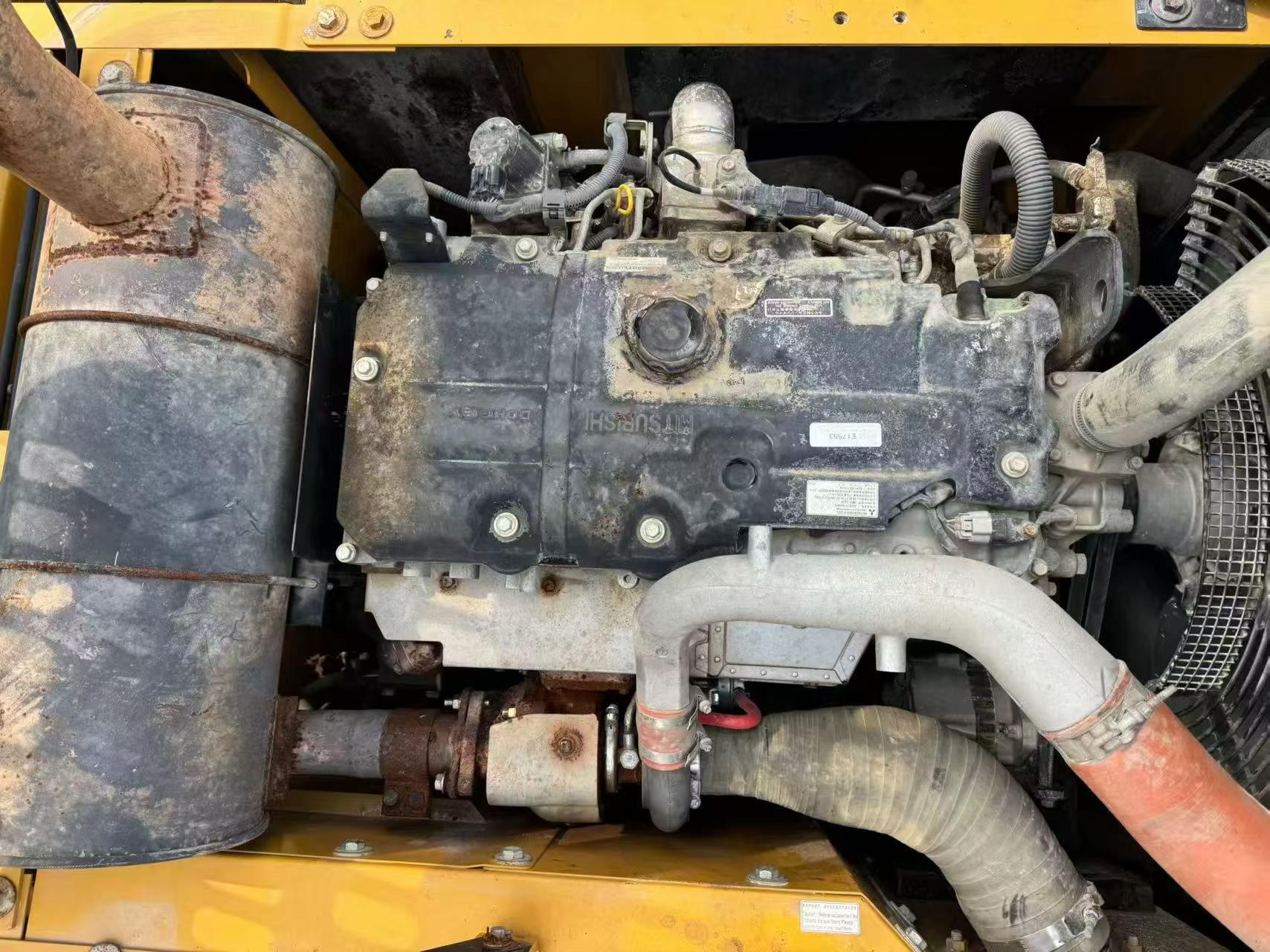

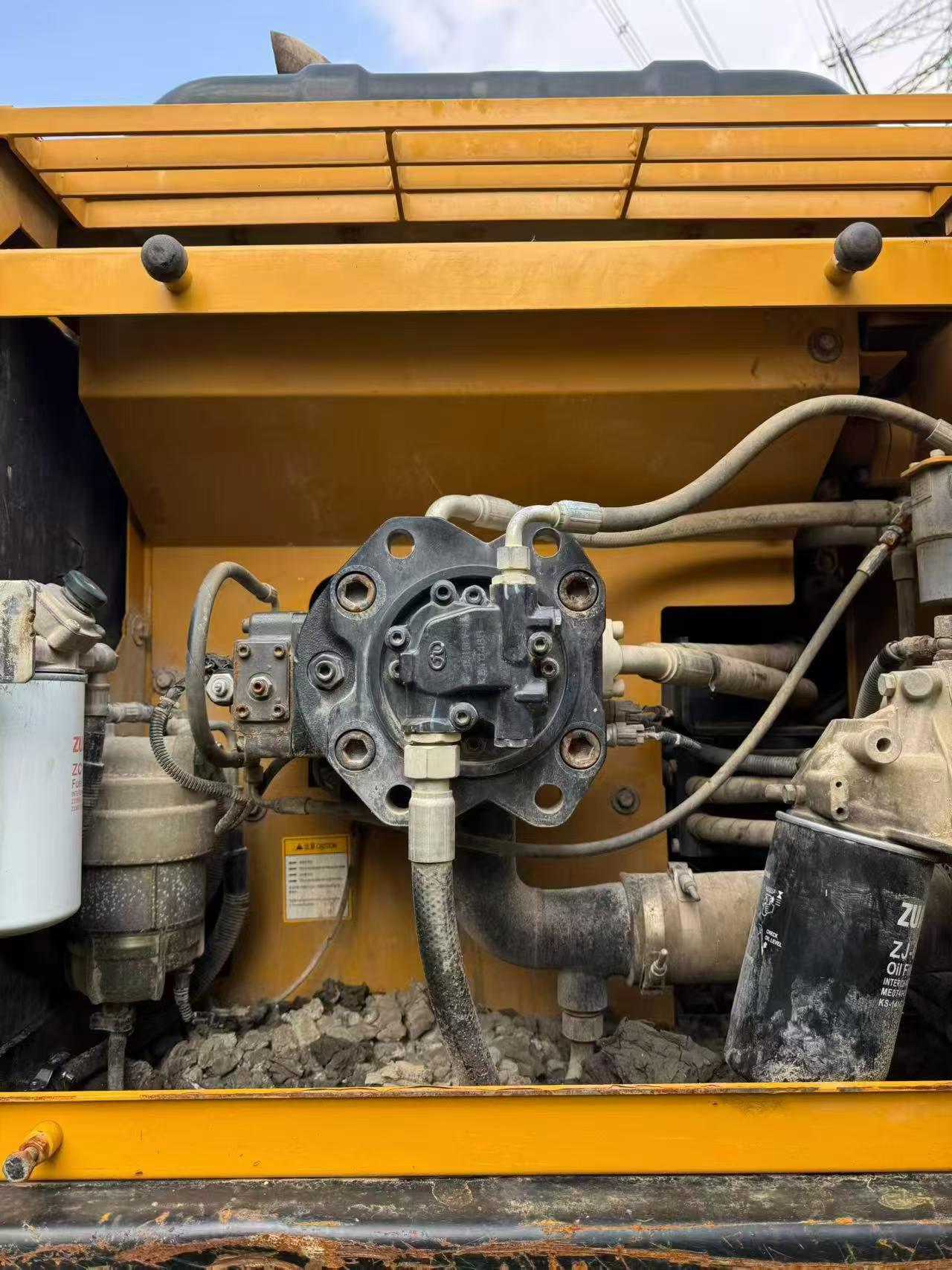

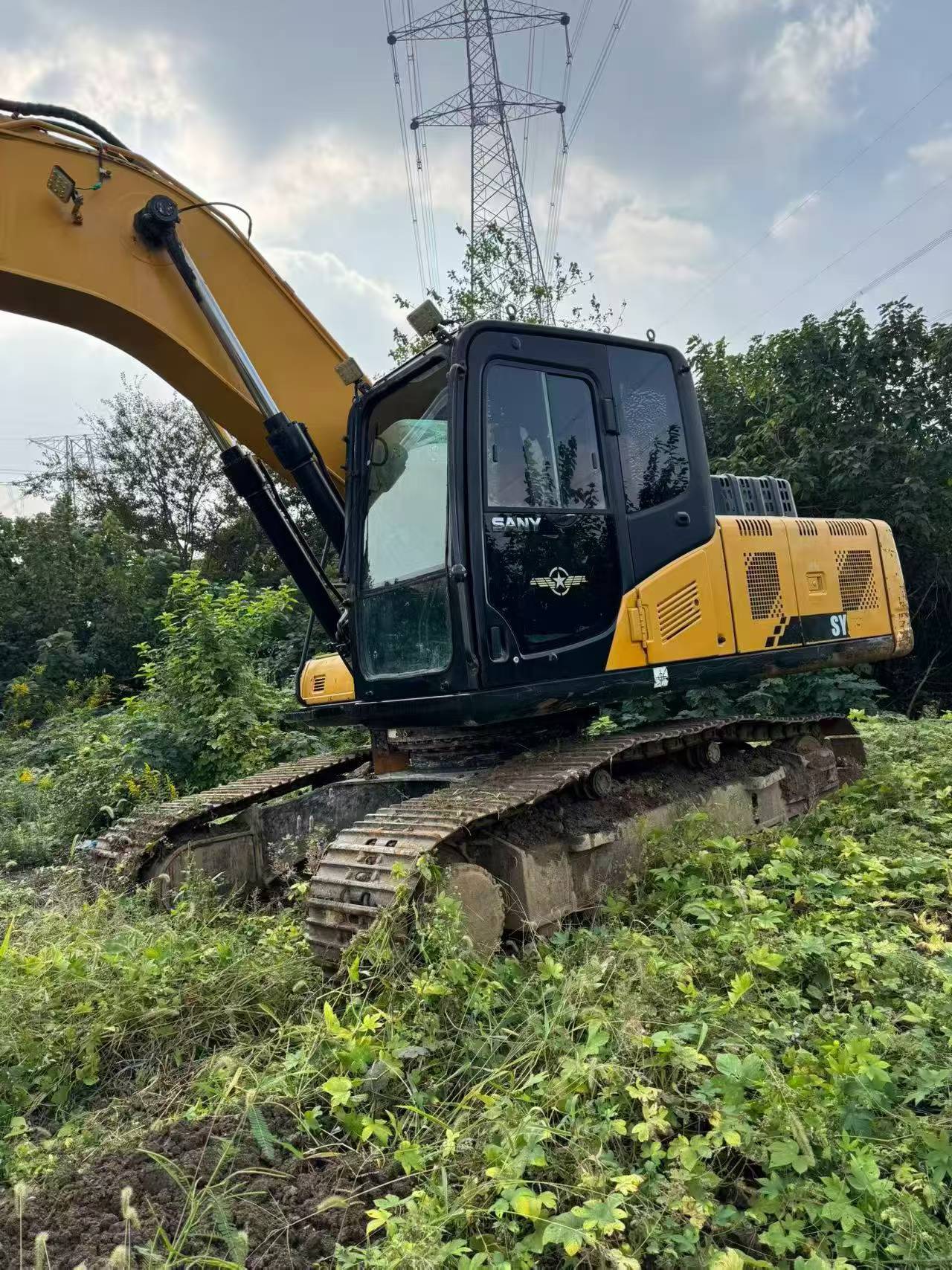

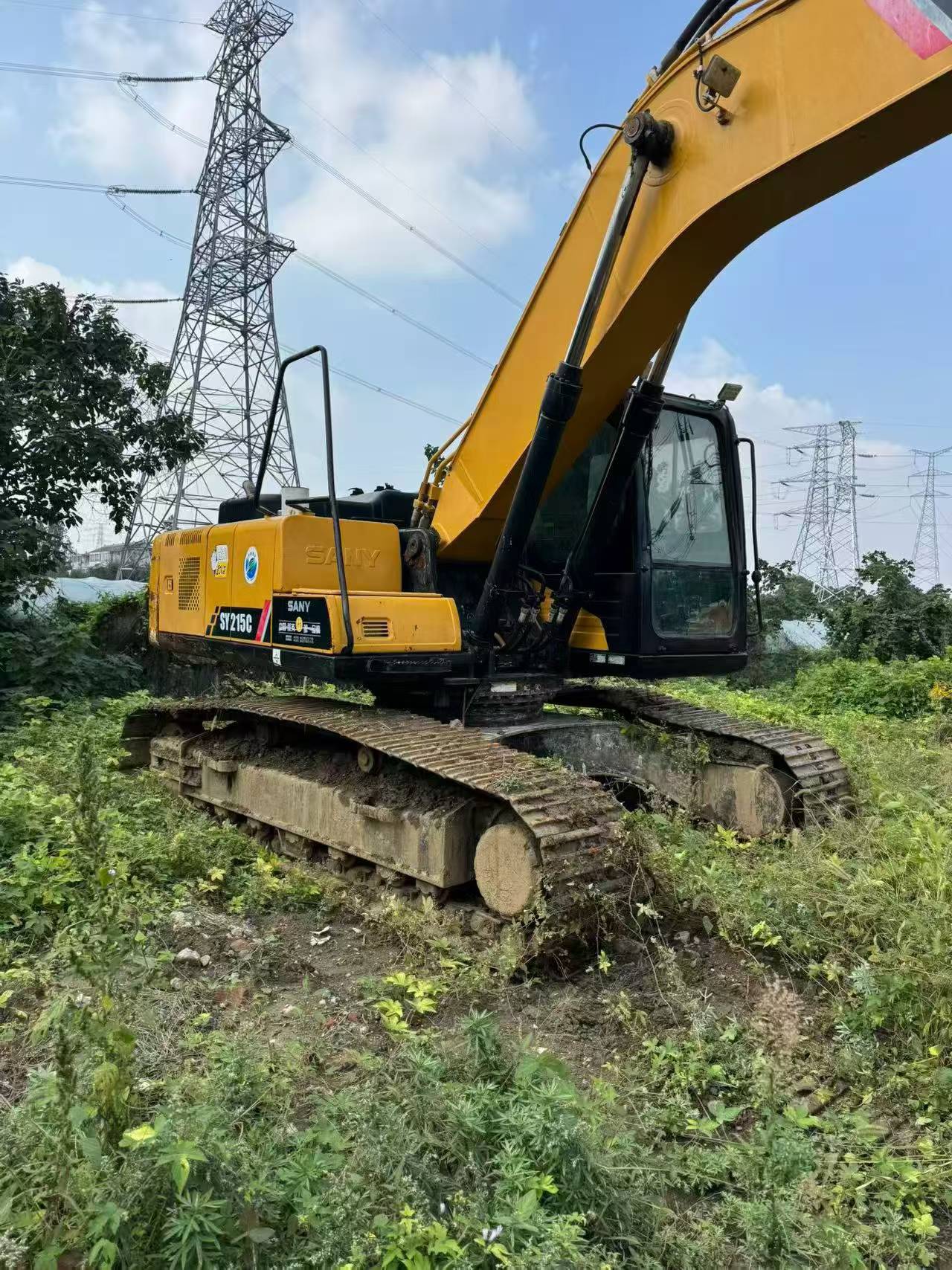

This 2019 Sany SY195C excavator from Jiangsu, China delivers reliable performance for earthmoving operations. Purchased in late 2019, this machine features original factory configuration optimized for soil excavation work. The core components—engine, hydraulic system, and drivetrain—remain in their original condition with no oil leaks, ensuring dependable operation and reduced maintenance concerns.
- Year: 2019 (Late production)
- Brand: Sany
- Model: SY195C
- Application: Earthmoving and excavation
- Condition: Original specification, well-maintained major components
- Location: Jiangsu Province, China
This mid-sized crawler excavator offers strong value for contractors seeking proven Sany quality at competitive pricing. Suitable for construction sites, land development, and general excavation projects requiring a 19-ton class machine.
| Specifications | Value |
|---|---|
| No. | 1168581 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
