Product Description
Engineered with precision, this 2021 Sany SY195C mid-size excavator delivers 118kW of rated power through its robust 4M50 engine, generating 580N·m of maximum torque at 1,600rpm. Operating at 20,900kg working weight, this 19-ton machine combines a 4.9L displacement powerplant with advanced hydraulic systems to produce 138kN bucket digging force and 103kN arm digging force—specifications that define reliable performance in demanding excavation environments.
- Hydraulic Performance: 0.95m³ bucket capacity with 10,280mm maximum digging reach and 6,600mm digging depth

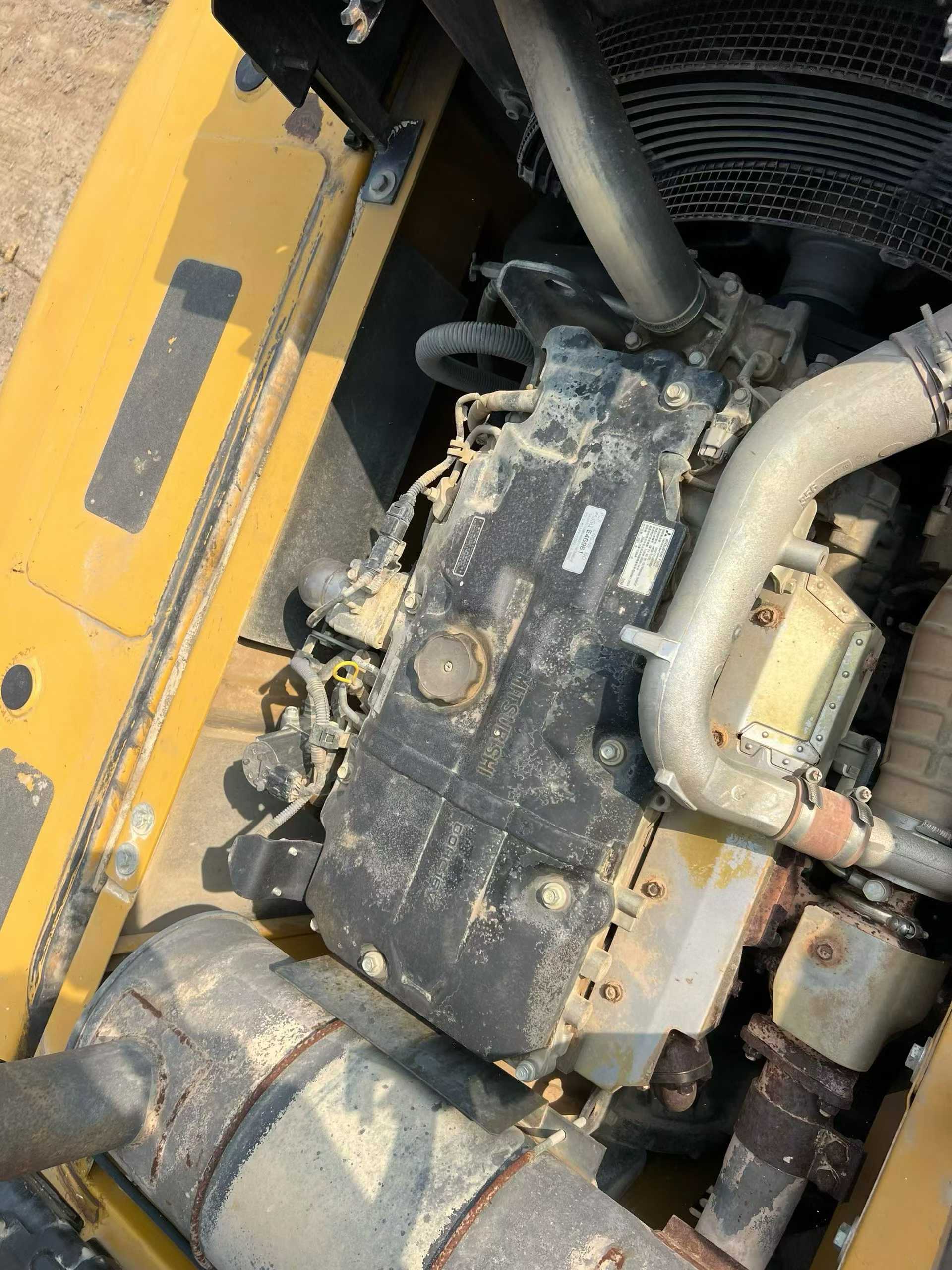

- Engine: 4M50 diesel unit rated at 118kW/2000rpm with 580N·m peak torque
- Operational Capacity: 340L fuel tank, 239L hydraulic reservoir supporting extended work cycles
- Mobility: 70% gradeability (35°), 600mm track plates, 47.3kPa ground pressure for stable operation
- Location: Currently situated in Wuxi, Jiangsu, China
Built in China under Sany's manufacturing standards, this SY195C represents proven mid-range excavator engineering with documented technical specifications suited for construction, mining, and civil works applicati
| Specifications | Value |
|---|---|
| No. | 1011557 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
