2018 Sany SY195C-9

1/9
Buy Sany SY195C-9 Used Excavator / 1
Buy Sany SY195C-9 Used Excavator / 2
Buy Sany SY195C-9 Used Excavator / 3
Buy Sany SY195C-9 Used Excavator / 4
Buy Sany SY195C-9 Used Excavator / 5
Buy Sany SY195C-9 Used Excavator / 6

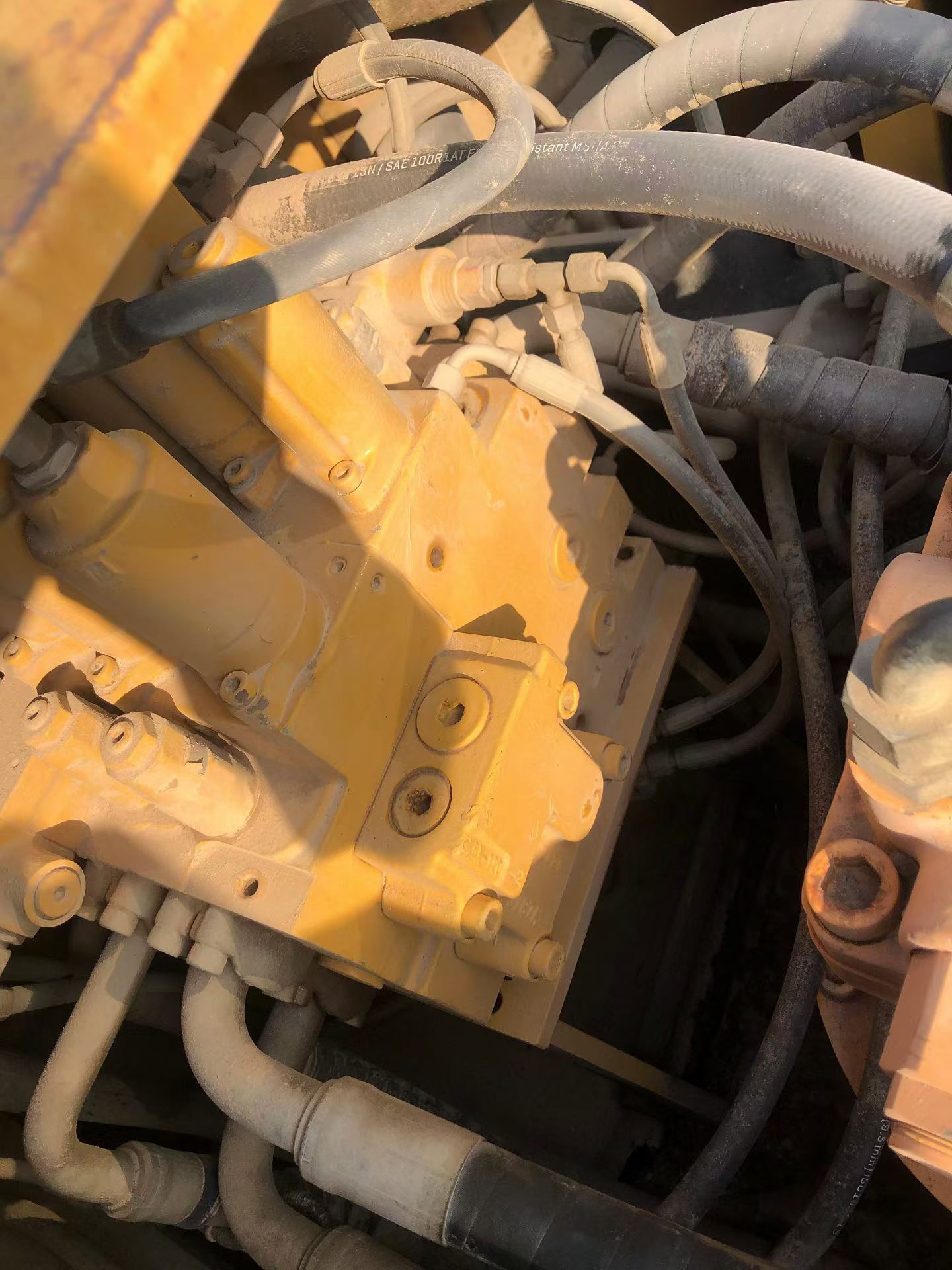

Buy Sany SY195C-9 Used Excavator / 7
Buy Sany SY195C-9 Used Excavator / 8
Buy Sany SY195C-9 Used Excavator / 9

Product Description

This 2018 Sany SY195C-9 excavator represents excellent value in the mid-size class. Sourced from Hunan, China, this machine features the high-specification Kawasaki hydraulic system known for responsive controls and fuel efficiency. The unit has been primarily utilized for earthmoving applications and shows well-maintained major components with no hydraulic leaks reported.

Key highlights include:

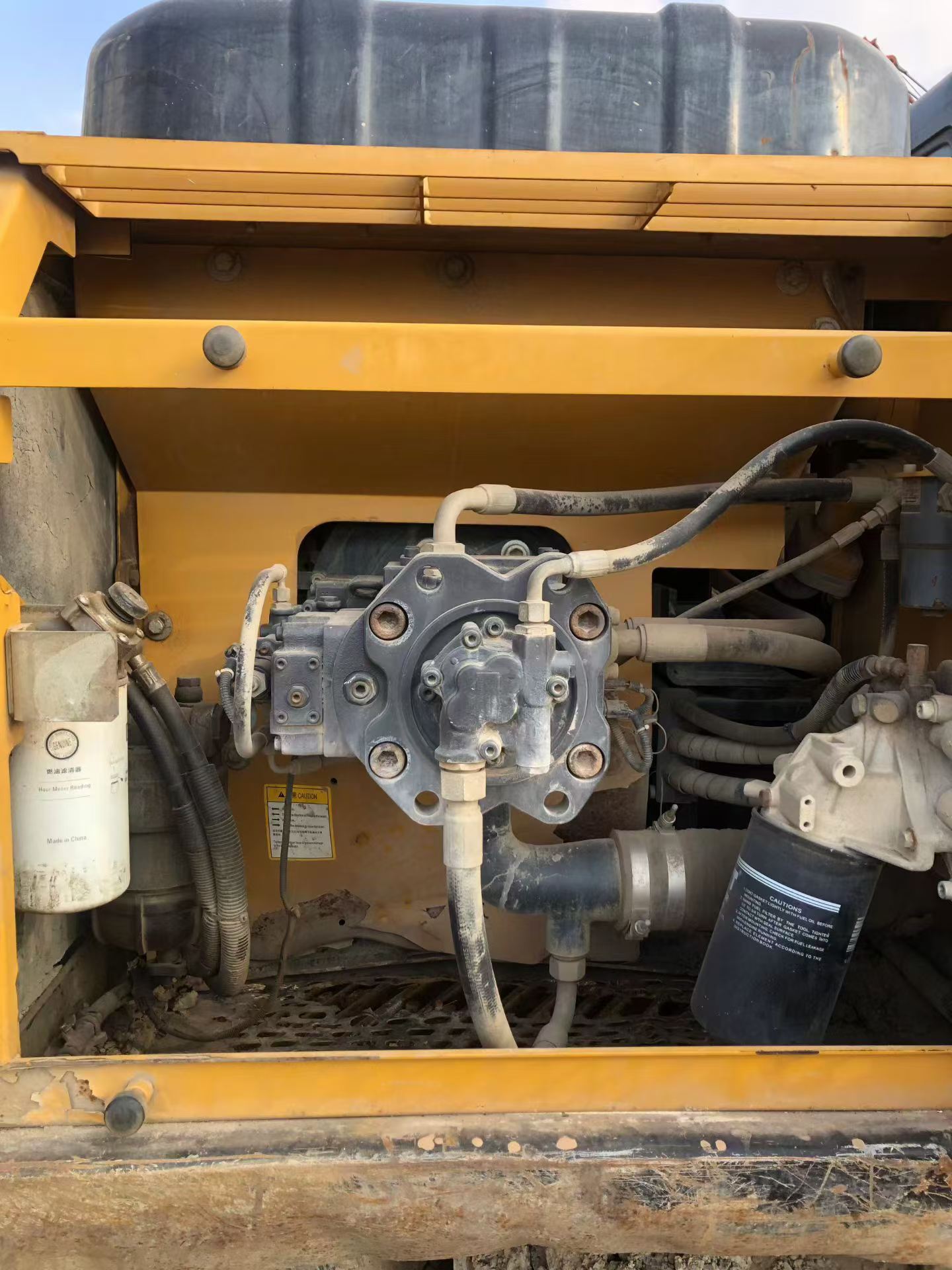

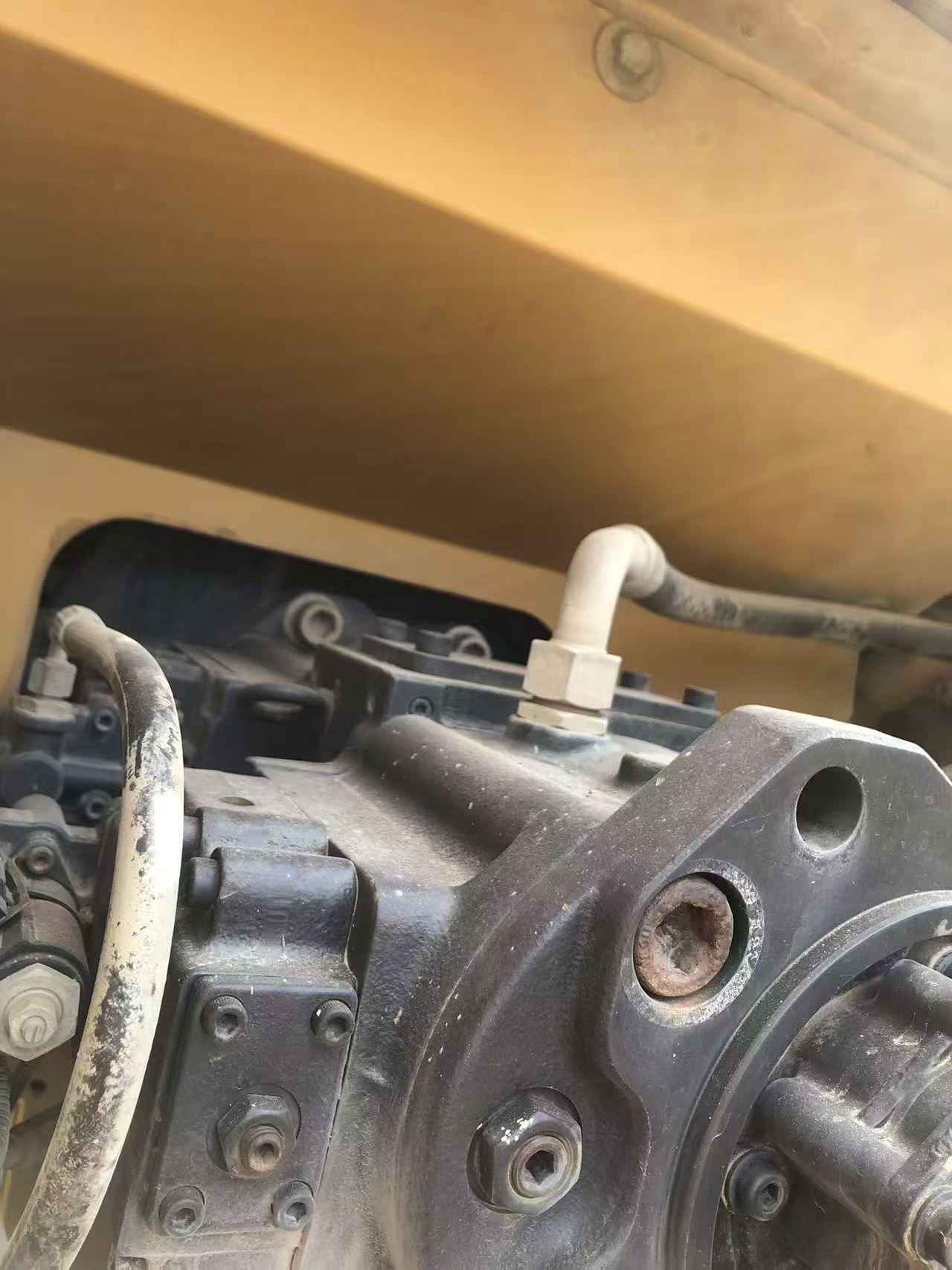

  • Reliable Kawasaki hydraulics delivering strong performance
  • Clean service history focused on earthwork operations
  • Fuel-efficient operation suitable for extended daily use
  • Well-preserved major components including engine and hydraulics
  • Comprehensive documentation and video inspection available

This SY195C-9 offers dependable mid-range capacity for contractors seeking proven Japanese hydraulic technology in a competitively priced Chinese platform. Suitable for general excavation, loading, and site preparation work.

SpecificationsValue
No.1173768
Tonnage (tons)20
Working weight (kg)20700
Bucket capacity (m³)0.83 (optional 0.7~1.0)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe

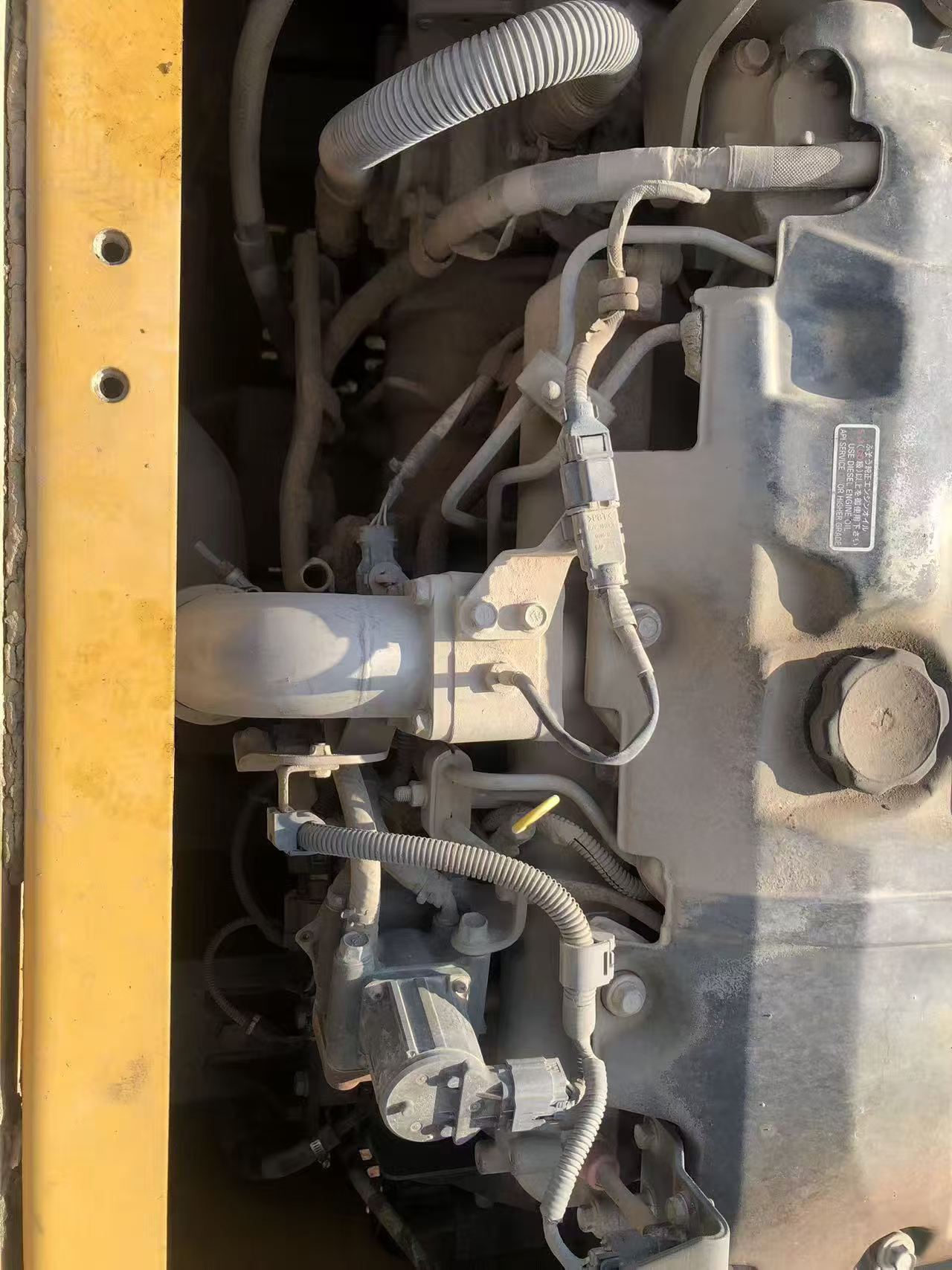

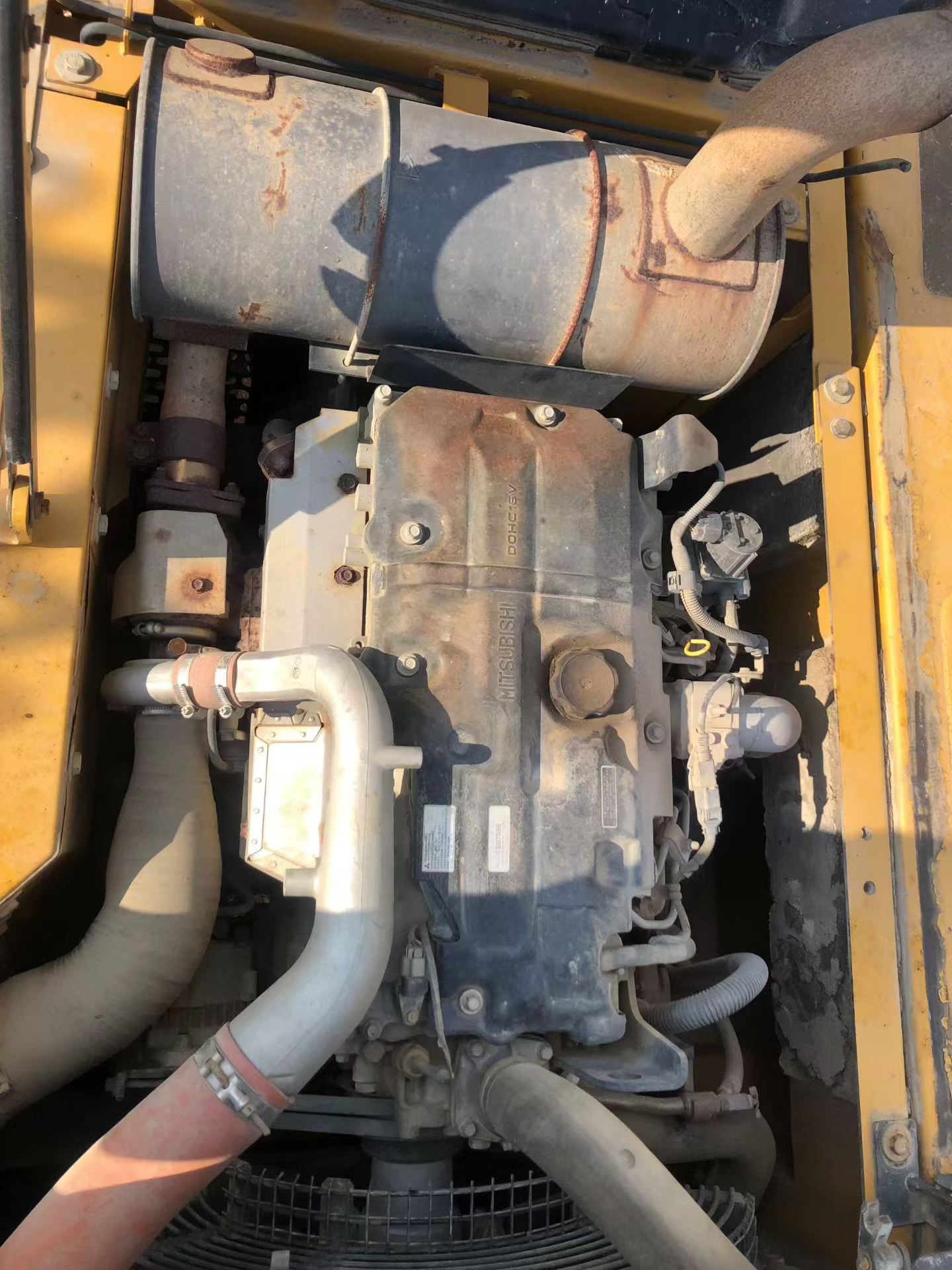

Engine typeSANY D06S2
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)135
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9560
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3755
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9740
Maximum digging depth (mm)6410
Maximum excavation height (mm)9410
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5790
see more

Overview

No.1173768

Brand Name:

Sany

Model Number:

SY195C-9

Year:

2018

Location:

Hunan China

Pub Date:
