Product Description

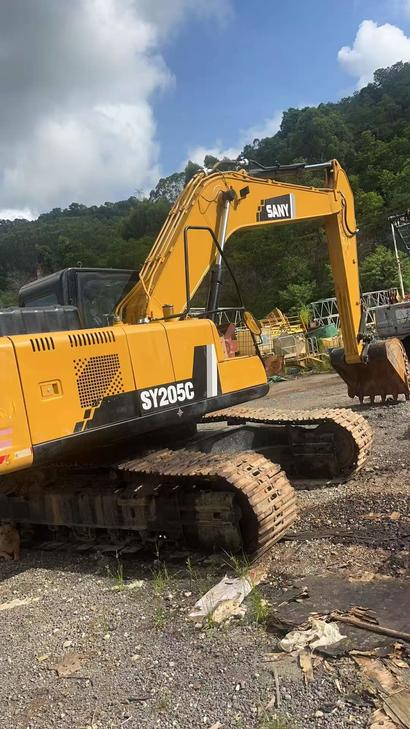

Expand your operational capacity with this 2018 Sany SY205C excavator, currently positioned in Guangdong Maoming and ready for immediate fleet integration. Built for contractors managing multiple jobsites simultaneously, this 20-ton workhorse delivers consistent performance with its 118kW power plant and 0.9-1.1m³ bucket capacity. Rated working weight of 21,500kg provides the stability demanded by high-volume earthmoving operations.
- Performance Specs: 138kN bucket digging force, 109kN arm digging force, 10,280mm maximum reach
- Transport Dimensions: 9,680mm length × 2,980mm width × 3,440mm height for straightforward logistics
- Operational Range: 6,600mm max dig depth, 9,600mm max dig height, 70% gradeability
- Mobility: 5.4km/h high-range travel speed, 3,730mm front swing radius, 600mm track plates
- Factory Origin: Chinese manufacturing with proven field reliability
Perfect as a backup unit during peak season or for simultaneous contract execution. Reduces downtime risk across your equipment roster while maintaining productivity targets on demanding excavation projects.
| Specifications | Value |
|---|---|
| No. | 1021146 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
